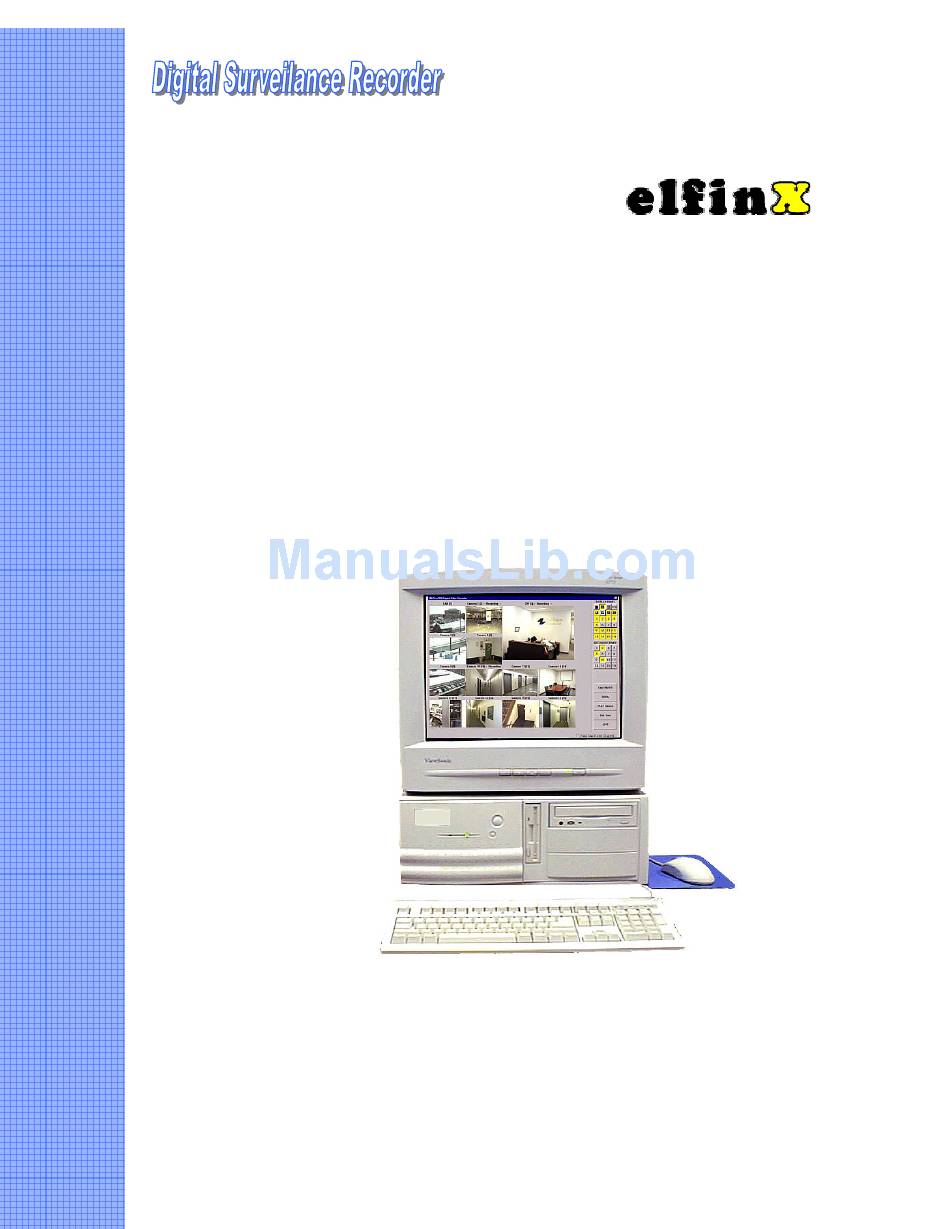

- Page 1 Digital Surveillance Recorder Installation Guide...
-
Page 2: Table Of Contents
COMMON QUESTION ABOUT THE STORAGE CAPACITY DSR ......................27 HE RECORDING CAPACITY OF APPENDIX II CAMERA INFO STORED IN THE REGISTRY............29 .................. 29 AMERA NFORMATION TORED IN THE EGISTRY APPENDIX III COMPACTING DATABASE FOR DSR..............30 www.elfinx.com TX-DSR04 Installation Guide Page 2 of 32... - Page 3 DSR......................30 OMPACTING ATABASE FOR SYSTEM MAINTENANCE ........................30 APPENDIX IV DSR PACKAGE SPECIFICATION................31 DSR-416 P ..........................31 ACKAGE www.elfinx.com TX-DSR04 Installation Guide Page 3 of 32...
-
Page 4: How To Use This Manual
Upgrading for TV Out Feature Section 2, Upgrading Video Display Board for TV Out Feature Upgrading the system with optional Video Section 5, Set up for optional Video Compression Codec Compression Codec (s) www.elfinx.com TX-DSR04 Installation Guide Page 4 of 32... -
Page 5: Section 1..Digital Surveillance Recorder Oem
Follow all the procedures outlined on the screen to finish installing the application software. More detail about installation and software version, please refer to the readme.txt file located in the CD by selecting the “Exit Installation” first. www.elfinx.com TX-DSR04 Installation Guide Page 5 of 32... -
Page 6: Nstallation Uide For Dsr Package
• Alarm I/O cables (with DB25 and DB15 male connectors) • DSR software installation disk (CD-ROM/Floppy disks) • DSR User Manual Alarm Security Key IC Video in socket Video in Video in Video in PCI bus UCC4 Video Capture Card www.elfinx.com TX-DSR04 Installation Guide Page 6 of 32... -
Page 7: Hardware Installation
Put a nut (provided) into each BNC socket from the rear panel of the PC and tighten. (See figure 2) Retain Screw UCC4 #3 UCC4 #2 UCC4 #1 slot UCC4 #4 Figure 1 Lock Nut Figure 2 Camera Alarm connector #1 Alarm connector #2 www.elfinx.com TX-DSR04 Installation Guide Page 7 of 32... - Page 8 Connect the other end of the ribbon cable to the UCC4 cards as shown in Figure 4. • Restore the cover on your PC. Alarm connector Alarm connector #2 Red mark Ribbon cable (DB25) Ferrite beads UCC4#4 UCC4 #2 UCC4 #3 UCC4 LAN Card Figure 4 www.elfinx.com TX-DSR04 Installation Guide Page 8 of 32...
-
Page 9: Software Installation
If necessary, Install the IE5.0 into the PC. • Put the provided DSR installation software CD-ROM disk into the CD-ROM drive and Run the Setup program in the disk. • Operation For operation instruction, please see DSR User Manual. www.elfinx.com TX-DSR04 Installation Guide Page 9 of 32... -
Page 10: Section 2 Upgrading Video Display Board For Tv Out Feature
Note: If you have problem identifying the type of ATI video board you are handling, before and after the installation process, you can simply insert the Installation CD into the system drive and Select Adapter Information from the Menu. The type of video board will be displayed. www.elfinx.com TX-DSR04 Installation Guide Page 10 of 32... -
Page 11: Section 3 System Set Up For Dsr Intelligent Remote Player
Name for the computer you are dialing : (input a name for the remote DSR station) Select a modem: (select the existing modem) Area code: (input area code) Telephone number: (input the telephone number of the remote DSR station) www.elfinx.com TX-DSR04 Installation Guide Page 11 of 32... - Page 12 Follow on the installation of DSR Intelligent Remote Player setup by Pressing "Start", Select "Run" and type " A:\setup.exe" Where A is the (Floppy Disk) drive no. of where you input the DSR Intelligent Remote Player application disk. www.elfinx.com TX-DSR04 Installation Guide Page 12 of 32...
-
Page 13: Section 4 Dsr Dial-Up Server Setting
2. Double click the “Network” Icon, the Network Properties window will appear; 3. Highlight the “TCP/IP->Dial-up Adapter” item, then click “properties”, a “TCP/IP properties information” message box pops up, click “OK”, a “TCP/IP properties” dialog box will appear; www.elfinx.com TX-DSR04 Installation Guide Page 13 of 32... - Page 14 6. Click “OK” twice, a copy file dialog box will appear, you may require to insert the Windows98 SE Installation CD-ROM for system files update. 7. Restart the computer. *if you are using an existing network workstation, please consult your network administrator for the correct setting. www.elfinx.com TX-DSR04 Installation Guide Page 14 of 32...
-
Page 15: Section 5 Installation Instruction For Optional Video Compression Codec (S)
12. Click "OK" in "PICVideo MJPEG Codec Properties" dialog box. 13. Click "OK" in "Multimedia Properties" dialog box. 14. Close "Control Panel". Example Registration Numbers user name for decompressor for compressor peter 14337xxxx 13210xxxx smith 12511xxxx 11513xxxx www.elfinx.com TX-DSR04 Installation Guide Page 15 of 32... -
Page 16: Install Mpeg4 On Windows 95/98
Rem vidc.mp43=MPG4C32.dll (This line is not needed for new DSR v1.7 and its accompanying Intelligent Player or newer application) vidc.mp42=MPG4C32.dll save and close system.ini file Restart the system www.elfinx.com TX-DSR04 Installation Guide Page 16 of 32... -
Page 17: Section 6 Installation Of Alarm I/O Components
It is advisable the actual alarm connection should be thoroughly checked with the type of tester shown before the system setup is released for daily operation. Note: Alarm input Tester (shown) is not part the DSR system. www.elfinx.com TX-DSR04 Installation Guide Page 17 of 32... -
Page 18: Typical Configuration
Section 6 Installation of Alarm I/O components TYPICAL CONFIGURATION Alarm input Alarm input Alarm tester box (Optional accessory) www.elfinx.com TX-DSR04 Installation Guide Page 18 of 32... -
Page 19: Alarm Input Connection
Alarm output 1 Alarm input 6 Alarm output 2 Alarm input 7 Alarm output 3 Alarm input 8 N.C. Alarm input 9 Alarm input 10 Alarm input 11 Alarm input 12 N.C. www.elfinx.com TX-DSR04 Installation Guide Page 19 of 32... -
Page 20: Color Code Of Alarm Input And Output Cables
Pin 6-Alarm #2 output: G Pin 14-Alarm #2 ground: Bk Pin 7-Alarm #3 output: Wh Pin 15-Alarm #3 ground: Bl Pin 8-Not Used Abbreviation: R-Red G-Green Wh-White Bl-Blue Bk-Black Br-Brown Or-Orange Y-Yellow www.elfinx.com TX-DSR04 Installation Guide Page 20 of 32... -
Page 21: Section 7 Installation Of Windows 98 Os
Before you start the following process, it is assumed that the hardware configuration of the PC system unit is complete, the hard drive is partitioned and formatted with the FAT32.file system. A Windows 98 Startup Floppy Disk is available or is prepared with www.elfinx.com TX-DSR04 Installation Guide Page 21 of 32... - Page 22 Certificate of Authenticity or on the back of your Windows 98 CD case. If the number you type isn’t accepted, check the following: • Make sure CAPS LOCK isn’t on. • If you’re using the keypad to the right of your keyboard, make sure NUM LOCK is www.elfinx.com TX-DSR04 Installation Guide Page 22 of 32...
- Page 23 On this screen, you enter a name and descriptions for your computer. If your computer is connected to a network, this information identifies your computer to other user and is used by the Intelligent Remote Player. Establishing Your Location screen www.elfinx.com TX-DSR04 Installation Guide Page 23 of 32...
- Page 24 2. In the Set Windows Password dialog box, type your password again in the Confirm New Password box, and then click OK. The Windows 98 desktop appears. Installation is complete, and you can start using Windows 98. www.elfinx.com TX-DSR04 Installation Guide Page 24 of 32...
-
Page 25: Section 8 Installation Of Optional Pc Peripheral Add-On's
For individual Add-on board being installed as an upgrade, you can follow the similar procedure as the UCC4 card installation for both hard ware and driver. Please see section 1 of the Manual for details. www.elfinx.com TX-DSR04 Installation Guide Page 25 of 32... -
Page 26: Section 9 Installation Of Applications Software
Windows Desktop or Click (Once) the icon from the Status Bar to launch the DSR Applications. 15. To Exit the program, click once on the EXIT button of the Main application Screen and Click the “Yes” button to confirm. www.elfinx.com TX-DSR04 Installation Guide Page 26 of 32... -
Page 27: Appendix I Storage Capacity Calculation
Appendix I Storage Capacity Calculation Appendix I Storage Capacity Calculation A common question about the storage capacity How can I setup recording with 16 and 8-camera inputs for continuous 24 hours, 48 hours and 72 hours of recording? Can I retain 7 days of recording before overwriting it? What hard disk upgrade is needed so that it can do 7-day recording before overwriting? The recording capacity of DSR DSR use advanced wavelet compression technology for real time video compression. - Page 28 Appendix I Storage Capacity Calculation The recording frame rate of DSR The following table tabulates the optimum performance of DSR recording. Average recording frame rate for each Number of camera camera NTSC However, for time lapse recording, user can select the recording frame rate of each camera.
-
Page 29: Appendix Ii Camera Info Stored In The Registry
Appendix II Camera info stored in the Registry Camera Information Stored in the Registry The camera information for UCC card is stored in the registry as follows: String Value: DWORD Value: Camera Mode 0 – NTSC www.elfinx.com TX-DSR04 Installation Guide Page 29 of 32... -
Page 30: Appendix Iii Compacting Database For Dsr
DSR unit in a monthly basis. This will allow the database to close and then do some optimization and compacting of the record configuration during the system power up. www.elfinx.com TX-DSR04 Installation Guide Page 30 of 32... -
Page 31: Appendix Iv Dsr Package Specification
*Dealer installation and system integration is applicable For DSR-416 package product technical specification, please refer to the DSR Digital Surveillance Recorder standard product brochure. www.elfinx.com TX-DSR04 Installation Guide Page 31 of 32... - Page 32 Quotations of a complex project are given on application. Please contact Dealer offices sales support to define the required configurations and in order to check the availability and suitability of the various modules per application. www.elfinx.com TX-DSR04 Installation Guide Page 32 of 32...
