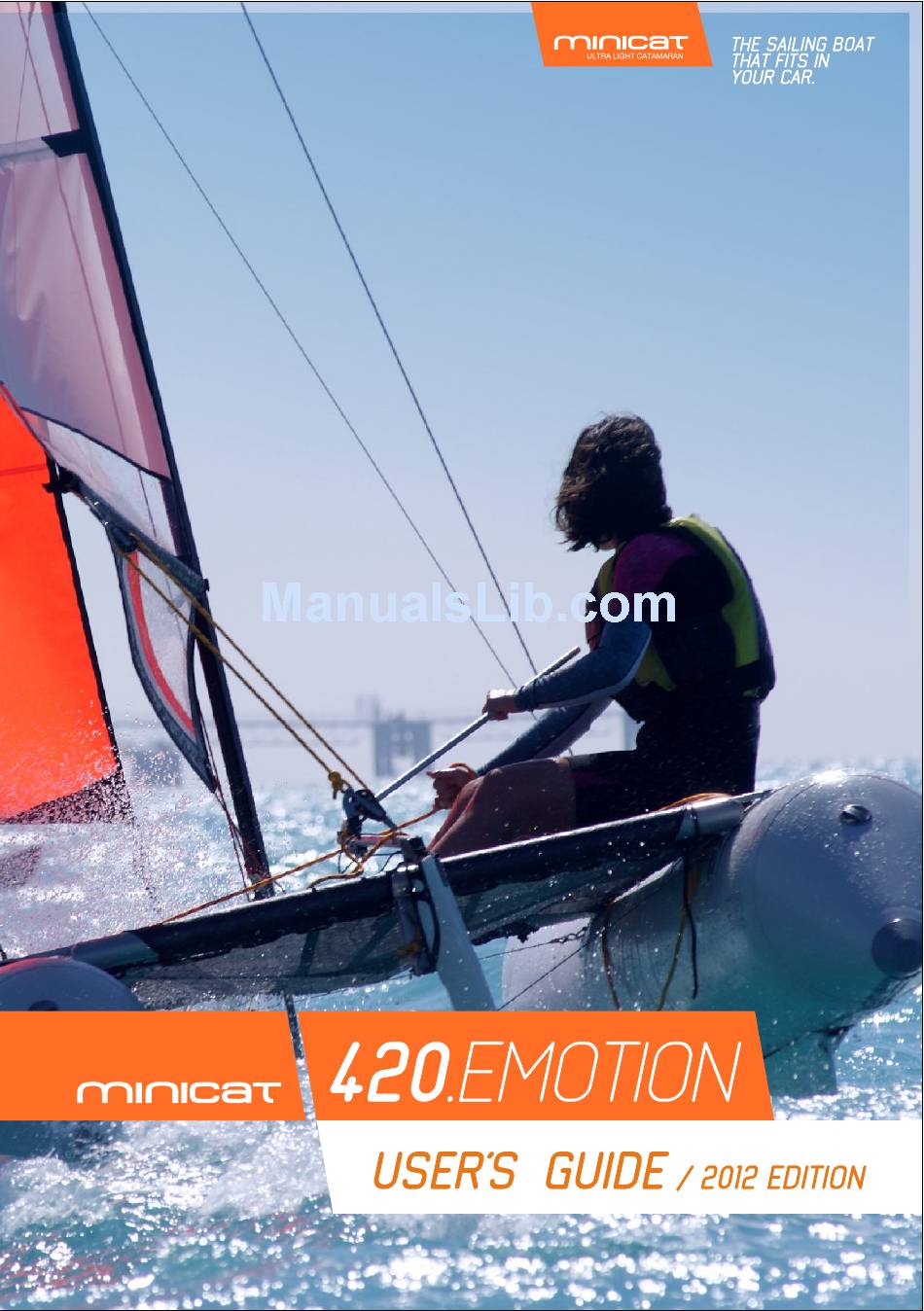

Summary of Contents for Minicat MINICAT 420 Emotion
- Page 2 Václava Kulíška 1174 686 05 Uherské Hradištì Czech Republic Manufacturer's code: Name of the model: MINICAT 420 Emotion Design category of the boat: “D“ - Wind max. 4 Beaufort ! Empty weight of the boat: 44 kg (97 lbs) Maximum permitted load:...
- Page 3 Warning ! Never exceed the maximum permitted load when loading the boat. Always the boat carefully and allocate the individual weight according to the design of the boat. Avoid the location of heavy objects at the top. CZ-HOC Disregarding these instructions may cause the boat to capsize and may result in damage and injury.
- Page 4 Put the rope through the lugs on the bottom of the trampoline and tauten it firmly. Fix the end of the rope it the notch. This will help you stretch the trampoline. Fix the keel fins on the bottom of the non- inflated floats.
- Page 5 Put together the mast. The individual components are just put in one another. Interlace the lifting ropes with a pulley on the Unwrap the bundle of stainless ropes and attach them using snap hooks to the frame as top of the mast. Before erecting the mast, fix the shown in the diagram.
- Page 6 Now you can erect the mast. By tightening the Heave out the sail in vertical direction -by front rope and locking it in the notch you can tightening the rope between the boom and the achieve thorough tautening for all the ropes mast.
- Page 7 Warning ! It is recommended after each sailing, to treat the connections of the mast using silicone oil. Warning ! - If you experience a loss of pressure of 20% of operating pressure inside a 24 hour period when external temperature is constant it is considered to be normal and no reason for a complaint to the manufacturer or a warranty c l a i m !
- Page 8 to dry out thoroughly. After sailing it in salt water it is necessary to wash the boat with fresh water. It is recommended to clean all parts from dirt, sand and other impurities using an absorbent cloth. Please note that oil, petrol, acetone, kerosene, paraffin and similar solvents and chemicals disagree with the rubber layer on the surface of the boat and...
- Page 9 All warranty repairs are carried out by Useful knots a designated, authorised repairer or by the manufacturer: Martin Horák - design Václava Kulíška 1174 686 05 Uherské Hradištì Czech Republic www.minicat.cz E-mail: minicat@seznam.cz CAUTION Warning ! Sailing can be very dangerous and personally exhausting.
- Page 10 Recommended packing To avoid unnecessary damage while storing or transporting your boat please follow the instructions on recommended packing below: 1. Bag 1. - 1x Frame - rear 2. - 1x Frame - front + Trampoline 3. - 2 x Float 4.
-
Page 11: Beaufort Scale
Beaufort scale... - Page 12 Giving Way in Sailing All types of vessels on the water are governed by the International Regulations for Preventing Collisions at Sea, frequently abbreviated as COLREGS. The entire set of rules is highly complicated, however, when you start sailing, it is sufficient to be familiar with the basic rules that are listed here.
- Page 13 No. 01 - 2009 Manufacturer: Martin Horák - design Václava Kulíška 1174 686 05 Uherské Hradištì Company Registration Number: 66787441 Registered MIC (Manufacturer's Identity Code) according to ÈSN EN ISO 10087, Art. 42 - "HOC" declares and certifies on its axclusive responsibility that the product: Recreational Craft - MINICAT 420 determined for sailing in protected offshore waters, large lakes, river mouths, bays, etc., is designed and produced in conformity with the requirements of...
