Summary of Contents for scope Connexicms II

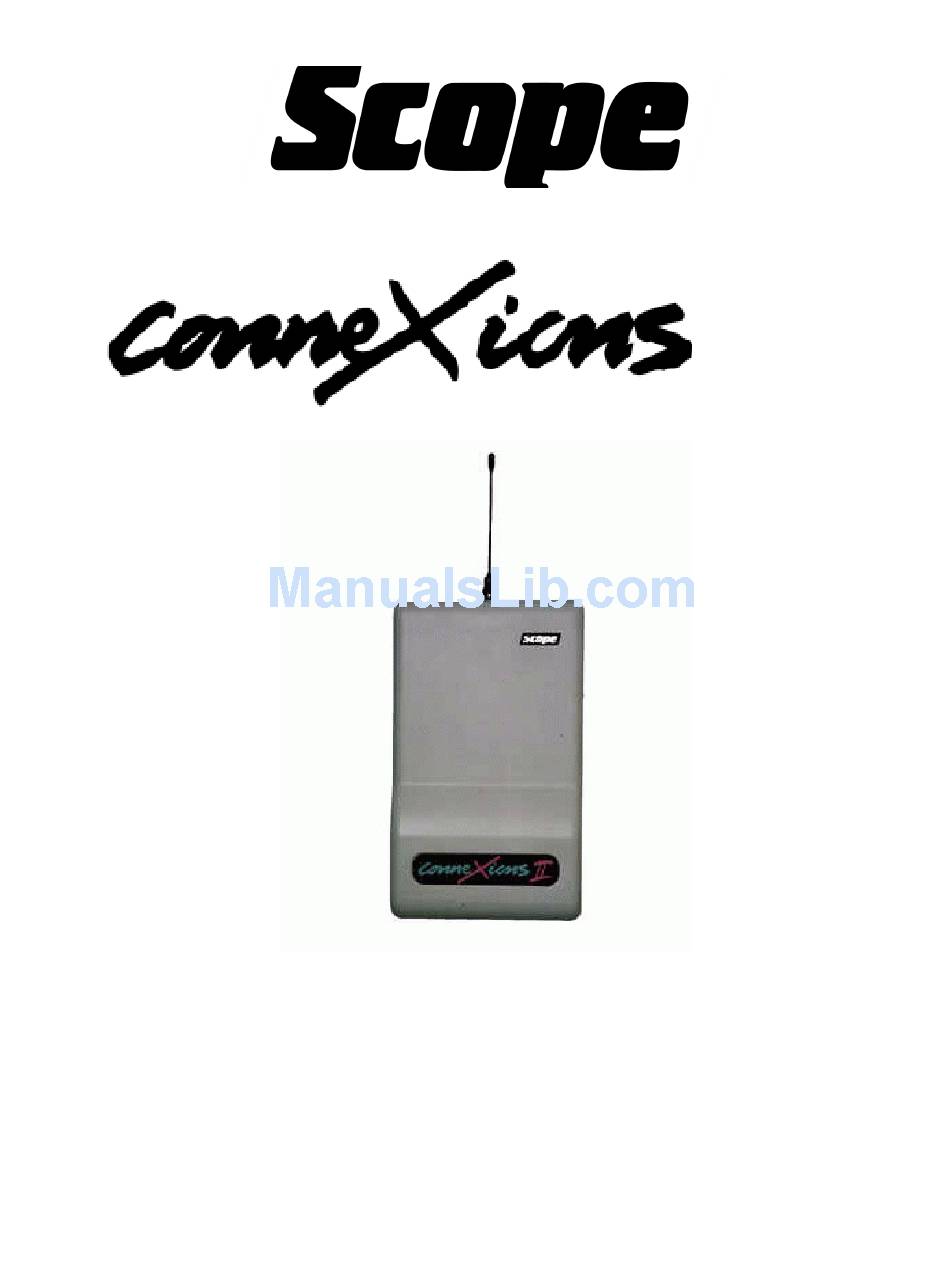

- Page 1 Telephone Interface User Manual...
- Page 2 The Scope digital paging interface can be used to transmit text or numeric messages from any internal telephone on your exchange, direct to the pocket of the individual being paged. There are two types of interface available, these cover most types of hybrid and PBX systems with DTMF capability.
- Page 3 Scope Telephone Paging Interface (Models LP and MF) WARNING ! Ensure mains power is isolated from the ConneXions transmitter BEFORE removing the cover to access the switches. Note: see the manual supplied with the Transmitter for full system installation details.
- Page 4 Scope Telephone Paging Interface (Models LP and MF) Using the System: Tone Only Pagers STEP 1: Connect to the System Dial paging system extension (MF version) or line port (LP version) Wait for sign-on tones (3 notes escalating low to high) STEP 2: Enter Pager No.
- Page 5 Scope Telephone Paging Interface (Models LP and MF) Note: Rejected data is indicated by a single low beep. Re-enter data from STEP 2 or replace handset, wait for time-out and start again. Using the System: Alphanumeric Pagers STEP 1: Connect to the System...
- Page 6 Scope Telephone Paging Interface (Models LP and MF) STEP 3A: Send Alphanumeric message with embedded numeric message Where a pre-programmed message has a ~ symbol shown within the message, a number can be added at this point (up to 20 digits) e.g. “Call room number ~”.
- Page 7 Scope Telephone Paging Interface (Models LP and MF) Advanced Features When proficient at using the system, you can speed up your paging by not waiting for the prompt tones, simply enter the pager number message and listen for the sign off tones.
- Page 8 Scope Telephone Paging Interface (Models LP and MF) Programming Procedure (note: may be substituted with see page 2) Code 1: Set number of rings before answer (MF version only) Dial paging system extension (MF version) Wait for sign-on tones (3 notes escalating low to high)
- Page 9 Scope Telephone Paging Interface (Models LP and MF) Code 4: Set Inactivity Time-out Dial paging system extension (MF version) Wait for sign-on tones (3 notes escalating low to high) Enter 72765 (any delay in between sending and password will result in...
-
Page 10: Service Information
Scope Telephone Paging Interface (Models LP and MF) Pagers can be set within the range 0 -9999. If using only one pager type, set the range for the others to zero. Gaps within the range are acceptable, overlapping groups are illegal.
