HDBaseT 4x4 Matrix Switcher
Model CM-MT4410-BT-70
2014-12-352 • Rev 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-MT4410-BT-70 and is the answer not in the manual?

Questions and answers

Related Manuals for Clare Controls CM-MT4410-BT-70

Summary of Contents for Clare Controls CM-MT4410-BT-70

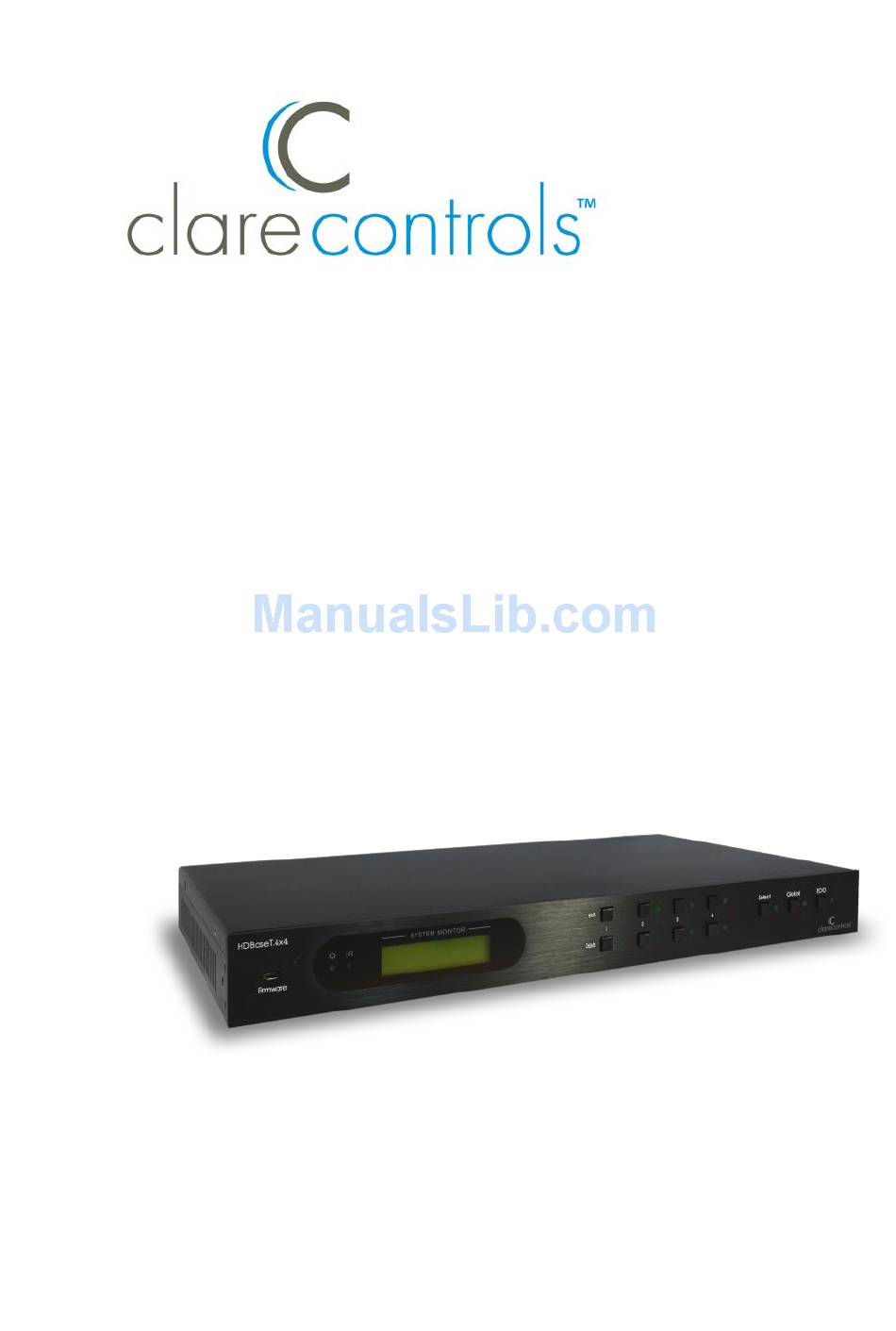

  • Page 1 HDBaseT 4x4 Matrix Switcher Model CM-MT4410-BT-70 2014-12-352 • Rev 03...
  • Page 3 Copyright © 11DEC14 Clare Controls, Inc. All rights reserved. This document may not be copied in whole or in part or otherwise reproduced without prior written consent from Clare Controls, Inc., except where specifically permitted under US and international copyright law.

  • Page 5: Table Of Contents

    Content Important information...iii Limitation of liability...iii Introduction...1 Features...1 Package contents...2 Product appearance...4 Front panel...4 Rear panel...5 Connection with RS232 communication port...6 Twisted pair cable connection...7 System connection...8 Usage precautions...8 System diagram...9 Connection procedure...10 System applications...10 Application solution...11 System operations...11 I/O control...11 Learn EDID data...12 EDID setting...12 Status check...13...
  • Page 6 Specifications...30 Troubleshooting and maintenance...32 Safety operation guide...34 After-sales service...35 HDBaseT 4x4 Matrix Switcher User Guide...

  • Page 7: Important Information

    Important information Limitation of liability To the maximum extent permitted by applicable law, in no event will Clare Controls, Inc. be liable for any lost profits or business opportunities, loss of use, business interruption, loss of data, or any other indirect, special, incidental, or consequential damages under any theory of liability, whether based in contract, tort, negligence, product liability, or otherwise.

  • Page 9: Introduction

    Introduction The CM-MT4410-BT-70 is an HDBaseT matrix switch with four HDMI inputs, four HDBaseT outputs (with two mirrored local HDMI outputs), four de-embedded stereo audio outputs, and four de-embedded digital audio outputs. It enables cross-point switching from any input to any output, and supports high-resolution 1080 P, 3D, and 4K*2K.

  • Page 10: Package Contents

    Package contents 1 x CM-MT4410-BT-70 HDBaseT 4x4 matrix switch   2 x removable brackets for rack mounting of the switch  10 x screws  1 x power adapter (48 VDC)  1 x power cord  1 x IR remote ...
  • Page 11 HDBaseT 4x4 Matrix Switcher User Guide...

  • Page 12: Product Appearance

    Product appearance Front panel Figure 1: Front panel of HDBaseT 4x4 Matrix Switcher (1) Firmware Micro USB port for updating firmware. (2) Power indicator Power 'on' indicator light. (3) IR receiver IR receive window. (4) LCD indicator Shows real-time system status. (5) INPUTS/Menu Normal mode: Input buttons range from 1 to 4.

  • Page 13: Rear Panel

    Note: This applies to all IR inputs on this switch. When using a control system, such as Clare Controls, Crestron, or URC, the 3.5 mm female mono to 3.5 mm male stereo adapter cable (included) must be used. The female mono end connects to the control system.

  • Page 14: Connection With Rs232 Communication Port

    Connection with RS232 communication port The CM-MT4410-BT-70 HDBaseT matrix switch can be controlled by the front panel, IR, or RS232. RS232 control is via the rear RS232 communication port. It is a female 9-pin D connector. The pin definitions are listed in the table below.

  • Page 15: Twisted Pair Cable Connection

    Twisted pair cable connection The cables for HDBaseT ports must be straight-thru using the T568B standard, as shown below. Table 2: T568B cable standards TIA/EIA T568B Cable color orange white orange green white blue blue white green brown white brown 1st Ground 2nd Ground 3rd Group...

  • Page 16: System Connection

    System connection Usage precautions  The system should be installed in a clean environment with the proper temperature and humidity controls.  All of the power switches, plugs, sockets, and power cords should be insulated for safety.  All devices should be connected before powering on. ...

  • Page 17: System Diagram

    System diagram Figure 3: System diagram HDBaseT 4x4 Matrix Switcher User Guide...

  • Page 18: Connection Procedure

    Connect the 48 VDC power adapter to the HDBaseT 4x4 matrix switcher. System applications The CM-MT4410-BT-70 matrix switch is useful in any scenario when an HDMI signal (along with control signals) must be transmitted reliably across greater distances than is practical using traditional HDMI cables. It can be used in both residential and commercial applications when centrally locating the source equipment and displaying HD video in remote locations.

  • Page 19: Application Solution

    Application solution Figure 4: Solution diagram System operations The button operation examples are shown in “Error! Reference source not found. Here e make a brief introduction to the system inquire operations. I/O control Convert an input to an output. Example: Input 1 to output 2. Operation: Press 1 + 2 + SELECT Note: In default status, eight IR OUTs are corresponding with eight HDM INPUTS.

  • Page 20: Learn Edid Data

    Convert an input to all. Example: Convert Input 1 to all outputs. Operation: Press 1 + GLOBAL + SELECT Note: Each button flashes three times, and then extinguishes. Should the operation fail, the light extinguishes immediately. Learn EDID data Learn EDID data from one input port to one output port. Example: Enable input 2 to learn EDID data from output 4.

  • Page 21: Status Check

    Status check To access the System Inquire menu, press SELECT for 3 seconds. Use the left and right direction buttons to navigate checking previous and next item. Table 3: Examples of front panel operations Function items Example Description Check the connection Y means the corresponding port is 1 2 3 4 status of inputs...

  • Page 22: Ir Control

    IR control Using IR and HDBaseT transmission technology, the switcher has the following functions.  Control far-end output device from local  Control local input and output device remotely  Control the switcher locally or remotely Note: Non-flashing emitters are not supported. You can control the switcher using its built-in IR receiver, or through the IR EYE port by connecting it to an extended IR receiver.

  • Page 23: Ir Operations

    (4) Direction buttons Up, Down, Left, Right, Enter to confirm. (5) Output buttons 1 to 4, IR signal switched to the corresponding output signal. IR operations IR matrix switching The four “IR OUT” ports make up an 8x8 IR switcher with the four “IR IN” ports of the far-end receivers, as shown below.
  • Page 24 Example: Send command “3R2.” to transfer the IR signal received from zone 2 to IR OUT port 3. Note: When you switch all of the four IR input signal channels to the same IR out channel, it is not able to control the all controlled device(s) at the same time. IR carrier enforcing Only when the IR receiver that is connected with the HDBaseT receiver is with IR carrier, can the received IR signal be transferred to the IR OUT port of the switcher.
  • Page 25 Control far-end device through IR ALL IN port The IR signal received from the IR ALL IN port is transmitted to all the four far-end HDBaseT receivers connected to HDBaseT ports of the switcher. Figure 8: Control remote devices through IR ALL IN port IR receiver IR remote Blu-ray...
  • Page 26 Figure 9: Control local devices remotely Blu-ray Rx receiver HDTV IR receiver HDTV IR remote Controlled by a third-party IR control device Using the IR converting cable (included), connect the 3P end to the switcher’s IR input port, and then connect the 2P end to the IR output port of the third-party control device. The IR signal is transmitted via the twisted pair to the remote output device.

  • Page 27: Rs232 Control

    RS232 control Bi-directional RS232 to each connected HDBaseT receiver allows control of displays, projectors, etc. at the receiver locations. The default settings of the CM-4410-BT-70 are: baud rate = 9600, data bit = 8, stop bit = 1, and parity bit = none. Communication protocol: RS232 communication protocol Baud rate: 9600 Data bit: 8 Stop bit: 1...
  • Page 28 Status. Returns the current status of the input channel to the output channels one by one. Save[X]. Saves the present operation to the preset command [X], ranges from 0 to 9. Recall[Y]. Recalls the preset command [Y]. Clear[Y]. Clears the preset command [Y]. PWON.
  • Page 29 %9901. Set as infrared carrier enforcing mode. %9911. Reset to factory default. %9951. Check the command sent by port 1 when PWON. %9952. Check the command sent by port 2 when PWON. %9953. Check the command sent by port 3 when PWON. %9954.
  • Page 30 Notes  Disconnect all the HDBaseT cables before sending command EDIDUpgrade[X].  In above commands, the [ ] symbols are for easier reading and do not need to be typed in the actual operation.  Remember to end the commands with the ending symbols “.” and “;”. ...
  • Page 31 Control the matrix switcher by remote Connect the female 9 pin RS232 port to PC by using the RS232 command “/+[Y]/[X]:******.” You can now control the third-party devices connected to the HDBaseT receiver. Figure 12: Control third-party devices Rx receiver Third-party device Bi-directional RS232 control By connecting the one 3-pin captive screw RS232 port of the 4x4 matrix switcher with...
  • Page 32 Figure 13: Control far-end device Rx receiver Third-party device Control the switcher by remote Connect the RS232 (3pin captive screw) port in one zone to control the third party device, and then connect the PC to the corresponding receiver. Figure 14: Control from remote Third-party device Rx receiver HDBaseT 4x4 Matrix Switcher User Guide...

  • Page 33: Tcp/Ip Control

    TCP/IP control You can configure your switcher remotely using its web interface. Connection modes The default IP settings are as follows:  TCP/IP: 192.168.0.178  Gateway: 192.168.0.1  IP control port: 4001 You can change the IP and gateway settings as needed. Do not change the serial port number.
  • Page 34 Set the PC’s IP and gateway to the same IP subnet as the default IP of the switcher (192.168.0.178). Launch your web browser, and then enter 192.168.0.178. This is the default IP address for all Clare Controls HDMI switchers. When the Web Interface Login page displays, enter the password “secure7”, and then click Login.
  • Page 35 Configuring the switcher using the web interface You can configure the switcher’s inputs and outputs, user, interface, configuration, and network settings using the switcher’s web interface. The interface displays automatically when you log into the device. To configure using the web interface: Click the Main tab, and then click an input button and its corresponding output button.
  • Page 36 Click the Interface tab to define a title bar label that displays on the switcher’s front panel. You can also label the inputs and outputs. Click the Configuration tab to turn on or off your HDCP compliance inputs and to configure EDID.
  • Page 37 Select the Network tab to set the following parameters.  DHCP  Subnet mask  Static IP  Gateway  IP address Click Save. Reboot the switcher. Once rebooted, you will be able to connect the switcher over IP. HDBaseT 4x4 Matrix Switcher User Guide...

  • Page 38: Specifications

    Specifications Video Input Video Output Input type HDMI Output type HDMI Input connector Female HDMI Output connector Female HDMI, female RJ45 (with LED indicators) Input level T.M.D.S. 2.9 V / 3.3 V Output level T.M.D.S. 2.9 V / 3.3 V Input impedance 100Ω...
  • Page 39 Default IR remote TCP/IP control Web-based GUI. Extend IR EYE General Power supply Input: 100 VAC to Power 48 W 240 VAC, 50/60 Hz consumption Output: 48 VDC, 1.6 A Temperature Humidity 10% to 90% -4° to 158°F (-20° to +70°C) Case dimension 19.0 ×...

  • Page 40: Troubleshooting And Maintenance

      When using a control system such as Clare Controls, Crestron, or URC, the 3.5 mm female mono to 3.5 mm male stereo adapter cable (included) must be used. Connect the female mono end to the control system. Connect the male stereo end to the CM-BT10-TX70.
  • Page 41  No output image when switching  Ensure that switching is being made to the correct output channel.  Ensure that the source is on and sending a signal. Verify this by switching the source to an alternate display, or by routing the source directly to a display. ...

  • Page 42: Safety Operation Guide

    Safety operation guide To guarantee the reliable operation of the equipment and safety of the staff, please follow the procedures listed below.  The system must be grounded properly. Do not use two blades plugs. Ensure the supply voltage is in the correct range of 100 to 240 V and from 50 to 60 Hz. ...

  • Page 43: After-Sales Service

    After-sales service  If there appears to be problems when running the device, refer to the “Troubleshooting and maintenance” section in this manual. Return shipping costs are not covered by this warranty.  You can contact Customer Support at http://support.clarecontrols.com. Please be ready to provide the following information.
