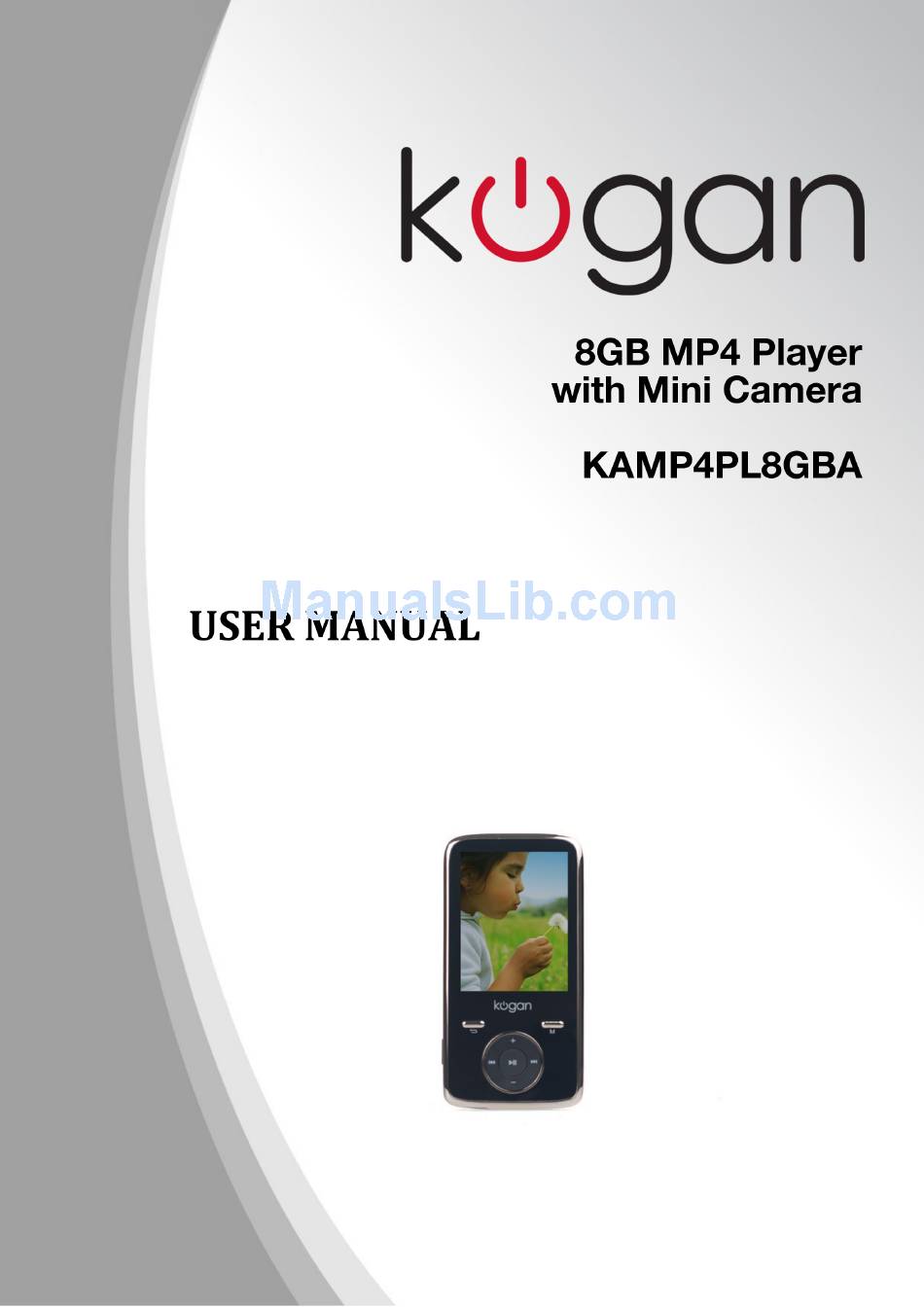

Kogan KAMP4PL8GBA User Manual

8gb mp4 player with mini camera

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Table of Contents

Need help?

Do you have a question about the KAMP4PL8GBA and is the answer not in the manual?

Questions and answers

Summary of Contents for Kogan KAMP4PL8GBA

Page 2: Safety Warnings
1 Getting reading to use 1.1 Precautions Please read the following instructions carefully for your safety and prevention of property damage;  Do not expose the device to liquid, moisture or humidity place;  Do not leave the device under strong light or nearby any heating appliances for a long time; ...
Page 3: Features Overview
1.3 Features overview 320 X 240 full color TFT screen;  Supporting music formats of WMA, WAV, MP3;  Supporting video formats of AVI (may need a converter);  Supporting picture browse in JPEG, BMP, GIF format;  With built-in microphone; ...
Page 4 The battery life may be different in consideration of actual use condition, manufacturing company or producing time. Please charge the battery in below conditions: When the battery indicator shows no power remaining; The player turns off automatically, and it turns off again after reboot; No response on button press;...
Page 5: Player Overview
2 Player Overview 2.1 Location buttons ① POWER ON/OFF ② RETURN ③ MENU ④ VOLUME UP ⑤ VOLUME DOWN...
Page 6 ⑥PREVIOUS ⑦NEXT ⑧ PLAY/PAUSE 2.2 Main interface 2.3 Battery indicator When the device is fully charged, the battery indicator blocks are full, and then it gradually becomes blank as the usage time increases and power decreases. When the battery runs out, the battery capacity indicator blocks become blank, and you need to charge the player.
Page 7 You can charge the player by linking it with PC, or using accessory charger for battery charging. (Note: switch the player on before charging.） 2.4 Buttons introduction : Press to go back to the previous menu. Press to show the menu. Hold down to return to the main menu. : Press to go back to previous track;...
Page 8: Play Music
Long press Press the button for more than 1.2 seconds Press and hold Press the button and hold until the desired function is in effect 2.6 Power on / off  When the player is off, push the power switch to “ON” position to turn the player on. When the player is on, push the power switch to “OFF”...
Page 9: Function Description
is no music stored; All tracks All tracks list; Artist Playlist arranged by artist; Album Playlist arranged by album; Genre Playlist arranged by genre; Play list Customized playlist; Directory list Choose local folder, or card menu; Recorded files Recorded files list Level Playlist for starred songs (with five star level) Tag playlist...
Page 10 3. Playing submenu In music playing interface, short press “M” button to enter the playing submenu, short press “PLAY” button for confirmation. A-B repeat Choose “A-B repeat” from the playing submenu, short press “►‖” button to confirm starting point, the screen displays icon "A-"; press the button again to set the ending point, the screen displays "-B".
Page 11 Speed control ” Change the play speed of the current song. Hold down the " button to change the value. Lyric display When music in play, if there is a lyric file matched to the playing song, press “M” button can switch to the lyric display interface.
Page 12: Function Of Buttons
List mode List all photos from the disk; Browsing pattern Thumbnail view Display all pictures as thumbnails from the disk Manual playing Manual play, short press “ ” button. Play method Slide show Photo slide one by one by pressing “►‖” button Function of buttons Press the "...
Page 13: Function Descriptions
6 Video Choose “Video” from the main menu, and short press “►‖” button to enter the video file play list. Now playing Press “ ” button to enter the playlist. ►‖ Content Choose the local folder or card menu. Tag playlist Enters into the tag playlist.
Page 14 : Press this button for volume down 7 Record Choose “Record” from the main menu, and short press “►‖” button to access the “Record” mode. Start recording: short press “►‖” button to start voice recording. Recording format: short press “M” button into the submenu and choose the record format. The WAV format has different bit rates ranging from 32/64/192/384kbps, and MP3 format has bit rates of 64/128/256 Kbps.
Page 15 segment; In Record mode, short press “M” button to enter the recording submenu to set relative parameters. Record format: can choose WAV or MP3 format, then press “ ” button for confirmation. ►‖ Record Quality: choose among: low, medium and high, then press “ ”...
Page 16 Function of buttons Short press “ ” button to choose your desired file; When a file is selected, short press “►‖” button to enter the relative text reading interface; Short press “►‖” button to enter the e-Book reading interface, press “►‖” button to choose “Manual play”...
Page 17 9 Extras Choose “Extras” from the main menu, and short press “►‖” button to enter. 10 Stopwatch Entering into the stopwatch interface, short press “►‖” button to pause the clock, press “ ” button to save the first clock pause, and start another record, until the fifth record, press “...
Page 18: File Explorer
12 Calendar Entering into the calendar interface, button operations as below: 1. Short press “►‖” button to display the calendar confirmation interface, press “ ” button to select the parameter to adjust: date/month/year, short press “►‖” button to confirm, press “ ”...
Page 19: Local Folder
14 Local folder Choose the local folder, short press “►‖” button to enter; the screen will display all folders under the local folder. Choose the folder that needs navigation, short press “►‖” button to enter; the screen will display all files under this folder. Choose the file you need navigation, short press “►‖” button to confirm the selected file.
Page 20: Display Setting
returns to the upward menu, and step by step returns to the main menu. Time format: short: press “M” button to choose 24 hour clock type. To display in the title: choose on, then you see the real-time displayed in the title of the screen.
Page 21 (ranges from 10 minutes to 5 hours). The operation method will be same as power saving mode setting. Flash format: able to format the player' s built-in memory. Please remember to backup your data before formatting; the operation method will be same as memory card formatting. ( Note: after flash format, slide the power switch to turn the player on again.）...
Page 22 Short press “ ” button to adjust focus. The player supports 1.0~2.0 (x11 levels) digital zoom. Short press “►‖” button to take photo, or press “SHOT” button directly to take photo, press “ ” button returns to the upward menu. The captured picture will be saved under the PICTURE folder.
Page 23 The default setting is: 640x480; 10. Self-timer shooting Set the delay time before the shutter is released: Off, 5 seconds, 10 seconds, 15 seconds, and 20 seconds. The default setting is “Off”. 11. Shutter sound Available selections are: Off, EQ1, EQ2, EQ3. The default setting is EQ1. 12.
Page 24: Troubleshooting
· Check if the battery is charged; · Connect with charger to see if the battery is holding enough charge. · If the player is unable to be switched on after battery charging, then please contact the Kogan customer service center.
Page 25: Specifications
2． No sound from the earphone · Please make sure the volume is not at 0 and earphone connection is secure. 3． Distorted noise · Please make sure the earphone plug is clean, as sometimes contaminations on the earphone plug may cause noise. ·...
Page 26 WMA bit rate 32K bps – 384K bps Frequency response 20Hz~20KHz 85dB Distortion 0.06% Music format MP3, WMA, Video format AVI( 320*240 pixels ) Operating temperatures -5 ℃~ 40℃ Supported languages English, simplified Chinese, traditional Chinese, Japanese, Korea, French, German, Italian, Dutch, Portuguese, Spanish, Swedish, Czech, Denish, Polish, Russia, Turkish, Hebrew;...
