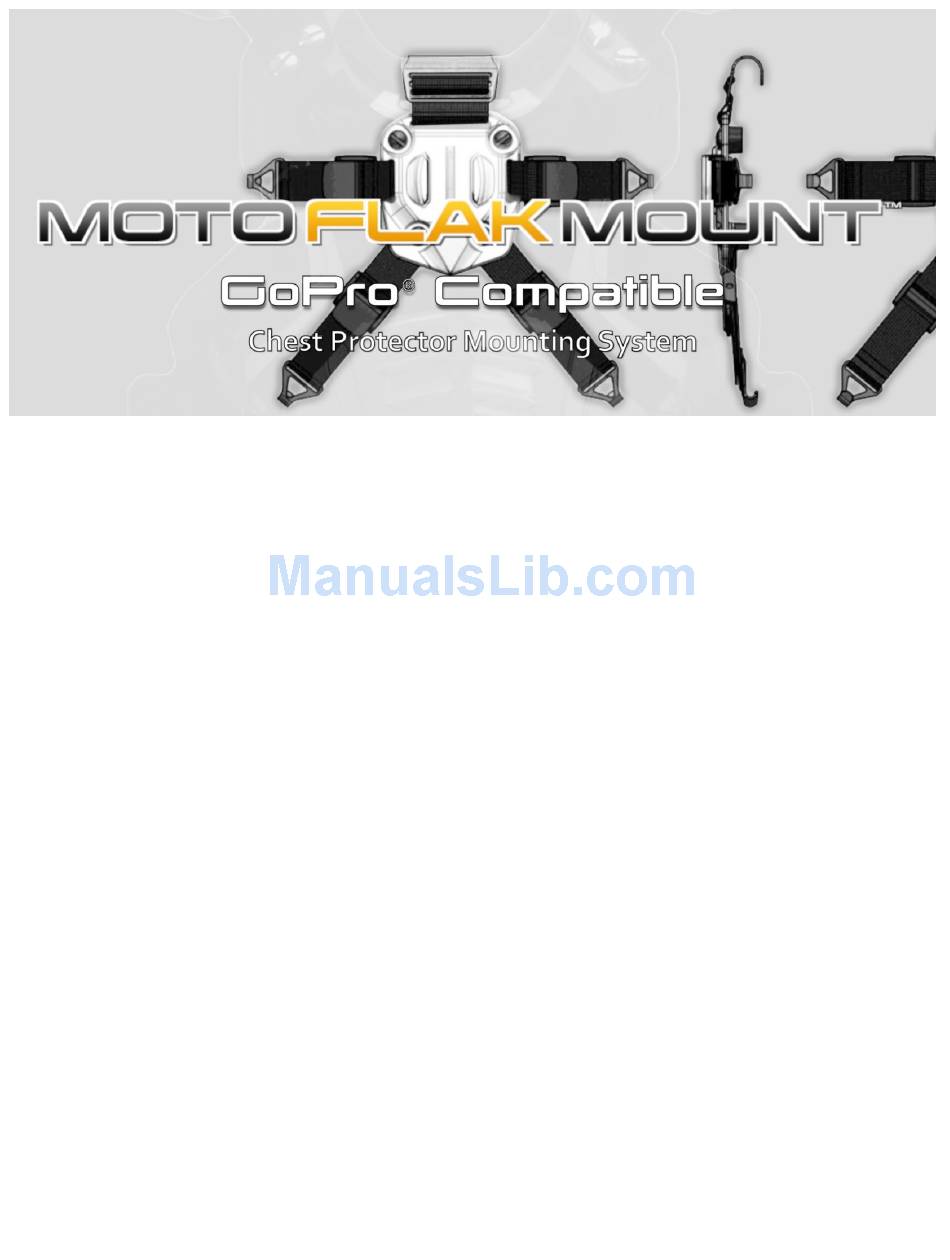

Orion Innovations MotoFLAKmount User Manual

To get the most out of your MotoFlakMount (MFM) take a quick look at the following information!

Quick Installation Instructions:

1) Snap your GoPro J-Hook adapter into the MFM as shown on page 2, according to your
particular mounting application (Hero 3 and Hero 2 mounting is different).
2) Position the Upper Hook so that it engages the neck relief or plastic plate on your chest
protector.
3) Engage lower hooks & cinch the straps thru the buckles; lower straps should have a
reasonable angle between them for both good lateral stability & a good down pull on
the upper hook.
4) Engage the side hooks & cinch the straps thru the buckles. Ideally, if the side hooks
should slide, they should tighten the straps, not loosen; side strap removal is
recommended for some applications (E.g. Thor Sentinel front mounting). See website
for more details.
5) Check your MFM installation with a good wiggle and install your GoPro as shown on
page 2 with your long Thumbscrew. Make sure your buckles are fully locked.
6) Time to ride and adjust your camera angle for your riding style and gear!
Thank you for your purchase!
