USB Bar Code Scanner
Installation Instructions
Follow these instructions to connect and program any of these USB bar code scanners:
• JADAK flexpoint HS-1M on the NanoMaxx® ultrasound system
• Symbol LS2208 on the NanoMaxx, M‐Turbo®, or S Series
When connected, the bar code scanner is listed on the system's USB Devices setup page.
See Bar Code Scanner User Guide from SonoSite for information on safety and cleaning.
Symbol bar code scanner
To connect and program the Symbol bar code scanner
1 Attach the scanner cord to the bar code scanner and to a USB port on the ultrasound system.
See Symbol LS2208 Quick Start Guide included with the bar code scanner.
For location of USB ports, see the ultrasound system user guide.
2 Turn on the ultrasound system.

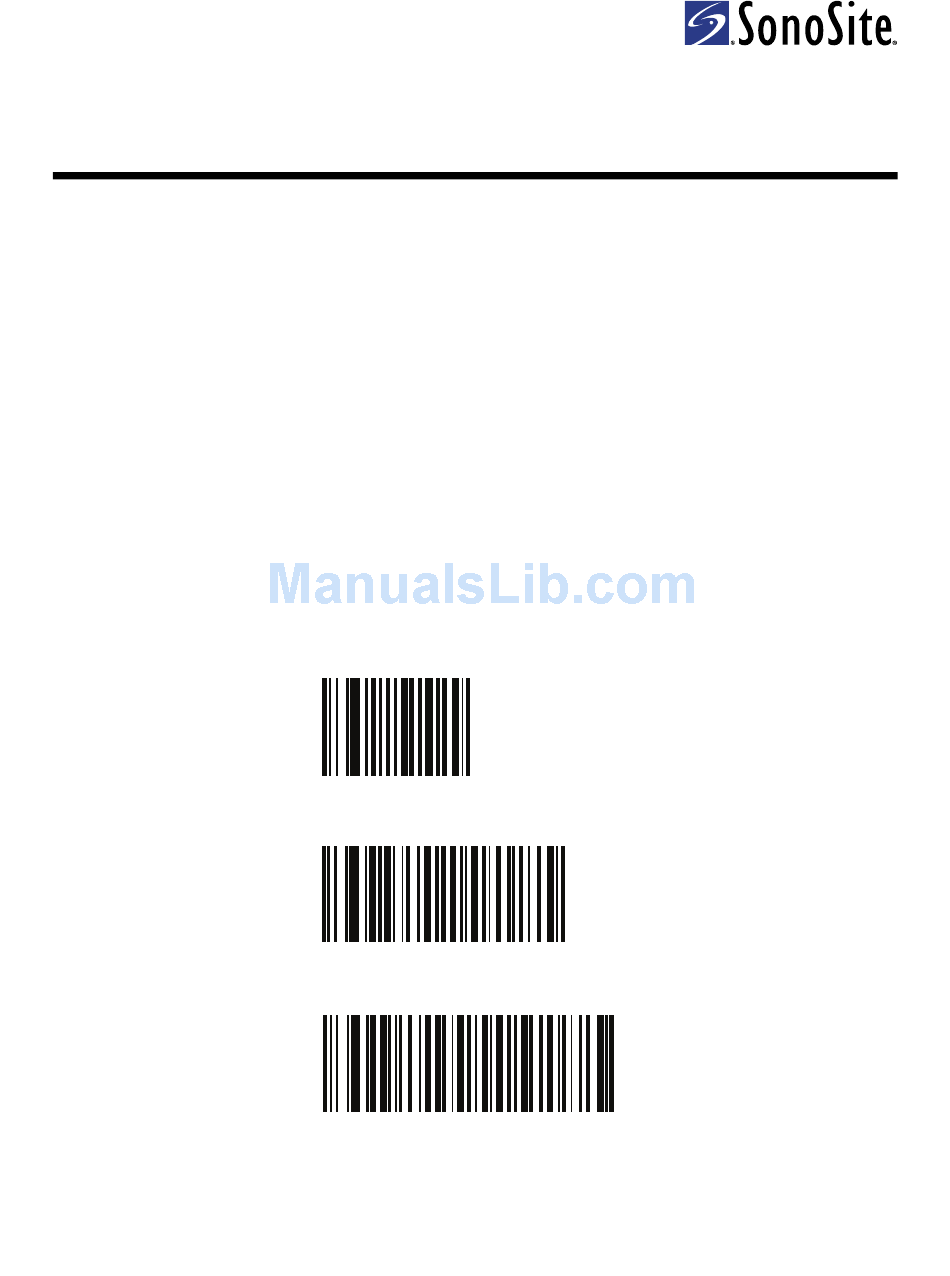

3 Scan the following 7 bar codes in the order listed.
For instructions to scan, see Symbol LS2208 Quick Start Guide.
Erase All Rules
Begin New Rule
Send ASCII Key
™
ultrasound system
Advertisement
Table of Contents
Summary of Contents for SonoLite USB Bar Code Scanner
-
Page 1: Installation Instructions
USB Bar Code Scanner Installation Instructions Follow these instructions to connect and program any of these USB bar code scanners: • JADAK flexpoint HS-1M on the NanoMaxx® ultrasound system ™ • Symbol LS2208 on the NanoMaxx, M‐Turbo®, or S Series ultrasound system When connected, the bar code scanner is listed on the system’s USB Devices setup page. See Bar Code Scanner User Guide from SonoSite for information on safety and cleaning. Symbol bar code scanner To connect and program the Symbol bar code scanner 1 Attach the scanner cord to the bar code scanner and to a USB port on the ultrasound system. See Symbol LS2208 Quick Start Guide included with the bar code scanner. For location of USB ports, see the ultrasound system user guide. 2 Turn on the ultrasound system. 3 Scan the following 7 bar codes in the order listed. For instructions to scan, see Symbol LS2208 Quick Start Guide. ... - Page 2 Send All That Remains Send ASCII Key Beep Once Save Rule 4 Scan additional programming bar codes as desired. You can program the scanner with various user preferences, such as beeper volume. Refer to Symbol LS2208 Quick Start Guide. For more comprehensive information, refer to Symbol LS 2208 Product Reference Guide, included with the scanner and available on the Motorola Web site at www.symbol.com/manuals.
- Page 3 Jadak bar code scanner To connect and program the Jadak bar code scanner 1 Attach the scanner cord to the bar code scanner and to a USB port on the ultrasound system. See JADAK flexpoint HS‐1 Quick Start Guide included with the bar code scanner. For location of USB ports, see the ultrasound system user guide. 2 Turn on the ultrasound system. 3 Scan the following two bar codes in the order listed: USB Kybrd STX Prefix ETX Suffix ALLENA0 C39ENA1 128ENA1...
- Page 4 M-Turbo, NanoMaxx, S Series, SonoSite, and the SonoSite logo are trademarks or registered trademarks of SonoSite, Inc. Non-SonoSite product names may be trademarks or registered trademarks of their respective owners. SonoSite, Inc. SonoSite Ltd 08/2010 Copyright 2010 by 21919 30th Drive SE Alexander House SonoSite, Inc.
