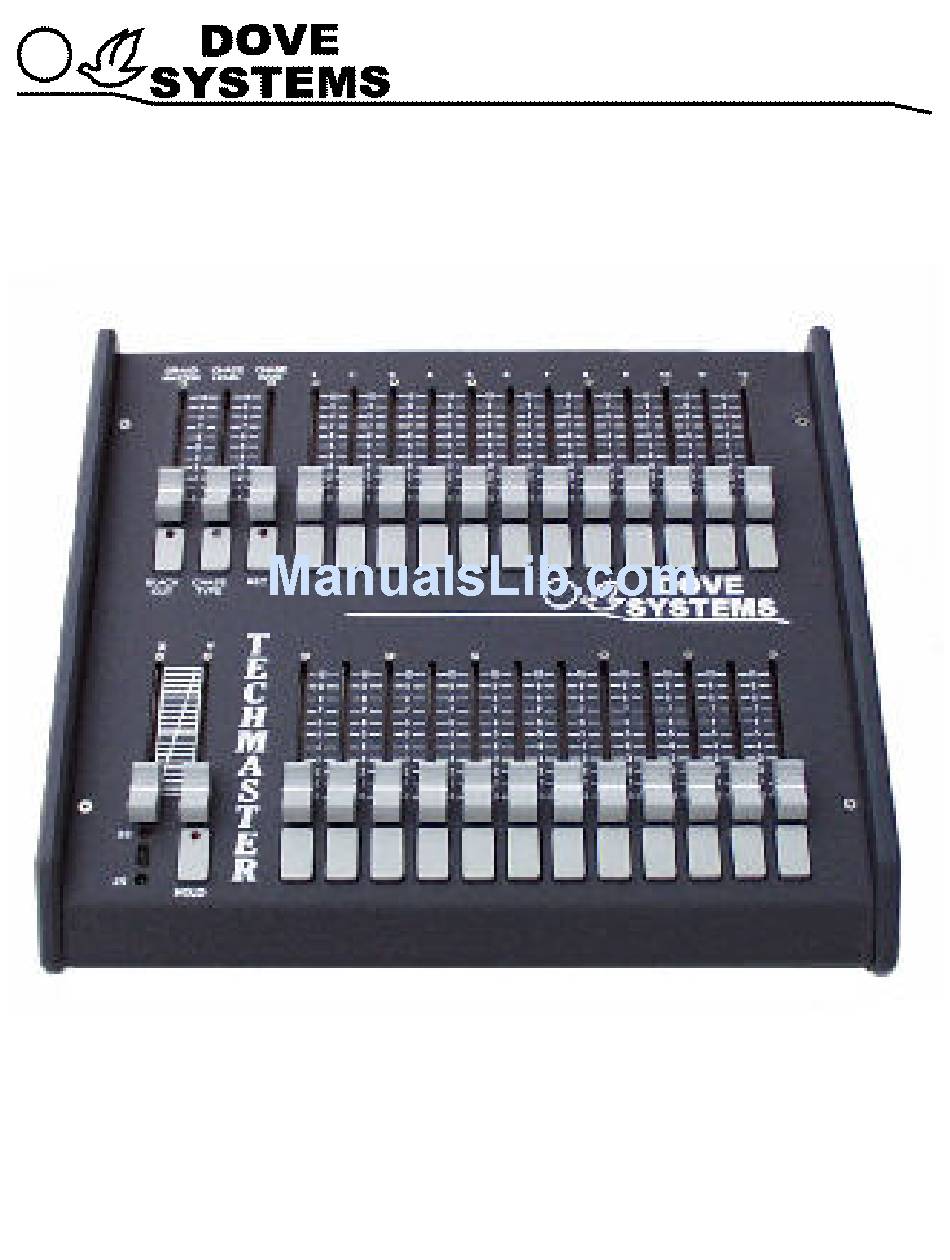

TechMaster
Control Console
Owner's Manual
Dove Lighting Systems, Inc.
3563 Sueldo Street Unit E
San Luis Obispo, Ca 93401
+1 805 541 8292 fax +1 805 541 8293
dove@dovesystems.com / www.dovesystems.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TechMaster and is the answer not in the manual?

Questions and answers

Summary of Contents for Dove TechMaster

  • Page 1 TechMaster Control Console Owner's Manual Dove Lighting Systems, Inc. 3563 Sueldo Street Unit E San Luis Obispo, Ca 93401 +1 805 541 8292 fax +1 805 541 8293 dove@dovesystems.com / www.dovesystems.com...
  • Page 2 TABLE OF CONTENTS 1 RECEIVING YOUR EQUIPMENT 2 FEATURES 3 SETUP AND CONNECTION 4 OPERATION 5 EXPANDING THE SYSTEM 6 TROUBLESHOOTING 7 OBTAINING SERVICE 8 WARRANTY INFORMATION...

  • Page 3: Setup And Connection

    FEATURES The TechMaster is a lighting control console with standard DMX-512 output. The console is arranged in standard two scene configuration with a switch to single scene mode. A special hold mode button adds a virtual second scene to single scene mode. The console includes a grandmaster slider, black- out button, split dipless crossfaders and programmable chase.
  • Page 4 The channel sliders are arranged in two scenes called X and Y. With the crossfaders both pushed to the top of the slots, the X scene is active and channel levels set on the X scene appear on stage. Levels for the next look may be set in the Y scene without affecting levels on stage. At the appropri- ate time, the operator slides the crossfaders to the bottom of the slots, and the Y scene becomes ac- tive and the look set in the Y scene appears on stage.
  • Page 5 Units can be returned to the factory for expansion. 6 - TROUBLESHOOTING The TechMaster is simple and reliable. In the event that things do go wrong, there are a few possibili- ties to check before a trip to the factory for repairs.

  • Page 6: Troubleshooting

    TROUBLESHOOTING Dove Systems technicians are generally available between 8AM and 5PM Pacific time for phone sup- port at (805)541-8292. Please have a specific description of the problem, preferably from personnel who were on-site at the time. If at all possible, bring the telephone into the theatre and have the equipment at hand.

  • Page 7: Limited Warranty

    If any device is found unsatisfactory under the warranty, the buyer should notify the manufac- turer, and after receipt of shipping advice, buyer may return it directly to Dove Systems, San Luis Obispo, CA, shipping prepaid. Such equipment will be replaced or put in proper operat- ing condition, free of all charges except transportation.
