Summary of Contents for Kovan Room temperature controllerwith weekly programme

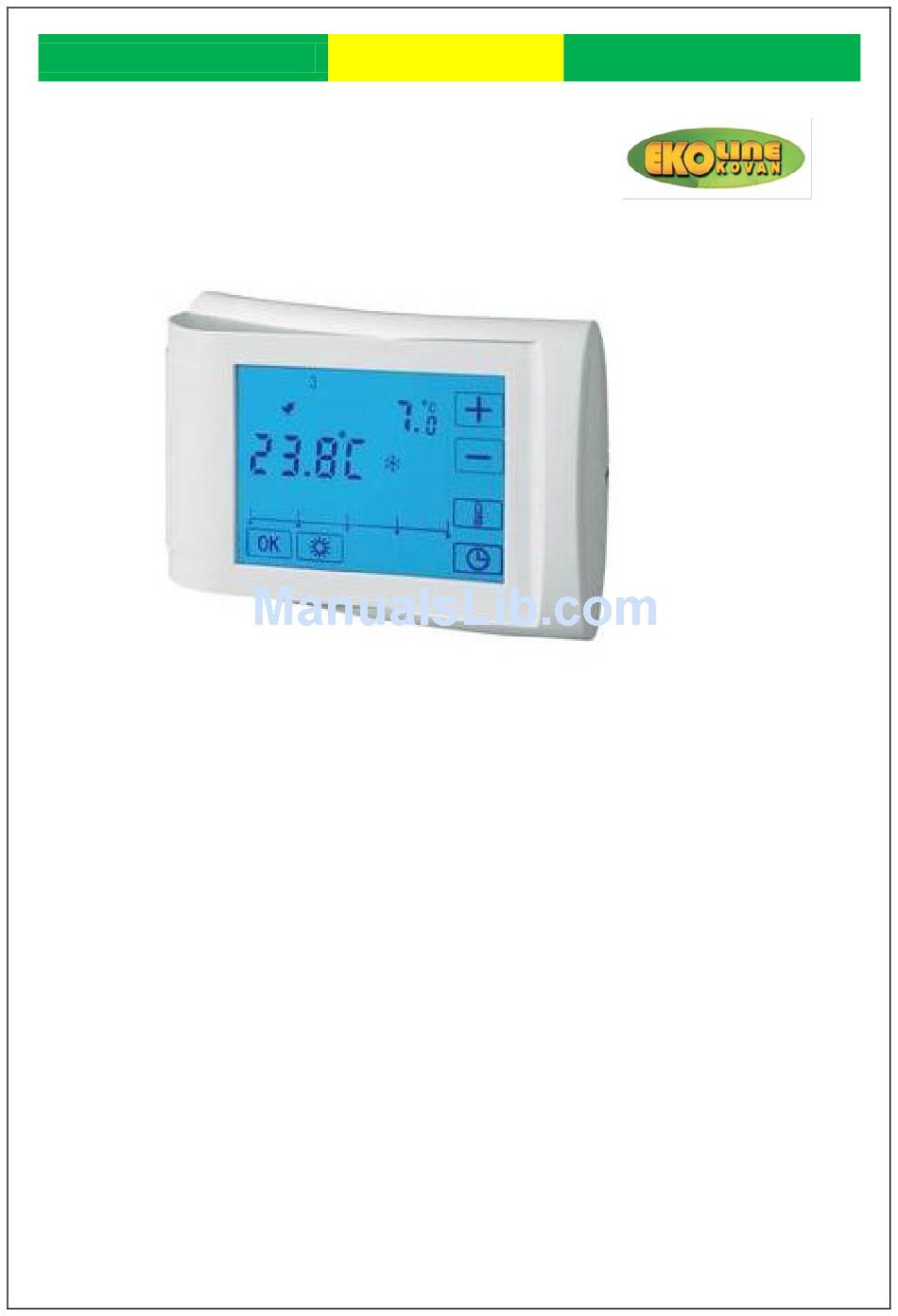

- Page 1 USER MANUAL Room temperature controller with weekly programme USER MANUAL...
-
Page 2: Table Of Contents
USER MANUAL •1. Introduction •2. Intended use •3. Explanation of Symbols •4. Safety information •5. Installation •6. Factory settings •7. Markings on the display •8. Setting the time •9. Selecting Heating and Cooling Modes •10. Programming setup •10.1. Daily program •10.2. - Page 3 USER MANUAL 1. Introduction Dear Customer, Thank you for purchasing this product. This product meets the requirements of current statutory, European and national guidelines. To maintain this status and to ensure safe operation, you as the user must observe these operating instructions! These operating instructions are part of this product.
-
Page 4: Intended Use
USER MANUAL 2. Intended use The product measures the current room temperature via an internal temperature sensor. Depending on an intended set temperature, the integrated switching output is activated. The heating and cooling devices can be controlled by it. -
Page 5: Safety Information
USER MANUAL The „hand“ symbol indicates special information and advice on operation of the device. 4. Safety information In case of damage caused by non-compliance with these safety instructions, the warranty/guarantee will become void. We do not assume any... - Page 6 USER MANUAL In commercial and industrial facilities, the regulations for the prevention of accidents as laid down by the proffessional trade association for electrical equipment and devices need to be observed 5. Installation Mount the room thermostat on stable surfaces only.
- Page 7 USER MANUAL 5. Opening for connection cable 6. Screw terminal (NC/COM/NO) 7. Battery compartment 8. Catches in the upper part of the casing 9. „Reset“ button For installation do the following steps: Unscrew the screw (1) on the right side ...
- Page 8 USER MANUAL INSTRUCTIONS, THE WARRANTY/GUARANTEE WILL BECOME VOID. Remove the screw (2) – only wire-thermostat Remove the protective cover (3) – only wire-thermostat Connect the power supply to the screw terminals (6) – only wire-thermostat o Connect contact No.19 of the boiler-electronics to COM on the room-thermostat o Connect contact No.18 of the boiler-electronics to NO...
-
Page 9: Factory Settings
USER MANUAL 6. Factory settings The room thermostat is set up with the following factory settings: Monday - Sunday Duration of daily regimen___________________________6:00 – 23:00 Duration of night regimen___________________________23:00 – 6:00 Daily temperature_______________________________________23⁰C Night temperature_______________________________________18⁰C 7. Markings on the display... -
Page 10: Setting The Time
USER MANUAL 8. Setting the time Podešavanje vremena i datuma se vrši na slijededi način: Press the button. The year flashes. Set it with the buttons Press the button. The month flashes. Set the month with the buttons ... -
Page 11: Programming Setup
USER MANUAL Heating mode: The relay is activated if the measured temperature falls below a set temperature threshold. The display shows Cooling mode: The relay is activated if the measured temperature rises above a set temperature threshold. The display shows 10. - Page 12 USER MANUAL Now set the desired period for the selected temperature value with (in steps of 30 minutes) Normal temperature value Temperature value for night reduction Temperature value for economic operation For these settings use chapter 12.
- Page 13 USER MANUAL 2. Set the day with the buttons 3. Press the button 4. On the display flashes 0:00 5. Press the button 6. Press the button until 6:00 is displayed 7. Press the button 8. Press the button until 23:00 is displayed 9.
- Page 14 USER MANUAL Now the time display 0:00 and the first point column in the bar display for the temperature curve flash Now set the desired period for the selected temperature value with (in steps of 30 minutes) ...
- Page 15 USER MANUAL Follow the next steps to program the room thermostat like shown above: 1. Press and hold the button for 5 seconds 2. Set the dayblock (1, 2, 3, 4, 5) with the buttons 3. Press the button 4.
-
Page 16: Manual Temperature Setting
USER MANUAL Weekly program In this program one regime is set up for the whole weed. 11. Manual temperature setting In manual mode is displayed. If you want to set up a duration time, a is displayed. Every confirmation is done by pressing the button. -
Page 17: Temperature Settings
USER MANUAL 11.2. Retain manual temperature To set up a retain manual temperature do the following steps: Set up the desired temperatures with the buttons Press the button once o Use to set the number of hours for which the manual temperature setting is to apply (you can set 1 –... -
Page 18: Selecting Mode Of Operation
USER MANUAL - Temperature value for energy saving - Temperature value for night reduction Proceed as follows to set the 3 temperatures: Press the button and the symbol flashes o To set the normal temperature value use the buttons ... - Page 19 USER MANUAL Symbol is displayed above the bar display – normal temperature value is active. Symbol is displayed above the bar display – temperature value for economic operation is active. Symbol is displayed above the bar display – temperature value for night temperature reduction is active.
-
Page 20: Key Lock
USER MANUAL Select the day block on which the wake-up sounds is to be output with the buttons Press the button The hours of the alarm/wake-up time flash Set the hours with the buttons ... -
Page 21: Maintenance And Cleaning
USER MANUAL To deactivate the key lock again, keep the button pressed again for approx. 5 seconds, until all button symbols appear again on the display. 16. Notes on batteries When the symbol shows up on the display, you need to exchange the batteries. -
Page 22: Disposal Of Batteries And Rechargeable Batteries
USER MANUAL 18. Disposal of batteries and rechargeable batteries You as the end user are required by law (Battery Ordinance) to return all used batteries/ rechargeable batteries. Disposing of them in the household waste is prohibited! Batteries/rechargeable batteries that include... -
Page 23: Technical Data
USER MANUAL 19. Technical data Operating voltage......3 V/DC, 2 pcs AA/Mignon batteries Operating temperature............+5 ⁰C do +37 ⁰C Display range..+3 ⁰C do +37 ⁰C (below +3 ⁰C, the display shows „LO“, above +37 ⁰C, the display shows „HI“) Switching hysteresis..............+/- 0,2 ⁰C Dimensions (W x H x D)..........ca.
