Campbell Hausfeld HVLP Operating Instructions & Parts Manual

Operating Instructions & Parts Manual
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.
Attention: Campbell Hausfeld recommends authorized service facilities perform services not shown in instruction manual

Table Of Contents

Description . . . . . . . . . . . . . . . . . . . . . . .1

Unpacking . . . . . . . . . . . . . . . . . . . . . . .1

General Safety Information . . . . . . .1-2
Setup & Preparation . . . . . . . . . . . . .2-3
Operation . . . . . . . . . . . . . . . . . . . . . .3-4
Maintenance . . . . . . . . . . . . . . . . . . . . .4
Troubleshooting . . . . . . . . . . . . . . . . .5-6
Ordering Replacement Parts . . . . . . .7-8
Warranty . . . . . . . . . . . . . . . . . . . . . . . .8
Description
High volume, low pressure (HVLP) paint
sprayers are designed to deliver a fine
finish with low overspray. The sprayer
can be used to apply various acrylics,
stains, sealers, lacquers, latexes, and
primers. This unit can be used for
painting cabinets, furniture, machinery,
equipment, walls and trim work. Sprayers
of this type are not recommended for au-
tomotive final coat. This portable unit is
an ideal alternative to conventional spray
guns. The HVLP's high transfer efficiency
provides professional results with much
less material waste and environmental
contamination than other conventional
spray painting systems.
Unpacking
When unpacking the sprayer, inspect
carefully for any damage that may have
occurred during transit. Make sure any
loose fittings, bolts, etc., are tightened
before putting sprayer into service. Each
sprayer has been tested before shipment.
NOTE: The packing nut may need
additional adjustment due to the packing
material relaxing during shipment.
The fluid used for testing the sprayer has
been drained, but some of this fluid will
remain in the spray gun. This fluid should
be flushed from the spray gun to prevent
contamination of the coating material.

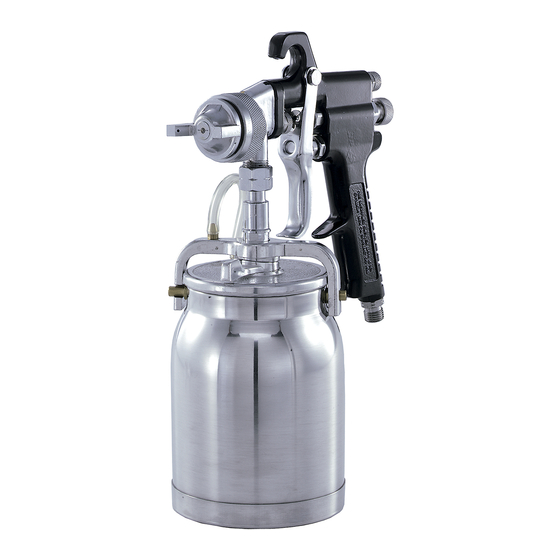

HVLP Spray Gun
Pattern Width
Adjustment
Air Cap
Figure 1 - Features
Use a solvent compatible with the
coating to be sprayed.

General Safety

Danger indicates
an imminently
hazardous situation which, if not
avoided, WILL result in death or serious
injury.
Warning indicates
a potentially
hazardous situation which, if not
avoided, COULD result in death or
serious injury.
Caution indicates a
potentially
hazardous situation which, if not
avoided, MAY result in minor or
moderate injury.
Notice indicates
NOTICE
!
important
information, that if not followed, may
cause damage to equipment.
1
HVLP Spray Gun
Port Cap (can be moved
to bottom for rear air
connection)
Material
Control Knob
Quick Connect Fitting to
Hose (optional bottom or
rear connection)*
Locking Lever For
Quick-Release Paint Cup
1 Quart Cup
*Bottom Connection Shown
Read all instructions and safety
precautions before operating
the unit.
Risk of fire or explosion!
Solvent and paint fumes can
explode or ignite, causing severe injury
and property damage.
Paints and solvents containing
HALOGENATED HYDROCARBONS can
react explosively with aluminum. Always
check the product's label before using
these materials in the unit.
Make sure the room is well-ventilated.
Avoid all ignition sources, such as static
electricity sparks, open flames, hot
objects, sparks from connecting and
disconnecting power cords, and working
light switches.
Follow the material and solvent
manufacturers' safety precautions and
warnings. Do not use liquids with flash
points less than 100˚ F (38˚ C).
IN454700AV 6/98
