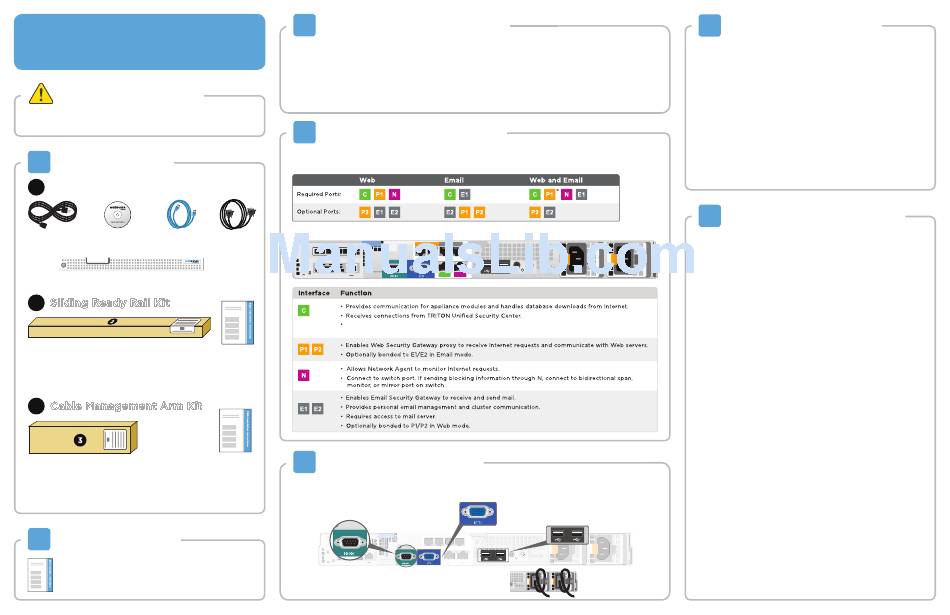

websense V10000 G3 Quick Start Manual

Quick Start Guide
Websense V10000 G3
Web & Email Security Appliance

Before you begin...

Plan your deployment before setting up the appliance. See the
back of this guide for a deployment overview and reference sheet.
1 Verify Contents
1

Accessory Kit

Power Cables (2) Documentation Disk Ethernet Cables (4)
Bezel (faceplate)
2 Sliding Ready Rail Kit
• Left Ready Rail
• Right Ready Rail
• Velcro Straps (2)
• Rack Installation Instructions
3 Cable Management Arm Kit
• Cable Management Arm • Cable Tie Wraps
• Static Support Tray • CMA Installation Instructions
• Status Indicator Cable
Contact Websense Technical Support if any items are missing.
2 Rack Appliance
See the Rack Installation Instructions included in the
Sliding Ready Rail kit.
3 Determine Security Mode
The appliance supports the following security modes:
• Web (Web Security Gateway/Anywhere)
• Email (Email Security Gateway/Anywhere)
• Web and Email (Email plus Websense Web Security or Web Security Gateway/Anywhere)
Based on your subscription and deployment plan, determine the appropriate security mode for this
appliance.
4 Connect Network Cables
Connect the appliance interfaces required by the security mode for this appliance. Cat 5E cables (or
better) are required. Do not use crossover network cables.
* The P1 interface is not used for Websense Web Security in this mode
Serial Cable
1
Provides access to the Appliance Manager, Content Gateway Manager, and the optional
on-board Web Security console.
5 Connect Input Device
1. Connect to the appliance via serial port or KVM in order to access the command line interface for
initial configuration. Serial port settings are: 9600 baud, 8 bits, no parity.
Serial Connection
1 1
2. Secure power cables using velcro straps and plug power
1
cables into an appropriate power source.
P2 P1 E2 E1
2
C N
KVM Connection
2 2
2
Power On Appliance
6
Power on the appliance and check the following indicators:
Front
• Power button is illuminated.
• Hard drive LEDs are green.
Rear
• Power supply LEDs are green.
• LEDs for connected interfaces (NICs) are green.
• System status indicator (LED left of power supplies) is solid
blue.
Contact Websense Technical Support if any indicators are not
illuminated correctly.
7

Configuration Overview

Please refer to the V-Series Appliance Getting Started guide for
more details.
Initial Configuration
Appliance Command Line (firstboot script)
• Configure security mode.
• Configure Appliance Controller interface (C).
Appliance Manager
• Access the Appliance Manager via the Logon Portal.
• Configure NTP servers/system time.
• Configure applicable network interfaces.
Web Mode
TRITON Unified Security Center
• Enter subscription key, update Master Database, configure
Network Agent, and configure policies in TRITON - Web
Security.
• Requires Windows Server 2008 R2.
Content Gateway Manager (proxy)
• Configure user authentication and select protocols.
Email Mode
TRITON Unified Security Center
• Complete configuration wizard, enter subscription key, and
configure policies in TRITON - Email Security. Configure
email DLP policies in TRITON - Data Security.
• Requires Windows Server 2008 R2.
Web and Email Mode
Perform steps above for Web mode followed by Email mode.
If your site does not have a Websense proxy, skip the Content
Gateway Manager configuration.
QSG420-100_RevA
