Summary of Contents for Genquip Gi1000

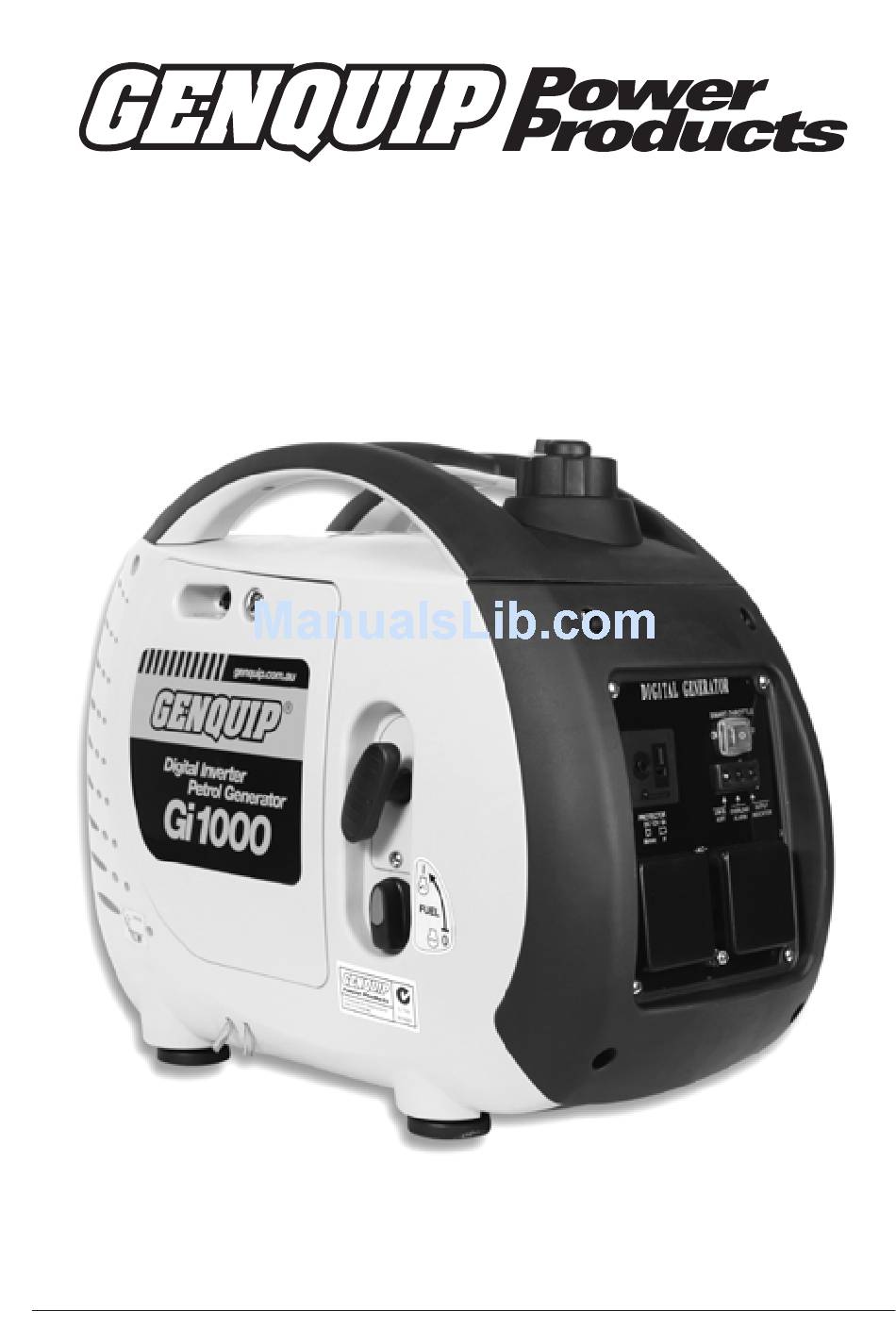

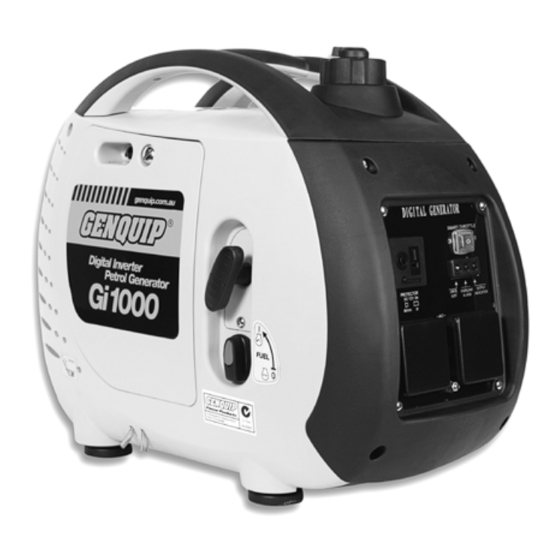

- Page 1 Genquip Gi1000 Digital Inverter Petrol Generator Owners Manual Genquip Gi1000 Digital Inverter Petrol Generator page 1...
- Page 2 Notes page 2 Genquip Gi1000 Digital Inverter Petrol Generator...
-
Page 3: Table Of Contents
& Dimensions Troubleshooting Engine Oil • Engine Won’t Start Air Filter • Generator Won’t Produce Power • Storage : Drain The Fuel • Storage : Engine Fuel Tank Filter Warranty Spark Arrester Notes Genquip Gi1000 Digital Inverter Petrol Generator page 3... -
Page 4: Control Function
16. Overload Indicator Light 7. Engine Switch 17. Output Indicator Light 8. Fuel Drain Hose 1 18. AC Socket 9. Fuel Drain Hose 2 19. Ground (Earth) Terminal 10. 240 Volt Sockets page 4 Genquip Gi1000 Digital Inverter Petrol Generator... -
Page 5: Pre Operation Checklist
(Fig. E). 3. If fuel is low, replace the filter screen inside the fuel tank neck (Fig. F). 4. Pour in unleaded fuel from an approved fuel container into the fuel tank. Genquip Gi1000 Digital Inverter Petrol Generator page 5... -
Page 6: Control Function
If the DC Protector trips to the OFF position, press to reset. Reduce the load to the specified generator output if the DC protector turns off. If it turns off again, consult the authorized dealer. (PUSH) PROTECTOR page 6 Genquip Gi1000 Digital Inverter Petrol Generator... -
Page 7: Operation
If the choke lever was on the start position gradually move it to the run position as the engine warms up (Fig. K). Figure G. Figure H. Figure I. Figure K. Genquip Gi1000 Digital Inverter Petrol Generator page 7... -
Page 8: Periodic Maintenance
Check hose condition Fuel System look for leaks Fittings Fasteners Check and Tighten Cooling System (Air) Check for obstructions Exhaust System Check for obstructions * First 20 hours & then every 50 hours page 8 Genquip Gi1000 Digital Inverter Petrol Generator... -
Page 9: Spark Plugs
10. Reinstall the spark plug cap on top of the spark plug. 11. Reinstall the spark plug maintenance cover. The recommended spark plugs are as follows : NGK CR7HSA Figure R. Figure Q. 0.6mm 0.7mm Figure S. Figure T. Genquip Gi1000 Digital Inverter Petrol Generator page 9... -
Page 10: Engine Oil
CAUTION: Be sure to install securely to prevent from falling off during operation. 8. Reinstall the side maintenance cover and tighten the cover screw. Oil Filler Full Oil Level Low Oil Level Figure U. Figure V. Figure W. page 10 Genquip Gi1000 Digital Inverter Petrol Generator... -
Page 11: Air Filter
5. Clean filter in foam filter cleaner or kerosene and dry. Figure X. 6. Re-oil with filter oil. 7. Squeeze out excess oil do not wring out. 8. Refit to machine and reassemble. Figure Y. Genquip Gi1000 Digital Inverter Petrol Generator page 11... -
Page 12: Spark Arrester
(Fig v.) The spark arrester must be free of breaks and holes. Replace the spark arrester if it is damaged. Install the spark arrester and muffler protector in the reverse order disassembly. page 12 Genquip Gi1000 Digital Inverter Petrol Generator... -
Page 13: Spark Arrester Maintenance
Spark Arrester Maintenance Figure i. Figure ii. Figure iii. Figure iv. Figure v. Genquip Gi1000 Digital Inverter Petrol Generator page 13... -
Page 14: Genquip Safety
Genquip Safety “Genquip values your safety and the safety of others when using your Genquip generator” General safety It is important to read and understand your owner’s manual before operating your Genquip generator. Safety tips for safe operation • Know where the controls are and how they operate, for the startup and shut off procedure. -
Page 15: Operating Procedure
Return choke to the closed position once running (petrol model only). Shutdown • Make sure all electrical devices, are disconnected from generator. • Turn the fuel tap to the off position. • Allow the generator to cool sufficiently before moving or storing. Genquip Gi1000 Digital Inverter Petrol Generator page 15... -
Page 16: Potential Hazards
Operating generator Exposed moving parts Never operate the generator with guards or protective and hot surfaces could without the factory fitted covers removed. cause injury. guards or protective covers. page 16 Genquip Gi1000 Digital Inverter Petrol Generator... - Page 17 Misfiring of engine, which Ensure you check that you fuel &/or oil type. may result in engine parts are using correct oil and fuel separating from main body types. resulting in serious injury. Genquip Gi1000 Digital Inverter Petrol Generator page 17...
-
Page 18: Maintaining Your
Service intervals thereafter 50 hours If operating in hot dusty conditions oil and air filters must be checked daily and service intervals should be every 10 hours initially and every 25 hours thereafter. page 18 Genquip Gi1000 Digital Inverter Petrol Generator... -
Page 19: Specifications
BORE X STROKE 43.5mm X 36mm IGNITION SYSTEM Full Transitor SPARK PLUG TYPE CR7HSA (NGK) 0.6 - 0.7mm DISPLACEMENT 53.5ml RATED OUTPUT 1.7HP at 5400 r/min FUEL Unleaded Petrol ENGINE OIL QUANTITY 250ml Genquip Gi1000 Digital Inverter Petrol Generator page 19... -
Page 20: Troubleshooting
3. Clean exterior of the generator. 4. Store the generator in a dry, well- ventilated place, with the cover placed over it. 5. The generator must remain in a vertical position when stored, carried or operated. page 20 Genquip Gi1000 Digital Inverter Petrol Generator... -
Page 21: Engine Will Not Start
NO - Organize for the unit to be serviced. Check to make sure the red If it is - reduce the load. overload LED is not on? Faulty power cord Replace cord Genquip Gi1000 Digital Inverter Petrol Generator page 21... -
Page 22: Dc Circuit Breaker
Generator may have ran out Check to make sure that the of fuel. generator has fuel in it. If not take corrective action to top up the fuel tank. page 22 Genquip Gi1000 Digital Inverter Petrol Generator... - Page 23 Appliance is not Unplug the appliance from If appliance has a defect working or stops the generator and check for follow the instructions as working defect. per the operation/owners manual. Genquip Gi1000 Digital Inverter Petrol Generator page 23...
-
Page 24: Warranty
Notes Genquip Gi1000 Digital Inverter Petrol Generator page 25... -
Page 25: Notes
Notes page 26 Genquip Gi1000 Digital Inverter Petrol Generator... - Page 26 Notes Genquip Gi1000 Digital Inverter Petrol Generator page 27...
- Page 27 Genquip Warehouse 45 Riverside Road Chipping Norton NSW Call 1300 730 716 page 28 Genquip Gi1000 Digital Inverter Petrol Generator...
