DIGITAL PODIUM

User Manual

PK-190SN

Table of Contents

Need help?

Do you have a question about the PK-190SN and is the answer not in the manual?

Questions and answers

Summary of Contents for PK LNS PK-190SN

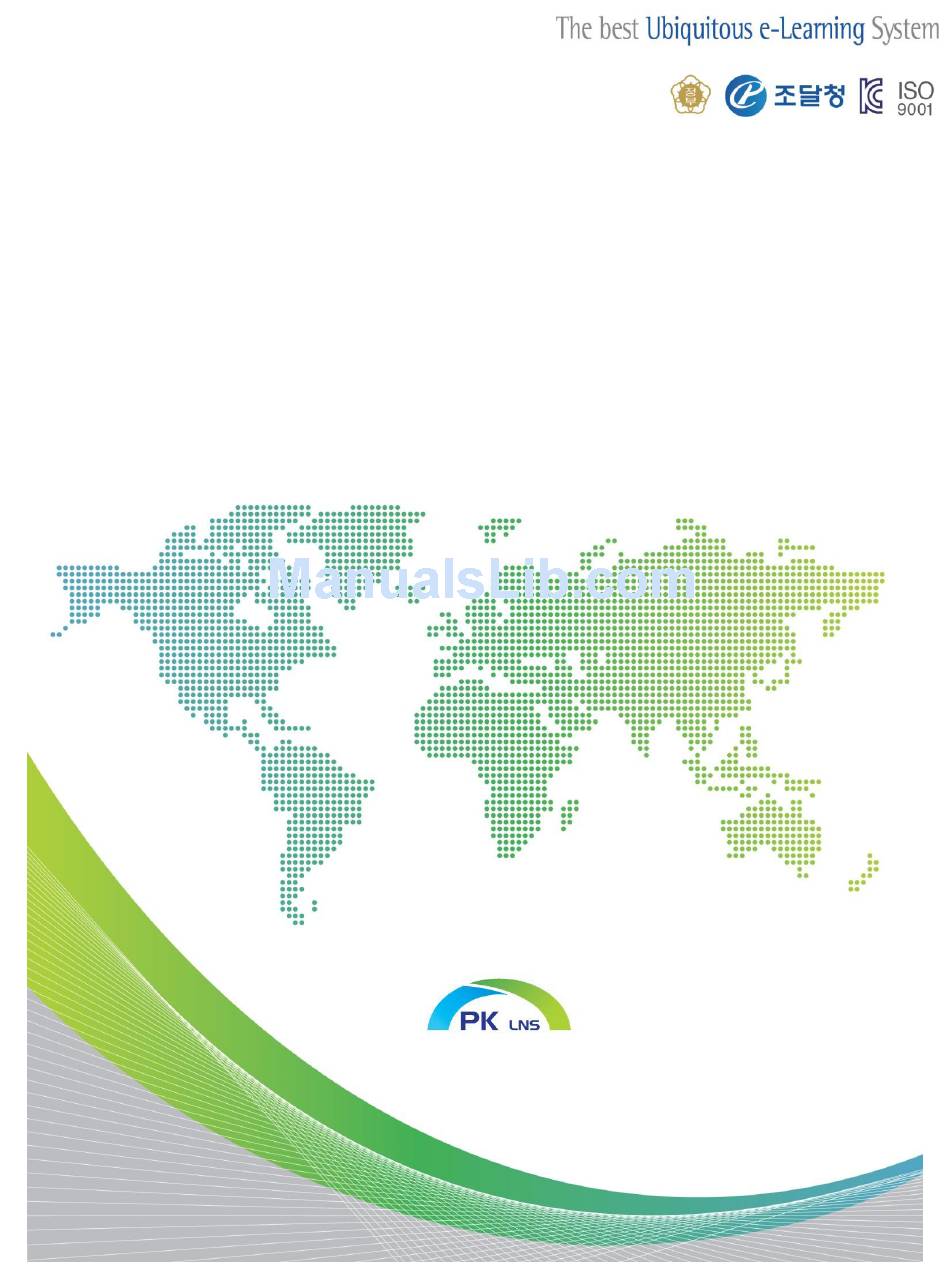

Page 1 DIGITAL PODIUM User Manual PK-190SN...
Page 2 Introduction Digital Podium is advanced high technology system which can easily interlock with equipment in classroom and control them. 19 “ LCD available writing on the board and 19” sub monitor are equipped at substructure. And it is easily connected and controlled by providing port for using antitheft PC and locking monitor system.
Page 3: Accessory Parts
Accessory Parts Thanks for purchasing digital podium. Please check following accessory parts. Accessory parts Controller Cable parts 19” Tablet monitor (Connected to Podium) Tablet electronic pen Writing program Manual soft ware Tablet monitor Goose neck microphone Sliding plate 7” LCD KeyPad Mouse Pad Keyboard Tray Rack for...
Page 5: Specifications
Specifications Digital Podium Housing Item Specification Size of Podium 1803(W) x 840 x 800(D) Material of Podium MDF & Other Podium Top Slide Top Sliding System Monitor Angle Adjustment Passive Absorber Podium Locking Mechanism 19” Rack, Door Top Sliding Lockable External Connection Terminal AC Socket, RGB, MIC, USB, Video, Audio Manufacturer...
Page 6 Specifications Controller (PKS-7000S) Item Specification Item Separation Specification Quantity PC IN VGA IN Note IN VGA Distributor Projector VGA OUT Monitor Gooseneck MIC Wireless MIC Sound IN Audio Note RCA Audio Sound OUT RCA Audio Amplifier OUTPUT 100 Watt / 8Ω Video Video IN RCA Video...
Page 7: Gooseneck Microphone
Specifications Gooseneck Microphone Item Specification Cartridge 20mm Condenser Frequency Response 40 ~ 20,000 Hz Polar Pattern Cardioids Power 220Ω Connectors 3-PIN XLR Manufacturer PKLNS Co. Ltd Wireless Microphone Item Specification Frequency Band UHF 700 MHz ~ Number of Channels 34 Channels Oscillation Method PLL Approach Squelch Way...
Page 8: Main Screen
Use LCD Touch Controller Main Screen *Available to change main display window. Calibration ( Touch Setting ) After input secret number, main screen is displayed Composition of main menu Begin lesson and end lesson button icon ( When Interlock with Projector and Screen Control) If you push begin lesson button icon.
Page 9 Use LCD Touch Controller Main Screen Calibration ( Touch Setting ) Projector : Go to window of projector control (Control No.1 and No.2 project separately) Screen & Elevation : Go to window of control for screen and elevation (Screen : Operate large inch screen and small inch elevation screen)
Page 10 Use LCD Touch Controller PPROJECT Control PROJECT Control Turn ON and OFF the project power Select projector video source Turn on and off “MUTE” function of projector screen When you select No.2 projector, go to No.2 projector from main projector and control ( Move No.1 and No.2 project and control by red box button) Silver color icon does not work as inactivated icon...
Page 11: Screen Control
Use LCD Touch Controller Screen Control Screen Control Up and Down and Stop the screen Up and Down and Stop the large screen Go the main screen...
Page 12 Use LCD Touch Controller Main Screen Screen Control AV1 : Convert AV1 video and voice while watching Blu-ray Transmit only Projector No.1 Lamp Switch : Turn ON / OFF lamps in classroom - During OFF mode of controller, it is not available to operate switch in classroom - During ON mode of controller, it is available to turn OFF when you leave the classroom...
Page 13 Use LCD Touch Controller Main Screen Calibration ( Touch Setting ) Method POWER SUPPLY : ON / OFF POWER SUPPLY During OFF mode, not available to output voice Adjustment of voice volume : Push the button and adjust voice volume of PC and Gooseneck Microphone UP / DOWN MUTE E.Q Button : Adjust high and low tone of PC and Gooseneck Microphone...
Page 14 Use LCD Touch Controller Screen of Detail adjustment of Volume Calibration ( Touch Setting ) Method Push listed touch icon and adjust high and low tone for each equipment Operate ON / OFF and MUTE for PC and Microphone Adjustment sound volume for each equipment as standard Go to main screen Silver color icon does not work as inactivated icon...
Page 15 Installation (Connection Port and Beam control) Main Controller Connection Port Notebook Interface Connection Port Front Rear Notebook Interface Connection Port 1 Ch 2 Ch...
Page 16 Installation (Connection Port and Beam control) Detail of Main Controller Connection Port Main Controller Connection Port Part No.1 Port IR Port Tablet Monitor USB Port AV OUT Port AV IN Port Screen and Elevation Control Port AUX Port Speaker OUT...
Page 17 Installation (Connection Port and Beam control) Detail of Main Controller Connection Port Main Controller Connection Part No.2 Port LAN Port RS-232C Port Touch Keypad Communication Port RGB OUT Port ( Monitor, Projector ) RGB IN Port ( PC, Lap-top ) Microphone IN Port PC, Lap-top Sound IN Port RFID Controller Port...
Page 18: Installation
Installation (Connection Port and Beam control) Detail of Note Book Interface Connection Port Note Book Interface Connection Port Port AV IN Port AC 220V Cable Port RGB IN Port Tablet IN Port Audio IN Port USB IN Port...
Page 19: Main Controller
PK-190ST Connection PK-190ST Connection Rear Part No.1 Main Controller Notebook Interface Microphone Antenna PC Rear...
Page 20 PK-190ST Connection PK-190ST Connection Rear Part No.2 Main Controller 7” LCD Tablet Monitor Projector Gooseneck MIC...
Page 21 Use Control Part Connecting and use Screen / Elevation Up / Down Electrical screen and elevation Easily up and down electrical screen by using touch control at the podium If push the top part of switch button, screen up If push the top part of switch button, screen stop If push the top part of switch button, screen down Electrical screen and elevation diagram Lamp...
Page 22 Use Control Part IR Learning Available to control each equipment by saving remote signal IR Input Method Push IR Learn button Check whether program LED of Main Controller is turned on Push demanded input button at 7” LCD Push the button forward to IR receiving part by remote control After input, program LED of Main Controller will be flickering.
Page 23: Projector Control
Use Control Part Projector Control Connect PC and Controller Serial IN Port by using direct cable Controller PC Port <RS-232 Port> < Program run screen> Input Procedure First, install VBruntimes if you input Protocol. And copy vb6ko.dll in folder to Sysrem32 folder (If you do not install and copy, error will be occurred) Need to run Protocol input and set up COM PORT Go to Device manager and check the PC Port...
Page 24 Use Control Part 9 PIN D-SUB PROJECTOR Controller <RS-232 Port> CAUTION : Do not use 3(TX) Port while connecting Controller and Projector No. 2 port is RX port in most projector. Occasionally, No. 3 port is RX port (Ex. : Panasonic, BenQ 820) 8 PIN MINI DIN Controller...
