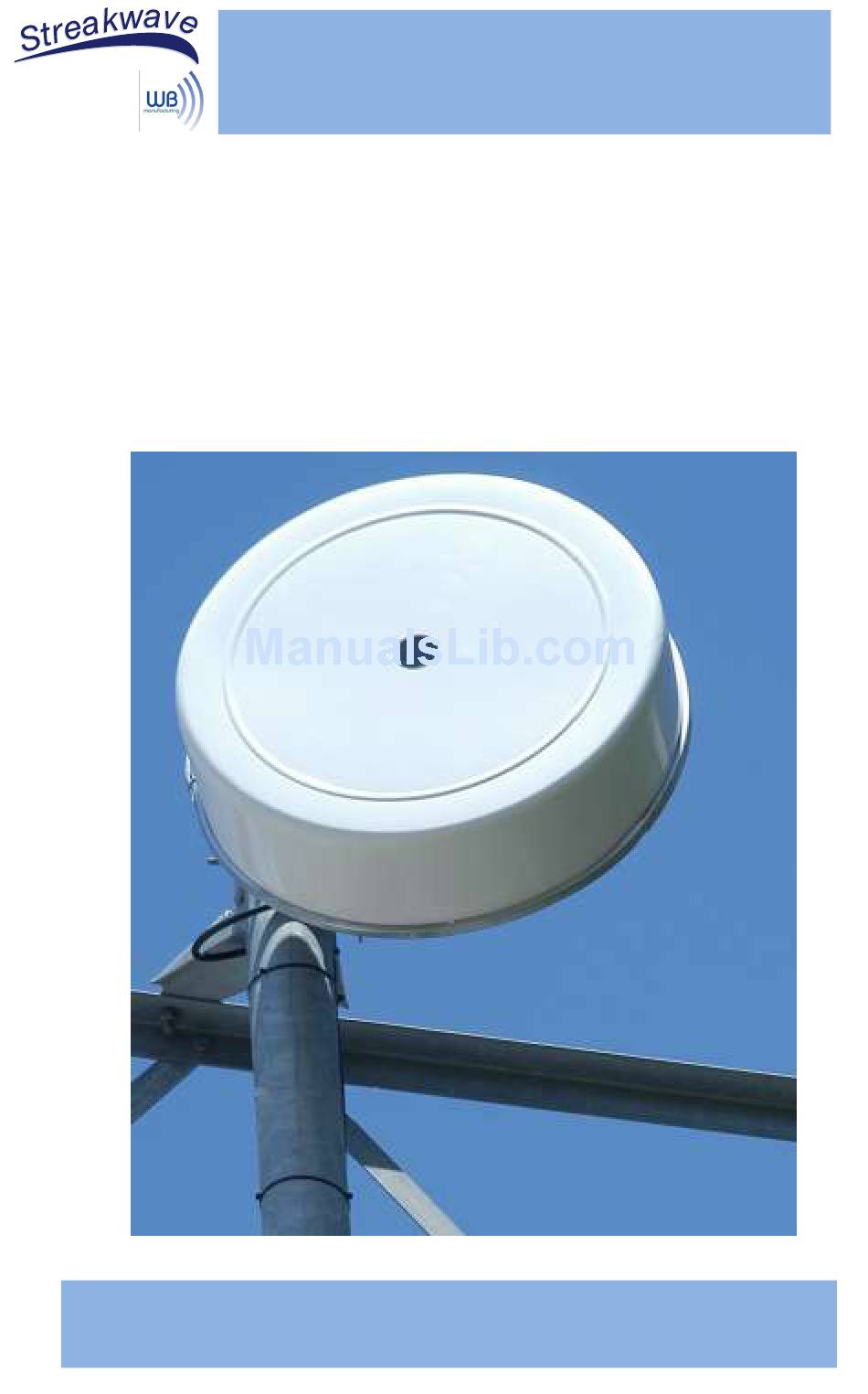

INSTALLATION GUIDE - Optic Series Antenna
Thank you for purchasing WB Manufacturing's Optic Series
Antenna. Follow the instructions below for proper
installation of the antenna. A 9/16" wrench and Phillips
screwdriver will be required to complete assembly.
www.streakwave.com
840 Jury Ct.
San Jose, CA 95112
Tel: 888.604.5234
Advertisement
Summary of Contents for Streakwave Optic Series
- Page 1 INSTALLATION GUIDE - Optic Series Antenna Thank you for purchasing WB Manufacturing’s Optic Series Antenna. Follow the instructions below for proper installation of the antenna. A 9/16” wrench and Phillips screwdriver will be required to complete assembly. www.streakwave.com 840 Jury Ct.
- Page 2 Be sure that all the components are inside. Radome (1) Mount Assembly (1) Reflector (1) Feedhorn (1)* 3/8”x1” Stainless Steel Bolt, Washer (3) Band Clamp (1) *(Feedhorns are sold, packed and shipped separate from the antenna). www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 3 Note: Before fastening the band clamp, rotate radome to ensure that the weep hole will be positioned at the bottom. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 4 Step 3: Using the Tower Clamps (2) attach the Optic antenna to the tower. Tighten the nuts securely. Step 4: Use 3/8”x1” Stainless Steel Bolt and Washer (3) to attach the antenna to the mount. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 5 Once the scope is securely in place it can now be used to more accurately aim the antenna. Use the AccuAim Elevation and Azimuth adjustment bolts on the mount to achieve pinpoint accuracy (shown in Step 6). www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 6 Step 6: Align the Optic antenna using the AccuAim Elevation and Azimuth adjustment bolts located on the mount. Azimuth Elevation Step 7: Once aiming is complete, securely tighten the following bolts. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 7 (Remove the scope (if used) from the antenna and replace it with the feedhorn). Line the grooves on the feedhorn up with the screws on the ODU plate to insert completely. Then Twist into the desired position. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 8 Vertical Polarity Horizontal Polarity Step B: Attach the radio using the fasteners on the ODU and the clips provided on the ODU plate. Be sure Radio. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 9 *Make sure all fasteners are secured tightly. Installation of the Optic Series antenna is now complete! www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 10 ODU plate to insert completely. Then Twist into the desired position. Note: When using circular waveguide any orientation of the feedhorn will work. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 11 Use the allen wrench that came with the feedhorn to remove the clips. Re-position them appropriately (As Shown Below). *Make sure all fasteners are secured tightly. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 12 Installation of the Optic Series antenna is now complete! www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 13 (Remove the scope (if used) from the antenna and replace it with the feedhorn). Step B: Attach the radio using the ¼’’x ½’’ bolts (4) provided in the feedhorn packaging. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 14 Step C: Align the bolts on the SAF Radio with the corresponding holes on the feedhorn according to the desired polarity. Using the tool SAF provides with the radio, fasten the radio to the feedhorn. www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
- Page 15 Installation of the Optic Series antenna is now complete! www.streakwave.com 840 Jury Ct. San Jose, CA 95112 Tel: 888.604.5234...
