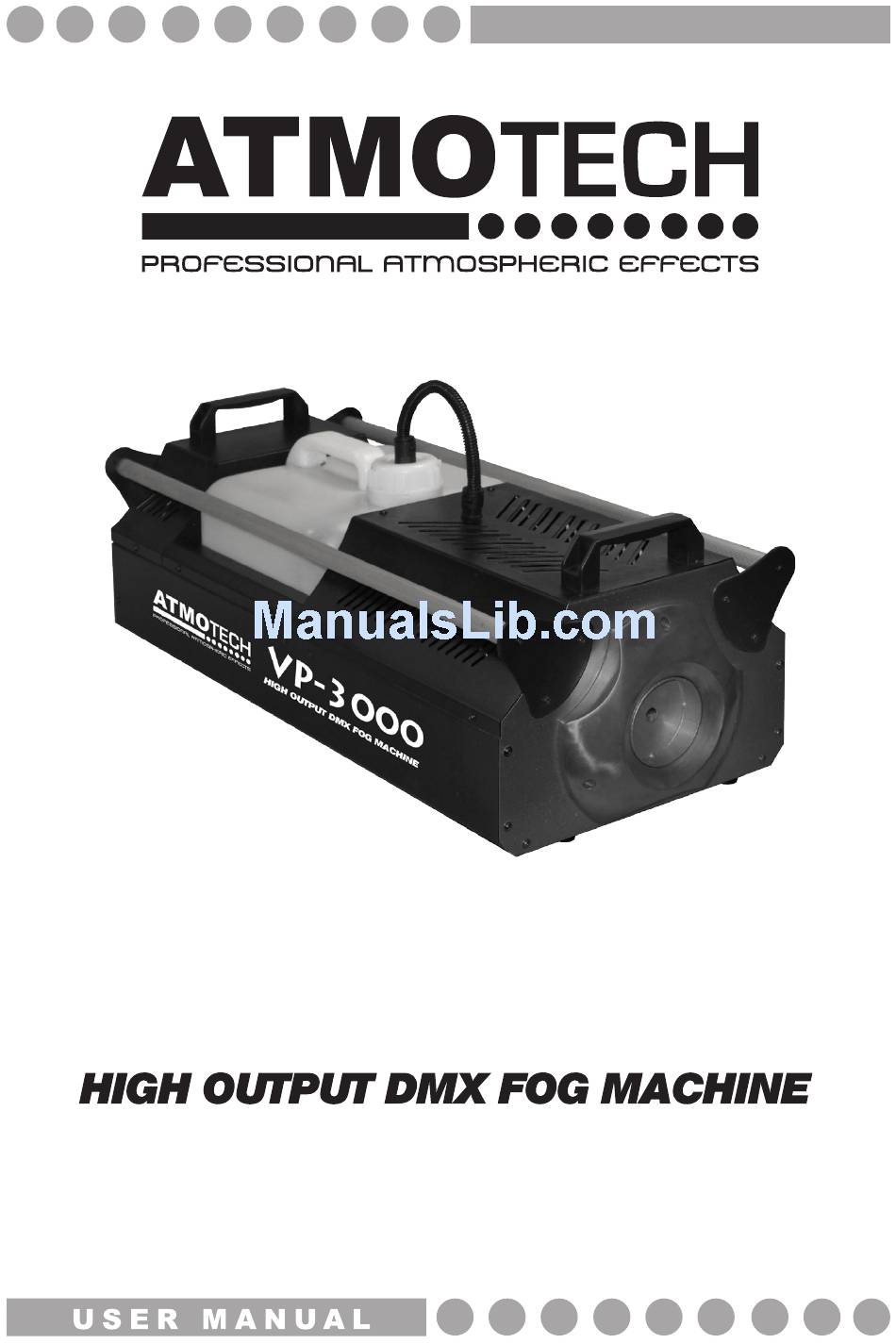

  • Page 1 VP-3000 Order code: FOG23...

  • Page 2: Safety Instructions

    WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual CAUTION! TAKE CARE USING THIS EQUIPMENT!

  • Page 3: Operating Determinations

    IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
  • Page 4 O V E R V I E W Overview: VP-3000 Identification: A, Carry handles B, Fog fluid container C, Fluid pipe D, Support bars E, Output nozzle Identification: A, Power supply B, Fuse C, On/off switch D, DMX out E, DMX in...

  • Page 5: Operation

    O P E R A T I O N Controller Overview Identification: A, LCD display screen B, Securing screws C, Menu button D, Up button E, Down button F, Manual button G, Lock button H, Timer button Timer remote operations: Warm up time This high power fog machine has a warm up time of approximately 3 minutes.

  • Page 6: Starting Operation

    O P E R A T I O N Constant burst operation To set unit for constant burst, press the “LOCK” button. To stop the constant burst simply press the “LOCK” button again. During this operation you can change the volume output by pressing the “UP”...

  • Page 7: D M X S E T U P

    DATA Cable (DMX cable) requirements (for DMX operation): • The VP-3000 can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
  • Page 8 D M X S E T U P Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.

  • Page 9: Cleaning And Maintenance

    O P E R A T I O N CLEANING AND MAINTENANCE DANGER TO LIFE! Disconnect from the mains before starting maintenance We recommend a frequent cleaning of the unit. Please use a soft lint-free and moistened cloth. Never use alcohol or solvents! Clean the output nozzle frequently from smoke fluid residues.

  • Page 10: Specifications

    S P E C I F I C A T I O N S Technical Specifications VP-3000 Smoke output 40,000 cu.ft per minute Warm up time approx. 3 min Tank capacity Power consumption 3000W Power supply 240V Dimensions 721 x 312 x 262mm...
  • Page 11 S P E C I F I C A T I O N S...
