Summary of Contents for Intellitouch Wireless Range Extender Kit 520561
-
Page 1: Installation Guide
pool/spa control system Wireless Range Extender Kit (for IntelliTouch ScreenLogic Installation Guide IntelliTouch Range Extender Installation Guide... -
Page 2: Technical Support
Trademarks and Disclaimers. The trademark IntelliTouch, is a registered trademark of Pentair Water Pool and Spa Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Pentair Water Pool and Spa Inc. -
Page 3: Table Of Contents
Contents Introduction ................... 1 Try to avoid using AC power strip and surge protectors ......1 Adding the Range Extender Kit for Large Home and Properties .... 1 Where do I locate the Range Extender ..........3 Step 1: Installing the Range Extender Kit ..........4 Troubleshooting .................. - Page 4 Blank Page IntelliTouch Range Extender Installation Guide...
-
Page 5: Introduction
Introduction The Range Extender kit is based on the HomePlug standard, an industry consortium ensuring the interoperability of power line devices from multiple manufacturers. The Range Extender kit uses a home’s existing electrical wiring to provide a communications network for your ScreenLogic wireless Tablet and/or PDA. - Page 6 IntelliTouch Range Extender Installation Guide...
-
Page 7: Where Do I Locate The Range Extender

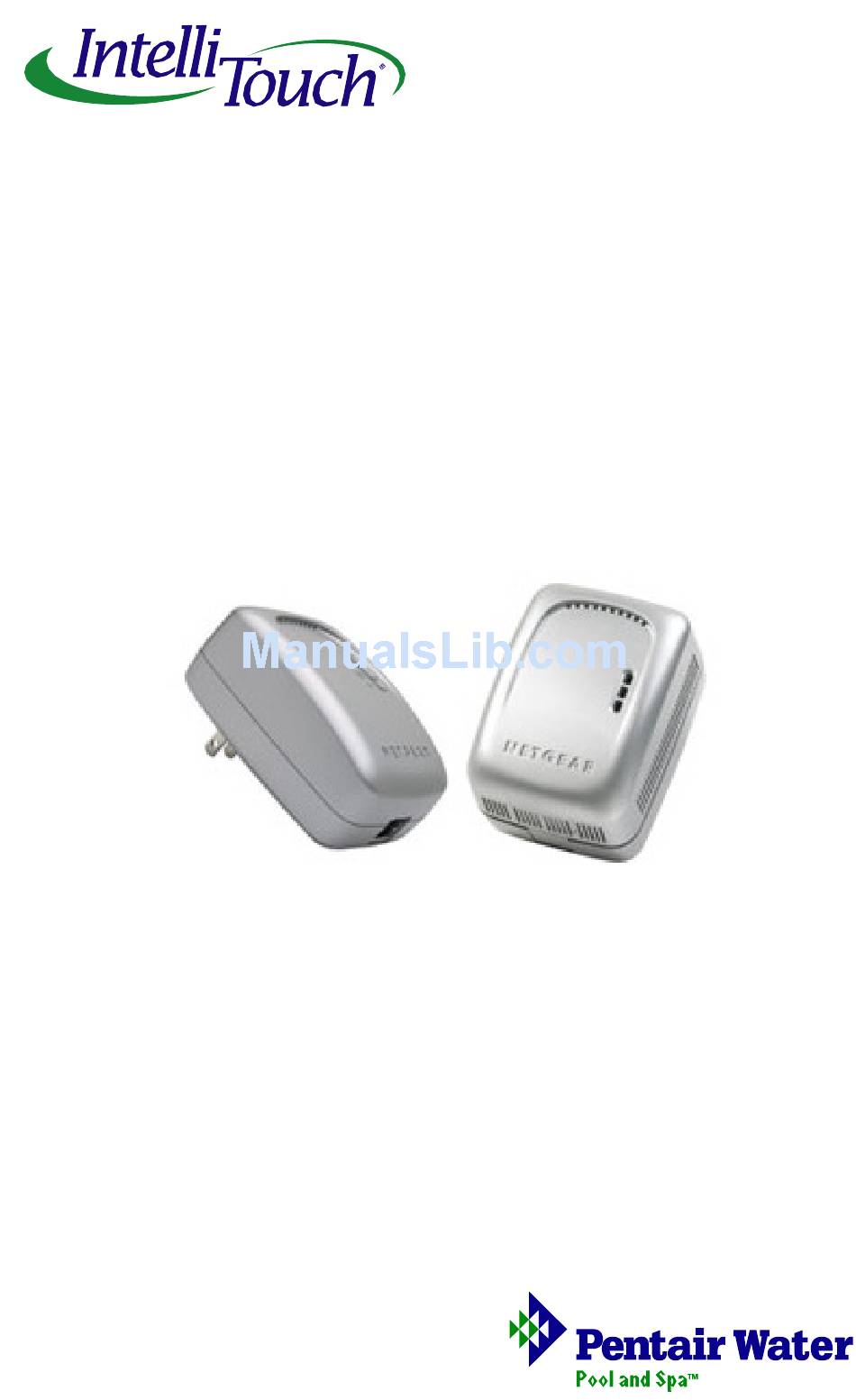

Where do I locate the Range Extender If it is not practical to place the ScreenLogic wireless router close to the primary operating location of your wireless Tablet or PDA, you can purchase a Range Extender kit. This kit includes two wall plugs; the Ethernet Bridge and the wireless Access Point that plug into you home’s AC wall outlets. -
Page 8: Step 1: Installing The Range Extender Kit
Step 1: Installing the Range Extender Kit For larger homes and properties, you may need to use the wireless Range Extender kit (P/N 520561) to transfer the wireless signal to the room near where the wireless Tablet and/or PDA will be primarily used. - Page 9 IntelliTouch Range Extender Installation Guide...
-
Page 10: Step 2: Connecting To The Range Extenders
Step 2: Connecting to the Range Extenders After installing the Range Extenders you need to setup a wireless connection from your ScreenLogic Tablet and/or PDA to the Range Extenders. Your Tablet and/or PDA should already be configured to automatically connect to the ScreenLogic wireless router. - Page 11 4. Tap the “The key is provided automatically” to clear the check box. 5. From the screen keyboard, enter 5555599999 (10 digits total) in the “Network Key” field. For security, the PDA uses WEP encrypted and Open authentication. 6. Tap OK to save the settings and exit the dialog. 7.
-
Page 12: To Manually Establish A Connection From Your Pda
To manually establish a connection from your PDA 1. Tap the wireless icon (vertical bars) in the lower right corner of the screen. 2. Tap “Edit Wireless Profiles” at the bottom of the screen. 3. Tap PENTAIR EXTENDER in the available wireless network list. - Page 13 4. Tap the “Network Key” tab. 5. Tap the “The key is provided automatically” to clear the check box. 6. From the screen keyboard, enter 5555599999 (10 digits total) in the “Network Key” field. For security, the PDA uses WEP encrypted and Open authentication. 7.
- Page 14 8. Tap and hold PENTAIR EXTENDER in the available wireless network list. Select Connect from the pop up selection. 9. Tap OK twice to exit. Your PDA should be connected to the Range Extenders. IntelliTouch Range Extender Installation Guide...
- Page 15 Notes IntelliTouch Range Extender Installation Guide...
- Page 16 P/N 520582 - Revision A IntelliTouch Range Extender Installation Guide...
