Summary of Contents for Stable Imaging Solutions IDRS 1000

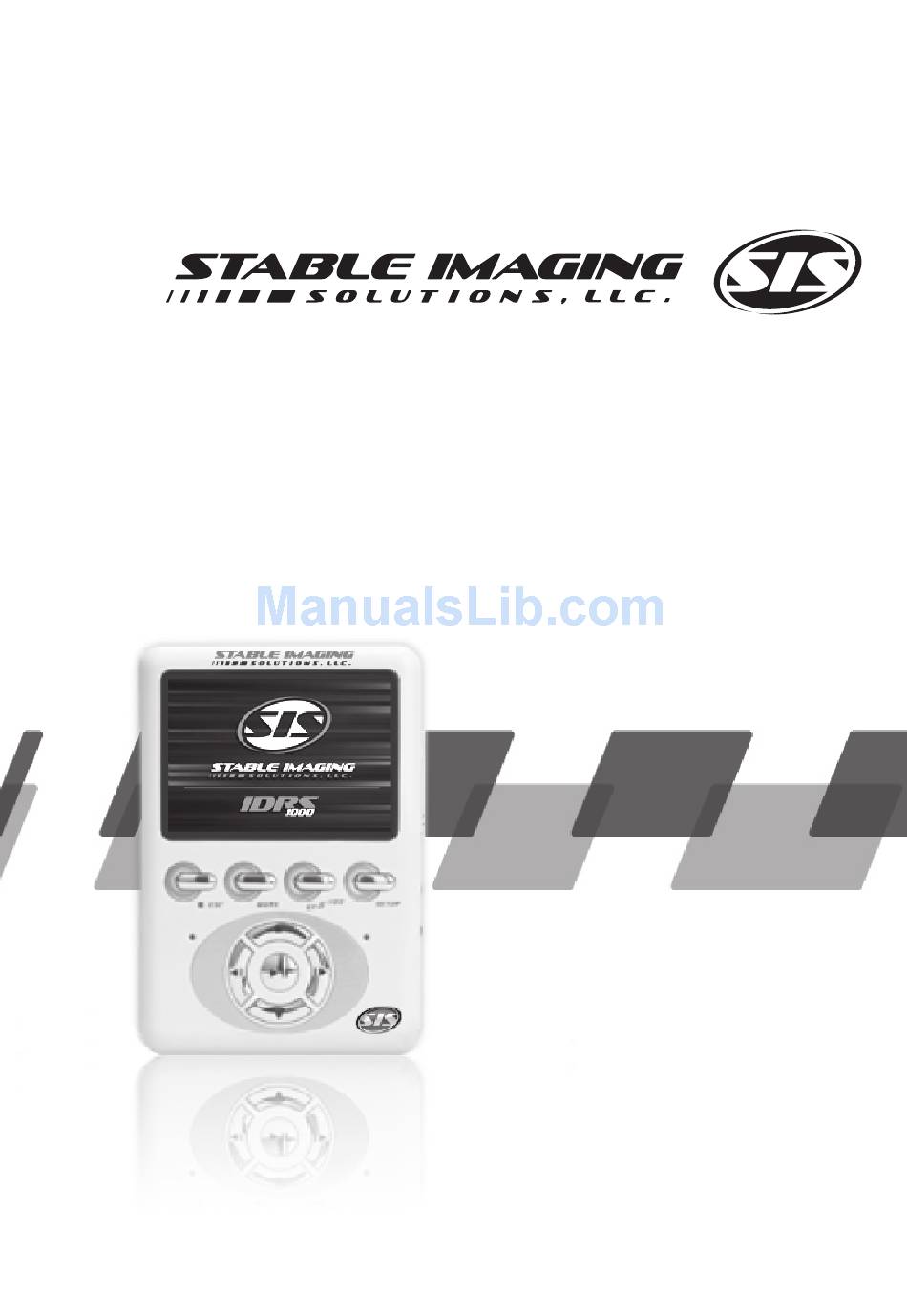

  • Page 1 Isolated Digital Recording Systems IDRS 1000 • User Manual...
  • Page 2 Important Audio Codec Information Playing recorded video from PC: You can playback your transferred MPEG-4 (video) from Windows Media Player on your PC. Note: You will also need to download or install the supplied Audio Codec (G726 tag 45 Audio Codec) to play your recorded video from Windows Media Player.

  • Page 3: User Manual

    Isolated Digital Recording Systems User Manual...
  • Page 4 Copyright Announcement The author of this user manual is Stable Imaging Solutions, LLC. The copyright proprietor Stable Imaging Solutions, LLC. owns the copyright and all rights reserved. Any unauthorized use including adding, deleting, editing, excerpting, printing or copying or otherwise dealing with this manual or any part thereof is strictly prohibited.

  • Page 5: Table Of Contents

    IDRS 1000 Version ........

  • Page 6: Preface

    Preface The IDRS 1000 product is a personal AV Recorder/Player. It can play .AVI MPEG-4 and .ASF MPEG-4 video formats, play MP3 audio format and JPEG digital images. It can also record from compatible Stable Imaging Solutions, LLC. AV (audio/video) cameras.

  • Page 7: Recorder Contents

    Recorder Contents After unpacking the IDRS 1000, you will see the following accessories. If any of these accessories are missing, please contact Stable Imaging Solutions, LLC. Recorder Contents...

  • Page 8: Introduction

    Introduction Please refer to the picture below to become familiar with the appearance and functions of your IDRS 1000. Snap Hook Clip LCD Screen AV Out Port AV In Port CF ~ HDD Button ESC Button SETUP Button MARK Button...
  • Page 9 (For details please refer to Page 28.) Video recording: You can record .ASF format for MPEG-4 video. (For details please refer to Page 23.) Note: You can playback all of the functions from the IDRS 1000 through a TV via the AV Out port. Control Panel...
  • Page 10 File Name Power on Screen To turn on the device: Please press the IDRS 1000’s POWER On/Off button for 2 seconds. Initially a SIS Stable Imaging Solutions, LLC. welcome image will appear on the screen, and then prompt to the main function selection menu.

  • Page 11: Basic Operation

    Basic Operation - Setup IDRS 1000 Function Settings Setup menu function settings: Under main function selection menu, you can press the SETUP button to set up basic functions in the IDRS 1000 setup menu. Entering Function Settings Time settings: In the setup menu you can set the Date & Time. Select Date & Time >...
  • Page 12 Basic Operation - Setup IDRS 1000 Function Settings Display: Switch between the recorders’ LCD and external TV monitor. Use the UP/DOWN arrow buttons to choose the related item and use the RIGHT/LEFT arrow buttons to set the intended display output. When chosen, your LCD screen will go black and your TV screen will show the picture Language selection: Change the recorders’...
  • Page 13 Basic Operation - Setup IDRS 1000 Function Settings Diskcopy: Drive to drive copying between the recorders’ optional storage media. Use the UP/DOWN arrow buttons to choose the related item and use the RIGHT/LEFT arrow buttons to copy from the storage media: CF card to HDD or HDD to CF card.
  • Page 14 PLAY/PAUSE “ENTER” button (if upgrade is successful), the system will reboot. Warning: Before upgrading the IDRS 1000 OS please make sure to connect the IDRS 1000 to the supplied power charger, during upgrade please do not shut down or reboot the unit. The upgrade will take about 3 to 5 minutes.
  • Page 15 Basic Operation - Switch Between Storage Devices At any time, you can press the CF~HDD button to switch between the CF card and HDD. In play mode, pressing the CF~HDD button will prompt you out of the playing interface and switch the storage device. Basic Operation - File Selection Under file selection, you can press the MARK button to choose one or more files: Under browsing pictures (Photo Browsing) mode, the selected files will appear with...

  • Page 16: Connecting With Other Devices

    /ESC button, will return the playing interface back to the file selection list. Basic Operation - Connecting to Other Devices Connecting to other devices: The IDRS 1000 can connect to other devices such as the items suggested below to expand its functionality. Connecting to Devices...
  • Page 17 Use at your own risk). Some TV’s may need to change the refresh rate to be viewed properly with the IDRS 1000. If you want to record from a TV, there must be an AV Out terminal on the TV.
  • Page 18 Basic Operation - Connecting to Other Devices Connect to VCD or DVD player: The IDRS 1000 can connect with VCD or DVD players or related products. It will save the video as .ASF MPEG-4 format. TV / DVD / VCD...
  • Page 19 When connecting both external storage devices (CF card and HDD) with your IDRS 1000, your PC can not identify multiple external storage devices at the same time. Before connecting the IDRS 1000 to your PC, please make sure there is only one external storage device connected.

  • Page 20: Battery Charging

    Battery Charging Mode The IDRS 1000 has a built-in LI-Battery and it will take about 4 hours to recharge. For playing time please refer to Attachment 1. When the battery is low, the IDRS 1000 will display an alert message, at this moment, please shut down the unit immediately and then recharge the battery.

  • Page 21: Introduction To Video Playback Mode

    Video Playback Mode Video playing mode is one of the main functions on your IDRS 1000. It can play several kinds of MPEG-4 compatible formats. The introduction below will explain how the IDRS 1000 will bring you to the multimedia world.
  • Page 22 Video Playback Mode Video editing function: Under video selection menu, press SETUP button, you can process the following imaging editing jobs: 1. You can select part of or all files to set up replay function. When replaying, if the file format is not supported by the machine, the program will prompt out automatically and it will stop playing.

  • Page 23: Introduction To Video Recording Mode

    AV connector and power supply (see below) to your SIS (Stable Imaging Solutions, LLC.) camera, and connect the other end to AV-IN on the IDRS 1000. After completion, you can record .ASF MPEG-4 files using the IDRS 1000. The LED will turn red when charging, then it will turn green when fully charged.
  • Page 24 2. Enter video recording screen. 3. Press the record button on the side of your IDRS 1000 and start to record. At this moment “REC” will appear in red to indicate recording. 4. To stop recording, please press ”ESC” button.
  • Page 25 4. Finish scheduled time recording: You can set up every day or a specific day and time to finish recording. 5. Automatic recording: When the setting is ON, and if your IDRS 1000 inputs video data, it will record automatically. The default setting is set to OFF.

  • Page 26: Introduction To Music Playback Mode

    2. Through the legal transferring software on the market you can transfer your legal music CD to compatible MP3 format on your IDRS 1000 or go to a legal Internet website to download compatible MP3 songs to your IDRS 1000.
  • Page 27 1. You can select part of or all files to play. When playing, if the file format is not supported by the IDRS 1000, the program will automatically stop playing. 2. You can select part of or all files to lock. After locked, you can not delete or copy the locked files.

  • Page 28: Introduction To Photo Browsing Mode

    Photo Browsing Mode The photo browsing function allows you to view your .JPG files. You can also play your Digital Camera’s photos from your IDRS 1000, please refer to the following introduction to enjoy your digital images. Photo browsing function: 1.
  • Page 29 1. You can select part of or all files to set up play. When playing, if the file format is not supported by the IDRS 1000, the program will stop playing. 2. You can select part of or all files to lock. After locked, you can not delete or copy the locked files.
  • Page 30 Photo Browsing Mode While enjoying your photos, you can also add special effects to them. Your IDRS 1000 offers a variety of photo browsing special effects. Without modifying the original pictures, you can apply basic effects such as scrolling, mirroring, black & white tone effect, and so on.
  • Page 31 Photo Browsing Mode Vertical mirroring: After mirror selection, you can switch vertical position. Rotating: After rotating selection, you can rotate the image 90º at a time. Black and white: Photo black and white effect. (After selection, you can not restore the image). Photo Browsing...

  • Page 32: How To Use Unit Properly

    High vibration or strong magnetic areas, such as a car, charger or magnet. When user move the IDRS 1000 from cold to warm places, it will cause fog to gather in the LCD panel, when this occurs, please switch off the player. You may switch the player back on after 1 hour.

  • Page 33: How To Use Power Charger

    The length of the AC power cord is 120cm, please note if children are present, to avoid electrical hazards and choking. Any modification made to any part of the IDRS 1000 or any included accessories are not authorized, covered, or supported by Stable Imaging Solutions, LLC.

  • Page 34: Safety And Warnings

    Do not recharge the unit during lightening or thunder storms. The IDRS 1000 is not a water proof product. Turn off the device and contact Stable Imaging Solutions, LLC. if you find water inside the unit.

  • Page 35: Troubleshooting

    Troubleshooting If you have a question about your IDRS 1000, please refer to the following first. If the problem remains, please contact Stable Imaging Solutions, LLC. Problem Reasons Solutions IDRS 1000 will not • Dead Battery • Check battery charge turn on •...

  • Page 36: Warning For External Storage Media

    Warning for External Storage Media For your IDRS 1000 there are two types of external storage media: CF CARD and 20G external HDD (optional accessories) . When using the external storage device, please note the data is saved electronically. So all data can be erased and added, always back up your important data.
  • Page 37 Warning for External Hard Drive Installation 1. Please remove the plastic protective flap from the back of the unit. 2. At the same time please press the buttons on both sides of the hard drive firmly. 3. Adjust the hard drive docking connection to the unit and press slightly.
  • Page 38 Warning for External Hard Drive Installation 1. Before removing the hard drive, please push the locking button slightly to the left. 2. At the same time please press the buttons on both sides of the hard drive slightly and pull back a bit so you can remove the hard drive.

  • Page 39: Attachment 1: Compatible External Memory Cards

    As there are so many different brands and types of external CF Type 1 Cards, it is impossible for Stable Imaging Solutions, LLC. to test them all. Stable Imaging Solutions, LLC. can only list the following cards which have been tested and deemed okay for your reference when you purchasing.

  • Page 40: Attachment 2: Compatible File Formats

    Attachment 2: Compatible File Formats Video Playing Format Format: ASF Format: AVI Resolution: QCIF 176x144 SIF 352x240 Resolution: QVGA 320x240 Frame rate: up to 30fps Frame rate: up to 25fps Bitrate: up to 1.5Mbps Bitrate: up to 800kbps Audio Sample Frequency: G.726 Audio Codec: Mpeg-1 Layer-3 Audio Sample Frequency: 8000Hz mono Audio Sample Frequency: 44.1kHz...

  • Page 41: Product Specification

    Product Specification Feature Specification Description TI-DSC25 ARM7 40 MHz C5409A 100 MHz Display 2.5 inch TFT 59.9x50.4x4.5mm LED Type Viewer area 49.2x38.142mm Number of dot 480(W) x 234(H) Color R,G,B delta Storage Media Memory Card CF type I Headphone/AV out AV in USB 2.0 Power input...

  • Page 42: System Requirements

    Product Specification Feature Specification Description Battery Movie HDD – up to 120 minutes CF card – up to 160 minutes Music HDD – up to 160 minutes CF card – up to 240 minutes Photo slideshow HDD – up to 120 minutes CF card –...

  • Page 43: Notes

    Notes Notes...
  • Page 44 SIS Manual Ver. 1.1 Stable Imaging Solutions, LLC. 3709 Old Conejo Road Newbury Park, CA 91320 Office & Administration Telephone 805-480-4916 Fax 805-480-4866 Sales Telephone 713-249-4527 Email sales@stableimaging.com Customer Service & Technical Support Telephone 865-386-6763 Email support@stableimaging.com www.stableimaging.com Printed in the U.S.A.
