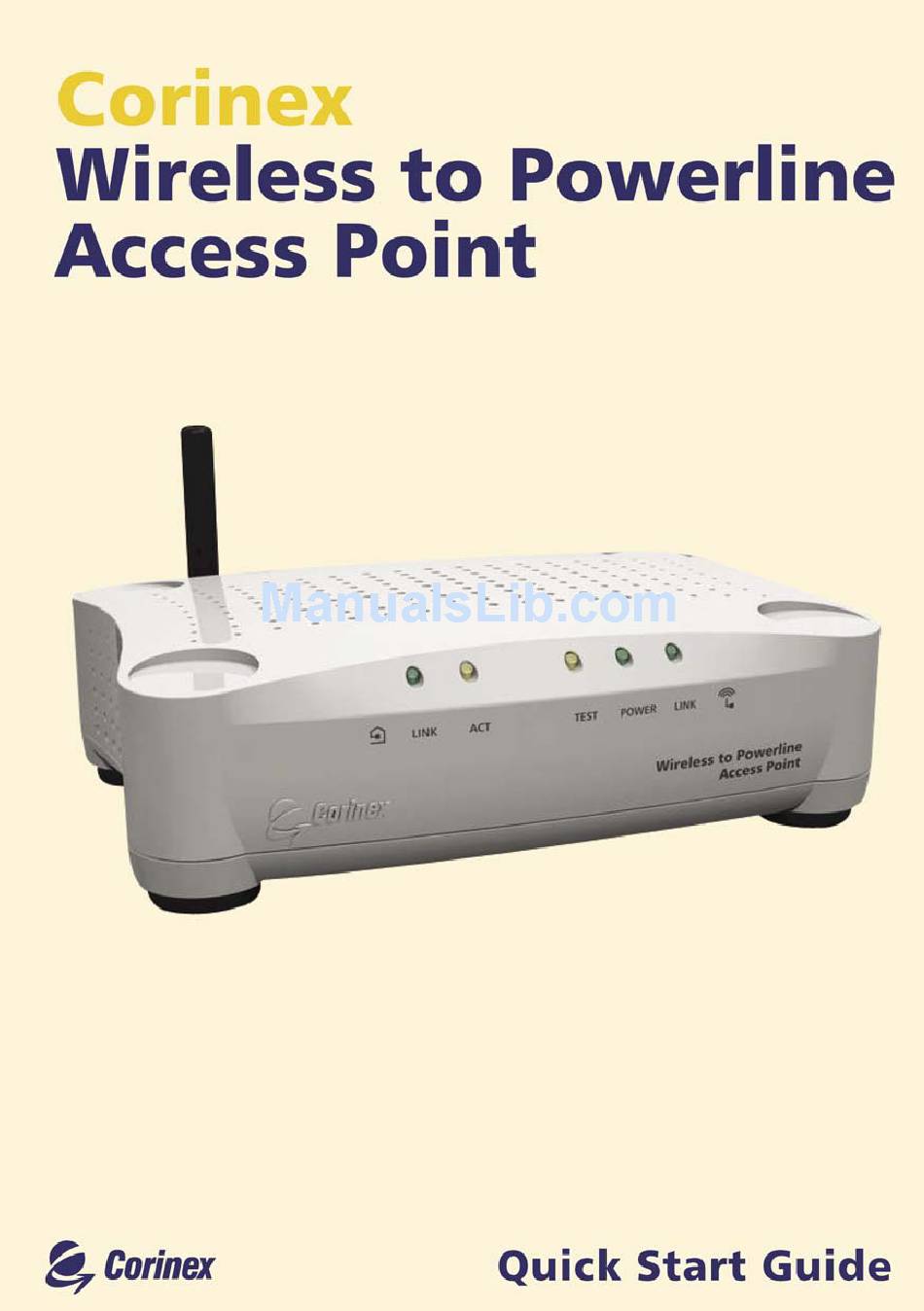

Corinex WLA Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the WLA and is the answer not in the manual?

Questions and answers

Related Manuals for Corinex WLA

Summary of Contents for Corinex WLA

  • Page 4 The use of the product or its features described in this document may be restricted or regulated by law in some countries. If you are unsure which restrictions or regulations apply, you should consult your regional Corinex office or the authorized reseller.

  • Page 5: Table Of Contents

    Content Package Content ............... 3 Requirements ................4 Installation Overview ..............4 Step 1: Connecting the Access Point ......... 5 Step 2: Configuring Computers ..........6 Step 3: Configuring the Access Point ........10 Corinex Wireless to Powerline AP...

  • Page 6: Package Content

    11 Mbps. This allows the easiest deployment of wireless HotSpot areas where every power outlet can be used as a powerline network interface to the access point. With Corinex Wireless to Powerline AP you have already got the network you need to give the wireless access an entirely new dimension.

  • Page 7: Requirements

    Installation Overview This Guide will assist you with successful installation and configuration of your Corinex Wireless to Powerline Access Point for the first time. It will help you with basic settings, which are covering most of the settings you may need to configure for your Internet connection to be shared through the Powerline medium.

  • Page 8: Step 1: Connecting The Access Point

    Use only the power adapter supplied with the Access Point. Usage of a different adapter may result in product damage! After the Corinex Wireless to Powerline Access Point is powered ON, verify LED functionality below: • The LED on the Powerline side labelled LINK should be ON •...

  • Page 9: Step 2: Configuring Computers

    Corinex Setup Tool for the MAC addresses of the AP. You will find the MAC address of your Corinex Wireless to Powerline AP on the label on the bottom of the AP´s plastic cover (MAC PLC / SN).
  • Page 10 Windows XP Operating System. Other operating systems have slight differences and we recommend to read the Corinex Wireless to Powerline AP User Guide for detailed description how to change TCP/IP settings on your Operating System.
  • Page 11 Adapter if you are powerline connected. It is usually the first adapter listed). Double-click the Local Area Connection. C. The Local Area Connection Status screen will appear. Click the Properties button. D. Select Internet Protocol (TCP/IP) and click the Properties button. Corinex Wireless to Powerline AP...
  • Page 12 F. If you do not have DHCP server on the network, then select Use the following IP address. Set the IP address manually in the shape 192.168.1.X and mask 255.255.255.0 of local TCP/IP settings and click the OK button. On the next appearing screen click the OK button again. Corinex Wireless to Powerline AP...

  • Page 13: Step 3: Configuring The Access Point

    Step 3: Configuring the Access Point Step 3: Configuring the Access Point Corinex Wireless to Powerline Access In this Step, you will configure the Point. A. Open your web browser. (You can get an error message at this point. Ignore it.) Enter http://192.168.1.1 in the web browser’s Address field.
  • Page 14 D. On the Login screen, enter the default password, password, in the Password field. Then click the Submit button. For enhanced security, remember to change this password later through the web-based utility (Utilities / System Settings). Corinex Wireless to Powerline AP...
  • Page 15 AP and fill all the other fields according to you settings requirements. Any new settings will not take effect until the AP is rebooted. Corinex Wireless to Powerline AP...
  • Page 16 G. In the Security Settings screen select the Encryption type, Authentication type, Radius IP, WPA, WEP, etc. Set the Wired Equivalent Privacy (WEP) for your wireless network. Select a WEP or other encryption method and a passphrase. Click on Apply to make changes. Corinex Wireless to Powerline AP...
  • Page 17 Note: NEK must be between 4 to 24 alphanumeric characters and is case sensitive. For detailed configuration procedures and functionality of the AP or for installation with other operating system versions, please see the Corinex Wireless to Powerline User Guide on the included CD-Rom. Corinex Wireless to Powerline AP...
