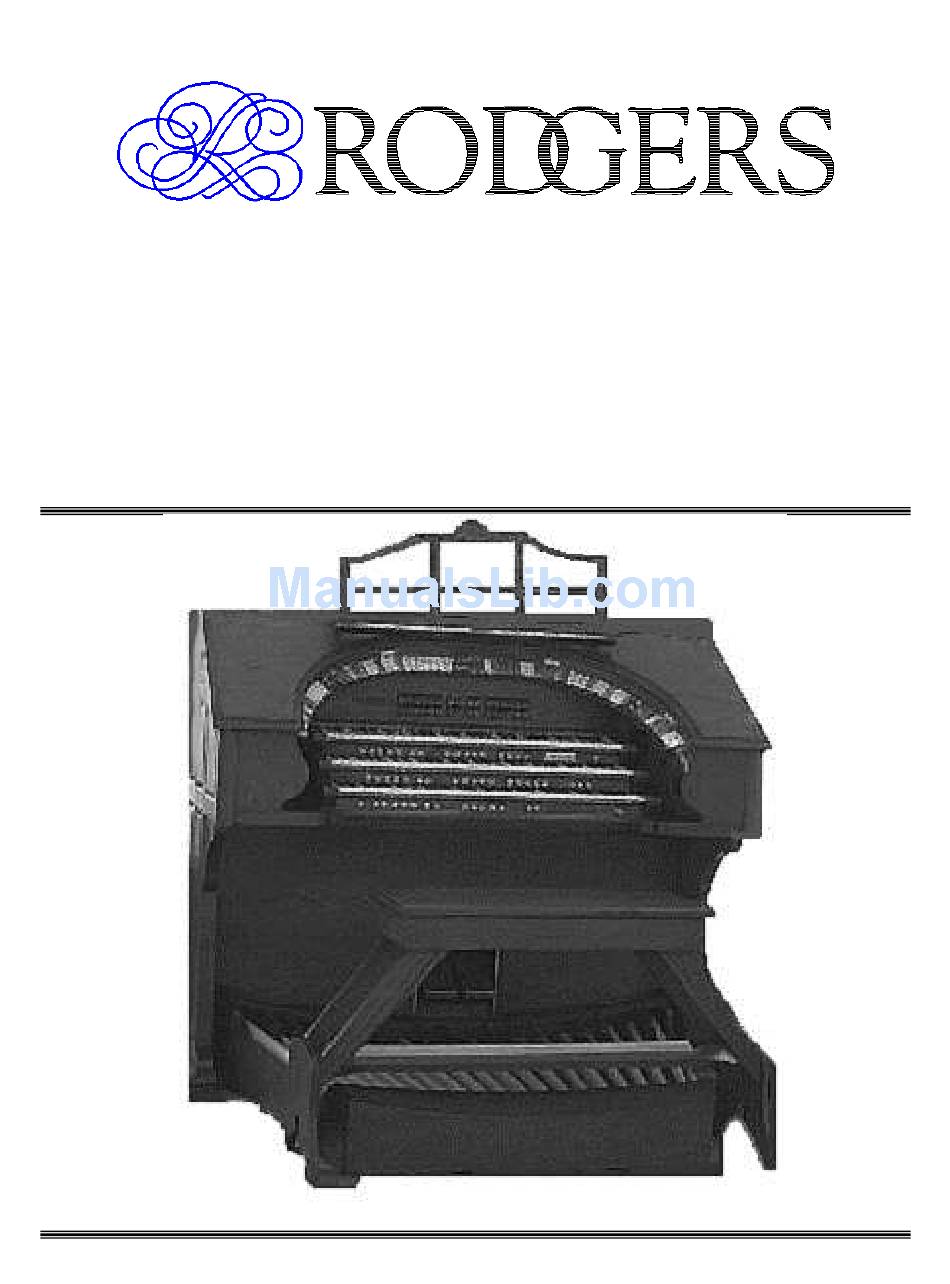

  • Page 1 Theatre 360 Owner’s Manual...

  • Page 2: Table Of Contents

    –Adjusting the Volume of the Traps page 13 Trap Select page 13 –Trap List page 13 –Setting the Trap Select Tabs page 13 Rodgers Mood Enhancement™ page 14 –Mood Enhancement List page 13 –Adjusting the Volume of the Mood Enhancement page 14...
  • Page 3 Manual Sound Effects page 14 –Adjusting the Volume of the Manual Sound Effects page 15 –Manual Sound Effects Chart page 16 Transposer page 17 Tuning Control page 17 –Locking and Unlocking the Master Tuning page 17 –Adjusting the Pitch page 17 Console Lamp Dimmer page 18 Digital Dynamic Wind™...
  • Page 4 –Enabling or Disabling a MIDI Master Channel page 33 MIDI Stop Changes page 34 –Selecting MIDI Stop Change Settings page 34 –Using Pistons to Control a Second Rodgers Console page 35 MIDI Local Control page 35 –Enabling or Disabling MIDI Local Control page 35...
  • Page 5 –Selecting a New Folder on the Card page 40 Locking/Unlocking a Personal Memory Card page 41 Using a Personal Memory Card on other Rodgers Organs page 41 Reinitializing a Personal Memory Card page 41 Replacing the Personal Memory Card Battery...

  • Page 6: Introduction

    Rodgers Theatre 360 is truly in a class by itself. This manual will help with the exploration of the expansive capabilities and the variety of features and functions offered by this incomparable instrument.

  • Page 7: Features

    Display. Release. The organ will perform a self diagnostic test of its systems within a few seconds. When completed, the Console Display will read “TRANSPOSER 0/TEMPO 120”. The Rodgers Theatre 360 is ready to play. To turn the power off, press the lower part of the rocker switch and release after 1-2 seconds.

  • Page 8: Combination Action With Four Memory Levels

    COMBINATION ACTION WITH FOUR MEMORY LEVELS The Rodgers Theatre 360 features a combination action easily changed by the organist from the console. The organist can pre-select registrations and make rapid changes in tone color using this advanced system. Rodgers’ microprocessor combination action is a specially refined four-memory system.

  • Page 9: Locking A Combination Memory

    Release the memory select tab. The memory is now locked. CONSOLE DISPLAY AND MENUS The Rodgers Theatre 360 is equipped with a two-line Console Display window located in the right panel. This display indicates the Transposer and Tempo setting, and it can be used to alter many other settings and organist preferences including MIDI settings, Voice Palette, and Tremulant rate and depth, among many others.

  • Page 10: 360 User Menu Items

    360 User Menu Items Hold SET, turn SELECT knob counterclockwise. TRANSPOSER ² TRANSPOSER 4b thru 7# TEMPO ² ² ² TUNING A= ² ² ² .² MAIN I "VOICE PALETTE" MENU 20 thru 250 MAIN II (SEE VOICE PALETTE SECTION) 427.7 thru 453.0 TUBA (±...

  • Page 11: 360 Midi Menu Items

    360 MIDI Menu Items Hold SET, turn SELECT knob clockwise. AC A TRANSPOSER ² AC B TEMPO ² GT A GT B 1 thru 16 SO A (AC A ONLY) SO B MIDI ² ² ² CH ² PD A PGM=²...

  • Page 12: 360 User (Headphone) Menu Items

    360 User (Headphone) Menu Items Hold SET, turn SELECT knob counterclockwise. TRANSPOSER ² TRANSPOSER 4b thru 7# TEMPO ² ² ² TUNING A= ² ² ² .² MAIN I "VOICE PALETTE" MENU 20 thru 250 (SEE VOICE PALETTE SECTION) MAIN II 427.7 thru 453.0 TUBA (±...

  • Page 13: Expression And Crescendo Shoes

    EXPRESSION AND CRESCENDO SHOES The Rodgers Theatre 360 has two Expression Shoes. As with a real theatre pipe organ, the left Expression Shoe controls the Main chamber voices, and the right Expression Shoe controls the Solo chamber voices. When the MASTER EXPRESSION/CRESCENDO tab is lit, the Main Expression Shoe becomes a Master Expression Shoe, and the Solo Expression Shoe becomes a Crescendo Pedal.

  • Page 14: Locking The Crescendo

    Press and hold the SET piston, and press the MASTER/CRESCENDO EXPRESSION tab again. The tab light flashes, and the Console Display reads: C R E S C S E T M O D E S T D S T A G E 1 The stops and couplers currently set on stage one of the 63 stages in the Crescendo sequence turns on.

  • Page 15: Melody Coupler

    MELODY COUPLER The Melody Coupler (MEL) is located on a piston under the Great manual to the right. The Melody Coupler lights when it is engaged. Any stop or coupler of the Solo division sounds from the highest key being played on the Great manual. This allows a solo melody and an accompaniment to be played on the same manual.

  • Page 16: Pizzicato Coupler

    Great Sostenuto is on. ™ RODGERS RHYTHMAKER The Rodgers Rhythmaker is an easy-to-use automatic rhythm unit. The rhythm select tabs are located in the group of black tabs to the far left on the back rail. They light when they are engaged.

  • Page 17: Adjusting The Volume Of The Rhythmaker

    TRAPS The Theatre 360 includes a variety of traps located on the stop rail. The Accompaniment has Snare Drum, Tambourine, Cymbal and Trap Select; the Wood Block is the default trap for the Accompaniment Trap Select tab.

  • Page 18: Adjusting The Volume Of The Traps

    Please refer to the “Audio Save” section. Press General Cancel to exit. TRAP SELECT The Rodgers Theatre 360 has 16 additional trap instruments which can be assigned to the Pedal Trap Select tab and the Accompaniment Trap Select tab. The traps are: Side Stick Timbale...

  • Page 19: Adjusting The Volume Of The Mood Enhancement

    Press General Cancel. MANUAL SOUND EFFECTS Another exclusive feature of the Theatre 360 is the manual sound effects. These effects are very useful for adding novelty and fun to the music being played. The SOUND EFFECTS piston is reversible (press to turn on; press again to turn off) and is located to the far right under the Solo manual.

  • Page 20: Adjusting The Volume Of The Manual Sound Effects

    The maximum volume level for the manual sound effects can be adjusted in the Console Display.  ADJUSTING THE VOLUME OF THE MANUAL SOUND EFFECTS: Press and hold the SET piston. Turn the Select Knob counter clockwise (left) until the Console Display reads “SFX VOLUME”.

  • Page 21: Manual Sound Effects Chart

    MANUAL SOUND EFFECTS CHART Thunder I Thunder II Rain I Rain II Wind I Wind II Seashore I Seashore II Stream I Stream II Bubble I Bubble II Big Dog Bark Dog Bark Kitty Bird T weet I Bird T weet II Tropical Bird I Tropical Bird II Horse Hoov es I...

  • Page 22: Transposer

    Transposer, it is necessary to first hold SET, and then turn the Select Knob. TUNING CONTROL The Rodgers Theatre 360 can easily and quickly be tuned to a piano or musical instrument not at standard concert pitch (A=440.0). The range of the Tuning Control is one- half semitone sharp or flat.

  • Page 23: Console Lamp Dimmer

    Even though this results in significant detuning, the human ear seems to perceive instead an increase in ensemble effect. Rodgers’ exclusive Digital Dynamic Wind (patent pending) emulates these characteristics by modeling the behavior of pipe organ wind regulating devices and the response of pipes to a slightly unsteady wind supply.

  • Page 24: Expression Range Adjustments

    EXPRESSION RANGE ADJUSTMENTS The minimum volume of each chamber when its Expression Shoe is closed can be adjusted to suit specific musical needs or personal tastes. The “MINIMUM EXPRESSION” menu allows three settings— “NORMAL”, “ppp”, and “pppp”. The “NORMAL” setting produces the amount of expression obtained on most pipe instruments with typical swell shades.

  • Page 25: Voice Palette List

    ™ VOICE PALETTE Many of the stop tabs on the Rodgers Theatre 360 can play additional voices which are ™ selectable through the Voice Palette menu. These voices are: DIVISION STOP TAB VOICE PALETTE VOICE PALETTE PEDAL: 8' Clarinet 16' English Horn...

  • Page 26: Locking And Unlocking The Voice Palette

     LOCKING AND UNLOCKING THE VOICE PALETTE: Press and hold the SET piston. Turn the Select Knob counter clockwise (left). The Console Display reads: V O I C E P A L E T T E U N L O C K E D Rotate the Alpha Dial to lock the Voice Palette.

  • Page 27: Adjusting The Tremulant Rate

    Rotate the Alpha Dial to change the tremulant rate. The adjustment values range from -9 (slow) to +9 (fast). A value of zero corresponds to the rate chosen by the voicer during tonal finishing using the exclusive Rodgers GC-8 Graphic Controller.

  • Page 28: Audio Save

    Rotate the Alpha Dial to set the desired value. AUXILIARY INPUTS The Rodgers Theatre 360 console is equipped with stereo Auxiliary Input Jacks (one for the left channel and one for the right channel) located on the Connector Panel under the keydesk to the right.

  • Page 29: Adjusting The Auxiliary Inputs

    Save”section. DIGITAL REVERBERATION The Rodgers Theatre 360 features an internal digital reverberation system. The volume, length and type of reverberated sound can be individually changed. Any changes made to the Reverberation settings from this menu are temporary and are lost when the organ is turned off, unless they are saved by performing the Audio Save procedure.

  • Page 30: Setting The Reverb Type

    Playing the organ from a remote MIDI keyboard or sequencer will also reset the timer. PIPES Any digital sampled rank in the Rodgers Theatre 360 may be replaced by a real wind- blown pipe rank. If a limited range of pipes are available, sampled voices from the Rodgers Theatre 360 can fill out the entire range.

  • Page 31: Midi (Musical Instrument Digital Interface)

    MIDI (Musical Instrument Digital Interface) Rodgers organs have some of the most advanced MIDI capabilities in the world, offering a great variety of sound possibilities. In addition to the traditional theatre organ voices on the organ, there are 654 MIDI sounds (orchestral instruments, tuned percussions, traps and sound effects) contained in an internal Roland sound module.

  • Page 32: Previewing Various Midi Sounds

     PREVIEWING VARIOUS MIDI SOUNDS: A variety of MIDI sounds may be previewed before making a selection. To listen to various MIDI sounds: Press and hold the SET piston, then press a MIDI coupler piston. The MIDI coupler piston flashes. Continue to hold SET. By continuing to hold SET, the organ will remain in the MIDI Set Mode.

  • Page 33: Setting The Gs Variation (Bank Number)

     SETTING THE GS VARIATION (BANK NUMBER): Press and hold SET, then press a MIDI coupler piston. The piston flashes, indicating the MIDI Set Mode is active. The Console Display reads: M I D I G T A C H 1 P G M = 1 2 1 V A R = 0 Turn the Select Knob clockwise (right).

  • Page 34: Additional Midi Settings

    The velocity can be individually selected on each MIDI coupler piston, and these settings can then be saved on combination pistons. The three types of MIDI note velocity on the Theatre 360 are Fixed Velocity, Expression Velocity, and Keyboard Velocity.

  • Page 35: Setting Keyboard Velocity

    Press either the flashing MIDI coupler piston or General Cancel to exit. Note: A MIDI Save may be performed to save this setting as the default. Please refer to the “MIDI Save” section. Keyboard Velocity: This setting individually senses the velocity of each note of the keyboard.

  • Page 36: Midi Volume Level

    “MIDI Save” section. INTERNAL/EXTERNAL MIDI SOUND MODULES The internal MIDI sound module can be turned off when the Theatre 360 is used with an external MIDI sound module. Each MIDI coupler piston channel can be individually assigned to either internal/external or external only.

  • Page 37: Midi Save

    2. Turn the Select Knob clockwise (right) until the cursor moves to the channel number. 3. Rotate the Alpha Dial to set the channel number. 4. Press either the flashing MIDI coupler piston or General Cancel to exit. The channel number for MIDI ACCOMP A coupler piston can be saved in the settings on a combination piston or saved permanently by performing the MIDI Save procedure.

  • Page 38: Midi Coupler Piston Factory Default Settings

    Remember, MIDI default settings can be changed by performing a MIDI Save procedure. ENABLING/DISABLING MIDI MASTER CHANNELS The Theatre 360 reserves several MIDI channels for recording and playback of the organ using a MIDI sequencer. One channel is reserved for each division as follows:...

  • Page 39: Midi Stop Changes

    The use of piston Program Changes for stop control is most useful when controlling a Rodgers organ from a remote MIDI keyboard or when controlling a second Rodgers console other than a Theatre 360 via MIDI.

  • Page 40: Using Pistons To Control A Second Rodgers Console

     USING PISTONS TO CONTROL A SECOND RODGERS CONSOLE: Connect the MIDI Sequencer Output of the master console to the Sequencer Input of the slave console. On the master console, enable piston transmission by turning the Select Knob until the cursor is in the Send Field (“SEND”) of the MIDI Stop Change menu.

  • Page 41: Midi Device Id

    The number can be set to 1, or 17 through 32. Setting the ID to 1 produces Stop Control messages which are compatible with older Rodgers PDI and C-Series organs. The ID always returns to 17 when the organ is turned off.

  • Page 42: Midi Connections

    Note: If a Rodgers Personal Memory Card is inserted when recording or playing back combination memories, and the card memory is in use for the memory level being saved/restored, the memory will be saved from or restored to the memory card rather than the internal memory.

  • Page 43: Rodgers Personal Memory Card

    To initialize the Personal Memory Card, press and release the SET piston. This initialization process stores a small amount of information on the card which makes it recognizable as a valid Rodgers Personal Memory Card. At this point, the card is ready to be used for combination memory storage. A newly initialized card contains no combination memories as yet.

  • Page 44: Deleting A Memory From The Card

     Whenever a memory select piston (M1, M2, M3, or M4) is pressed, a message appears in the Console Display indicating whether the internal memory or the Personal Memory Card memory is being used.  If an internal memory is accidentally copied to the Personal Memory Card, or if a memory level is to be removed on the Personal Memory Card so the internal memory can be used instead, you can delete the memory level from the Personal Memory Card.

  • Page 45: Deleting Settings From The Card

    PERSONAL MEMORY CARD FOLDERS The capacity of a Rodgers Personal Memory Card is greater than that of the organ’s internal combination memory. In order to make easy use of this additional capacity, Rodgers uses the concept of memory folders. Like a file folder, a memory folder is used to store groups of information on the Personal Memory Card.

  • Page 46: Locking/Unlocking A Personal Memory Card

    USING A PERSONAL MEMORY CARD ON OTHER RODGERS ORGANS The same Personal Memory Card can be used in more than one Rodgers organ. The information on the Personal Memory Card is kept separate for each organ model. If a folder is created on a particular model, that folder will only be accessible on that same model of Rodgers organ.

  • Page 47: Replacing The Personal Memory Card Battery

    REPLACING THE PERSONAL MEMORY CARD BATTERY A 3-volt lithium battery (Rodgers part #1571-003 or Radio Shack part #23-160) is required for replacement. Replacement batteries can be obtained from your local Rodgers representative or at many camera stores. To replace the battery without losing the contents of the Personal Memory Card, open the battery compartment on the front edge of the card only with the card inserted in the console slot while the organ is on.

  • Page 48: Theatre 360 Stop Specification

    THEATRE 360 STOP SPECIFICATION GREAT SOLO English Horn 16' (Saxophone 16’) English Horn 8' Tuba Profunda 16' Trumpet 8' Tibia Clausa 16' Tuba Horn 8' Contra Viols II 16' Tibia Clausa 8' Vox Humana 16' (Trumpet 16') Orchestral Oboe 8'...
  • Page 49 (Theatre 360 Stop Specification continued) ACCOMPANIMENT PEDAL English Horn 8' Diaphone 32' Tuba Horn 8' Tuba Profunda 16' Open Diapason 8' Diaphone 16' Clarinet 8' (Trumpet 8') Violon Cellos II 16' Viol Celeste II 8' Bourdon 16' Quintadena 8' (Tibia Minor 8')

  • Page 51: Factory Default Combination Settings

    FACTORY DEFAULT COMBINATION SETTINGS The Rodgers Theatre 360 is shipped from the factory with default settings on combination memories 1 and 2. Registrations on M1 and M2 can be changed, but if the original factory default settings are desired, they can be restored by performing the following procedure: ...

  • Page 52: Factory Default Registrations For M1 And M2

    FACTORY DEFAULT REGISTRATIONS FOR M1 AND M2 The following registrations are the factory default settings on memory 1: Memory 1 Generals: PEDAL Diaphone 32' Tuba Profunda 16' Diaphone 16' Violon Cellos II 16' Bourdon 16' Tuba Horn 8' Tibia Clausa 8' Clarinet 8' Cello Celeste II 8' Flute 8'...
  • Page 53 GREAT English Horn 16' Tuba Profunda 16' Tibia Clausa 16' Contra Viols II 16' Vox Humana 16' Trumpet 8' Tuba Horn 8' Open Diapason 8' Tibia Clausa 8' Orchestral Oboe 8' Krumet 8' Clarinet 8' Viol Celeste II 8' Vox Humana 8' Tibia Quint 5 1/3' Octave 4' Piccolo 4'...

  • Page 54: Memory 2 Generals

    Memory 2 Generals: PEDAL Diaphone 32' Tuba Profunda 16' Diaphone 16' Violon Cellos II 16' Bourdon 16' Tuba Horn 8' Tibia Clausa 8' Clarinet 8' (Kinura 8', English Horn 16') Cello Celeste II 8' Flute 8' Tympani Cymbal Trap Select (Bass Drum) Accompaniment to Pedal MIDI A [LP] (Piano 1, #1) DN 1...
  • Page 55 GREAT English Horn 16' (Saxophone 16') Tuba Profunda 16' Tibia Clausa 16' Contra Viols II 16' Vox Humana 16' (Trumpet 16') Trumpet 8' Tuba Horn 8' Open Diapason 8' (Tibia Minor 8') Tibia Clausa 8' Orchestral Oboe 8' Krumet 8' (Kinura 8'), [Musette 8'] Clarinet 8' Viol Celeste II 8' Vox Humana 8' (Rauschquint IV)

  • Page 56: Memory 1 And 2 Divisionals

    Memory 1 and 2 Divisionals: Memory 1 Memory 2 PEDAL Diaphone 32' Tuba Profunda 16' Diaphone 16' Violon Cellos II 16' Bourdon 16' Tuba Horn 8' Tibia Clausa 8' Clarinet 8' (Kin 8', EngHn 16') Cello Celeste II 8' Flute 8' Tympani Cymbal Trap Select (Triangle) {Chinese...
  • Page 57 Memory 1 Memory 2 SOLO English Horn 8' Trumpet 8' Tuba Horn 8' Tibia Clausa 8' Orchestral Oboe 8' Krumet 8' (Kinura 8') [Musette 8'] Saxophone 8' (Vox Humana 8') Piccolo 4' Tibia Twelfth 2 2/3' Tibia Piccolo 2' Solo to Solo 16' (Sub) Xylophone [LP] Chrysoglott [LP] Harp [LP]...
  • Page 58 Memory 2 GREAT English Horn 16' (Saxophone 16') Tuba Profunda 16' Tibia Clausa 16' Contra Viols II 16' Vox Humana 16' (Trumpet 8') Trumpet 8' Tuba Horn 8' Open Diapason 8' (Tibia Minor 8') Tibia Clausa 8' Orchestral Oboe 8' Krumet 8' (Kinura 8') [Musette 8'] Clarinet 8' Viol Celeste II 8'...

  • Page 59: Suggested Registrations

    SUGGESTED REGISTRATIONS Here are a few suggestions for registrations on the Great: BALLAD 1 BALLAD 2 BALLAD 3 Vox Humana 8 Tibia Clausa 16 Tibia Clausa 16 Piccolo 4 Vox Humana 16 Vox Humana 16 Vox Humana 8 Orchestral Oboe 8 Piccolo 4 Viol Celeste II 8 Vox Humana 8...
  • Page 60 Here are a few suggestions for registrations on the Solo: BALLAD 1 BALLAD 2 BALLAD 3 Tibia Clausa 8 Orchestral Oboe 8 Trumpet 8 Saxophone 8 Saxophone 8 * (select Vox Tuba Horn 8 Humana from VP) Tibia Clausa 8 Piccolo 4 Solo to Solo 16 BALLAD 4...
  • Page 61 Here are a few suggestions for registrations on the Accompaniment: BALLAD 1 BALLAD 2 BALLAD 3 Quintadena 8 Quintadena 8 Viol Celeste II 8 Concert Flute 8 Concert Flute 8 Quintadena 8 Flute 4 Harp BALLAD 4 BALLAD 5 NOVELTY Concert Flute 8 Viol Celeste 8 Viol Celeste II 8...

  • Page 62: Internal Sound Module Instrument And Drum Set Charts

    INSTRUMENT AND DRUM SET CHARTS The following charts contain the sounds from the internal MIDI sound module in the Theatre 360. There are two columns of numbers: the first column is the program change number; the second column is the variation (bank) number.
  • Page 63 Reso SH Bass Tombone 2 Doctor Solo Tuba Waspy Synth Synth Bass 2 Tuba 2 Syn. Calliope Synth Bass201 Muted Trumpet 1 Vent Synth Modular Bass French Horns Pure PanLead Seq Bass Fr. Horn 2 Chiffer Lead Beef FM Bass Fr.
  • Page 64 Harpvox Prog. # Variation Instrument Voices Prog. # Variation Instrument Voices Hollow Release 2 Nylon+Rhodes St. Gamelon Seashore 1* ** Ambient Pad RAMA Cymbal 1 Rain 1* ** Brightness Agogo Thunder 1* ** Goblin Atarigane Wind 1* ** Goblinson Steel Drums Stream 2* ** 50Õs Sci-Fi...

  • Page 65: Drum Set Charts

    DRUM SET CHARTS Note # Standard Set (PC 1) Standard Set (PC 2) Room Set (PC 17) Slap < < < < Scratch Push [EXC7] < < < Scratch Push 2 [EXC7] Scratch Pull [EXC7] < < < Scratch Pull 2 [EXC7] Sticks <...
  • Page 66 < < < < Pedal Hi-hat [EXC1] Scratch Push 2 [EXC7] Scratch Push 2 [EXC7] < < Open Hi-hat 2 [EXC1] Scratch Pull 2 [EXC7] Scratch Pull 2 [EXC7] < < Ride Cymbal 1 < < < < < < <...
  • Page 67 Crash Cymbal 1 ¥ ¥ ¥ < ¥ ¥ ¥ Snare Roll ¥ ¥ ¥ < ¥ ¥ ¥ Concert Snare Drum ¥ ¥ ¥ < ¥ ¥ ¥ Concert Cymbal ¥ ¥ ¥ Scratch Push 2 [EXC1] ¥ ¥ ¥ Concert BD 1 ¥...

  • Page 68: Blank Chart For Favorite Sounds (Accomp)

    ACCOMPANIMENT MANUAL: PROGRAM CHANGE NUMBERS 1 THROUGH 61...

  • Page 69: Blank Chart For Favorite Sounds (Great)

    GREAT MANUAL: PROGRAM CHANGE NUMBERS 62 THROUGH 122...

  • Page 70: Blank Chart For Favorite Sounds (Solo)

    SOLO MANUAL: PROGRAM CHANGE NUMBERS 123 THROUGH 128...

  • Page 71: Midi Implementation Chart

    MIDI Implementation Chart Rodgers Model: Theatre 360 Version: 1.0 Function Transmitted Recognized Remarks Basic Default: 1-4, 6, 7, 11-16 *1 11-16 *1 12=Gt 13=Solo 14=Ped 15=Acc Channel Changed: 1-16 MIDI ACC A only 16=SFX Default: Mode 3 Mode 3 Mode...

  • Page 72: Care And Maintenance

    Representative is fully equipped and qualified to handle any service problems which may arise. Your new Rodgers organ is not only a fine musical instrument, but also a fine piece of custom-made furniture finished to hold its attractiveness through generations of use. Only the best woods are used, carefully checked for uniformity of grain and intensity of figure and carefully hand assembled.

  • Page 73: Important Safety Instructions

    Rodgers Instrument Corporation. When setting up with other instruments or peripherals, follow the procedures in accordance with Rodgers’ Do not use this instrument near water i.e., for example, owner’s manual. near a swimming pool or a damp/wet room.

  • Page 74: Radio And Television Interference Notice (Fcc Notice)

    FCC Notice Radio and Television Interference Rodgers Parallel Digital Imaging Organs use and generate small amounts of radio-frequency (RF) energy. The instrument complies with the limits set for Class A computing devices. FCC Rules, Part 15, Subpart J define the limits for radio and television interference in a residential installation.
  • Page 75 INSTRUMENTS LLC 1906-033B AVENUE, HILLSBORO, OREGON 97124 • (503) 648-4181 1300 N.E. 25...
