- Page 1 Owner’s Manual Bedienungsanleitung Manuel D’Utilisation Manuale Di Istruzioni...

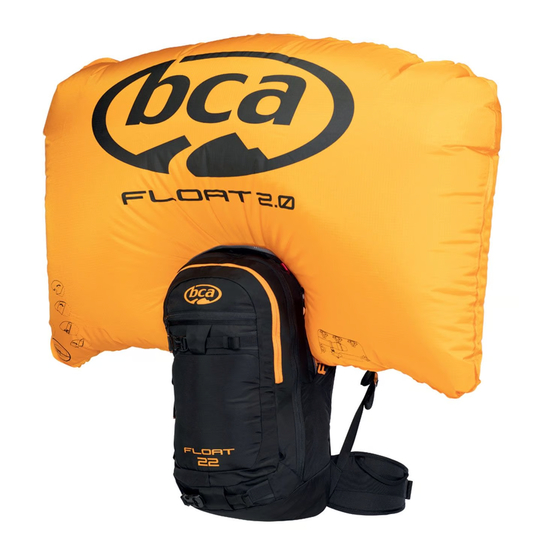

- Page 2 Float 22 Basic Components airbag trigger handle leg strap waist belt...
- Page 3 Float 22 Basic Components probe and shovel compartment airbag compartment diagonal ski mount loop main storage compartment helmet carry loops diagonal ski mount loop waist belt pocket...
- Page 4 Float Throttle Basic Components airbag trigger handle leg strap waist belt...
- Page 5 Float Throttle Basic Components probe and shovel compartment airbag compartment helmet carry main storage compartment loops waist belt pocket...
- Page 6 Float 32 Basic Components airbag load lifters trigger handle: can be trigger handle: can be set on either shoulder, set on either shoulder, hydration on the opposite hydration on the opposite waist belt leg strap...
- Page 7 Float 32 Basic Components airbag compartment lined goggle pocket diagonal ski mount loop shovel and probe compartment helmet sling storage helmet carry loops ice axe cords compression strap main storage compartment ice axe loops waist belt pocket diagonal ski mount loop...
- Page 8 Disclaimer The Float system is designed to help improve your chances of surviving an avalanche. It must be used correctly, following the guidelines in this manual. Perform a practice deployment at least once a year.
- Page 9 Equipment Check Compressed Air System trigger cover trigger cable pressure gauge coupler gauge release valve cover air hose ejector assembly quick connect fitting air cylinder...
- Page 10 Installing Compressed Air Cylinder 1. Remove packaging caps from compressed air cylinder. To reach the trigger cable and air hose, unzip the main storage compartment and fold back the Velcro flap inside. 2. With the compressed air cylinder outside of the backpack’s cylinder sleeve, connect the quick connect fitting on the air hose by pulling the large ring toward the air cylinder .
- Page 11 5. After all connections have been checked, slide the compressed air cylinder into the backpack’s cylinder sleeve. 6. Empty cylinders should only be refilled or exchanged at authorized Float refill or exchange centers. For a list of these locations, please see www.backcountryaccess.com/refillcenters. If shipping is required, see “Shipping a Compressed Air Cylinder”...
- Page 12 Using the Avalanche Airbag Check to make sure that nothing is obstructing the airbag compartment on the outside of the pack, especially any items with sharp points such as crampons or ice tools. Only carry skis using the diagonal ski carry. Do not use the side compression straps for A-frame carry, as they may obstruct the airbag’s deployment.
- Page 13 Using the Avalanche Airbag Ski/Snowboard Attachment Float 22: Skis can be carried using the diagonal ski mounts. To carry a snowboard, order our BCA Snowboard Carry Attachment, which integrates with the snowboard attachment loops on the back panel. Float Throttle: Does not offer the diagonal ski carry. However, it is possible to attach BCA’s Snowboard Carry Attachment, which integrates with the snowboard attachment loops on the back panel.
- Page 14 Re-pack the airbag into the airbag compartment. See “Packing the Airbag” below for details. The Float airbag will not deploy again until the cylinder is refilled or replaced. This can be done at a Float Refill Center (see www.backcountryaccess.com/refillcenters). To install the charged cylinder, see “Installing Compressed Air Cylinder”...
- Page 15 Removing and Installing the Airbag System The 12/13 Float packs feature a removable and interchangeable airbag system. The airbag components can be swapped between the Float 32 and Float 22/Float Throttle or removed entirely. Removing 1. To remove the airbag, open the airbag compartment by pulling the breakaway zipper apart under the Velcro flap.
- Page 16 Installing 1. With the airbag unfolded, lay the ejector in the airbag compartment with the orange release valve cover facing up (a). The air hose should be fed through the designated opening (b) into the main storage compartment where the cylinder is kept. 2.
- Page 17 Installing / Maintenance and Storage Moving the Trigger The Float 32 allows you to install the trigger in the left or right shoulder strap, depending on your preference. This feature is not available in the Float 22 or Float Throttle.
- Page 18 Do not use lubricants. Periodic Deployment BCA recommends deploying your Float airbag at least once per year, both to make sure the system is operating correctly and to be sure the user knows how to operate the equipment efficiently. Put it on, pull the trigger, repack the airbag and refill the cylinder before the season starts.
- Page 19 Certifications and Markings The following marks can be found on Backcountry Access Float avalanche airbags. The CE mark of conformity indicates that Backcountry Access and this product meet the requirements of the Personal Protective Equipment Directive (89/686/EEC). The Pi mark of conformity indicates that Backcountry Access and this product meet the requirements of ADR/RID and TPED (Directive 2010/35/EU).
- Page 20 Avalanche Rescue This is a basic introduction to avalanche rescue techniques. On our website, you will also find a list of avalanche instructors. We strongly suggest taking an avalanche course in your area before venturing into the backcountry. Each person needs a working beacon, probe and shovel—and must know how to use them.
- Page 21 Float save in Montezuma, Colorado, USA.
- Page 22 Backcountry Access, Inc. 2820 Wilderness Place, Unit H Boulder, Colorado USA Phone: 303.417.1345 www.backcountryaccess.com BCA /K2 Europe K2 Sports Europe GmbH Seeshaupter Strasse 62 82377 Penzberg Germany Fon: +49 8856 901 – 0 europe@backcountryaccess.com...
