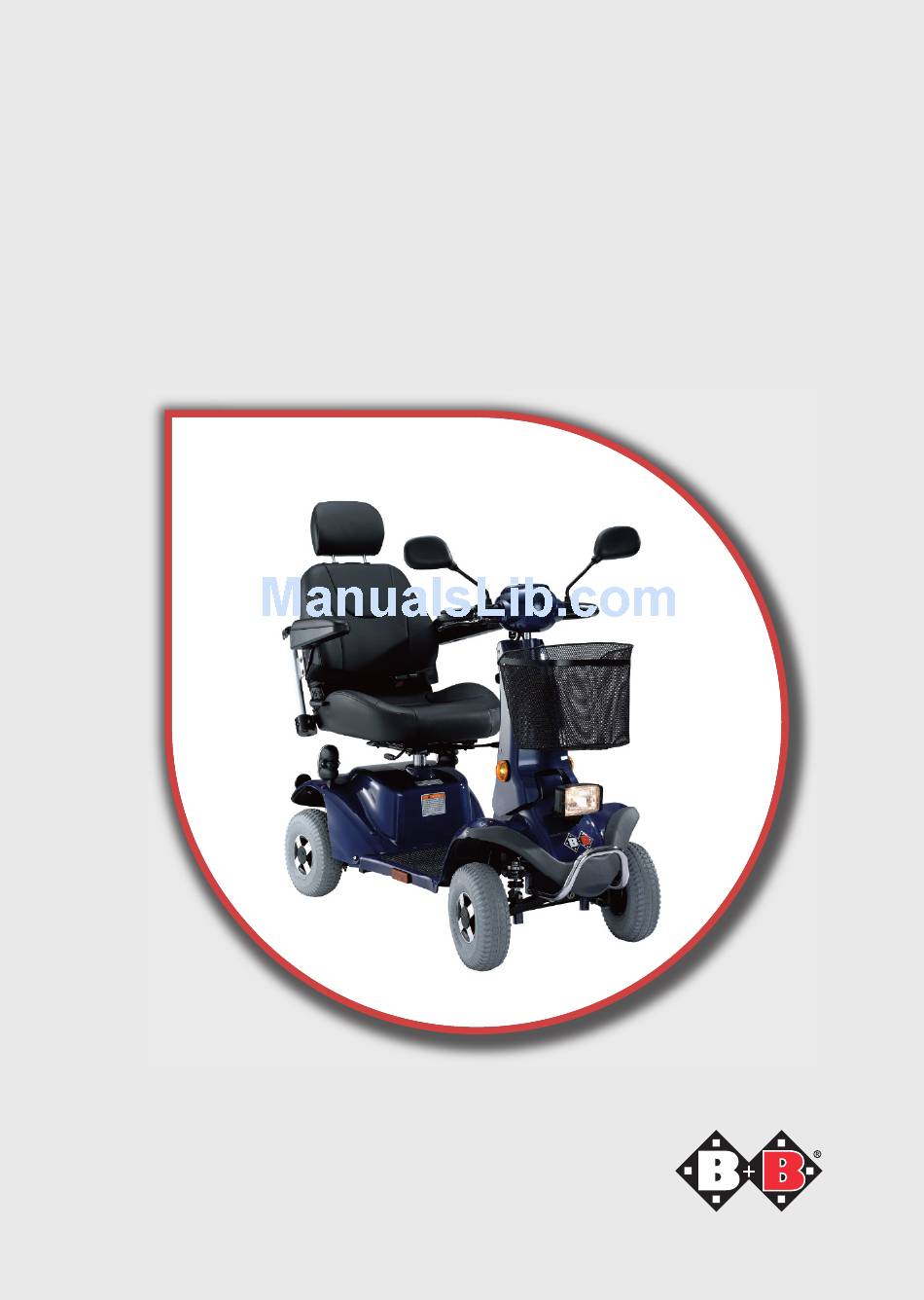

- Page 1 Bischoff & Bischoff Instruction manual Rapid 2 / Paseo Enjoy mobility.
-
Page 2: Table Of Contents
Contents 1| Preface 1.1 Signs and symbols 2| Important safety instructions 2.1 General safety instructions 2.2 Information on EMC interference 2.3 Brakes 2.4 Safety in vehicles 2.5 Travelling in traffic 2.6 Purpose 2.7 Indications 2.8 Contraindications 2.9 Declaration of Conformity 3| Overview of product and accessories 3.1 Checking the delivery 3.2 Package... - Page 3 Paseo / Rapid 2 4| Using the scooter 4.1 Description of controls 4.2 Entering and leaving 4.3 Driving the scooter 4.4 Pushing the scooter 5| Technical Data 6| User care instructions 6.1 Cleaning and disinfection 6.2 Checking the brake system 6.2.1 Service brake...
-
Page 4: Preface
1. Preface Dear user, You have selected a high-quality scooter from Bischoff & Bischoff. Thank you for your trust in our products. The scooter has been designed to offer you many advantages and to meet your requirements. The wide range of adjustment options and the ease of setting the seat height, backrest angle and the distance to the handlebars makes it easy to adjust the scooter to fit your body size exactly. -
Page 5: Signs And Symbols
Paseo / Rapid 2 1.1 Signs and symbols. Caution! Indicates specially safety-relevant instructions. Follow instruction manual. Important! Indicates specially useful information in the specific context. Bischoff & Bischoff GmbH • 04.05.2011... -
Page 6: Important Safety Instructions
2. Important safety instructions 2.1 General safety instruction To prevent falls and dangerous situations, you should start fa- miliarising yourself with your new scooter on a level, open area. We recommend having someone accompany you at this stage. Before operating the scooter please check that all attached parts are correctly fastened. -
Page 7: Information On Emc Interference
Paseo / Rapid 2 The lights on the scooter must always be visible to other traffic. Wear bright, conspicuous clothing as much as possible. This will ensure that you are more visible to other traffic. Please note that seat cushions that are exposed to direct sun- light may become hot and if they are touched may burn your skin. -
Page 8: Safety In Vehicles
2.4 Safety in vehicles Please note that the scooter must not be used as a seat in a vehicle. The user must transfer from the scooter to a standard vehicle seat. The scooter must be secured to prevent movement with straps. 2.5 Travelling in traffic The scooter is designed exclusively for use outdoors. -
Page 9: Indications
• with reduced and inadequate vision • with serious cognitive restrictions 2.9 Declaration of Conformity Bischoff & Bischoff as manufacturer declare in sole responsibility that the Rapid 2 and Paseo scooters conform to the require- ments of Directive 93/42/EEC. Bischoff & Bischoff GmbH • 04.05.2011... -
Page 10: Overview Of Product And Accessories
3. Overview of product and accessories 3.1 Checking the delivery All B+B products are given a final inspection before they leave our factory and the CE mark is attached. The scooters are supplied in a special carton. After unpacking the scooter, keep the carton if possible. It can be used for sub- sequent storage or return of the product. -
Page 11: Package
Rear-vision mirror Seatback unit Arm rest Steering column Walking stick holder Basket Indicator Headlight Drive wheels Suspension Steering wheels Fig. 1, (Rapid 2, Paseo without head rest, right mirror, walking stick holder and flag) Bischoff & Bischoff GmbH • 04.05.2011... -
Page 12: Steering Column
3.3 Adjustment Before using the scooter for the first time it must be adjusted to fit you. This is essential to ensure that your posture is phy- siologically correct for extended use without excessive fatigue. The basic adjustments of the scooter are described below. You should have all adjustments made by your dealer. - Page 13 Paseo / Rapid 2 Moving seat • Pull the lever (right under the seat) towards you. The seat can be moved forward and back. • You can adjust the seat to the desired position. • Release the lever and make sure that the seat is locked in the closest fixed position.
-
Page 14: Back Rest
The arm rests can be folded back to make it easier for the user to sit on and leave the seat. The rest position of the arm rests can also be adjusted. Armrest angle (Rapid 2 only) • Adjust the length of the seat belt to your requirements by Fig. 9... -
Page 15: Seat Belt
Paseo / Rapid 2 3.3.5 Seat belt The seat belt is attached to the sides of the frame. • Adjust the length of the seat belt to your requirements by positioning the buckle for comfort. • Lock the belt with the buckle. -
Page 16: Using The Scooter
4. Using the scooter When you have adjusted the scooter to fit you, it is now time to familiarise yourself with the functions of the controls. 4.1 Description of controls The control panel is part of the steering column of your scooter. It contains LED indicators and controls. -
Page 17: Entering And Leaving
Paseo / Rapid 2 4.2 Entering and leaving Make sure that the scooter is switched off before sitting on it. • Set the steering column to the upright position, as described above, and swing the arm rest backwards to the side on which you wish get onto the scooter. -
Page 18: Driving The Scooter
4.3 Driving the scooter • Press the right throttle lever forward to move forward. The further forward you press the lever the higher the speed. The maximum speed will be the speed that you preset with the speed control, max. 6 km/h. Release the lever and you will slow down gently. -
Page 19: Pushing The Scooter
Paseo / Rapid 2 4.4 Pushing the scooter If you need to push the scooter in some situations, you will have to unlock the brakes. It is easy to push the scooter with the brakes unlocked. Caution! The electro-mechanical brake will not operate. -
Page 20: Technical Data
5. Technical Data Dimensions and weights Max. load capacity (kg): Seat width (cm): Seat height from foot rest (cm): 40 / 43 / 46 Seat back height (cm): Seat back angle (°): can be limited to 105, 120, 135, 150 Overall length (cm): Overall width (cm): Unloaded weight (kg):... -
Page 21: User Care Instructions
Paseo / Rapid 2 6. Care instructions for the user 6.1 Cleaning and disinfection Make sure that the scooter is switched off before starting to clean it. • The frame components and panels of the scooter can be wiped with a moist cloth. Use a mild cleaning agent it they are very dirty •... -
Page 22: Checking The Brake System
6.2. Checking the brake system The motor brake operates correctly if you cannot move the scooter when it is switched off. However, if it can be moved, the electromagnetic brake is faulty. Do not use the scooter in these circumstances. Contact your dealer immediately. -
Page 23: Lighting System
Paseo / Rapid 2 6.3 Lighting system Every time you use the scooter check that the lighting system, indicators and horn operate correctly. If one of the above items does not respond to the switch when it is actuated, inform your dealer immediately and do not use the wheelchair. -
Page 24: Charging
6.4.1 Charging Charging for the first time: To charge the batteries to their maximum capacity proceed as follows: • Discharge the factory-charged batteries until the LED display shows two bars. • Charge the batteries as described below (approx. 16 h). •... -
Page 25: Maintenance Instructions For Dealers
Paseo / Rapid 2 Use only batteries that are approved for this scooter (see Technical Data). Make sure that the scooter is switched off before starting to replace the batteries. • First remove the seat and the back cover. • Switch off the scooter first. -
Page 26: Disposal
8. Disposal Our customer service will supply a service schedule on request. If your scooter is no longer used and is to be discarded, please contact your dealer. If you wish to dispose of the scooter yourself, contact local disposal companies for the disposal regulations of your area. -
Page 27: Warranty Certificate
Paseo / Rapid 2 Warranty certificate (Please note our general business terms and conditions) Model name: Paseo /Radid 2 Serial number:* (to be entered by dealer) Dealer Date and stamp * See the side frame for information stickers Bischoff & Bischoff GmbH • 04.05.2011... - Page 28 Bischoff & Bischoff GmbH Becker-Goering-Strasse 13 • D-76307 Karlsbad Tel.: +49 700/6000 7070 • Fax: +49 700/6000 8080 www.bischoff-bischoff.com info@bischoff-bischoff.de...
