Summary of Contents for Sebotec Ric

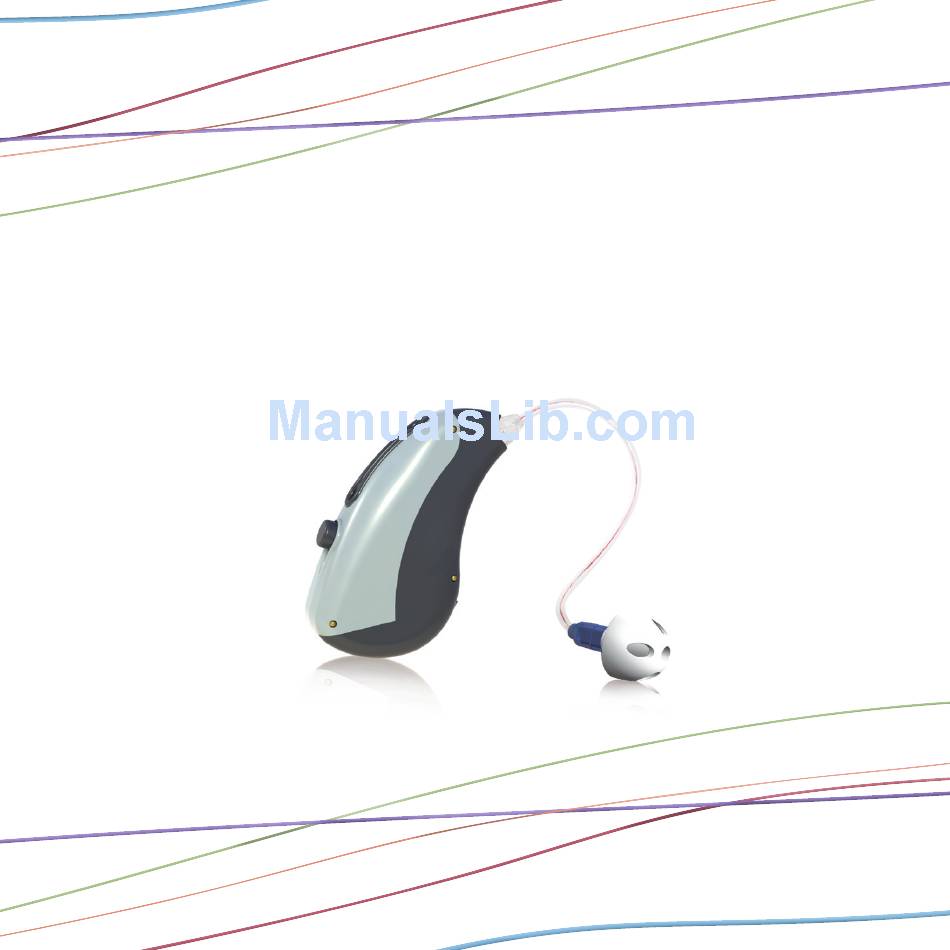

- Page 1 High Definition RIC Hearing Instrument USER GUIDE...
- Page 2 CONGRATULATIONS ON YOUR CHOICE OF HEARING SYSTEM! Please read this manual carefully to benefit from all of its features. With proper care and usage your new Hearing System will provide years of outstanding performance. By choosing this hearing system, you have taken the single most important step to better hearing.
-
Page 3: Table Of Contents
CONTENTS Hearing System Components .................... 3 Installing the Battery ......................5 Operating Your Hearing System ..................7 Caring For Your Hearing System ..................11 Troubleshooting ........................13 Important Notice for Prospective Hearing Instrument Wearers ......15 Dispenser Information and Children With Hearing Loss ........16 Service and Warranty ......................17 Hearing System Record .....................18... -
Page 4: Hearing System Components
HEARING SYSTEM COMPONENTS CONTROL SWITCH VERSION Speaker Link Microphone Cover Control Switch easy-CLICK Tip (Optional) VOLUME CONTROL VERSION Battery Compartment Speaker Door Fig. 1 easy-CLICK Tip (Optional) Optional Device Controls Fig. 2... - Page 5 DIRECTIONS FOR Integrated Ear Optional Sports Lock Wax Filter Fig. 3 Replace easy-CLICK tip regularly as directed by your hearing care professional.
-
Page 6: Installing The Battery
INSTALLING THE BATTERY Open the Battery Compartment Door by gently swinging it into the open position. Remove the tab from a new #312 size battery. Place the new battery in the Battery Compartment Door with the positive (+) or flat side up as shown in Figure 4 . Click the Battery Compartment Door closed as shown in Figure 5. -
Page 7: Low Battery Indicator
LOW BATTERY INDICATOR When the instrument detects a low battery condition, you will hear a series of tones every few minutes. The pattern will continue until the battery is depleted. BATTERY INFORMATION Your Hearing Instrument uses one #312 battery. We recommend using zinc air batteries. -
Page 8: Operating Your Hearing System
OPERATING YOUR HEARING SYSTEM TURNING YOUR HEARING SYSTEM ON / OFF Your Hearing System is automatically on whenever the Battery Compartment Door is closed. To turn your Hearing System off, simply open the Battery Compartment Door. Always leave the Battery Compartment Door open when not in use. NOTE: Your hearing device may be programmed with a power on delay. - Page 9 CONTROL SWITCH If your Hearing System is programmed with different settings, simply press the Control Switch located at the back of the processor (see Figure 6) until you hear audible tones or beeps which will confirm the setting you have selected. Settings are programmed by your hearing care professional for your individual needs, so it is important for you to understand how your hearing system is programmed.
-
Page 10: Inserting And Removing
INSERTING AND REMOVING YOUR HEARING SYSTEM INSERTING YOUR SPEAKER LINK Lubricating the easy-CLICK Tip (not needed for open style or custom earmold). Lubrication of the easy-CLICK tip on the speaker link is recommended to ensure a good seal and to facilitate insertion into the ear. Lubricate the mushroom cap of the tip with a small drop of lubricating gel, as shown in Figure 8. - Page 11 Fig. 8 Fig. 9 Fig.10 Fig. 11...
-
Page 12: Caring For Your Hearing System
CARING FOR YOUR HEARING SYSTEM DAILY CLEANING & MAINTENANCE F YOUR HEARING SYSTEM Gently wipe down the easy-CLICK Tip, Speaker Link and Sound Processor of your Hearing System using an alcohol wipe (see Figure 12). Care should be taken NOT to use excessive alcohol, or a cotton ball saturated with alcohol, as this may cause damage to the Speaker or Sound Processor. - Page 13 dehumidifying device as the batteries could leak and damage your Hearing System. For Extended Storage: Clean your Hearing System, remove the battery and store in a protective case in a cool, dry area to reduce the potential for damaging corrosion. WARNING! Dropping, immersing in water or exposing your Hearing System to excessive heat can damage it and void the warranty.
-
Page 14: Troubleshooting
TROUBLESHOOTING: NO SOUND Possible Cause Solution Weak battery Replace battery Ear wax blockage Replace easy-CLICK tip Component problem Consult your hearing care professional NOT LOUD ENOUGH Possible Cause Solution Ear wax blockage Replace easy-CLICK tip Programming too low Consult your hearing care professional Component problem Consult your hearing care professional Hearing loss progression... - Page 15 NOT CLEAR, DISTORTED, STATIC Possible Cause Solution Weak battery Replace battery Component problem Consult your hearing care professional Ear wax blockage Replace easy-CLICK tip If problem persists, consult your hearing care professional. TORN EASY-CLICK TIP Possible Cause Solution Finger nail or sharp objects Replace easy-CLICK tip Damage from improper insertion Replace easy-CLICK tip...
-
Page 16: Important Notice For Prospective Hearing Instrument Wearers
IMPORTANT NOTICE FOR PROSPECTIVE HEARING AID USERS Good health practice requires that a person with a hearing loss have a medical evaluation by a licensed physician (preferably a physician who specializes in diseases of the ear) before purchasing a hearing aid. Licensed physicians who specialize in diseases of the ear are often referred to as otolaryngologists, otologists or otorhinolaryngologists. -
Page 17: Warning To Hearing Aid Dispensers
DISPENSER INFORMATION & CHILDREN WITH HEARING LOSS Warning to Hearing Aid Dispensers A hearing aid dispenser should advise a prospective hearing aid user to consult promptly with a licensed physician (preferably an ear specialist) before dispensing a hearing aid if the hearing aid dispenser determines through inquiry, actual observation, or review of any other available information concerning the prospective user, that the prospective user has any of the following conditions:... -
Page 18: Service And Warranty
SERVICE AND WARRANTY Your sound processor and speaker link (collectively, “Hearing System”) includes a limited warranty against defects in material and workmanship. Please ask your hearing care professional about the duration. All warranty claims must be submitted to Manufacturer with the warranted merchandise within the warranty period. -
Page 19: Hearing System Record
HEARING SYSTEM RECORD LEFT RIGHT Purchase Date Warranty Term Warranty Exp. Date Sound Processor Model No.(s) Sound Processor Serial No.(s) Memory Settings* *Control Switch Version Only Link Size Link Serial No.(s) Tip Size Battery Size #312 #312 Copyright © 2013 SeboTek® Hearing Systems, LLC All rights reserved. - Page 20 2488 E. 81st St., Suite 2000, Tulsa, OK 74137, USA • www.SeboTek.com EUROPEAN AUTHORIZED REPRESENTATIVE: CEpartner4u, Esdoornlaan 13, 3951DB Maarn, The Netherlands Tel.:+31(0)6 516 536 26 Patents US 5606621, US 7016512, US 7110562, US 7139404, US 7606382, US 8050437, US 8094850, AU 700444, BR Pl9608669-6, CA 2224653, CA 2457559, JP 3811731, EP 1415507 •...
