Spinergy Tilium Service Instructions

These service instructions are intended for bicycle mechanics with prior wheel servicing experience.
These instructions are not intended to be a tutorial on general wheel truing or hub service. If you
do not have the tools listed below or are not comfortable with these instructions, leave it to a pro!
Always inspect the carbon fiber and other components of the wheel for scratches, gouges, dents,
cracking or bends before every ride. Discontinue use of the wheelset and consult a professional
bicycle mechanic if any of these conditions appear.

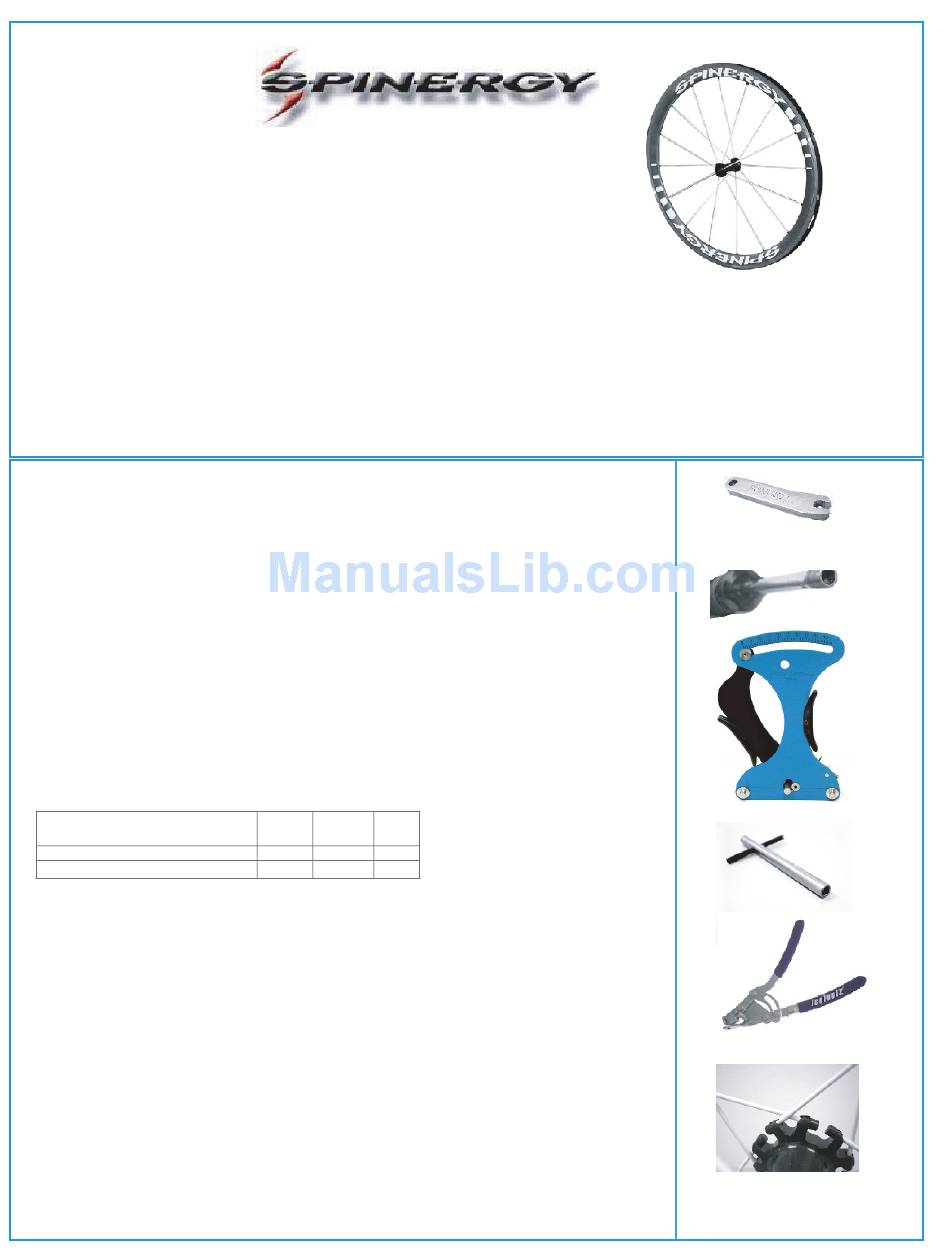

Tools required, Tilium:
Spinergy small spline tool (FIG 1)
¼" nut driver (FIG 2)
Park TM -1 Tension Meter (Fig 3)
Tools required Xaero carbon SS:
5mm hex nut driver (FIG 2)
"Fourth hand" cable holder (FIG 5)
Park TM-1 Tension Meter (Fig 3)
> Spinergy wheels are hand tensioned and stress relieved before shipping
> Over tensioning will void the warranty.
Due to the flexibility of PBO spokes, they may feel under tensioned when compared to a rigid steel spoke.
If you tension PBO spokes to the point where they feel like steeel spokes, you wil have over-tightened the spoke and
risk damaging the rim. Increasing spoke tension beyond factory values will not improve performance or durability of the
wheel.

TENSION VALUES

TILIUM PBO
TILIUM SS, XAERO CARBON SS
TILIUM PBO
Use 1/4" nut driver to turn nipple, which is only accessed under rim tape after removing tire. Use
Spinergy small spline tool to hold spoke stationary. Do not allow spoke to rotate while tensioning nipple.
TILIUM SS
Use Spinergy 4mm square nipple driver to turn nipple, which is only accessed under rim tape after removing tire. Use
"Fourth hand" brake tool or bladed spoke holder to keep spoke from rotate while tensioning nipple.
XAERO CARBON SS
Use 5mm hex nut driver to turn nipple, which is accessed under rim tape after removing tire. Use "Fourth
hand" cable tool or bladed spoke holder to keep spoke from turning while tensioning nipple.
"Which wheel do I have?"
The Tilium uses PBO s pokes identified by the exposed nipple heads at the rim and large (2.8mm) direct
pull spokes (FIG 6)
The Tilium SS uses standard "J" bend stainless steel spokes in a 2.0/1.8mm-14 gauge.
The Xaero carbon SS uses standard "J" bend stainless steel bladed in a 1.8mm-15 gauge
WWW.SPINERGY.COM
SERVICE INSTRUCTIONS
Tilium
Tilium SS
Xaero Carbon SS

WARNING!

** Always wear eye protection when servicing wheels. **
TRUING & TENSIONING
Tools required, Tilium SS:
Spinergy 4mm square nipple tool (FIG 4)
"Fourth hand" cable holder (FIG 5)
Park TM - 1 Tension Meter (Fig 3)
DRIVE NON
FRONT
SIDE DRIVE
21-23 10-12 18-20
20-22 13-15 18-20
-
e Spinergy small spline
Fig 1
Fig 2
Fig 3
Fig 4
Fig 5
Fig 6
