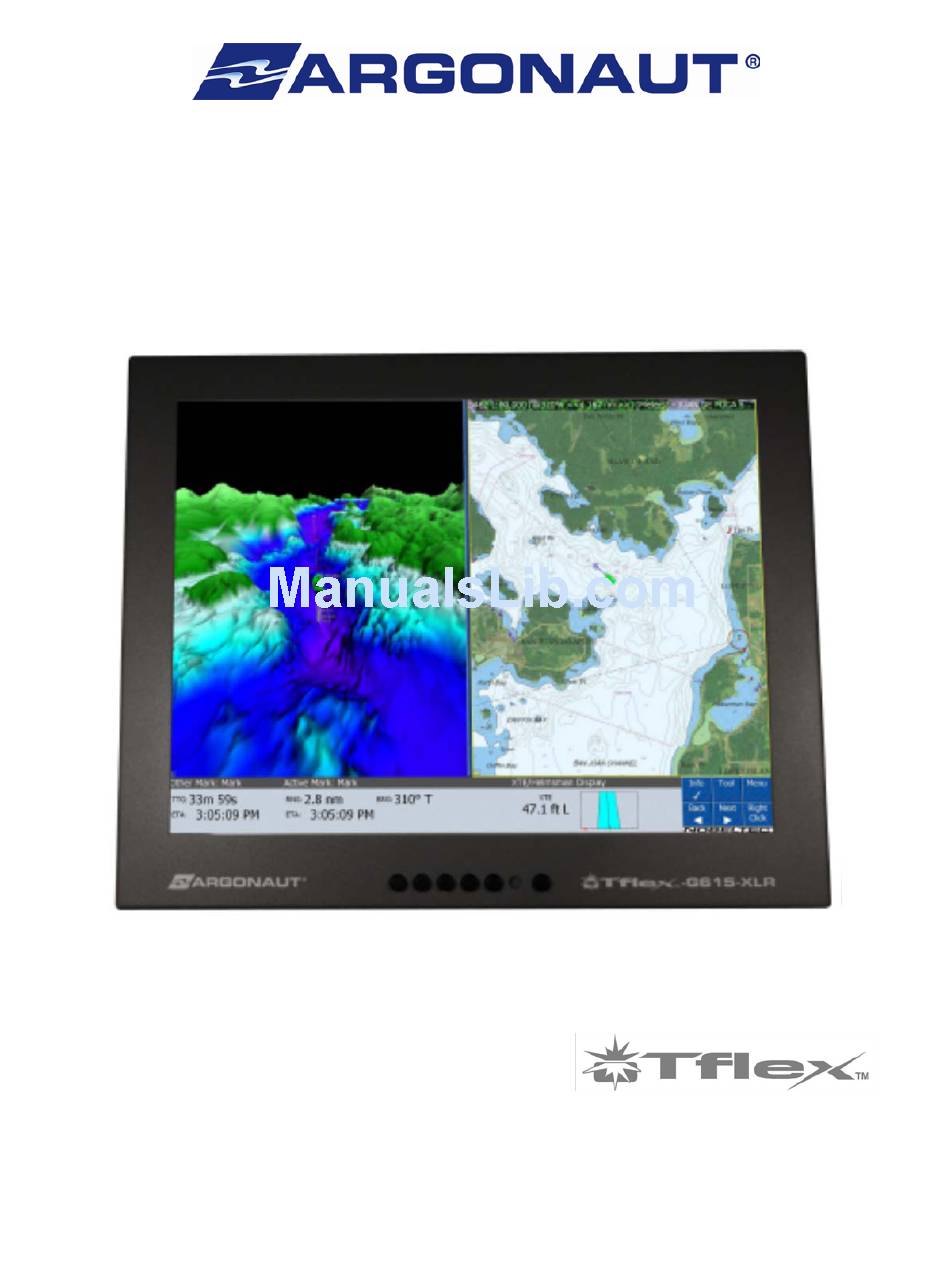

- Page 1 G615XLR Marine Monitor Reference Guide Tel 858 456 8550 or 800 967 4287 · Fax 858 454 9224 · www.argonautcomputer.com...
- Page 2 TABLE OF CONTENTS Mounting, Wiring, Care Pages 1-3 Button Controls Pages 4-9 Technical Support FAQ Page 10 Support, Repair, Service Policy Pages 11-14 Specifications Page 18...
-
Page 3: Surface Mounting
(Button Controls). Surface Mounting The G615XLR monitor has been designed for an easy, secure and sealed installation. For surface mount installations, please note the following steps: 1) Locate a suitable installation mounting surface. The surface should be flat and allow at least enough room for the outside bezel face to fit (14.45”... -
Page 4: Quick Start Instructions
Optional RAM Mount Kit The RAM mount kit includes adapter plate, surface base, swivel arm and monitor mounting base plate. Secure square monitor mounting base plate to adapter plate using four stainless steel 10/32 x ½” flat head screws, flat washers and lock nuts provided (Note: RAM logo should be oriented in same direction as RAM decal on adapter plate) . - Page 5 Argonaut Dealer if additional cable lengths are required in excess of standard provided. Power The G615XLR monitor is designed for 12 Volt power input through an Argonaut supplied power regulator. The correct regulator is specified at time of ordering for connection to either a 12 volt or 24 volt system.
- Page 6 Button Control Summary 2. Down (Auto) 4. Increase 6. Power LED 1. Menu 3. Decrease 5. Source Hotkey/Exit 7. Power Menu Menu Key Down Key (HOT Key: Auto Config.) Down (Auto) Decrease Key, Left Key Decrease Increase Key, Right Key Increase Source/Exit Source Select &...
- Page 7 Power Power On/Off Note: Your Argonaut G615XLR marine monitor has been preset at the factory for optimal viewing either inside or under direct sunshine. For most usage the power button, Dimming control buttons and signal input hotkey are the primary items that may require adjustment. In the event settings have been changed and you wish to restore the factory defaults, please follow the instructions to RESET the monitor to factory defaults found later in this section.
- Page 8 Composite - Change input signal source to composite video. Exit - Go Exit back to main menu. Picture Brightness - Adjust Brightness of the screen. Contrast - Ratio of luminance between black and white. Adjust distinction. Blacklevel - Adjust black level. Sharpness - Adjust Sharpness of pictures.
- Page 9 Hue (video only) - Adjust between green tone and purple tone. Saturation (video only) - Adjust color intensity. Exit - Go back to main menu. Color Temperature Choice of: User, Warm, Normal, and Cool – RGB can be adjusted. User: Able to adjust the color by controlling Red, Green, and Blue.
- Page 10 Warm: Red-tinged screen. Normal: Green-tinged screen. Cool: Blue-tinged screen. Auto Color (A-RGB Only) - Color automatically set for input signal. Exit - Go back to main menu. Image Control Available Mode – Analog RGB Auto - Auto configuration of geometry.
- Page 11 Width Adjust horizontal size of the screen by increasing or decreasing the number of picture elements. Phase - Adjust Phase of screen. Used when noise or overlapped lines are shown on the screen. H Position - Move screen horizontally. V Position – Move screen vertically. Exit - Go back to main menu.
- Page 12 H Position: Adjust horizontal position of OSD Menu by value. V Position: Adjust vertical position of OSD Menu by value. Reset - Initial set-up, preset by the factory before forwarding. Reset Color - Initial color. Reset Position (A RGB Only) - Initial position. Exit - Go back to main menu.
-
Page 13: Warranty Repair Procedure
If you think your Argonaut product needs repair, please check with the Reseller you purchased your Argonaut from to determine if it needs repair as well as where to get it repaired as described below. Argonaut Computer will provide parts and labor repair on the product to correct manufacturing defects in material or workmanship. - Page 14 Out of Warranty Repair Procedure If it is determined that the failed part is not covered by Argonaut Computer, or is out of warranty, Argonaut Computer will assess the standard parts cost and a repair rate that is authorized by the customer or return the product without repair upon request.
-
Page 15: Technical Support
Technical Support All technical support requests for Argonaut products shall be submitted to the attention of "Technical Support" via telephone - (951) 813-3600, fax - (858) 454-9224, or email - techsupport@argonautcomputer.com. Customer must provide Technical Support with a model and serial number to best assist the customer's needs. Technical Support reserves the right to determine the scope of warranty coverage. -
Page 16: Out-Of-Warranty Repairs
We understand that occasionally a product must be returned. That is why products purchased directly from Argonaut Computer, Inc. Come with a return policy. Our policy is clearly stated. Please take the time to read it now before using your new product. - Page 17 past the 10-day period. Shipping charges are not refundable. A restocking fee of up to 15% of your original purchase value may be charged for testing, reinstallation of operating system/drivers, and packaging replacement. Customer may not return any preinstalled, open-packaged, or customer- registered marine and/or other software, and will be charged current retail list pricing.
- Page 20 Rugged Features Enclosure/Finish Aluminum/Gray Powder Coated Shock/Vibration Mount All Internal Components, LCD Mil-Spec Shock Mounted Optically Bonded Antireflective Glass, Optional Touch Screen Connectors Stainless Steel, Sealed Connector Cable Clamp General Features Display Type TFT Active Matrix Tflex™ LCD; VIS: 15” (38.1 cm), Diagonal;...
