Hughes Network Systems DiRECWAY DW4000 Installation Manual

Two-way satellite dish
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

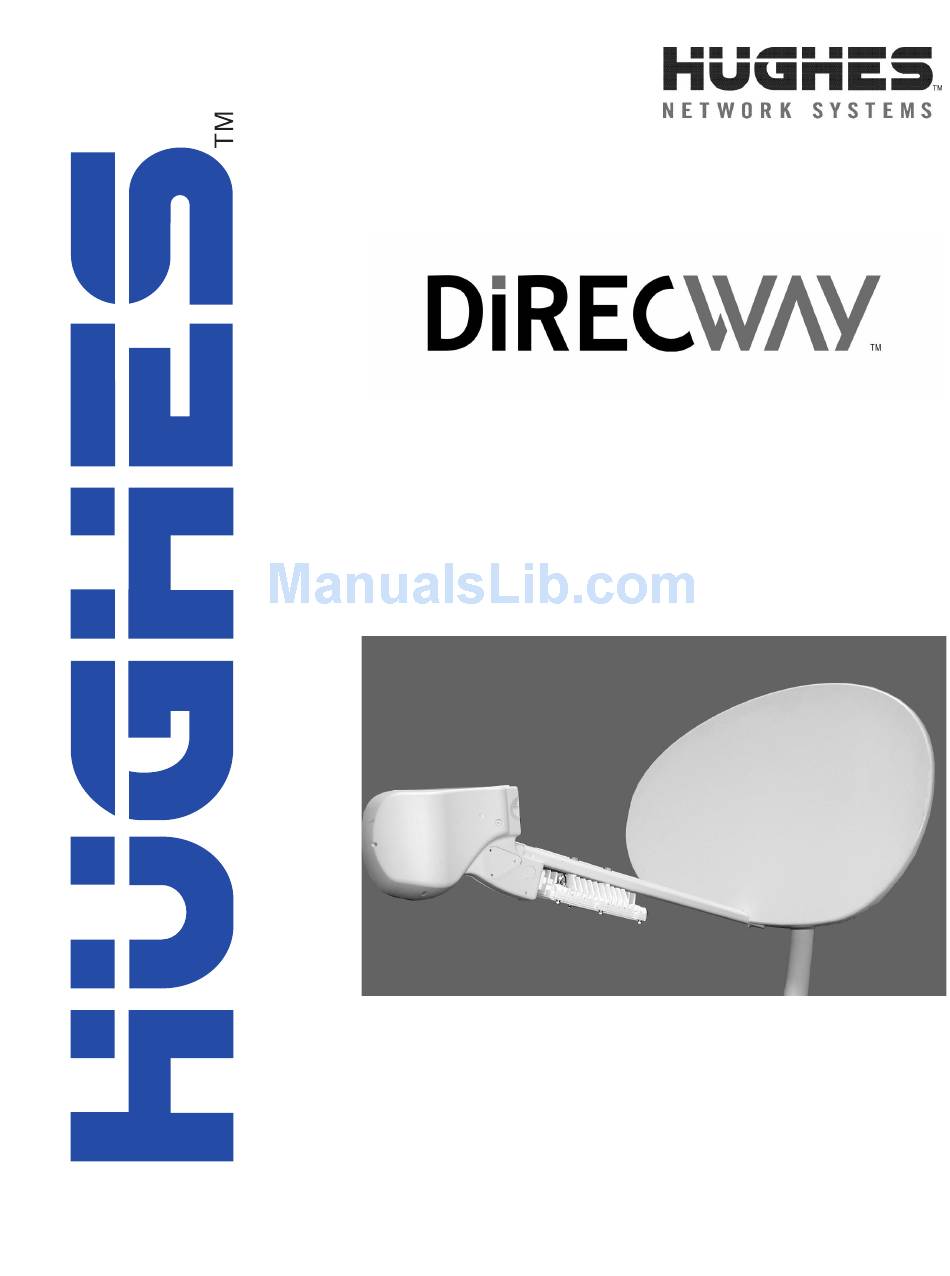

Satellite Dish Installation
Guide
Model: DW4000 Two-Way
1031362-0201
Revision B
November 19, 2001

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DiRECWAY DW4000 and is the answer not in the manual?

Questions and answers

Related Manuals for Hughes Network Systems DiRECWAY DW4000

Summary of Contents for Hughes Network Systems DiRECWAY DW4000

  • Page 1 Satellite Dish Installation Guide Model: DW4000 Two-Way 1031362-0201 Revision B November 19, 2001...
  • Page 2 Copyright © 2000-2001 Hughes Network Systems, a Hughes Electronics Corporation company All rights reserved. This publication and its contents are proprietary to Hughes Network Systems, a Hughes Electronics Corporation company. No part of this publication may be reproduced in any form or by any means without the written permission of Hughes Network Systems, 11717 Exploration Lane, Germantown, Maryland 20876.

  • Page 3: Table Of Contents

    Table of Contents Satellite Dish Kit Components ......1 Conventions Used in this Guide ......2 Introduction .

  • Page 5: Satellite Dish Kit Components

    SATELLITE DISH KIT COMPONENTS YOUR SATELLITE DISH KIT SHOULD INCLUDE THE FOLLOWING ITEMS: Satellite Dish (rear view) Mast and Base Feed Arm Plate Azimuth/Elevation Cap Shroud Transmitter/Tria Assembly Brace Kit PARTS LIST Your kit also contains assorted hardware, such as bolts, nuts, and other items. You may have hardware left over after you finish installation.

  • Page 6: Conventions Used In This Guide

    CONVENTIONS USED IN THIS GUIDE The following conventions are used throughout this guide to help you become familiar with possible safety and equipment hazards. This safety alert symbol is used to alert you to hazards or hazardous situations that can result in personal injury. A signal word, DANGER, WARNING, or CAUTION, is used with the alert symbol to indicate the likelihood and potential severity of injury.

  • Page 7: Introduction

    BASIC STEPS OF SATELLITE DISH INSTALLATION components. Your installer will follow these basic steps: This Satellite Dish Installation Guide Model: DW4000 Two- 1. Use a laptop computer to determine antenna pointing values Way provides information required to assemble your satellite for your satellite dish dish and establish contact with the satellite.

  • Page 8: Installing Software And Locating The Satellite

    INSTALLING SOFTWARE AND LOCATING THE SATELLITE Before you can install the satellite dish, you must select an installation site. Before you can select an installation site, you must deter- mine the direction you will aim the satellite dish. The installer will use information on a laptop computer to determine the direction. The satellite is located approximately 22,300 miles in geostationary orbit above the equator.

  • Page 9: Choosing Where To Install The Satellite Dish

    CHOOSING WHERE TO INSTALL THE SATELLITE DISH TOOLS NEEDED • Hand-held magnetic compass • Angle finder or protractor • Carpenter’s level or straight edge CAUTION • People can trip, fall into or otherwise bump into the sat- ellite dish. • Lacerations, bruises, or other impact injuries could occur.
  • Page 10 CHOOSING WHERE TO INSTALL THE SATELLITE DISH 4. Using the angle finder and a carpenter’s level or straight tions (such as buildings or trees) blocking the view. Take edge, verify that there is an unobstructed line-of-sight into account future tree growth; if you install during the fall toward the satellite as shown in the diagram below.

  • Page 11: Cable Specifications

    CABLE SPECIFICATIONS Note: Coaxial cables with copper clad steel center conductor are not recommended. Note: Do not use splitters. Note: Line amplifiers are required for Receive cable runs of more than 150 ft. Note: The grounding scheme you choose may affect your choice of cable; see “Overview of Grounding the Satellite System” on page 29.

  • Page 12: Selecting A Mounting Option

    SELECTING A MOUNTING OPTION INSTALLING THE SATELLITE DISH ON A WOOD DECK POST Based on the satellite dish installation site, decide on the best surface for mounting your satellite dish. The base plate and You can use the universal mount to install the satellite dish on a mast assembly that came with your satellite dish is called a uni- 6-inch x 6-inch Southern Pine wood deck post.
  • Page 13 SELECTING A MOUNTING OPTION INSTALLING THE SATELLITE DISH ON CONCRETE OR CON- INSTALLING THE SATELLITE DISH ON A METAL POLE CRETE MASONRY WALLS You can install the satellite dish directly on an 9-foot metal pole. If you choose this mount option you will not need the You can use the universal mount to install the satellite dish on universal mount or universal mount brace kit.

  • Page 14: Installing The Mount On A Wooden Deck Post

    INSTALLING THE MOUNT ON A WOODEN DECK POST The satellite dish can be installed on a 6-inch x 6-inch Southern Pine wood deck support post. The post can be no more than 8 feet tall. It must be securely attached at top and bottom. Posts made of other species of wood may be used as long as their material prop- erties match or exceed those of Southern Pine.
  • Page 15 INSTALLING THE MAST ONTO A WOODEN DECK POST INSTALLATION PROCEDURE DANGER Top left center Top right center • If the satellite dish contacts electric power lines, you will be killed or seriously injured. • Before starting the installation procedure, make sure Top center there are no power lines nearby.
  • Page 16 INSTALLING THE MAST ONTO A WOODEN DECK POST 9. Install a 3/8-inch washer on a 3/8-inch x 4-inch lag screw. 10. Use a wrench (preferably a ratchet) to screw the lag screw into the top center hole of the base plate (see Figure 11). You may need to swing the mast out of the way temporarily.

  • Page 17: Installing The Mount On A Wood Framed Roof

    INSTALLING THE MOUNT ON A WOOD FRAMED ROOF You can install the satellite dish onto a wooden roof. You must use the brace kit. The minimum size for roof truss members is 2 inches x 4 inches. Roof rafters must be nominal 2x material (2x4, 2x6, etc.) Either size roof rafters or trusses must be16 to 24 inches on center.
  • Page 18 INSTALLING THE MOUNT ON A WOOD FRAMED ROOF INSTALLATION INSTRUCTIONS DANGER • If the satellite dish contacts electric power lines, you will be killed or seriously injured. Centerline • Before starting the installation procedure, make sure Corner holes there are no power lines nearby. CAUTION Center hole lag Top center hole...
  • Page 19 INSTALLING THE MAST ON A WOOD FRAMED ROOF 4. With an assistant place the base plate on the centerline at the spot you plan to install it (see Figure 15). 5. Loosen the pivot bolt nut and adjustment nuts and plumb the mast in two perpendicular directions (see Figure 16).
  • Page 20 INSTALLING THE MOUNT ON A WOOD FRAME ROOF 17. Install a 3/8-inch washer on the 3/8-inch x 4-inch lag screw. 18. Use a 9/16-inch socket wrench to screw the lag screw into the lower center hole. Do not tighten the screw fully. 19.
  • Page 21 INSTALLING THE MOUNT ON A WOOD FRAME ROOF 9. Detach the strut from the mounting plate and repeat step 4 through step 8 for the top center hole. Reattach the strut when done. 10. Slip the long 25-inch strut collar over the mast until it fits as shown in Figure 19.

  • Page 22: Installing The Mount On Concrete Or Concrete Masonry Walls

    INSTALLING THE MOUNT ON CONCRETE OR CONCRETE MASONRY WALLS The satellite dish can be attached to concrete masonry (cinder blocks) or concrete walls. The concrete masonry (cinder block) or con- crete walls must be a minimum of 8 inches thick. Attachment anchors can be placed no closer than 12 inches from any discontinuous surface, such as a window, door, or edge of a wall.
  • Page 23 INSTALLING THE MOUNT ON CONCRETE OR CONCRETE MASONRY WALLS INSTALLATION PROCEDURE DANGER Corner holes • If the satellite dish contacts electric power lines, you will be killed or seriously injured. Top center hole • Before starting the installation procedure, make sure there are no power lines nearby.

  • Page 24: Installing The Mount Onto A Metal Pole

    INSTALLING THE MOUNT ONTO A METAL POLE The satellite dish can be installed on a metal pole that you place in the ground. With this option, you will attach the dish and cap mount directly to the pole. Note: With a metal pole installation, you will not need the mast and base plate included in your satellite dish kit.

  • Page 25: Installing The Az/El Cap Onto The Satellite Dish

    INSTALLING THE AZ/EL CAP ONTO THE SATELLITE DISH PARTS NEEDED TOOLS NEEDED • Azimuth/Elevation (AZ/EL) cap • 5/16-inch flat • 7/16-inch open-end wrench or socket wrench • Satellite dish washers, Qty: 4 • 1/2-inch open-end wrench or socket wrench • 5/16-inch Nylock nuts, Qty: 4 •...

  • Page 26: Installing The Cap Onto The Satellite Dish

    INSTALLING THE CAP ONTO THE SATELLITE DISH 13. When the polarization is at the correct value, tighten the four polarization nuts. As you tighten, make sure the polar- ization remains at the proper value. Read the leading edge of the red elevation mark. 14.

  • Page 27: Installing The Transmitter/Tria Assembly On The Feed Arm

    INSTALLING THE TRANSMITTER/TRIA ASSEMBLY ON THE FEED ARM PARTS NEEDED TOOLS NEEDED • Feed arm • 5/16-inch socket wrench or adjustable • Transmitter/Tria Assembly wrench • 5/16-18 bolts Qty: 2 • 3mm Allen wrench (supplied) • M4 Allen screws Qty: 4 •...

  • Page 28: Connecting The Feed Arm To The Satellite Dish

    CONNECTING THE FEED ARM TO THE SATELLITE DISH PARTS NEEDED 1. Insert the 5/16-18 wedge nut thin end first into the slot pro- • Feed arm with feed assembly and attached transmitter/tria vided on the back of the satellite dish. The wedge nut is •...

  • Page 29: Installing The Satellite Dish/Cap Assembly Onto The Mast

    INSTALLING THE SATELLITE DISH/CAP ASSEMBLY ONTO THE MAST PARTS NEEDED TOOLS NEEDED • Dish assembly • 1/2-inch open-end wrench • Mast or metal pipe, installed • Grease 1. Lightly grease the area at the end of the mast or metal pole 3.

  • Page 30: Installing And Routing Interior Cable

    INSTALLING AND ROUTING INTERIOR CABLE PARTS NEEDED TOOLS NEEDED • Coaxial cable • Electric drill and 1-inch bit • Cable clips • String • Silicone sealant • Screwdriver (if install wall plate) • 14 AWG copper/8 AWG aluminum • Paint or fingernail polish grounding wire (if required by grounding scheme) This section consists of routing two coaxial cables from the...

  • Page 31: Installing Exterior Cables And Connecting To Ground Block

    INSTALLING EXTERIOR CABLES AND CONNECTING TO GROUND BLOCK PARTS NEEDED TOOLS NEEDED • Type RG-6 coaxial cable • Cable ties or U-shaped tacks • Flat-blade screwdriver • Phillips-head screwdriver • 14 AWG copper/ 8 AWG ground wire • If needed, split bolt and clamp •...

  • Page 32: Connecting The Cable To The Lnb

    CONNECTING THE CABLE TO THE LNB You will connect the receive modem coaxial cable to the LNB. You will run the transmit modem cable to the transmitter, but you will not connect it. Your goal is to achieve a configuration like that in the illustrations below.

  • Page 33: Overview Of Grounding The Satellite System

    OVERVIEW OF GROUNDING THE SATELLITE SYSTEM POLE MOUNT GROUNDING The two basic methods for mounting the satellite dish (univer- sal mount with or without brace kit and pole mount) require The mast (which is the metal pole in this mount method) is different grounding procedures, as specified in National Elec- grounded to the satellite dish via an NEC-approved ground trical Code (NEC) Articles 250, 800, 810, and 820.

  • Page 34: Grounding The Mast

    GROUNDING THE MAST PARTS NEEDED TOOLS NEEDED • 1/4-20 x 1/2-inch hex-head grounding bolt • 8 AWG aluminum ground wire (14 AWG copper • Adjustable wrench • 1/4-inch star washer ground wire if you come within 12 inches of masonry) •...
  • Page 35 Receive cable (RG6 Quad-shielded) Transmit cable (RG6 Quad-shielded) Ground wire (8 AWG aluminum) Figure 41...
  • Page 36 GROUNDING THE MAST GROUNDING USING RG-6 NON-QUAD SHIELDED CABLE Optional, or if not using RG-6 quad-shielded cable, or as required by local codes Grounding 1. Insert the 1/4-20 x 1/2-inch hex-head grounding bolt bolt through the grounding hole on the mast base plate (see Figure 42).

  • Page 37: Grounding The Metal Pole

    GROUNDING THE METAL POLE Remember that if you determine you want to install the optional ground rod to earth main ground, that you must call your local utility companies and have them mark a safe spot for you to pound the ground rod into the ground near the metal pole. This will prevent you from contacting pipes or electrical wires or cables with the ground rod.
  • Page 38 GROUNDING THE METAL POLE Metal Pole Ground wire (8 AWG alumimum) Receive cable (RG6 Quad-shielded) Transmit cable (RG6 Quad-shielded) Ground Clamp To ground block To ground block Figure 45...
  • Page 39 GROUNDING THE METAL POLE GROUNDING USING RG-6 NON-QUAD SHIELDED CABLE 3. Attach the 2-3/8-inch ground clamp 13 inches from the base of the metal pole mount. Optional, or if not using RG-6 quad-shielded cable, or as 4. Attach the ground rod clamp to the ground rod. required by local codes 5.

  • Page 40: Attaching The Shroud

    ATTACHING THE SHROUD PARTS NEEDED TOOLS NEEDED • Shroud • #2 Phillips-head screwdriver The shroud helps protect the feed assembly and improves its appearance. Note that one side of the shroud is wider than the other. You place the wider side on the right side of the feed assembly, as you face the satellite dish.

  • Page 41: Pointing The Satellite Dish And Connecting The Transmitter

    Satellite antenna alignment is accomplished by first “receive pointing” the dish then “transmit pointing.” When receive pointing the dish is adjusted for the best receive signal. Transmit pointing fine tunes the antenna alignment for the strongest possible signal received by the DIRECWAY National Operations Center (NOC). Transmit pointing is done by certified professional satellite install- ers.

  • Page 42: Pointing The Satellite Dish

    POINTING THE SATELLITE DISH THE ITERATIVE PROCESS OF POINTING THE DISH Begin by peaking the azimuth setting; then peak the elevation setting; and then readjust the azimuth setting if necessary. After You will be making three adjustments on your satellite dish: you have optimized the azimuth and elevation setting, you may polarization (rotation of the satellite dish), azimuth (pointing find that making adjustments in the polarization setting affects...
  • Page 43 POINTING THE SATELLITE DISH 1. Check to see if the elevation reference and polarization set- 2. If you have not already done so, tighten the clamp nuts all tings are still at their correct values. If not, return to page 21 the way;...
  • Page 44 POINTING THE SATELLITE DISH 3. Obtain the azimuth value from page 4 of this manual. 5. Stand behind the satellite dish and point the front of the sat- ellite dish to the left of the estimated bearing to the satellite 4.
  • Page 45 A portable telephone or a walkie-talkie is helpful for this. 6. Start the software that came with your satellite modems. Select Start → → → → Programs → → → → DIRECWAY → → → → Antenna Pointing to go to the Antenna Pointing-Receiver screen (see Figure 53).
  • Page 46 POINTING THE SATELLITE DISH AFTER THE SATELLITE IS DETECTED dish in the opposite direction until you regain the highest number that was previously achieved. Achieving this maxi- The following steps make use of the iterative process described mum signal strength is called “peaking the signal.” on page 38.
  • Page 47 POINTING THE SATELLITE DISH CONNECTING THE TRANSMITTER 16. Repeat at least one iteration of the sequence beginning at step 12 to be sure that you have acquired the strongest possi- ble signal. Adjust azimuth, then elevation, then azimuth CAUTION again and continue until there is no improvement in signal strength.
  • Page 48 2001. It requires new software and equipment at the NOC and on the installer laptop and customer PC, as well as DIRECWAY version 4.0.1.27 or later. The ACP software operates in two different modes: Manual and Automatic.
  • Page 49 POINTING THE SATELLITE DISH 8. When the test starts, make small, one-degree or less changes in polarization while observing the transmitter isolation. Peak the polarization to the highest possible transmitter iso- lation. 9. Tighten the polarization nuts. Torque them to 12 ft.-lbs. 10.
  • Page 50 U.S. or foreign patents conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. pending. DIRECWAY is a trademark of Hughes Electronics Corporation. Document #1031362-0201 Rev B...
