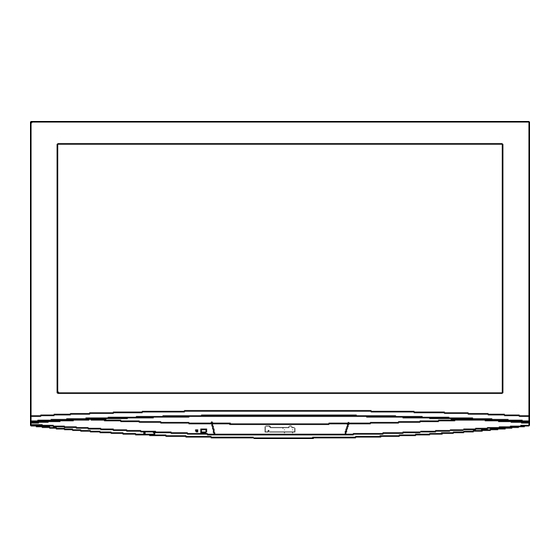

65 inch Class 1080p Plasma HDTV
TH-65PZ850U
Model No.
GPF11DU Chassis
© 2008 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and distribu-
tion is a violation of law.
ORDER NO. MTNC080848CE
B34 Canada: B07

Advertisement

Table of Contents
loading

Related Manuals for Panasonic TH-65PZ850U

Summary of Contents for Panasonic TH-65PZ850U

  • Page 1 ORDER NO. MTNC080848CE B34 Canada: B07 65 inch Class 1080p Plasma HDTV TH-65PZ850U Model No. GPF11DU Chassis © 2008 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribu- tion is a violation of law.

  • Page 2: Safety Precautions

    1 Safety Precautions 1.1. General Guidelines 1. When conducting repairs and servicing, do not attempt to modify the equipment, its parts or its materials. 2. When wiring units (with cables, flexible cables or lead wires) are supplied as repair parts and only one wire or some of the wires have been broken or disconnected, do not attempt to repair or re-wire the units.
  • Page 3 2 Warning 2.1. Prevention of Electrostatic Discharge (ESD) to Electrostatically Sensitive (ES) Devices Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called Elec- trostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and semiconductor [chip] components.
  • Page 4 2.2. About lead free solder (PbF) Note: Lead is listed as (Pb) in the periodic table of elements. In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder. The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu). That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.

  • Page 5: Service Navigation

    3 Service Navigation 3.1. Service Hint Board Name Function Board Name Function Power Supply Data Driver (Upper Right) DC-DC Converter Data Driver (Upper Center) Speaker out, Sound Processor Data Driver (Upper Left) AV Terminal, AV Switch, Ethernet LAN Data Driver (Lower Left) Digital Signal Processor, Micom, HDMI Interface Data Driver (Lower Center) Peaks PRO, GC6...

  • Page 6: Applicable Signals

    3.2. Applicable signals * Mark: Applicable input signal for Component (Y, PB, PR), HDMI and PC horizontal frequency (kHz) vertical frequency (Hz) COMPONENT HDMI 525 (480) / 60i 15.73 59.94 525 (480) /60p 31.47 59.94 750 (720) /60p 45.00 59.94 1,125 (1,080) /60i 33.75 59.94...

  • Page 7: Specifications

    4 Specifications Power Source AC 120 V, 60 Hz Power Consumption Maximum 792 W Standby condition 0.2 W Plasma Display panel Drive method AC type Aspect Ratio 16:9 Visible screen size 65 inch class (64.7 inches measured diagonally) (W × H × Diagonal) 56.4 inch ×...

  • Page 8: Service Mode

    5 Service Mode 5.1. How to enter into Service Mode While pressing [VOLUME ( - )] button of the main unit, press [INFO] button of the remote control three times within 2 seconds. 5.1.1. Key command [1] button...Main items Selection in forward direction [2] button...Main items Selection in reverse direction [3] button...Sub items Selection in forward direction [4] button...Sub items Selection in reverse direction...

  • Page 9: Contents Of Adjustment Mode

    Contents of adjustment mode 5.1.2. • Value is shown as a hexadecimal number. • Preset value differs depending on models. • After entering the adjustment mode, take note of the value in each item before starting adjustment. Main item Sub item Sample Data Remark ADJUST...

  • Page 10: Service Tool Mode

    5.2. Service tool mode 5.2.1. How to access 1. Select [SRV-TOOL] in Service Mode. 2. Press [OK] button on the remote control. 5.2.2. Display of SOS History SOS History (Number of LED blinking) indication. From left side; Last SOS, before Last, three occurrence before, 2nd occurrence after shipment, 1st occurrence after shipment. This indication except 2nd and 1st occurrence after shipment will be cleared by [Self-check indication and forced to factory ship- ment setting].

  • Page 11: Hotel Mode

    5.3. Hotel mode 1. Purpose Restrict a function for hotels. item Function 2. Access command to the Hotel mode setup menu Mode Select hotel mode ON/OFF In order to display the Hotel mode setup menu, please Input Select input signal modes. enter the following command (within 2 second).

  • Page 12: Troubleshooting Guide

    6 Troubleshooting Guide Use the self-check function to test the unit. 1. Checking the IIC bus lines 2. Power LED Blinking timing 6.1. Check of the IIC bus lines 6.1.1. How to access Self-check indication only: Produce TV reception screen, and while pressing [VOLUME ( - )] button on the main unit, press [OK] button on the remote control for more than 3 seconds.

  • Page 13: Power Led Blinking Timing Chart

    6.2. Power LED Blinking timing chart 1. Subject Information of LED Flashing timing chart. 2. Contents When an abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the defective block can be identified by the number of blinks of the Power LED on the front panel of the unit.
  • Page 14 6.3. No Power First check point There are following 2 states of No Power indication by power LED. 1. No lit 2. Red is lit then turns red blinking a few seconds later. (See 6.2.)
  • Page 15 6.4. No Picture...

  • Page 16: Local Screen Failure

    6.5. Local screen failure Plasma display may have local area failure on the screen. Fig-1 is the possible defect P.C.B. for each local area. Fig-1...

  • Page 17: Disassembly And Assembly Instructions

    7 Disassembly and Assembly Instructions 7.1. Remove the Back cover 6. Remove the screws (×12 1. See Service Hint (Section 3) 7.2. Remove the P-Board Caution: To remove P.C.B. wait 1 minute after power was off for dis- charge from electrolysis capacitors. 1.
  • Page 18 7.4. Remove the A-Board unit 1. Unlock the cable clampers to free the cable. 2. Remove the screw (×1 ) and remove the Earth cable. 3. Disconnect the connectors (A1, A3, A5, A6, A7, A9, A10, A11, A12, A30 and A51). 4.
  • Page 19 7.6. Remove the Speaker box assy 7.7. Remove the FFC Shield Metal (L, R) remove Core Holder (A) 1. Unlock the cable clampers to free the cable. 2. Disconnect the relay connectors. 1. Unlock the cable clamper to free the cable. 3.
  • Page 20 7.9. Remove the D-Board 7.11. Remove the SU-Board 1. Remove the A-Board unit. (See section 7.4.) 1. Remove the flexible cables (SU1B, SU2B, SU3B, SU4B 2. Disconnect the connectors (D3, D5 and D25). and SU5B). 3. Disconnect the flexible cables (D20, D31, D32, D33, D34, 2.
  • Page 21 7.13. Remove the SC-Board 7.15. Remove the SS3-Board 1. Remove the SU-Board and SD-Board. (See section 7.11. 1. Unlock the cable clampers to free the cable. and 7.12.) 2. Disconnect the connector (SS35) and disconnect the flex- 2. Disconnect the connectors (SC2 and SC20). ible cables (SS57 and SS58).
  • Page 22 7.17. Remove the Vertical Bar (L, R) 3. Remove the screws (×4 ) and remove the Fan. and the V-Bar fixing metal (A, B, C, D) 1. Remove the plasma panel section from the servicing stand and lay on a flat surface such as a table (covered), with the plasma panel surface facing downward.
  • Page 23 7.20. Remove Cabinet-fixing 7.22. Remove the Support metal (R) metal (A) (Upper) , ×1 1. Remove the screws (×3 2. Remove the support metal (R). 1. Remove the screws (×4 each). 2. Remove the Cabinet-fixing metal (A). 7.23. Remove Cabinet-fixing 7.21.
  • Page 24 7.24. Remove the Plasma panel sec- 6. Remove the spacers and spacer rings (×6 tion from the Cabinet assy (glass) 1. Remove the Speaker box assy (L, R). (See section 7.6.) 2. Remove the Fan unit (R) and (L). (See section 7.18., 7.19.) 3.
  • Page 25 7.26. Remove the C1-Board 1. Remove the Fan unit (R). (See section 7.18.) 2. Remove the Cabinet-fixing metal (A) and (B). (See sec- tion 7.20. and 7.25.) 3. Remove the flexible cables holder fastening screws (×10 4. Disconnect the flexible cables (CA1, CA2, CA3, CA4 and CA5).
  • Page 26 7.31. Remove the C5-Board 4. Remove the Speaker (Squawker/L, Squawker/R). 1. Remove the A-Board unit. (See section 7.4.) 2. Remove the Cabinet-fixing metal (B). (See section 7.29.) 3. Remove the flexible cables holder fastening screws (×10 4. Disconnect the flexible cables (CB6, CB7, CB8, CB9 and CB10).
  • Page 27 5. Remove the GH-Board. 7. Remove the screws (×2 6. Remove the screws (×2 ) and remove the GS-Board. 8. Remove the K-Board and disconnect the connector (K1). 7. Remove the screws (×3 8. Disconnect the connector (G51) and remove the G- Board.
  • Page 28 7.38. Replace the plasma panel (fin- ished) 1. Place the new plasma panel (finished) on the flat surface of the table (covered by a soft cloth), with the plasma panel surface facing downward. 2. Attach the C1, C2, C3,C4,C5-Board and the C6-Board, connect the flexible cables (×30) from the Plasma panel to the C1, C2, C3,C4,C5-Board and the C6-Board, and fit the flexible cable holders.

  • Page 29: Measurements And Adjustments

    8 Measurements and Adjustments 8.1. Adjustment Procedure 8.1.1.2. Adjustments Adjust driver section voltages referring the panel data on the 8.1.1. Driver Set-up panel data label. Check or adjust the following voltages with the multimeter. 8.1.1.1. Item / Preparation 1. Input a white signal to plasma video input. Name Test Point Voltage...

  • Page 30: Initialization Pulse Adjust

    8.1.2. Initialization Pulse Adjust 1. Input the White signal to plasma video input. 2. Set the picture controls as follows. Picture menu : Vivid Normal : Set Aspect : Full 3. Connect Oscilloscope to TPSC1 (SC). Check the voltage (T2) at 100 us period on the down slop. Test point Volume Level...
  • Page 31 8.1.4. Adjustment Volume Location 8.1.5. Test Point Location...

  • Page 32: White Balance Adjustment

    8.2. Adjustment 8.2.1. White balance adjustment Name of measuring instrument Connection Remarks • W/B pattern Component input • Color analyzer Panel surface (Minolta CA-100 or equivalent) Procedure Remarks • Make sure the front panel to be used on the final set is fitted. •...

  • Page 35: Block Diagram

    DCDC +5V(STB) FAN CONT FAN POWER +1.8V +5V(STB) STB+3.3V +3.3V(STB) GC6+1.8V PB30 +1.2V +9/7.2V PB31 GC6+1.2V FAN SOS FAN SOS DET PB32 CIRCUIT PB36 PB37 DIGITAL SIGNAL PROCESSOR (LED:11TIMES) (LED:11TIMES) FAN CONTROL TH-65PZ850U TH-65PZ850U Block (1/7) Diagram Block (1/7) Diagram...
  • Page 36 SCAN OUT (LOWER) DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DATA DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER DRIVER TH-65PZ850U TH-65PZ850U Block (2/7) Diagram Block (2/7) Diagram...
  • Page 37 GS SD CARD SLOT CPU BUS CPU BUS I/F IC8503 IIC1 PCI-BUS +3.3V DRAM RX+/- JK8500 +3.3V IC8501 32bit+4bit IIC_IF EEPROM CONTROLLER ETHER TX+/- NET RUN IC8506 BOOT ROM IC8001 Peaks IIC0 TH-65PZ850U TH-65PZ850U Block (3/7) Diagram Block (3/7) Diagram...
  • Page 38 FAN SOS FAN SOS SW2500 D851 PB31 FAN CONT D852 (LED:11TIMES) (LED:11TIMES) POWER PB32 FAN CONT D856 D857 SWITCH D861 PB36 +15V(FAN) PB37 IC850 D860 +9/7.2V FAN : A-D POWER SWITCH FAN CONTROL TH-65PZ850U TH-65PZ850U Block (4/7) Diagram Block (4/7) Diagram...
  • Page 39 STB CONTROL (LED:6TIMES) (LED:6TIMES) SOS6_SC1 SOS6_SC1 IIC_DATA2 RESET RESET IC555 (LED:7TIMES) (LED:7TIMES) SOS7_SC2 SOS7_SC2 IIC2 IIC_CLK2 PC502 +15V(P) PANEL SOS PANEL SOS PHOTO +15V(P) COUPLER ERROR DET PANEL STATUS PANEL STATUS +15V(P) COLD TH-65PZ850U TH-65PZ850U Block (5/7) Diagram Block (5/7) Diagram...
  • Page 40 BUFFER MAIN_STOP ERROR DET +5V(P) INVERTER VSCN TPSOS7 Q16875,79 IC14961-65 SUSTAIN IC16564 D16718 D16717 VSET VSET SUSTAIN CONTROL ERROR DET IC16801 CONTROL OC2A (LED:7TIMES) (LED:7TIMES) CQR4 VSET2,6 SCAN OUT (LOWER) SUSTAIN CONNECTOR TH-65PZ850U TH-65PZ850U Block (6/7) Diagram Block (6/7) Diagram...
  • Page 41 BUFFER IC17513 +5V(P) BUFFER BUFFER +5V(P)DET IC17601,02 BUFFER BUFFER IC17508 IC17401,02 IC17603-06 CLOCK IC17509-12 CONTROL DATA BUFFER BUFFER VIDEO DATA SS35 +5V(P) +5V(P) +5V(P)DET PANEL DRIVER PANEL DRIVER PLASMA PANEL PANEL DRIVER TH-65PZ850U TH-65PZ850U Block (7/7) Diagram Block (7/7) Diagram...

  • Page 43: Wiring Connection Diagram

    10 Wiring Connection Diagram 10.1. Caution statement. Caution: Please confirm that all flexible cables are assembled correctly. Also make sure that they are locked in the connectors. Verify by giving the flexible cables a very slight pull.
  • Page 44 10.2. Wiring (1)-1...
  • Page 45 10.3. Wiring (1)-2...
  • Page 46 10.4. Wiring (2)-1...
  • Page 47 10.5. Wiring (2)-2...
  • Page 48 10.6. Wiring (3)
  • Page 49 10.7. Wiring (4)
  • Page 51 11 Schematic Diagram 11.1. Schematic Diagram Note...
  • Page 52 Vsus POWER SUPPLY <Exchange board only> ERROR DET P(MULTI)-BOARD (P52) COLD BIAS2/SUS CONT. Vsus POWER CONTROL P(MULTI)-BOARD <Exchange board only> (P53) <Exchange board only> P(SUS)-BOARD ETX2MM706NGN PFC CONTROL <Exchange board only> TH-65PZ850U TH-65PZ850U P(SUS)-Board Schematic Diagram P(SUS)-Board Schematic Diagram...
  • Page 53 BIAS1/MULTI CONT. <Exchange board only> +5V(P) <Exchange board only> D-BOARD (D25) CONTROL SWITCH <Exchange board only> ERROR P(MULTI)-BOARD ETX2MM706NGN STB CONTROL POWER MICOM <Exchange board only> <Exchange board only> COLD P(SUS)-BOARD (P56) TH-65PZ850U TH-65PZ850U P(MULTI)-Board Schematic Diagram P(MULTI)-Board Schematic Diagram...
  • Page 54 TP850 C861 0.1u C869 TP852 470u D859 R859 R871 B0JCME000037 C862 C860 L852 R872 0.1u G0C101KA0167 TP851 470u D860 MAZ81100ML R874 R861 4.7k TP853 C859 D862 MAZ80330LL 0.1u R867 PB30 A-BOARD (A30) TH-65PZ850U TH-65PZ850U PB-Board Schematic Diagram PB-Board Schematic Diagram...
  • Page 55 6.65k 3.16k 1.74k 1.62k 2.32k SW2500 K0F122A00172 POWER SW R3756 MENU TV/VTR VOL.DN VOL.UP CH.DN CH.UP S-BOARD TNPA4536S C3750 1000p AV3_S_DET G-BOARD TNPA4526S KEY1 A-BOARD (A51) TH-65PZ850U TH-65PZ850U G, K and S-Board Schematic Diagram G, K and S-Board Schematic Diagram...
  • Page 56 R7735 SDCMD R7754 3.3V R7725 JS7700 SDCLK R7718 R7742 C7736 C7738 R7737 SDDAT0 100u 0.1u SDDAT1 C7737 C7742 R7738 6.3V 6.3V D.SW R7744 R7750 W.P. R7751 ZA7701 K4AD01D00004 TH-65PZ850U TH-65PZ850U GS and GL-Board Schematic Diagram GS and GL-Board Schematic Diagram...
  • Page 57 CLKG FL3805 0.01u J0MAB0000170 CLK+ HDMI_5V_DET3 GH10 K1FY121E0001 DDC5V HDMI IN 4 IC3801 R3811 C1AB00002835 4.7k HDMI EQUALIZER C3816 C3812 HDMI_CE1 0.01u 0.1u R3834 49.9 A-BOARD ZA3802 K4AD01D00005 (A11) GH11 ZA3801 K4AD01D00005 TH-65PZ850U TH-65PZ850U GH-Board Schematic Diagram GH-Board Schematic Diagram...
  • Page 58 IC8001 IC8001 AH19 C8047 IC8001 IC8001 IC8001 IC8001 AK20 C8026 C8061 IC8001 IC8001 IC8001 IC8001 AM18 VSS 6.3V C8048 IC8001 IC8001 IC8001 IC8001 AM22 VSS IC8001 IC8001 IC8001 IC8001 AP19 TH-65PZ850U TH-65PZ850U A-Board (1/15) Schematic Diagram A-Board (1/15) Schematic Diagram...
  • Page 59 IC8001 AM17 C0DM1 C1DM1 AK33 IC8001 IC8202 AP_C1DQ20 AK_C0DQ16 IC8204 IC8202 AP_C1DQ21 AK_C0DQ18 IC8204 IC8001 AP30 C0VREF2 C1VREF2 IC8001 IC8202 AP_C1DQ16 AK_C0DQ17 IC8204 IC8202 IC8001 AP16 C0VREF1 C1VREF1 AK34 IC8001 TH-65PZ850U TH-65PZ850U A-Board (2/15) Schematic Diagram A-Board (2/15) Schematic Diagram...
  • Page 60 TP8512 SDRAM_CHK2 R8723 SD_CHECK2 XSRSTO2 TP8523 GC6_RST XSRSTO3 SDRAM_CHK4 R8750 R8753 NRST SVDACO1 to (1/15) to (12/15) R8724 TP8510 R8702 to (6/15) DTV_V SVDACO2 CVBS_OUT R8725 AG_DTV_XRST AG_DTV_XRST to (5/15)(8/15) TH-65PZ850U TH-65PZ850U A-Board (3/15) Schematic Diagram A-Board (3/15) Schematic Diagram...
  • Page 61 100u C8549 C8550 C8502 TP8517 0.1u 0.1u TP8520 C8551 C8552 TEST R8604 0.1u R8601 TP8521 AX_CLKLAN R8672 to (1/15) IC8503 CARD DETECT C3EBCG000100 IC8505 EEPROM C0DBZYY00266 GS-BOARD AVR 5V (GS09) TH-65PZ850U TH-65PZ850U A-Board (4/15) Schematic Diagram A-Board (4/15) Schematic Diagram...
  • Page 62 2 VDD R5679 C5653 D5612 C5646 MA2J11100L 100p C0EBM0000026 R5677 R5678 C5765 100k 1 VSS 1000p C5651 RESET 0.047u 6.3V D5611 D5613 MA2J11100L MA2J11100L IC5603 AG_KEY3 to (7/15) C0EBF0000354 STB RESET TH-65PZ850U TH-65PZ850U A-Board (5/15) Schematic Diagram A-Board (5/15) Schematic Diagram...
  • Page 63 D2003 C2061 MAZ81600HL R2102 0.1u 0.1u T1OUT R1IN C2062 R2105 0.1u R1OUT FORCEON C2063 T2OUT 0.1u T1IN R2IN T2IN GenX5 Serial 10 R2OUT R2118 INVALID GENX_SBI1 to (8/15) R2119 GENX_SBO1 TH-65PZ850U TH-65PZ850U A-Board (6/15) Schematic Diagram A-Board (6/15) Schematic Diagram...
  • Page 64 OPTICAL STB5V AG_KEY3 AUDIO TP2023 C3157 to (6/15)(8/15) AG_TV_SUB_ON TUNER_SUB_ON 0.1u TP2024 to (8/15) AG_ECO_ON ECO_ON VIH > 2.2V => PowerDown VIL < 0.8V => active ALL_OFF >> RESETB AC_GOOD/KEY TH-65PZ850U TH-65PZ850U A-Board (7/15) Schematic Diagram A-Board (7/15) Schematic Diagram...
  • Page 65 To D pri(DG35) 0.1u PANEL_STATUS PANEL_STATUS (PANEL_READY) to (15/15) PANEL_SOS PANEL_SOS (PANEL_ALARM) Power Supply AG_ODU_DET/KEY3 to (5/15) AG_ODU_DET/KEY3 AG_KEY1(CON-PANE) to (7/15) AG_KEY1(CON-PANE) AG_R_LED_ON to (7/15) AG_R_LED_ON AG_RMIN to (7/15) AG_RMIN TH-65PZ850U TH-65PZ850U A-Board (8/15) Schematic Diagram A-Board (8/15) Schematic Diagram...
  • Page 66 R5253 C0CBCBD00062 GC6_TCK DC-DC CONVERTER VOUT 15V->GC1.8V GC6 3.3V to (12/15) TP5201 TP5202 C5301 R5254 15V->GC1.2V GC6_TDO GC6 POWER R5255 GC6_TDI PRO_TDO SUB3.3V to (1/15) R5257 R5320 AG_TV_SUB_ON to (7/15)(8/15) TH-65PZ850U TH-65PZ850U A-Board (9/15) Schematic Diagram A-Board (9/15) Schematic Diagram...
  • Page 67 DDCG MAZ30560ML IC4503 L4503 N.C. J0JHC0000078 C1AB00002929 CLK- HDMI EQUALIZER CLK- CLK+ CLKG /SWITCH CLK+ JK4502 SUB3.3V SUB5V K1FY119D0005 HDMI3 GH-BOARD Q4505 (GH11) 2SD0601A0L R4547 R4617 R4546 Q4504 2SD0601A0L R4618 TH-65PZ850U TH-65PZ850U A-Board (10/15) Schematic Diagram A-Board (10/15) Schematic Diagram...
  • Page 68 16V 0.1u AG_HDMI_5V_DET2 AG_HDMI_5V_DET2 C4613 AG_HDMI_CEC AG_HDMI_CEC C4634 C4612 AG_HDMI_MUX_SEL 16V 0.01u AG_HDMI_MUX_SEL C4580 C4585 AG_HDMI_MUX_EN AG_HDMI_MUX_EN 0.01u AG_HPD4 to (8/15) AG_HPD4 AG_HDMI_5V_DET4 AG_HDMI_5V_DET4 C4636 C4638 C4595 C4598 C4640 0.01u C4642 TH-65PZ850U TH-65PZ850U A-Board (11/15) Schematic Diagram A-Board (11/15) Schematic Diagram...
  • Page 69 AK29 IC5100 PVPPDRAM1 IC5100 VDD33 IC5100 LVVSS C5041 GC6_GYIA0 IC5100 GYIA0 IC5100 IC5100 AF18 IC5100 VDD33 IC5100 LVVSS IC5100 VDD33 IC5100 FRCKO1 C5050 IC5100 AB25 VDD33 6.3V IC5100 AC25 VDD33 TH-65PZ850U TH-65PZ850U A-Board (12/15) Schematic Diagram A-Board (12/15) Schematic Diagram...
  • Page 70 CH0DQ21 R5013 VJUMP1005-S CH0DQ28 IC5002 MMDQ28 IC5100 CH0DQ16 R5014 VJUMP1005-S CH0DQ29 IC5002 MMDQ29 IC5100 CH0DQ23 R5015 VJUMP1005-S CH0DQ30 IC5002 MMDQ30 IC5100 CH0DQ20 R5016 VJUMP1005-S CH0DQ31 IC5002 MMDQ31 IC5100 CH0DQ19 IC5002 TH-65PZ850U TH-65PZ850U A-Board (13/15) Schematic Diagram A-Board (13/15) Schematic Diagram...
  • Page 71 C8376 C8381 C8382 C8373 C8375 C8339 0.1u 0.01u 0.1u 0.01u 0.1u C8340 0.1u SUB5V BT30V C8374 C8378 C8380 C8377 C8379 C8370 C8371 0.1u 0.01u 0.1u 0.01u 1000p 0.1u C8346 0.01u TH-65PZ850U TH-65PZ850U A-Board (14/15) Schematic Diagram A-Board (14/15) Schematic Diagram...
  • Page 72 C4833 C4834 C4837 C4840 C4843 C4845 C4846 C4848 R4832 R4841 R4850 0.1u 1000p 1000p 1000p 0.1u 1000p 0.1u 0.1u 1000p 1000p 0.1u 1000p 0.1u 0.1u 1000p 0.1u 0.1u 0.1u JS4802 TH-65PZ850U TH-65PZ850U A-Board (15/15) Schematic Diagram A-Board (15/15) Schematic Diagram...
  • Page 73 R9232 R9871 SC_DRV_RST FP_CQR5 FP_SC3 D9807 R9869 B0JCCE000008 Q9806 +15V P15V_MOTO 2SD0601A0L +15V PA9900 R9870 K5H5022A0031 +15V C9859 C9858 0.01u R9197 SC_CQR4 CQR4 C9168 R9120 R9202 SC_CQR5 EXB2HV103JV CQR5 0.1u TH-65PZ850U TH-65PZ850U D-Board (1/7) Schematic Diagram D-Board (1/7) Schematic Diagram...
  • Page 74 0.1u BUS SW P3.3V R9189 100k C9055 R9186 0.1u R9188 C9136 STB_SCL01 R9187 0.1u R9201 P3V_SCL1 C9143 R9355 0.1u R9198 STB_SDA01 R9200 P3V_SDA1 JTAG CHAIN DATA_DRIVER SS_PULSE SC_PULSE to ucom/FPGA/PD2 TH-65PZ850U TH-65PZ850U D-Board (2/7) Schematic Diagram D-Board (2/7) Schematic Diagram...
  • Page 75 INPUT L8R_DRVCLKD2 RE_O- IC9400 DRVCLKD2 IC9400 RXEN IC9400 DOUTUB01 L8R_DRVCLKD3 RE-(LSB) RE_O+ IC9400 DRVCLKD3 IC9400 RXEP RE+(LSB) FULL0 IC9400 FULL0 FULL1 IC9400 FULL1 D-BOARD TZTNP01RATU (3/7) P3V_SDA02 IC9400 P3V_SCL02 IC9400 TH-65PZ850U TH-65PZ850U D-Board (3/7) Schematic Diagram D-Board (3/7) Schematic Diagram...
  • Page 76 L8RAVDD3.3V L9005 P2.5V J0JHC0000078 IC9400 AC25 V_TEST C9123 0.1u IC9400 TEST IC9400 AB21 AVDD_PD33 IC9400 AD23 IC9400 TCPOUT IC9400 AA23 IC9400 AE24 TCPOUT_D IC9400 AC14 VREF0 IC9400 AB24 IC9400 VREF1 TH-65PZ850U TH-65PZ850U D-Board (4/7) Schematic Diagram D-Board (4/7) Schematic Diagram...
  • Page 77 0.1u L8DR_DQ30 IC9401 IC9401 VREF IC9401 DQ30 L8DR_DQ31 IC9401 DQ31 L8DR_DQS0 IC9401 DQS0 L8DR_DQS1 IC9401 DQS1 IC9401 L8DR_DQS2 IC9401 DQS2 C3ABQJ000055 L8DR_DQS3 IC9401 DQS3 DDR MEMORY Right D-BOARD TZTNP01RATU (5/7) TH-65PZ850U TH-65PZ850U D-Board (5/7) Schematic Diagram D-Board (5/7) Schematic Diagram...
  • Page 78 J0JHC0000078 R9936 0.1u C9181 0.1u IC9300 AB21 AVDD_PD33 IC9300 VREF1 C9133 0.1u P3.3V R9163 D9025 B0JCCE000008 R9157 4.7k Q9059 2SD0601A0L C9068 R9162 0.01u 100k R9168 D-BOARD TZTNP01RATU (6/7) C6-BOARD (C61) TH-65PZ850U TH-65PZ850U D-Board (6/7) Schematic Diagram D-Board (6/7) Schematic Diagram...
  • Page 79 B0JCCE000008 R9213 R9190 B0JCCE000008 R9125 4.7k 4.7k Q9061 Q9058 TP9395 R9214 Q9060 100k 2SD0601A0L 2SD0601A0L 2SD0601A0L C9067 R9130 C9069 R9191 100k 0.01u 100k 0.01u R9124 R9118 C5-BOARD C5-BOARD TH-65PZ850U (C52) (C53) TH-65PZ850U D-Board (7/7) Schematic Diagram D-Board (7/7) Schematic Diagram...
  • Page 80 C17109 100V D17102 B0ECKM000038 C17131 C17102 C1_5V TERM < K1MN68BA0002 R17101 PANEL DATA DRIVER VDA_75V D17103 B0ECKM000038 C17110 100V D17104 B0ECKM000038 C17101 C17132 C1_5V TERM < K1MN68BA0002 PANEL DATA DRIVER TH-65PZ850U TH-65PZ850U C1-Board (1/3) Schematic Diagram C1-Board (1/3) Schematic Diagram...
  • Page 81 B0ECKM000038 C17112 100V D17108 B0ECKM000038 C17120 C17134 C1_5V TERM < K1MN68BA0002 PANEL DATA DRIVER VDA_75V D17109 B0ECKM000038 C17126 100V D17110 B0ECKM000038 C17135 C17130 C1_5V TERM < K1MN68BA0002 PANEL DATA DRIVER TH-65PZ850U TH-65PZ850U C1-Board (2/3) Schematic Diagram C1-Board (2/3) Schematic Diagram...
  • Page 82 AA_DUA31 AB_DUB31 AB_CLK01R AB_CLK02R AB_DUC31 AA_DUB31 AB_NCLK01R AB_NCLK02R AA_DUC31 AA_CLK6R AA_CLK6R C1_5V AA_NCLK7R AA_NCLK7R C17124 0.1u C1_5V C1_5V C17121 C17136 0.1u 0.1u D-BOARD R17140 100k (D34) R17139 FL17101 J0HABH000013 C1_5V TH-65PZ850U TH-65PZ850U C1-Board (3/3) Schematic Diagram C1-Board (3/3) Schematic Diagram...
  • Page 83 AA_DUC20 AB_NCLK08R AB_CLRU2 AB_DUC20 AB_CLRU3 R17264 AA_PCU2 AA_DUB20 AB_PCU2 AB_DUB20 AB_PCU3 AA_DUA20 AB_DUA20 R17224 R17244 10 GND R17262 10 GND R17235 10 GND R17225 R17226 5V_DET < TERM D-BOARD (D35) TH-65PZ850U TH-65PZ850U C2-Board (1/3) Schematic Diagram C2-Board (1/3) Schematic Diagram...
  • Page 84 AB_DUA12 AA_DUA10 AB_DUA10 R17240 10 GND R17214 10 GND 10 GND R17220 10 GND R17230 R17258 R17259 R17221 R17222 R17243 R17245 R17260 R17261 FL17201 C2_5V J0HABH000013 < TERM D-BOARD (D36) TH-65PZ850U TH-65PZ850U C2-Board (2/3) Schematic Diagram C2-Board (2/3) Schematic Diagram...
  • Page 85 C17228 CLRU3 AA_DUC1 R17250 AB_PCU3 0.1u PCU3 AA_DUB1 AB_DUC1 C2_5V AB_DUB1 AA_DUA1 AB_DUA1 R17236 AA_DUC0 AB_DUC0 AA_DUB0 AB_DUB0 5V_DET 5V_DET AA_DUA0 AB_DUA0 SIDE 10 GND R17251 R17256 R17257 C3-BOARD (C33) TH-65PZ850U TH-65PZ850U C2-Board (3/3) Schematic Diagram C2-Board (3/3) Schematic Diagram...
  • Page 86 AA_CLK0L R17316 R17315 CLKU[0](+) AA_ODEU3 ODEU3 AA_LEU3 LEU3 AA_CLRU3 CLRU3 AA_PCU3 PCU3 C3_5V R17301 R17344 ZA17305 K4CD01000013 ZA17304 K4CD01000013 5V_DET ZA17303 R17343 K4CD01000013 100k C2-BOARD (C23) ZA17306 ZA17301 K4CD01000013 K4CD01000013 TH-65PZ850U TH-65PZ850U C3-Board (1/2) Schematic Diagram C3-Board (1/2) Schematic Diagram...
  • Page 87 PANEL DATA DRIVER R17354 R17355 VDA_75V D17309 C17325 B0ECKM000038 100V D17310 B0ECKM000038 C17333 C17328 C3_5V TERM < CA15 R17325 VDA_75V PANEL DATA DRIVER R17347 C17335 100V 220k R17356 R17368 SS2-BOARD (SS32) TH-65PZ850U TH-65PZ850U C3-Board (2/2) Schematic Diagram C3-Board (2/2) Schematic Diagram...
  • Page 88 B0ECKM000038 73:NC 74:NC 75:P75V C17418 76:P75V 100V 77:P75V 78:P75V 79:P75V 80:P75V D17403 B0ECKM000038 R17432 R17431 < CB11 C4_5V PANEL DATA DRIVER C17434 C17410 VDA_75V D17402 B0ECKM000038 C17415 100V D17401 B0ECKM000038 TH-65PZ850U TH-65PZ850U C4-Board (1/2) Schematic Diagram C4-Board (1/2) Schematic Diagram...
  • Page 89 PANEL DATA DRIVER C17437 C17427 VDA_75V D17408 B0ECKM000038 C17420 100V D17407 B0ECKM000038 R17434 R17437 EXB38V331JV EXB38V331JV < CB13 C4_5V PANEL DATA DRIVER C17436 C17428 VDA_75V D17406 B0ECKM000038 C17419 100V D17405 B0ECKM000038 TH-65PZ850U TH-65PZ850U C4-Board (2/2) Schematic Diagram C4-Board (2/2) Schematic Diagram...
  • Page 90 P75V R17532 P75V P75V P75V P75V P75V ZA17506 K4CD01000013 K4CD01000013 ZA17502 K4CD01000013 ZA17503 K4CD01000013 ZA17504 ZA17505 K4CD01000013 PANEL DATA DRIVER C5_5V C17522 C17501 VDA_75V D17502 B0ECKM000038 C17503 100V D17501 B0ECKM000038 TH-65PZ850U TH-65PZ850U C5-Board (1/3) Schematic Diagram C5-Board (1/3) Schematic Diagram...
  • Page 91 R17539 R17567 R17547 R17548 C5_5V PANEL DATA DRIVER C17523 C17507 VDA_75V D17504 B0ECKM000038 C17512 100V D17503 B0ECKM000038 PANEL DATA DRIVER C5_5V C17524 C17514 VDA_75V D17505 B0ECKM000038 C17516 100V D17506 B0ECKM000038 TH-65PZ850U TH-65PZ850U C5-Board (2/3) Schematic Diagram C5-Board (2/3) Schematic Diagram...
  • Page 92 AB_NCLK09L 4:P75V 3:P75V C17526 AB_CLK09L C17539 2:P75V 1:P75V R17568 R17580 SIDE 220k AB_NCLK08L AA_NCLK3L AB_NCLK3L AA_CLK2L AB_CLK2L D17510 VDA_75V B0ECKM000038 10 GND R17569 C4-BOARD R17533 (C41) C17541 100V D17509 B0ECKM000038 TH-65PZ850U TH-65PZ850U C5-Board (3/3) Schematic Diagram C5-Board (3/3) Schematic Diagram...
  • Page 93 B0ECKM000038 B0ECKM000038 PANEL DATA PANEL DATA DRIVER DRIVER < < C6_5V C6_5V C17632 C17602 C17620 C17636 VDA_75V VDA_75V D17602 D17606 B0ECKM000038 B0ECKM000038 C17607 C17611 100V 100V TH-65PZ850U TH-65PZ850U D17601 D17605 B0ECKM000038 B0ECKM000038 C6-Board (1/2) Schematic Diagram C6-Board (1/2) Schematic Diagram...
  • Page 94 AA_DDA24 AB_DDC25 AA_DDC25 AB_DDB25 AB_DDA25 AA_DDB25 AA_DDA25 C6_5V C17623 0.1u R17612 R17613 R17614 AB_DDC22 AA_DDC22 BUFFER AB_DDB22 AA_DDB22 AB_DDA22 AA_DDA22 R17615 AB_DDC23 AA_DDC23 AB_DDB23 AB_DDA23 AA_DDB23 AA_DDA23 C6_5V C17622 0.1u TH-65PZ850U TH-65PZ850U C6-Board (2/2) Schematic Diagram C6-Board (2/2) Schematic Diagram...
  • Page 95 *R16552 R16570 *R16453 *R16454 CSL/CML GATE TP28 TP29 TP30 TP31 TP32 TP33 TP34 TP35 EXB38V472JV SCSU DRIVE CURCUIT AA_SCSU *Q16453 Q16552 B1JAEP000003 B1HFPFA00001 TP13 R16542 R16544 AA_CQR5 AA_CQR4 R16543 AA_CQR3 TH-65PZ850U SC-Board (1/3) Schematic Diagram TH-65PZ850U SC-Board (1/3) Schematic Diagram...
  • Page 96 SHUT REG MA3X152D0L 5V_F_B R16474 *D16423 C16795 C16796 MA3DF40000LW Q16471 R16529 VOUT 470u 470u R16530 D16475 B1ABCF000231 C16791 MAZ80510LL R16472 C16724 2.2k 220u C16721 C16472 D16476 4.7u VF_GND R16479 220u MA2J11100L TH-65PZ850U SC-Board (2/3) Schematic Diagram TH-65PZ850U SC-Board (2/3) Schematic Diagram...
  • Page 97 5V_F_B TP80 TP81 D16477 4.7k MA2J11100L CATHODE REFERENCE 5V_F_A R16828 C16811 TP78 TP79 4.7k ANODE 4700p 5V_F_B IC16801 VSET2,6 C0DBEYY00078 SCNR_PRO TP51 R16573 IC16564 VSET2,6 L16801 C0JBAB000715 SD-BOARD (SD42) TH-65PZ850U SC42 TH-65PZ850U SC-Board (3/3) Schematic Diagram SC-Board (3/3) Schematic Diagram...
  • Page 98 AB_1020 AC_952 AC_1013 AB_1019 AC_951 SD-BOARD AC_1014 (SD11) AB_1018 AC_950 AB_1017 AC_949 R14379 C14901 C14904 C14902 R14376 1000p R14911 R14901 R14375 R14378 C14939 C14940 C14942 C14941 470p 1000p 470p 470p TH-65PZ850U TH-65PZ850U SU-Board (1/3) Schematic Diagram SU-Board (1/3) Schematic Diagram...
  • Page 99 250V 220k 250V 250V 250V 250V 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 470p 1000p 470p 470p VF5V SU41 SC-BOARD (SC41) ZA14901 K4AD01Z00004 ZA14903 ZA14902 K4AD01Z00004 K4AD01Z00004 TH-65PZ850U TH-65PZ850U SU-Board (2/3) Schematic Diagram SU-Board (2/3) Schematic Diagram...
  • Page 100 AH_672 AI_545 AI_604 AG_680 AG_741 AH_612 AH_673 AI_544 AI_605 AG_679 AG_742 AH_611 AH_674 AI_543 AI_606 AG_678 AH_610 AI_542 AG_677 AH_609 AI_541 C14352 C14356 R14391 R14906 R14928 R14929 C14912 R14390 R14393 TH-65PZ850U TH-65PZ850U SU-Board (3/3) Schematic Diagram SU-Board (3/3) Schematic Diagram...
  • Page 101 250V 220k 470p 470p 470p 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 0.1u 1000p 0.1u Vscn VSET2_O 5V_F1_B VSET6_O SD42 SC-BOARD (SC42) ZA14953 ZA14952 K4AD01Z00004 VF_GND K4AD01Z00004 ZA14951 K4AD01Z00004 TH-65PZ850U TH-65PZ850U SD-Board (1/3) Schematic Diagram SD-Board (1/3) Schematic Diagram...
  • Page 102 AH_135 AH_198 AF_270 AG_202 AH_134 AF_269 AG_201 AH_133 R14954 R14360 C14958 C14961 C14963 R14365 R14951 R14366 R14363 R14955 R14981 R14982 R14984 R14990 C14976 C14981 C14989 C14971 470p 470p 1000p 470p TH-65PZ850U TH-65PZ850U SD-Board (2/3) Schematic Diagram SD-Board (2/3) Schematic Diagram...
  • Page 103 R14999 D14979 MA2J11100L AB_OC2A C14943 4.7u C14945 R14937 C14990 AA_OC1U1 R14995 R14996 R14997 R14998 0.1u 100p AA_OC1U2 AA_CLKU1 AA_CLKU2 R14943 R14349 AA_OC2U1 AA_OC2U2 AA_LATU1 AA_LATU2 AA_SIU SIDE SD11 SU-BOARD (SU11) TH-65PZ850U TH-65PZ850U SD-Board (3/3) Schematic Diagram SD-Board (3/3) Schematic Diagram...
  • Page 104 B_OUTPUT 1.2k 2SD0601A0L TP22 TP37 A_+INPUT B_-INPUT R16253 R16280 2.2k TP33 TP34 TP21 AA_SOS8 B_+INPUT C16251 R16254 C16243 D16281 MAZ80510LL 6.8k 0.01u IC16251 C0BBBA000024 R16256 1.5k ERROR DET R16251 1.4k TH-65PZ850U TH-65PZ850U SS-Board (1/2) Schematic Diagram SS-Board (1/2) Schematic Diagram...
  • Page 105 TP26 TP27 TP28 TP29 TP30 TP31 D16311 VR16000 MAZ81500ML C16271 C16267 C16268 C16270 Ve-IPD 820u 820u 820u 250V R16315 1.24k ZA16012 K4ZZ01000206 ZA16013 K4ZZ01000206 TH-65PZ850U TH-65PZ850U SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram SS-Board (2/2), SS2-Board and SS3-Board Schematic Diagram...

  • Page 106: Printed Circuit Board

    VOLUME PC201 VR251 PC202 PC231 P(SUS)-BOARD (COMPONENT SIDE) TRANSISTOR IC251 Q201 Q202 MODULE Q203 Q204 MC201 Q651 MC203 Q652 MC204 MC231 TEST POINT MC601 MC602 MC603 MC606 PHOTO COUPLER VOLUME PC201 VR251 PC202 PC231 TH-65PZ850U TH-65PZ850U P(SUS)-BOARD ETX2MM706NGN P(SUS)-BOARD ETX2MM706NGN...
  • Page 107 TRANSISTOR IC352 Q301 IC401 Q302 IC501 Q351 IC555 Q401 Q402 MODULE Q403 MC301 TEST POINT MC352 MC401 MC451 MC501 MC502 MC552 MC701 MC801 MC802 TP10 PHOTO COUPLER VOLUME VR401 PC301 PC302 PC401 PC501 PC502 TH-65PZ850U TH-65PZ850U P(MULTI)-BOARD ETX2MM706NGN P(MULTI)-BOARD ETX2MM706NGN...
  • Page 108 TRANSISTOR IC352 Q301 IC401 Q302 IC501 Q351 IC555 Q401 Q402 MODULE Q403 MC301 TEST POINT MC352 MC401 MC451 MC501 MC502 MC552 MC701 MC801 MC802 TP10 PHOTO COUPLER VOLUME VR401 PC301 PC302 PC401 PC501 PC502 TH-65PZ850U TH-65PZ850U P(MULTI)-BOARD ETX2MM706NGN P(MULTI)-BOARD ETX2MM706NGN...
  • Page 109 C 8 2 3 R 8 3 2 R 8 4 6 C 8 2 9 R 8 1 6 R 8 4 7 R 8 5 3 TH-65PZ850U TH-65PZ850U G-BOARD TNPA4526S GL-BOARD TNPA4693ACS G-BOARD TNPA4526S GL-BOARD TNPA4693ACS GH-BOARD TNPA4603ADS...
  • Page 110 J S 2 5 0 1 R 2 5 5 7 TNPA4525 R 2 5 1 3 C 2 5 1 6 PB30 PB30 PBMM1 TNPA4536 PBMM1 C878 C877 TH-65PZ850U TH-65PZ850U K-BOARD TNPA4525S K-BOARD TNPA4525S S-BOARD TNPA4536S S-BOARD TNPA4536S PB-BOARD TNPA4243AKS PB-BOARD TNPA4243AKS...
  • Page 111 R1163 C1106 D1104 R1146 J K 3 0 0 2 TP2019 T P 4 8 0 4 T P 1 1 0 3 X1100 JS2011 T P 3 6 0 5 R4841 R4839 R4832 TH-65PZ850U TH-65PZ850U A-BOARD TNPH0736ADS A-BOARD TNPH0736ADS...
  • Page 112 TP4803 TP8510 TP3602 TP4804 TP8511 TP3603 TP4805 TP8512 TP3605 TP4806 TP8513 TP4416 TP4807 TP8516 TP4417 TP4808 TP8517 TP4418 TP4809 TP8518 TP4419 TP4810 TP8519 TP4420 TP4811 TP8520 TP4421 TP4812 TP8521 TP4422 TP4813 TP4423 TH-65PZ850U TH-65PZ850U A-BOARD PARTS LOCATION A-BOARD PARTS LOCATION...
  • Page 113 Q 8 5 0 1 C1126 JK8500 C4825 JK3001 JK3002 C1102 C1105 C1109 R8621 R8623 A 5 1 A 1 5 AMM1 ZA4802 AMM2 AMM3 ZA4805 FL2100 AMM5 ZA4808 J K 3 0 0 1 C4839 TH-65PZ850U TH-65PZ850U A-BOARD TNPH0736ADS A-BOARD TNPH0736ADS...
  • Page 114 R 1 4 0 R 1 3 9 R 1 3 8 R 1 3 7 R 1 7 6 R 1 4 6 D 0 2 5 C 1 3 8 R 1 9 4 TH-65PZ850U TH-65PZ850U D-BOARD TZTNP01RATU D-BOARD TZTNP01RATU...
  • Page 115 R 1 9 0 C 1 3 7 C 0 6 9 O R D E R N O . F L 0 0 4 R 1 6 8 R 1 2 4 P b F TH-65PZ850U TH-65PZ850U D-BOARD TZTNP01RATU D-BOARD TZTNP01RATU...
  • Page 116 C 1 2 4 CRNO.17 R 1 3 9 R 1 4 4 C 1 3 6 R 1 4 0 ZA103 ZA104 TNPA4620 1 C1 P b F O R D E R N O . TH-65PZ850U TH-65PZ850U C1-BOARD TXNC11RATJ C1-BOARD TXNC11RATJ...
  • Page 117 R 2 5 1 R 2 5 4 R 2 5 6 I C 2 1 2 R 2 4 9 F L 2 0 2 I C 2 0 8 R 2 3 6 TH-65PZ850U TH-65PZ850U C2-BOARD TXNC21RATJ C2-BOARD TXNC21RATJ...
  • Page 118 C R N O . 1 7 R 3 4 4 ZA306 ZA301 R 3 4 3 R 3 1 5 R 3 4 2 I C 3 0 6 R 3 0 2 C 3 0 1 TH-65PZ850U TH-65PZ850U C3-BOARD TXNC31RATJ C3-BOARD TXNC31RATJ...
  • Page 119 R 4 5 5 R 4 6 9 R 4 6 8 R 4 7 0 R 4 7 5 R 4 7 1 R 4 7 7 R 4 7 2 CB15 CB11 CB12 CB14 CB13 TH-65PZ850U TH-65PZ850U C4-BOARD TXNC41RATJ C4-BOARD TXNC41RATJ...
  • Page 120 R 5 7 5 R 5 7 9 R 5 7 3 R 5 7 6 R 5 8 0 R 5 7 1 R 5 7 8 R 5 7 7 R 5 7 2 TH-65PZ850U TH-65PZ850U C5-BOARD TXNC51RATJ C5-BOARD TXNC51RATJ...
  • Page 121 R 6 4 8 R 6 4 9 R 6 5 4 R 6 5 0 R 6 5 5 R 6 5 1 R 6 5 6 R 6 5 7 R 6 5 2 TH-65PZ850U TH-65PZ850U C6-BOARD TXNC61RATJ C6-BOARD TXNC61RATJ...
  • Page 122 C563 C592 L591 D464 D463 D462 D441 D481 D482 D483 D484 D461 T P 4 T P 1 6 T P 3 2 T P 3 1 T P 5 T P 3 3 TH-65PZ850U TH-65PZ850U SC-BOARD TXNSC1RATJ SC-BOARD TXNSC1RATJ...
  • Page 123 R 4 5 4 R 4 5 3 R 4 5 2 R 4 5 1 L 5 9 1 R 5 9 1 D 4 5 1 R 5 4 0 R 5 3 3 TH-65PZ850U TH-65PZ850U SC-BOARD TXNSC1RATJ SC-BOARD TXNSC1RATJ...
  • Page 124 A 5 4 A 5 4 A 5 4 A 5 4 A 5 4 A 5 4 D 9 1 3 D 9 1 4 D 9 0 8 D 9 0 4 TH-65PZ850U TH-65PZ850U SU-BOARD TXNSU1RATJ SU-BOARD TXNSU1RATJ...
  • Page 125 C 3 5 8 C 9 7 7 A 5 4 A 5 4 A 5 4 A 5 4 C 3 7 4 C 3 8 2 A 5 4 A 5 4 TH-65PZ850U TH-65PZ850U SD-BOARD TXNSD1RATJ SD-BOARD TXNSD1RATJ...
  • Page 126 Q 0 4 3 Q 0 4 4 D 0 4 0 T P V S U S V R 0 0 0 S S 1 2 S S 1 1 T P 6 TH-65PZ850U TH-65PZ850U SS-BOARD TXNSS1RATJ SS-BOARD TXNSS1RATJ...
  • Page 127 D 0 4 0 C 0 4 2 C 0 4 1 C 0 4 4 C 0 4 3 SS12 R 3 1 5 SSMM2 R 3 1 4 R 3 1 3 TH-65PZ850U TH-65PZ850U SS-BOARD TXNSS1RATJ SS-BOARD TXNSS1RATJ...
  • Page 128 12.17. SS2-Board SS2-BOARD (FOIL SIDE) TXNSS21RATJ SS2-BOARD (COMPONENT SIDE) TXNSS21RATJ ZA16010 ZA16010 ZA16011 ZA16011 TH-65PZ850U TH-65PZ850U SS2-BOARD TXNSS21RATJ SS2-BOARD TXNSS21RATJ...
  • Page 129 12.18. SS3-Board SS3-BOARD (FOIL SIDE) TXNSS31RATJ SS3-BOARD (COMPONENT SIDE) TXNSS31RATJ Z A 1 6 0 1 2 ZA16012 S S M M 6 ZA16013 Z A 1 6 0 1 3 TH-65PZ850U TH-65PZ850U SS3-BOARD TXNSS31RATJ SS3-BOARD TXNSS31RATJ...
  • Page 131 13 Exploded View and Replacement Parts List 13.1. Exploded View and Mechanical Replacement Parts List 13.1.1. Exploded View...
  • Page 132 13.1.2. Fan part location...
  • Page 133 13.1.3. Flat cable relation...
  • Page 134 13.1.4. Accessories...
  • Page 135 13.1.5. Mechanical Replacement Parts List...
  • Page 136 Ref. Safety Part No. Part Name & Description Q'ty Remarks 10030-0035400 BATTERY COVER 1 PAVCA EAS10D85J SQUAWKER SPEAKER(LEFT&RRIGHT) J0KD00000096 FERRITE CORE K1RYYYA00016 F-TYPE(5C) K2CG3YY00029 AC CORD 1 PAVCA L6FAYYYH0050 FAN(80MM-T25) MD65F11A1J PLASMA DISPLAY PANEL N2QAYB000217 REMOTE CONTROL 1 PAVCA TBX2AA5001-1 SELECTION BUTTON 1 PAVCA TBX2AA5201...
  • Page 137 Ref. Safety Part No. Part Name & Description Q'ty Remarks TMW2AA002 POWER BUTTON BRACKET 1 PAVCA TMXX033 CORE HOLDER TMXX045 AC CORD HOLDER TMXX058 CORE HOLDER 1 PAVCA TPD169487 JOINT TPDX0016 JOINT TQB2AA0786 INSTRUCTION BOOK(ENG/FRE/SPA) 1 PAVCA TSXL519 CABLE (C10-C20/C50-C60/SU11-SD11) TSXL555 CABLE (C41-C51) TSXL566...
  • Page 138 13.2. Electrical Replacement Parts List 13.2.1. Replacement Parts List Notes...
  • Page 139 13.2.2. Electrical Replacement Parts List Safety Ref. No. Part No. Part Name & Pcs Remarks Description Safety Ref. No. Part No. Part Name & Pcs Remarks C2105 F1G1C104A116 C 0.10UF, K, 16V Description C2106 F1G1C104A116 C 0.10UF, K, 16V C2107 F1J1A106A043 C 0.010UF, K, K1KA09A00220 9P CONNECTOR K1KA14A00248 14P CONNECTOR...
  • Page 140 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C2341 F1J1E3340003 C 0.33UF, Z, 25V C3043 F1J1A106A043 C 0.010UF, K, C2342 F1J1E3340003 C 0.33UF, Z, 25V C3044 F1J1A106A043 C 0.010UF, K, C2343 F1J1E3340003 C 0.33UF, Z, 25V...
  • Page 141 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C4549 F1G1C104A116 C 0.10UF, K, 16V C4820 F1G1C104A116 C 0.10UF, K, 16V C4550 F1G1C104A116 C 0.10UF, K, 16V C4821 F1G1C104A116 C 0.10UF, K, 16V C4551...
  • Page 142 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C5021 F1H0J1050012 C 1UF, K, 16V C5327 F1G1C104A116 C 0.10UF, K, 16V C5022 F1H0J1050012 C 1UF, K, 16V C5328 ECGRL0G680ER C 68PF, J, 4V C5023...
  • Page 143 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C5679 F1G1E392A123 C 3900UF, Z, 25V PAVCA C8029 F1G1C104A116 C 0.10UF, K, 16V C5688 F1H1A225A051 C 22UF, 50V C8030 F1G1C104A116 C 0.10UF, K, 16V C5689...
  • Page 144 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8212 F1G1A105A047 C 1UF, K, 10V C8352 F1G1C104A116 C 0.10UF, K, 16V C8213 F1G1A105A047 C 1UF, K, 10V C8353 F1G1C104A116 C 0.10UF, K, 16V C8214...
  • Page 145 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C8534 F1J1A106A043 C 0.010UF, K, C9104 F1G1C104A116 C 0.10UF, K, 16V C9105 F1G1C104A116 C 0.10UF, K, 16V C8535 F1G1C104A116 C 0.10UF, K, 16V C9106 F1G1C104A116 C 0.10UF, K, 16V...
  • Page 146 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C9183 F1G1C104A116 C 0.10UF, K, 16V C9539 F1G1C104A116 C 0.10UF, K, 16V C9184 F1G1C104A116 C 0.10UF, K, 16V C9540 F1G1C104A116 C 0.10UF, K, 16V C9185...
  • Page 147 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C9937 F1G1C104A116 C 0.10UF, K, 16V D3701 MAZ81400ML ZENER DIODE C9938 F1G1C104A116 C 0.10UF, K, 16V D3702 MAZ81400ML ZENER DIODE C9939 F1G1C104A116 C 0.10UF, K, 16V...
  • Page 148 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D5308 B0BC4R000002 ZENER DIODE GL02 K1KA02B00294 2P CONNECTOR D5601 MA22D3900L DIODE D5602 MA22D3900L DIODE GS02 K1KA02A00787 2P CONNECTOR D5603 B0JCDD000002 DIODE GS09...
  • Page 149 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC9803 C0JBAZ001120 IC L4515 J0JYC0000068 CHIP INDUCTOR IC9805 C0DBAYY00274 IC L4516 J0JYC0000068 CHIP INDUCTOR IC9806 C0DBAYY00273 IC L4517 J0JYC0000068 CHIP INDUCTOR L4518 J0JYC0000068 CHIP INDUCTOR...
  • Page 150 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description PA9900 K5H5022A0031 FUSE Q9806 2SD0601ARL TRANSISTOR Q9807 B1MBDDA00003 FET PB30 K1KA05AA0193 5P CONNECTOR Q9808 B1MBDDA00015 FET PB31 K1KA03AA0192 3P CONNECTOR Q9809 B1MBDDA00003 FET PB32...
  • Page 151 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R1206 ERJ2GEJ220 M 22 OHM, R2126 ERJ8GEYJ3R3V M 3.3 OHM, J,1/ J,0.063W R1207 ERJ2GEJ103 M 10KOHM, R2128 ERJ8GEYJ3R3V M 3.3 OHM, J,1/ J,0.063W R1208 ERJ2GEJ103...
  • Page 152 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3080 ERJ2GEJ221 M 220 OHM, R3208 D1BB75R0A055 M 75 OHM, 1/10W J,0.063W R3209 D1BB75R0A055 M 75 OHM, 1/10W R3081 ERJ2GEJ221 M 220 OHM,...
  • Page 153 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R3840 ERJ2GEJ100 M 10 OHM, R4600 ERJ2GEJ680 M 68 OHM, J,0.063W J,0.063W R3841 ERJ2GEJ100 M 10 OHM, R4601 ERJ6GEYJ102V M 1K OHM J 1/10W J,0.063W R4603...
  • Page 154 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R4851 ERJ2GEJ101 M 100 OHM, R5063 ERJ2GEJ470 M 47 OHM, J,0.063W J,0.063W R4852 ERJ2GEJ102X M 1K OHM J 1/4W R5064 ERJ2GEJ470 M 47 OHM,...
  • Page 155 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R5253 ERJ2GEJ680 M 68 OHM, R5651 D0YAR0000007 M 0 OHM 1/4W J,0.063W R5652 ERJ2GEJ101 M 100 OHM, R5254 ERJ2GEJ680 M 68 OHM, J,0.063W...
  • Page 156 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R7725 ERJ3GEYJ680 M 68 OHM,J,1/16W R8184 ERJ3GEYJ301 M 300 OHM,J,1/ R7726 D0GB103JA041 M 10K OHM J 1/ R8185 D1BB75R0A055 M 75 OHM, 1/10W R7727 D0GB103JA041 M 10K OHM J 1/...
  • Page 157 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8236 ERJ2GEJ470 M 47 OHM, R8510 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W R8237 ERJ2GEJ470 M 47 OHM, R8511 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W...
  • Page 158 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8620 D1BA49R9A014 M 49.9 OHM, 1/ R8664 ERJ2GEJ103 M 10KOHM, J,0.063W R8621 D0YAR0000007 M 0 OHM 1/4W R8665 ERJ2GEJ103 M 10KOHM, J,0.063W...
  • Page 159 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8723 D1BB82R0A055 M 82 OHM, 1/10W PAVCA R8780 ERJ2GEJ103 M 10KOHM, J,0.063W R8724 D1BB82R0A055 M 82 OHM, 1/10W PAVCA R8781 ERJ2GEJ103...
  • Page 160 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R8835 ERJ2GEJ103 M 10KOHM, R9120 EXB2HV103JV RESISTOR ARRAY J,0.063W R9121 ERJ2GEJ104 M 100KOHM, R8846 ERJ2RKD330 M 33 OHM, J, 2W J,0.063W R8847 ERJ2GEJ103...
  • Page 161 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9170 ERJ2GEJ472 M 4.7KOHM, R9225 ERJ2RHD272 M 2.7KOHM, J, 2W J,0.063W R9226 ERJ2GEJ101 M 100 OHM, R9171 ERJ2GEJ103 M 10KOHM, J,0.063W J,0.063W...
  • Page 162 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R9298 ERJ2GEJ101 M 100 OHM, R9839 EXB38V101JV RESISTOR ARRAY J,0.063W R9840 ERJ2GEJ220 M 22 OHM, R9299 ERJ2GEJ101 M 100 OHM, J,0.063W J,0.063W R9846...
  • Page 163 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description SW2500 K0F122A00172 SWITCREMOTE CON- C14923 F1L2E104A028 E 1000UF, 25V TROLH C14924 F1L2E104A028 E 1000UF, 25V SW3751 EVQPC105K SWITCH C14925 F1L2E104A028 E 1000UF, 25V SW3753...
  • Page 164 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C16243 F1H1H103A970 C 0.001UF, K, C16593 F1H1H102A971 C 1000PF, K, 50V C16602 F1H1H220A971 C 22PF, K, 50V C16251 F1H1C105A008 C 1UF, K, 16V C16603 F1K2J102A014 C 1000UF, K,6.3V...
  • Page 165 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description C17121 F1H1C104A143 C 0.1UF, K, 16V C17436 F1H1A1050032 C 10UF, 50V C17122 F1H1C104A143 C 0.1UF, K, 16V C17437 F1H1A1050032 C 10UF, 50V C17123 F1H1C104A143 C 0.1UF, K, 16V...
  • Page 166 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description K1MN68BA0052 68P CONNECTOR D16313 B0ECKP000047 DIODE K1MN68BA0052 68P CONNECTOR D16321 B0ECKP000047 DIODE K1MN68BA0052 68P CONNECTOR D16323 MAZ80330HL ZENER DIODE K1MN68BA0052 68P CONNECTOR D16324 MA3X152D0L...
  • Page 167 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D16718 MA2J11100L DIODE D17509 B0ECKM000038 DIODE D16719 B0ECKP000047 DIODE D17510 B0ECKM000038 DIODE D16720 B0ECKP000047 DIODE D17601 B0ECKM000038 DIODE D16721 B0HCKS000002 DIODE D17602...
  • Page 168 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description IC17201 C0JBAZ001120 IC L16698 G0C681KA0187 PEAKING COIL IC17202 C0JBAZ001120 IC L16699 G0C331KA0187 PEAKING COIL IC17203 C0JBAZ001120 IC L16801 G0ZZ00002183 PEAKING COIL IC17204 C0JBAZ001120 IC...
  • Page 169 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description Q16441 2PG0430000RP TRANSISTOR PAVCA R14378 D0GDR00Z0002 M 0 OHM, 1/10W Q16442 2PG0430000RP TRANSISTOR PAVCA R14379 D0GDR00Z0002 M 0 OHM, 1/10W Q16443 2PG0430000RP TRANSISTOR PAVCA...
  • Page 170 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R14955 ERJ6GEYJ221V M 220 OHM,J,1/ R16042 ERJT08J5R6V M 5.6 OHM,F,0.33W R14956 ERJ3GEYJ220 M 22 OHM,J,1/16W R16051 ERJT08J5R6V M 5.6 OHM,F,0.33W R14957 ERJ3GEYJ220...
  • Page 171 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16282 ERJ6GEYJ221V M 220 OHM,J,1/ R16421 ERJT08J7R5V M 7.5OHM,J, 0.33W R16283 ERJ6GEYF473 M 47KOHM,J,1/10W R16422 ERJT08J7R5V M 7.5OHM,J, 0.33W R16284 ERJ6GEYJ224...
  • Page 172 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16538 ERJT06J100V M 10 OHM,F,0.25W R16669 ERJ6GEYJ472V M 4.7K OHM J 1/ R16539 ERJ6GEYF473 M 47KOHM,J,1/10W R16670 ERJT06J470V M 47 OHM,F,0.25W R16540 ERJ6GEYF473...
  • Page 173 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R16775 ERJ6GEYJ472V M 4.7K OHM J 1/ R17118 ERJT14J6R8U C6.8 OHM, J,1/4W R17119 ERJT14J6R8U C6.8 OHM, J,1/4W R16776 D0GD101JA036 M 100 R17120 ERJT14J6R8U...
  • Page 174 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17244 EXB38V681J RESISTOR ARRAY R17420 ERJ6GEYJ224 M 220KOHM,J,1/ R17245 EXB38V471J RESISTOR ARRAY R17429 D0GBR00Z0002 M 0 OHM J 1/16W R17246 EXB38V220JV RESISTOR ARRAY...
  • Page 175 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R17533 EXB38V681J RESISTOR ARRAY R17633 EXB38V470J RESISTOR ARRAY R17534 ERJT14J6R8U C6.8 OHM, J,1/4W R17634 EXB38V681J RESISTOR ARRAY R17535 ERJT14J6R8U C6.8 OHM, J,1/4W R17635...
  • Page 176 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description ZA14902 K4AD01Z00004 TERMINAL PAVCA C306 ACCK1B681KP 1kV 680p ZA14903 K4AD01Z00004 TERMINAL PAVCA C352 ACKZE1E182ST 25V 1800PF ZA14951 K4AD01Z00004 TERMINAL PAVCA C354 ECQV1H224JL...
  • Page 177 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description D505 VDAG01AT DIODE AKB12B-EH-A 12P CONNECTOR D506 VDAG01AT DIODE AKB11B-EH-A 11P CONNECTOR D551 VDRK39A5 DIODE AKB03P-VL 3P CONNECTOR D603 VDAP01CT DIODE...
  • Page 178 Safety Ref. No. Part No. Part Name & Pcs Remarks Safety Ref. No. Part No. Part Name & Pcs Remarks Description Description R258 ERDS2FJ472 C 4.7KOHM, J,1/ R510 ARRCR2F1184T METAL GLAZE FIXED RESISTOR R259 ERDS2FJ472 C 4.7KOHM, J,1/ R522 ERDS2FJ180 C 18 OHM, J,1/4W R555 ER0S2CKF1052 M10.5KOHM, F,1/...
  • Page 179 Safety Ref. No. Part No. Part Name & Pcs Remarks Description R805 ARRCR2F7503T METAL GLAZE FIXED RESISTOR R806 ARRCR2F7503T METAL GLAZE FIXED RESISTOR R807 ER0S2CHF3482 M34.8KOHM, F,1/ R809 ARRF5EJR10B METAL GLAZE FIXED RESISTOR R810 ARRF5EJR10B METAL GLAZE FIXED RESISTOR R811 ERDS2FJ472 C 4.7KOHM, J,1/ R812...
  • Page 180 If new part numbers are shown, be sure to use them when ordering parts. Please file and use this manual together with the service manual. Model No. TH-65PF11UK ORDER NO. MTNC081071CE Model No. TH-65PZ850U ORDER NO. MTNC080848CE Subject : Supplier change : P-board Reason for Change *The circled item indicates the reason.

Table of Contents
