Summary of Contents for Mobily NTC-40WV-QSG

  • Page 1: Installation Guide

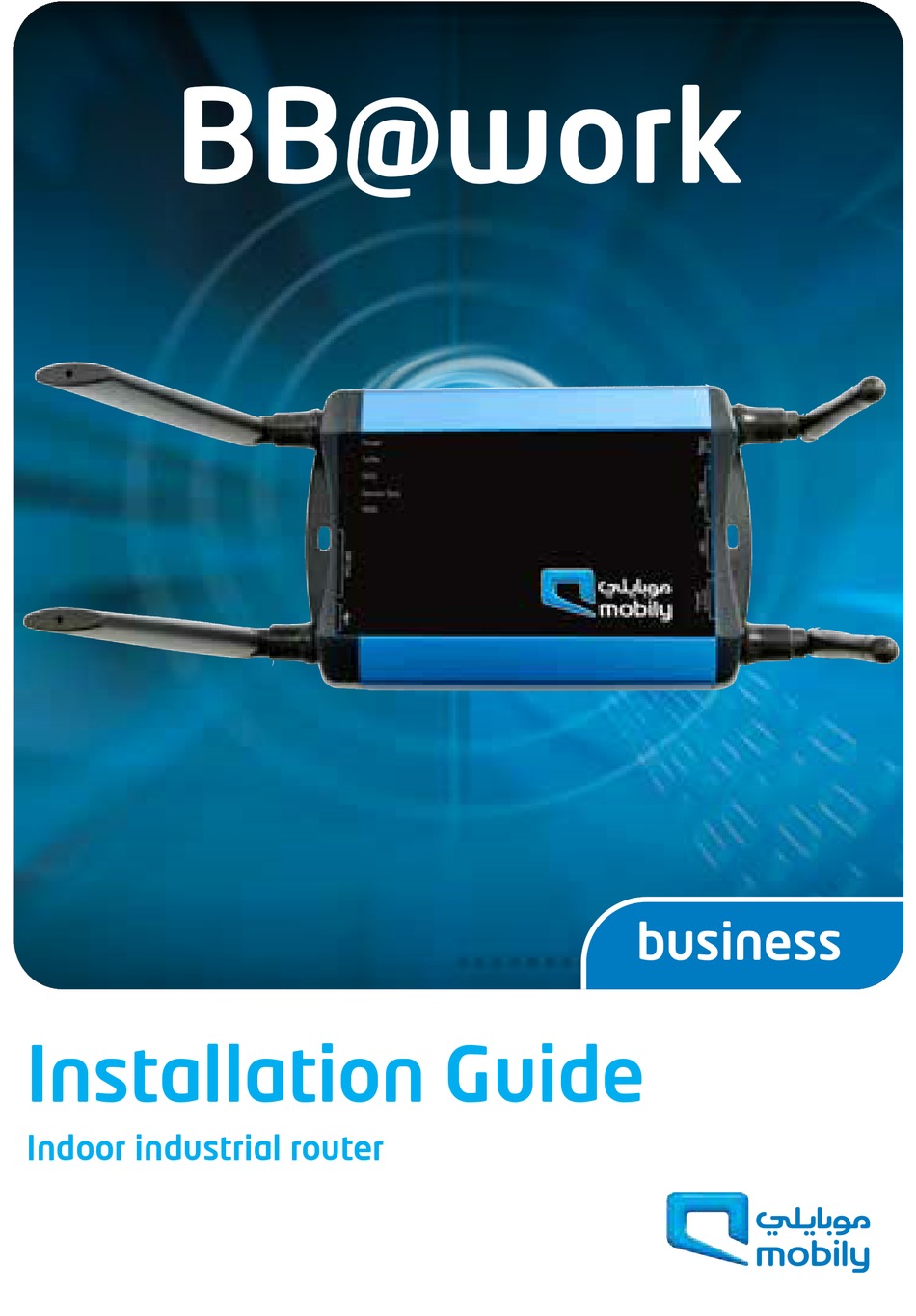

    Installation Guide Quick Start Guide Indoor industrial router mobily... my world, my choice...
  • Page 2 Please check that you have received all the items in your package: Description NTC-40WV-03 Indoor Industrial Router Ethernet cable Power Supply Unit Antennas Quick Start Guide If any of these items are missing, please contact Mobily Customer Service...
  • Page 3: Overview Of Leds

    Indoor Industrial Router Overview of LEDs Display Description Power (red) Solid ON The red Power LED indicates correct power is applied to the DC power input. Tx/Rx Solid ON The amber LED will light upon data being sent to or (amber) received from the cellular network.
  • Page 4 Overview of the Indoor Industrial Router Interfaces SMA Female For Main 3G antenna connection SMA Female SIM Card Bay For receive diversity For insertion and removal of antenna connection the SIM card Reverse Polarity SMA Female Jack For WiFi antennas Ethernet Port Connect to a terminal using RJ45 cable...
  • Page 5: Configuring Your Router

    Indoor Industrial Router Configuring your Router You will need an active SIM card to configure your router. Step 1: Insert the SIM card Press the SIM Eject button to eject SIM card bay. Make sure the SIM card is inserted correctly by inserting the SIM the gold side facing down in the direction as shown below: Press the Insert...
  • Page 6: Step 3: Connect Your Computer

    Step 3: Connect Your Computer Connect one end of the supplied Ethernet cable into the Ethernet port of your router. Connect the other end of the cable into the LAN port of your computer. Wait a few seconds for your computer to establish connection with the router.
  • Page 7 Indoor Industrial Router To access the homepage: • Open your web browser and enter the URL http://my.router • Click Login and type the username/password for Root manager account. • Then click on Submit. NOTE: First time users should use Root manager account to configure Mobile Broadband settings...
  • Page 8: Step 5: Unlocking The Sim

    Step 5: Unlocking the SIM If the SIM card is locked you will need to unlock it with the appropriate PIN code. You can find out if the SIM is locked by viewing the SIM Status on the Status page: If the SIM Status is SIM PIN Required or SIM Locked, then follow the steps below to unlock the SIM card: • From the menu, select Internet Settings ->...
  • Page 9: Step 6: Connect To The Internet

    Indoor Industrial Router Step 6: Connect to the Internet Your router should automatically connect to the Internet if the SIM status reads SIM OK. If it does not, follow the steps listed below to setup the Mobile Broadband connection. By default, the router is set to automatically configure the mobile broadband connection.
  • Page 10: Verify Connection Status

    • Select a profile name from the pull down menu to save the profile settings. You can configure and save the mobile broadband settings the router will use to connect to a particular network. • Enter the connection details (APN Name) provided by your mobile broadband service provider.
  • Page 11: Wireless Lan Connection

    • Wait a few seconds for the connection to establish. Congratulations - your Router is now ready to use! For more detailed information on the configuration and activation of other features, please visit our website www.mobily.com.sa and download the user guide.
