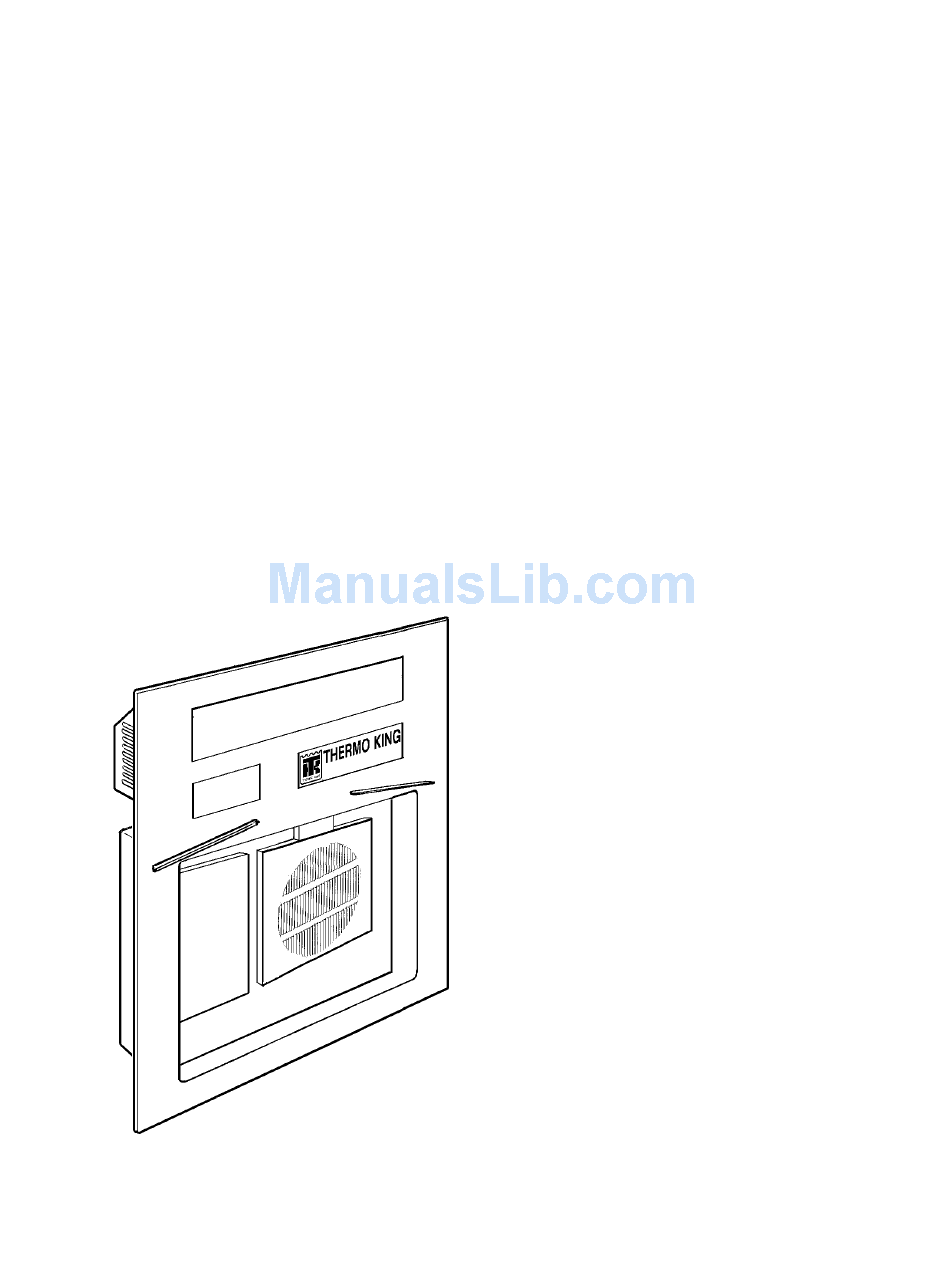

Page 1 CF-II M19.7, M19.8, M19.9, M19.10 TK 40847-3.40 Printed ( Wednesday, August 22, 2001) Copyright©1995 - Thermo King Corp. - Minneapolis, MN, U.S.A. Printed (August 22, 2001) Copyright © 1995 - Thermo King Corp. - Minneapolis, MN U.S.A. Electronically printed in U.S.A.
Page 2: General Information
General Information Assemblies and Subassemblies When parts are indented in the description list, they are Tables of Contents preceded with a bullet ( • ). This indicates that the This Parts Manual contains a numerical table of con- part(s) is available separately or included in an assem- tents listing each assembly name, its associated Grid bly.
Page 3: Table Of Contents
Page CF-II M19.7, M19.8, M19.9, M19.10 REFERENCE SHEET ..2U27..... .3 HUMIDITY CONTROLLER GROUP ......98B11 ....89 CONDENSER COIL &...
Page 4: Cf-Ii M19.7, M19.8, M19.9, M19.10 Reference Sheet
CF-II M19.7, M19.8, M19.9, M19.10 REFERENCE 2U27 Revised SHEET 12/12/96 CF-II M19.7, M19.8, M19.9, M19.10 REFERENCE SHEET 2U27 12/12/96...
Page 5 CF-II M19.7, M19.8, M19.9, M19.10 REFERENCE 2U27 Revised SHEET 12/12/96 DESCRIPTION Date 090205 CF-II M19.7 8/94 090208 CF-II M19.8 9/94 090225 CF-II M19.9 7/95 090239 CF-II M19.10 6/96...
Page 6 123B2 Revised AIR EXCHANGER GROUP 8/15/95 AIR EXCHANGER GROUP 123B2 8/15/95...
Page 7 NAMEPLATE - Fresh Air Exchange Rate 33-1712 GASKET - air exchanger 99-6783 NAMEPLATE - arrow 91-374 BRACKET - duct 55-3049 SCREW - duct 55-2001 FLATWASHER 33-1318 GASKET - duct FRAME - Transfresh (Transfresh components are not avail- able from Thermo King)
Page 8: Condenser Coil & Motor Group
102B4 Revised CONDENSER COIL & MOTOR GROUP 6/5/97 CONDENSER COIL & MOTOR GROUP 102B4 6/5/97...
Page 9 102B4 Revised CONDENSER COIL & MOTOR GROUP 6/5/97 PART# DESCRIPTION 67-1383 COIL - condenser (incl 7, 12, 13) 67-1383 COIL - condenser (incl 7, 12, 13; M19.10 only) 55-2969 SCREW - coil 55-2959 LOCKWASHER 55-2958 FLATWASHER 99-5966 STRIP - gasket (condenser, 50 ft) 98-4236 BRACKET - condenser motor 55-4931...
Page 10 102B4 Revised CONDENSER COIL & MOTOR GROUP 6/5/97...
Page 11 102B4 Revised CONDENSER COIL & MOTOR GROUP 6/5/97 PART# DESCRIPTION 91-6153 BRACKET - coil 55-2969 SCREW - bracket 55-2959 LOCKWASHER 55-2958 FLATWASHER 99-9338 ANGLE - condenser coil 55-1587 SCREW - angle 55-1800 LOCKWASHER 55-2086 FLATWASHER 55-3059 44-5316 CONNECTOR - barb (1/2 mpt) 55-2788 FITTING - barb (3/4 mpt) 55-5018...
Page 12 123B3 Revised EVAPORATOR COIL & BLOWER GROUP 6/2/98 EVAPORATOR COIL & BLOWER GROUP 123B3 6/2/98...
Page 13 123B3 Revised EVAPORATOR COIL & BLOWER GROUP 6/2/98 PART# DESCRIPTION 99-8958 ORIFICE - blower 55-1587 SCREW - orifice 55-2086 FLATWASHER 55-5223 WASHER - special 55-1800 LOCKWASHER 55-3059 NUT - captive 99-8960 DOOR - blower housing 55-2995 SCREW - door 55-2964 LOCKWASHER 55-2001 FLATWASHER...
Page 14 123B3 Revised EVAPORATOR COIL & BLOWER GROUP 6/2/98...
Page 15 123B3 Revised EVAPORATOR COIL & BLOWER GROUP 6/2/98 PART# DESCRIPTION 55-2958 • FLATWASHER 55-2959 • LOCKWASHER 98-2983 HOUSING - blower (roadside, see item 4 for hardware) 33-1725 GASKET - evaporator 55-3035 RIVET - gasket 99-9529 MOUNT - motor 55-1587 SCREW - mount 55-1800 LOCKWASHER 55-2086...
Page 16: Refrigeration Components (M19.7, M19.8)
123B12 Revised REFRIGERATION COMPONENTS (M19.7, M19.8) 3/16/01 REFRIGERATION COMPONENTS (M19.7, M19.8) 123B12 3/16/01...
Page 17 123B12 Revised REFRIGERATION COMPONENTS (M19.7, M19.8) 3/16/01 PART# DESCRIPTION 67-1391 COIL - evaporator 66-6601 VALVE - expansion 66-9378 • HOSE - engine to radiator 66-6567 • ELEMENT - power 66-5367 TUBE - equalizer 66-5366 TUBE - exchanger to expansion valve 67-1073 HEAT EXCHANGER (incl 6, 7, 8) 99-6968...
Page 18 123B12 Revised REFRIGERATION COMPONENTS (M19.7, M19.8) 3/16/01...
Page 19 123B12 Revised REFRIGERATION COMPONENTS (M19.7, M19.8) 3/16/01 PART# DESCRIPTION 55-4953 66-1955 ELBOW - flange 55-2747 SCREW - flange 55-2159 LOCKWASHER 55-2173 FLATWASHER 66-7617 TUBE - suction (see 123B11) 33-920 O-RING - suction 67-1383 COIL - condenser (see 102B4) 66-5748 VALVE - modulation (for connectors see 115D14) 66-5749 •...
Page 20 123B12 Revised REFRIGERATION COMPONENTS (M19.7, M19.8) 3/16/01...
Page 21 123B12 Revised REFRIGERATION COMPONENTS (M19.7, M19.8) 3/16/01 PART# DESCRIPTION 55-4560 NUT - u-bolt NOTE: Receiver tank 67-975 has been replaced with 67-1343 after 12/95.
Page 22 129C1 Revised REFRIGERATION COMPONENTS (M19.9) 3/16/01 REFRIGERATION COMPONENTS (M19.9) 129C1 3/16/01...
Page 23 129C1 Revised REFRIGERATION COMPONENTS (M19.9) 3/16/01 PART# DESCRIPTION 67-1391 COIL - evaporator 66-6601 VALVE - expansion 66-9378 • HOSE - engine to radiator 66-6567 • ELEMENT - power 66-5367 TUBE - equalizer 66-5366 TUBE - exchanger to expansion valve 67-1073 HEAT EXCHANGER 66-4537 •...
Page 24 129C1 Revised REFRIGERATION COMPONENTS (M19.9) 3/16/01...
Page 25 129C1 Revised REFRIGERATION COMPONENTS (M19.9) 3/16/01 PART# DESCRIPTION 55-4953 66-1955 ELBOW - flange 55-2747 SCREW - flange 55-2159 LOCKWASHER 55-2173 FLATWASHER 66-7617 TUBE - suction (see 123B11) 33-920 O-RING - suction 67-1383 COIL - condenser (see 102B4) 66-7793 VALVE - modulating (for connectors see 115D14) 66-7789 •...
Page 26 129C1 Revised REFRIGERATION COMPONENTS (M19.9) 3/16/01...
Page 27 129C1 Revised REFRIGERATION COMPONENTS (M19.9) 3/16/01 PART# DESCRIPTION 55-2001 FLATWASHER - u-bolt 55-4560 NUT - u-bolt 91-6962 INSULATION - exchanger 66-6996 FITTING - saddle 44-5840 SWITCH - condenser fan (for connectors see 115D14) 44-5841 • SWITCH - only NOTE: Receiver tank 67-975 has been replaced with 67-1343 after 12/95.
Page 28 135E4 Revised REFRIGERATION COMPONENTS (M19.10) 3/16/01 REFRIGERATION COMPONENTS (M19.10) 135E4 3/16/01...
Page 29 135E4 Revised REFRIGERATION COMPONENTS (M19.10) 3/16/01 PART# DESCRIPTION 67-1384 COIL - evaporator (see 123B3) 66-6601 VALVE - expansion 66-9378 • SCREEN - inlet 66-6567 • ELEMENT - power 66-5367 TUBE - equalizer 66-5366 TUBE - exchanger to expansion valve 67-1073 HEAT EXCHANGER (incl 6, 7, 8) 66-4537 TUBE - exchanger to coil...
Page 30 135E4 Revised REFRIGERATION COMPONENTS (M19.10) 3/16/01...
Page 31 135E4 Revised REFRIGERATION COMPONENTS (M19.10) 3/16/01 PART# DESCRIPTION 33-2805 GASKET - flange 55-2747 SCREW - flange 55-2159 LOCKWASHER 55-2173 FLATWASHER 66-7617 TUBE - suction (see 123B11) 33-920 O-RING - suction 67-1383 COIL - condenser (see 102B4) 66-7793 VALVE - modulating (for connectors see 115D14) 66-7789 •...
Page 32 135E4 Revised REFRIGERATION COMPONENTS (M19.10) 3/16/01...
Page 33 135E4 Revised REFRIGERATION COMPONENTS (M19.10) 3/16/01 PART# DESCRIPTION 66-6996 FITTING - saddle 44-5840 SWITCH - condenser fan (for connectors see 115D14) 44-5841 • SWITCH - only CAUTION: Both discharge manifold gaskets MUST be the same part number (thickness).
Page 34 123A8 Revised MODULATION VALVE ASSEMBLY 9/20/95 MODULATION VALVE ASSEMBLY 123A8 9/20/95...
Page 35 123A8 Revised MODULATION VALVE ASSEMBLY 9/20/95 PART# DESCRIPTION 60-203 KIT - repair 44-5175 • COIL 66-7791 SCREEN - inlet strainer (1.375 dia tube) 66-7790 SCREEN - inlet strainer (1.125 dia tube)
Page 36 124E2 Revised VALVE ASSEMBLY - SOLENOID 2/16/96 VALVE ASSEMBLY - SOLENOID 124E2 2/16/96...
Page 37 124E2 Revised VALVE ASSEMBLY - SOLENOID 2/16/96 PART# DESCRIPTION 66-7622 VALVE - solenoid (complete) 60-205 • KIT - valve repair (incl 1, 2, 3, 4, 5, 6, 7, 8) • RETAINER - coil • PLATE - voltage • COIL - assembly •...
Page 38: Compound Pressure Gauge (Suction Tube)
123B11 Revised COMPOUND PRESSURE GAUGE (SUCTION TUBE) 10/3/94 COMPOUND PRESSURE GAUGE (SUCTION TUBE) 123B11 10/3/94...
Page 39 123B11 Revised COMPOUND PRESSURE GAUGE (SUCTION TUBE) 10/3/94 PART# DESCRIPTION 66-7031 GAUGE - compound 99-9402 BRACKET - gauge 55-2991 SCREW - bracket 55-2001 FLATWASHER 55-4560 66-7359 TUBE - compound gauge 66-7617 TUBE - suction 66-5752 FITTING - tube 66-6605 FITTING - adapter 66-1955 ELBOW - flange 66-6607...
Page 40: Compressor Group (M19.7, M19.8)
123B13 Revised COMPRESSOR GROUP (M19.7, M19.8) 2/6/01 COMPRESSOR GROUP (M19.7, M19.8) 123B13 2/6/01...
Page 41 123B13 Revised COMPRESSOR GROUP (M19.7, M19.8) 2/6/01 PART# DESCRIPTION 8102-743 COMPRESSOR - service (see 133D7, 460V) 41-1626 SWITCH - high pressure cutout (blue band, for connectors see 115D14) 41-811 • SWITCH - only 66-6090 ADAPTER - discharge 33-2548 GASKET - adapter 66-7394 TUBE - adapter to flange 91-3226...
Page 42 123B13 Revised COMPRESSOR GROUP (M19.7, M19.8) 2/6/01 CAUTION: Both discharge manifold gaskets MUST be the same part number (thickness).
Page 43 123B13 Revised COMPRESSOR GROUP (M19.7, M19.8) 2/6/01...
Page 44: Compressor Group (M19.9, M19.10)
129C2 Revised COMPRESSOR GROUP (M19.9, M19.10) 2/6/01 COMPRESSOR GROUP (M19.9, M19.10) 129C2 2/6/01...
Page 45 129C2 Revised COMPRESSOR GROUP (M19.9, M19.10) 2/6/01 PART# DESCRIPTION 8102-743 COMPRESSOR - service (see 133D7, 460V) 41-1626 SWITCH - high pressure cutout (blue band, for connectors see 115D14) 55-2505 ELBOW - switch 41-444 SENSOR - heat (liquid injection) 55-8311 ADAPTER (o-ring seal) 91-6623 BRACKET - injection valve 55-2363...
Page 46: Compressor
133D7 Revised COMPRESSOR 2/6/01 COMPRESSOR 133D7 2/6/01...
Page 47 133D7 Revised COMPRESSOR 2/6/01 PART# DESCRIPTION 8102-743 COMPRESSOR - service (460V) 22-1002 • HEAD - cylinder * 33-2218 • GASKET - cylinder head 22-1132 • KIT - valve plate (incl 2 & 4, used only on Copeland com- pressors 3DST-07500-XXX-XXX) 22-1051 •...
Page 48: Compressor Oil Filter Group (Before 6/97)
133D8 Revised COMPRESSOR OIL FILTER GROUP (Before 6/97) 2/6/01 COMPRESSOR OIL FILTER GROUP (Before 6/ 133D8 2/6/01...
Page 49 133D8 Revised COMPRESSOR OIL FILTER GROUP (Before 6/97) 2/6/01 PART# DESCRIPTION 20-157 • KIT - oil filter 55-8689 • ADAPTER - tee 66-8054 • ELBOW 203-393 • SEALER - Loctite (red) 66-6607 • FITTING - refrigerant 66-7183 • CAP - fitting 60-237 •...
Page 50 117F5 Revised COMPRESSOR JUNCTION BOX 2/16/96 COMPRESSOR JUNCTION BOX 117F5 2/16/96...
Page 51 117F5 Revised COMPRESSOR JUNCTION BOX 2/16/96 PART# DESCRIPTION 91-7120 BOX - junction (compressor) 33-2792 GASKET 55-3559 SCREW - box 55-2964 LOCKWASHER 55-2001 FLATWASHER 44-4341 BOARD - terminal 55-2991 SCREW - block 55-2001 FLATWASHER 55-2996 LOCKWASHER 99-2847 COVER 55-3027 SCREW - cover 55-2964 LOCKWASHER 55-2001...
Page 52 123B4 Revised ELECTRICAL COMPONENTS 2/6/01 ELECTRICAL COMPONENTS 123B4 2/6/01...
Page 53 123B4 Revised ELECTRICAL COMPONENTS 2/6/01 PART# DESCRIPTION 104-608 MOTOR - evaporator (see 123B3) 44-6565 SENSOR - defrost 44-5568 SENSOR - return air 44-5448 SENSOR - discharge air (M7, M8) 41-806 SENSOR - discharge air (M9, M10) 45-1682 HEATER - evaporator coil (see 102B10) 45-1683 HEATER - drip pan (see 102B10) BOX - remote monitor (see 102C2)
Page 54 123B4 Revised ELECTRICAL COMPONENTS 2/6/01...
Page 55 123B4 Revised ELECTRICAL COMPONENTS 2/6/01 PART# DESCRIPTION 55-2001 FLATWASHER 55-4560 91-2462 BRACKET - sensor 55-1587 SCREW - bracket 55-1800 LOCKWASHER 55-2086 FLATWASHER 66-7618 VALVE - solenoid (liquid injection, M19.7, M19.8) 66-7798 VALVE - solenoid (liquid injection, M19.9, M19.10) 41-767 • COIL - valve 44-8987 MOTOR - air compressor (see 123B14)
Page 56 115D14 Revised WEATHER PACK CONNECTORS 1/5/01 WEATHER PACK CONNECTORS 115D14 1/5/01...
Page 57 115D14 Revised WEATHER PACK CONNECTORS 1/5/01 PART# DESCRIPTION 44-5836 TERMINAL - male (14-16 gauge) 44-5883 TERMINAL - male (18-20 gauge) 44-8851 TERMINAL - male (22 gauge) 44-8681 SEAL (red, 0.066 - 0.079 id) 44-5885 SEAL (green, 0.087 - 0.110 id, 18-20 gauge) 44-5837 SEAL (gray, 0.110 - 0.137 id, 14-16 gauge) 44-6324...
Page 58 123B5 Revised CONTROL BOX 1/11/99 CONTROL BOX 123B5 1/11/99...
Page 59 123B5 Revised CONTROL BOX 1/11/99 PART# DESCRIPTION 98-3860 BOX - control 55-2977 SCREW - box 55-2086 FLATWASHER 55-1800 LOCKWASHER 91-6198 COVER - remote monitor 33-2630 GASKET - cover 55-4437 SCREW - cover 55-2359 FLATWASHER 55-2360 LOCKWASHER 55-2361 44-2368 SWITCH - on/off (2pdt) 44-2099 SWITCH - defrost (1p) 55-2998...
Page 60 123B5 Revised CONTROL BOX 1/11/99...
Page 61 123B5 Revised CONTROL BOX 1/11/99 PART# DESCRIPTION 99-8161 SHIELD - light 55-7149 RIVET - shield (plastic) 99-9401 NAMEPLATE - Lights Display 55-4954 NUT - cover 55-2958 FLATWASHER 55-3034 WASHER - sealing 55-2959 LOCKWASHER 55-2114 NUT - cover 55-3059 NUT - captive 45-1629 CONTROLLER - microprocessor (see 123B7) 99-8162...
Page 62 120G1 Revised BOARD ASSEMBLY - PC/LED 11/22/99 BOARD ASSEM- BLY - PC/LED 120G1 11/22/99...
Page 63 120G1 Revised BOARD ASSEMBLY - PC/LED 11/22/99 PART# DESCRIPTION 44-8910 BOARD - pc/LED (complete) 41-2558 • BOARD - pc/LED 91-4424 •• BLOCK - mounting board 91-3254 NAMEPLATE - Mode Lite Indicator 55-6036 SCREW - board to cover 55-3023 WASHER - sealing 55-3844 SCREW - board to block 55-3800...
Page 64 123B6 Revised HIGH VOLTAGE TRAY (M37.3, M37.7) 6/12/97 HIGH VOLTAGE TRAY (M37.3, M37.7) 123B6 6/12/97...
Page 65 123B6 Revised HIGH VOLTAGE TRAY (M37.3, M37.7) 6/12/97 PART# DESCRIPTION 91-5623 PANEL - high voltage 99-8982 SEALER - tape (roll) 55-5018 55-2788 FITTING - barb 44-8812 CONTACTOR 55-3842 SCREW - contactor 55-2964 LOCKWASHER 55-2001 FLATWASHER 44-8813 INTERLOCK - contactor 44-8811 TRANSFORMER 44-8832 TRANSFORMER - current...
Page 66 123B6 Revised HIGH VOLTAGE TRAY (M37.3, M37.7) 6/12/97...
Page 67 123B6 Revised HIGH VOLTAGE TRAY (M37.3, M37.7) 6/12/97 PART# DESCRIPTION 91-6195 BRACKET - transformer 55-3842 SCREW - bracket 55-2964 LOCKWASHER 55-2001 FLATWASHER...
Page 68: Contactor Assembly (Phase Correction, 460V)
CONTACTOR ASSEMBLY (PHASE CORRECTION, 119G3 Revised 460V) 1/14/99 CONTACTOR ASSEMBLY (PHASE CORREC- TION, 460V) 119G3 1/14/99...
Page 69 CONTACTOR ASSEMBLY (PHASE CORRECTION, 119G3 Revised 460V) 1/14/99 PART# DESCRIPTION 41-1971 CONTACTOR - phase correction (complete) 44-5752 • CONTACTOR 44-4889 •• COIL - contactor 40-333 •• KIT - points 99-6511 • BRACKET - resistor 55-2869 • SCREW - bracket 55-3014 •...
Page 70 MICROPROCESSOR CONTROLLER (M19.7, M19.8, 123B7 Revised M19.9, M19.10) 11/23/98 MICROPROCES- SOR CONTROL- LER (M19.7, M19.8, M19.9, M19.10) 123B7 11/23/98...
Page 71 MICROPROCESSOR CONTROLLER (M19.7, M19.8, 123B7 Revised M19.9, M19.10) 11/23/98 PART# DESCRIPTION 45-1629 CONTROLLER - microprocessor (A+) 44-5571 • RELAY - microprocessor 41-1101 • JUMPER - terminal (7 fin) 44-7253 • JUMPER - terminal (3 fin) 91-6574 • PANEL - microprocessor (rear) 55-3845 •...
Page 72 MICROPROCESSOR CONTROLLER (M19.7, M19.8, 123B7 Revised M19.9, M19.10) 11/23/98...
Page 73 MICROPROCESSOR CONTROLLER (M19.7, M19.8, 123B7 Revised M19.9, M19.10) 11/23/98 PART# DESCRIPTION 91-4019 • NAMEPLATE - Caution, Sensitive Electronic Devices 44-8187 • JUMPER 99-8168 HINGE 99-8169 ANGLE - hinge 55-2995 SCREW - angle & hinge 55-3008 WASHER - sealing (angle) 55-2001 FLATWASHER - hinge 55-4560 NUT - hinge...
Page 74 126G13 Revised HARNESS GROUP - REMOTE MONITOR 2/28/96 HARNESS GROUP - REMOTE MONI- 126G13 2/28/96...
Page 75 126G13 Revised HARNESS GROUP - REMOTE MONITOR 2/28/96 PART# DESCRIPTION 44-7337 CONNECTOR & CABLE - remote monitor 44-8972 • CONNECTOR (15 pin, female) 41-1220 • CONNECTOR (15 pin, male) 99-9604 BRACKET - connector 55-7136 SCREW - connector 55-2359 FLATWASHER 55-2360 LOCKWASHER 55-2361 44-7336...
Page 76: Circuit Breaker Assembly
135E5 Revised CIRCUIT BREAKER ASSEMBLY 7/17/96 CIRCUIT BREAKER ASSEM- 135E5 7/17/96...
Page 77 135E5 Revised CIRCUIT BREAKER ASSEMBLY 7/17/96 PART# DESCRIPTION 91-7655 BRACKET - circuit breaker 55-2991 SCREW - bracket 55-3008 WASHER - sealing 91-6197 COVER - circuit breaker 55-3256 SCREW - cover 55-3014 LOCKWASHER 44-3280 RECTIFIER 203-395 MASTIC - heat transfer 55-2997 SCREW - rectifier 55-3013 FLATWASHER...
Page 78 102C2 Revised REMOTE MONITOR BOX 2/19/98 REMOTE MONI- TOR BOX 102C2 2/19/98...
Page 79 CABLE - Transfresh 55-2993 LOCKWASHER (internal tooth) 55-2086 FLATWASHER 55-1801 NUT - ground 204-635 INSTALLER - integrated circuit 204-636 REMOVER - integrated circuit 204-622 WRIST STRAP - electrostatic NOTE: Trans Fresh components are not available from Thermo King Service Parts.
Page 80 123B10 Revised BATTERY & BATTERY CHARGER GROUP 4/14/99 BATTERY & BAT- TERY CHARGER GROUP 123B10 4/14/99...
Page 81 123B10 Revised BATTERY & BATTERY CHARGER GROUP 4/14/99 PART# DESCRIPTION 91-3377 BRACKET - battery & box 91-6199 BOX - battery charger 55-1587 SCREW - bracket/box 55-1800 LOCKWASHER 55-2086 FLATWASHER 91-3382 COVER - battery 203-507 BATTERY & HARNESS (for connectors see 115D14) 99-7246 STRIP (neoprene, 50 ft) 55-3027...
Page 82 102B10 Revised DEFROST GROUP 2/21/96 DEFROST GROUP 102B10 2/21/96...
Page 83 102B10 Revised DEFROST GROUP 2/21/96 PART# DESCRIPTION 98-2985 PAN - drain (auxilliary) 55-1587 SCREW - pan 55-1800 LOCKWASHER 55-2086 FLATWASHER 55-4953 55-3059 NUT - captive 99-8964 BRACKET - drain pan 45-1682 HEATER - evaporator coil 91-3228 BRACKET - heater 99-8973 BRACKET - drip pan heater 55-5639 SCREW - bracket...
Page 84 113A12 Revised USDA HARNESS GROUP 1/10/95 USDA HARNESS GROUP 113A12 1/10/95...
Page 85 113A12 Revised USDA HARNESS GROUP 1/10/95 PART# DESCRIPTION 91-5546 BRACKET - connectors 55-2969 SCREW - bracket 55-2958 FLATWASHER 55-6157 WASHER - special 55-4954 44-9249 HARNESS - sensor (USDA) 44-8329 • RECEPTACLE 44-8333 • CAP - dust (receptacle) 44-8334 • STRAIN - relief 99-3685 •...
Page 86: Humidity Motor, Compressor & Tank Group
123B14 Revised HUMIDITY MOTOR, COMPRESSOR & TANK GROUP 2/16/96 HUMIDITY MOTOR, COM- PRESSOR & TANK GROUP 123B14 2/16/96...
Page 87 123B14 Revised HUMIDITY MOTOR, COMPRESSOR & TANK GROUP 2/16/96 PART# DESCRIPTION 91-2767 BRACKET - nozzle 11-7380 NOZZLE - humidity (see 120A12) 11-4860 ELBOW (1/4) 10-243 KIT - sleeve & eyelet (1/4) 11-4841 NUT - hose (1/4) 11-4367 HOSE - liquid (1/4, 35 ft) 11-4959 ELBOW (3/8) 10-242...
Page 88 123B14 Revised HUMIDITY MOTOR, COMPRESSOR & TANK GROUP 2/16/96...
Page 89 123B14 Revised HUMIDITY MOTOR, COMPRESSOR & TANK GROUP 2/16/96 PART# DESCRIPTION 55-6153 CONNECTOR - liquid tite 91-3390 SHIM - motor 55-2963 SCREW - motor 55-4727 WASHER - special 55-2959 LOCKWASHER 91-2748 BRACKET - compressor & motor 55-2977 SCREW - bracket 55-1800 LOCKWASHER 55-8117...
Page 90 98B11 Revised HUMIDITY CONTROLLER GROUP 7/17/96 HUMIDITY CON- TROLLER GROUP 98B11 7/17/96...
Page 91 98B11 Revised HUMIDITY CONTROLLER GROUP 7/17/96 PART# DESCRIPTION 91-2762 BOX - controller 91-2763 COVER - box 99-7246 STRIP - gasket (50 ft) 55-3473 PIN - cover 203-392 SEALER - antiseize 99-7900 ROD - pin 55-2114 55-2958 FLATWASHER 55-2959 LOCKWASHER 55-3034 WASHER - sealing 91-2764 WINDOW...
Page 92 123D6 Revised AIR COMPRESSOR 1/10/95 AIR COMPRES- 123D6 1/10/95...
Page 93 123D6 Revised AIR COMPRESSOR 1/10/95 PART# DESCRIPTION 102-529 COMPRESSOR - air • • SHROUD 22-842 • VALVE - safety • HEAD - cylinder * NSS • GASKET - head * NSS • VALVE - outlet • PLATE - valve • VALVE - inlet * NSS •...
Page 94 120A12 Revised NOZZLE ASSEMBLY - HUMIDITY 1/5/95 NOZZLE ASSEM- BLY - HUMIDITY 120A12 1/5/95...
Page 95 120A12 Revised NOZZLE ASSEMBLY - HUMIDITY 1/5/95 PART# DESCRIPTION 11-7380 NOZZLE - humidity 55-6907 • ADAPTER - thin wall 33-2137 • GASKET - adapter 55-6908 • 91-5866 • CAP - fluid/air 33-2531 • GASKET - fluid/air spray 91-5867 • BODY - nozzle 33-2532 •...
Page 96 119E11 Revised CAP & CHAIN ASSEMBLY 8/1/95 CAP & CHAIN ASSEMBLY 119E11 8/1/95...
Page 97 119E11 Revised CAP & CHAIN ASSEMBLY 8/1/95 PART# DESCRIPTION 99-8301 CAP & CHAIN - overflow tank 99-3685 • CHAIN 55-2991 • SCREW - chain 55-2965 • 55-4560 • LOCKNUT...
Page 98 123B8 Revised STRUCTURAL COMPONENTS 7/23/98 STRUCTURAL COMPONENTS 123B8 7/23/98...
Page 99 123B8 Revised STRUCTURAL COMPONENTS 7/23/98 PART# DESCRIPTION 98-4663 FRAME - unit (foamed, complete, M19.7, 19.8) 98-5087 FRAME - unit (foamed, complete, M19.9) 98-5345 MOUNT - cable tie 55-2988 RIVET - blind 91-1753 NUTSTRIP - door 55-3044 RIVET - nutstrip 98-4046 SCREEN - air (poly) 55-3055 RIVET...
Page 100 125B10 Revised DOOR ASSEMBLY SENSOR 9/2/97 DOOR ASSEMBLY SENSOR 125B10 9/2/97...
Page 101 125B10 Revised DOOR ASSEMBLY SENSOR 9/2/97 PART# DESCRIPTION 91-6562 POCKET - door 91-6560 INSULATION - door 33-2664 GASKET - door 91-6561 PANEL - door 55-8365 SCREW - panel 55-2086 FLATWASHER 55-1800 LOCKWASHER 55-6153 CONNECTOR - liquid tite 55-8270 NUT - connector 55-8317 SCREW - pocket 55-2086...
Page 102 123B9 Revised NAMEPLATES 7/15/98 NAMEPLATES 123B9 7/15/98...
Page 103 123B9 Revised NAMEPLATES 7/15/98 PART# DESCRIPTION 91-4250 NAMEPLATE - HFC 134a 99-7104 NAMEPLATE - Thermo King 91-3256 NAMEPLATE - Liquid level 91-8755 NAMEPLATE - Temperature Conversion 99-9084 NAMEPLATE - arrow 91-4244 NAMEPLATE - R134a 99-6784 NAMEPLATE - Fresh Air Exchange Rate...
Page 104 INDEX NUMERICAL BY PART NUMBER 06-794 33-2222 41-767 10-242 33-2223 41-806 10-243 33-2224 41-811 102-529 33-2225 44-2099 104-607 33-2226 44-2368 104-608 33-2510 44-2812 11-3305 33-2511 44-3280 11-4367 33-2531 44-3710 11-4372 33-2532 44-3832 11-4841 33-2542 44-4051 11-4860 33-2545 44-4341 11-4941 33-2548 44-4889 11-4959 33-2630...
Page 105 INDEX NUMERICAL BY PART NUMBER 44-7829 55-2202 55-3055 44-7872 55-2269 55-3059 44-7880 55-2324 44-7881 55-2330 55-308 44-7884 55-2332 55-3089 44-8187 55-2359 55-3098 44-8294 55-2360 55-3101 44-8329 55-2361 55-3121 44-8333 55-2363 55-3256 44-8334 55-2505 55-3264 44-8681 55-2550 55-3295 44-8811 55-2640 55-3300 44-8812 55-2747 55-3319...
Page 106 INDEX NUMERICAL BY PART NUMBER 55-6157 66-6996 91-2761 55-6349 66-7031 91-2762 55-6388 66-7182 91-2763 55-6526 66-7183 91-2764 55-6771 66-7359 91-2766 55-6772 66-7392 91-2767 55-6905 66-7394 91-2768 55-6907 66-7395 91-2769 55-6908 66-7420 91-2770 55-7136 66-7617 91-2822 55-7149 66-7618 91-2823 55-7150 66-7619 91-3226 55-7151 66-7620...
Page 107 INDEX NUMERICAL BY PART NUMBER 91-6206 99-3685 91-6207 99-5225 91-6208 99-5226 91-6209 99-5454 91-6210 99-5966 91-6229 99-6511 91-6234 99-6519 91-6235 99-6748 91-6236 99-6783 91-6237 99-6784 91-6435 99-6968 91-6550 99-7088 91-6560 99-7099 91-6561 99-7103 91-6562 99-7104 91-6573 99-7115 91-6574 99-7246 91-6575 99-7752 91-6593 99-7900...
Page 108 INDEX ALPHABETICAL BY DESCRIPTION BRACKET - oil filter 48 CONTACTOR 64 BRACKET - orifice 8 CONTACTOR - phase correction 64 ADAPTER 44 BRACKET - pc board 68 ADAPTER - discharge 40 BRACKET - post 60 CONTROLLER - humidity 54 ADAPTER - elbow 44 BRACKET - power cable 60 CONTROLLER - microprocessor 60 ADAPTER - outlet 86...
Page 109 NAMEPLATE - Temperature HARNESS - condenser motor 52 LOCKWASHER 6 Conversion 102 HARNESS - control 90 NAMEPLATE - Thermo King 102 HARNESS - evaporator motor 52 NAMEPLATE - USDA connectors 84 HARNESS - heater 52 NAMEPLATE - Warning, Methyl HARNESS - high voltage tray to...
Page 110 INDEX ALPHABETICAL BY DESCRIPTION NUT 8 POCKET - door 100 SCREW - contactor 64 POST - binding 60 SCREW - cover 50 PROTECTOR - high speed 8 PROTECTOR - low speed 8 SCREW - dehydrator 18 PROTECTOR - motor 8 SCREW - door 6 NUT - board 78 PROTECTOR - overload 86...
Page 111 INDEX ALPHABETICAL BY DESCRIPTION STRIP 80 STRIP - gasket 6 U-BOLT - valve 18 STRIP - gasket support 98 STRIP - sealing 16 VALVE - dehydrator inlet 16 STUD - bracket 48 VALVE - discharge 16 SUPPORT - motors/blowers 14 VALVE - expansion 16 SWITCH 90 VALVE - inlet 92...
