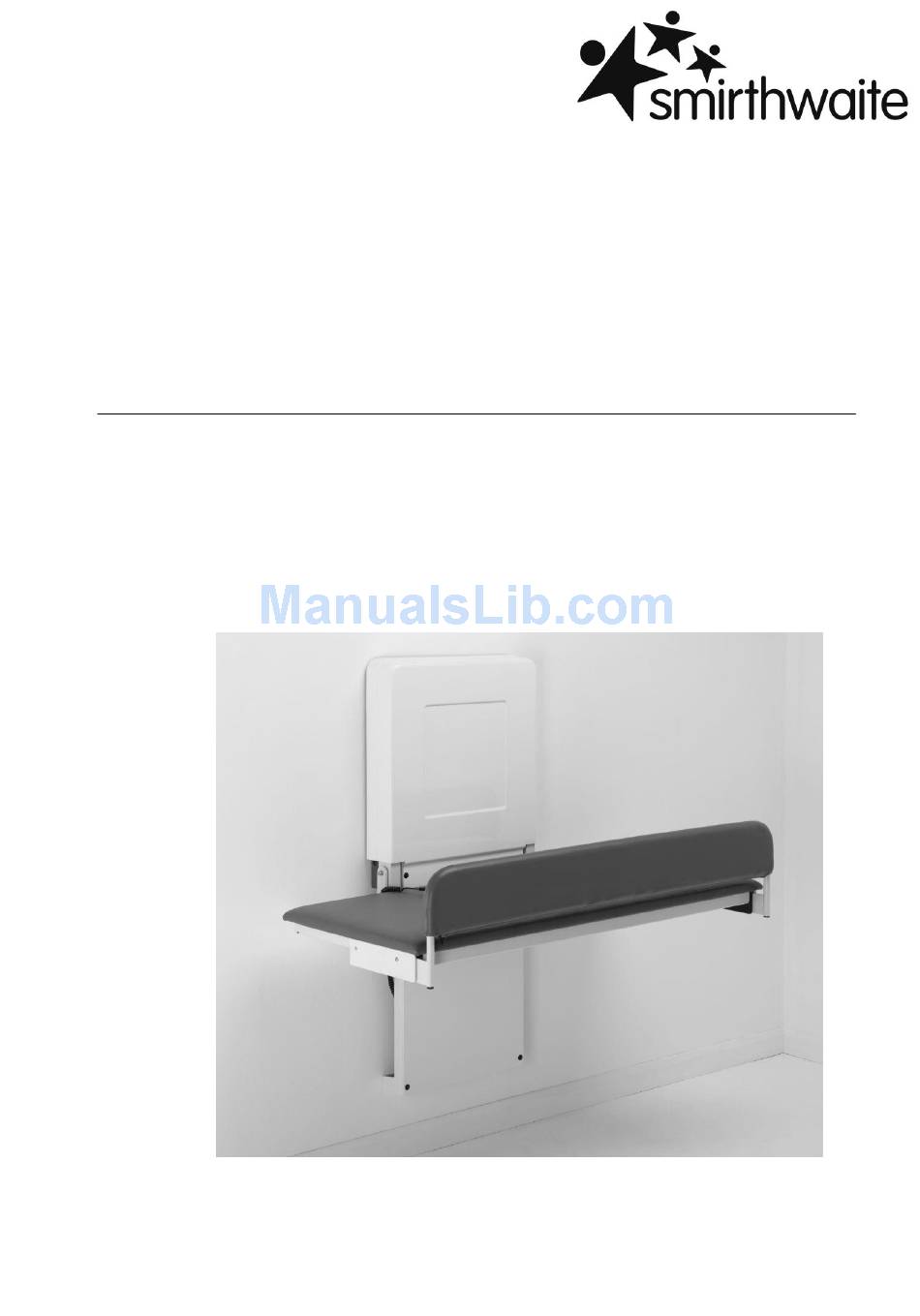

Page 1 1/12 Easi-Lift INSTRUCTIONS FOR USE Codes 3081-3086...
Page 2: Table Of Contents
10.0 WARRANTY & AFTERSALE 1.0 INTRODUCTION Thank you for choosing the Smirthwaite Easi Lift changing table. The Easi Lift is an electrically operated wall mounted changing table designed to fit in a room where space is at a premium. Its compact design means that it fits well into a wide range of environments.
Page 3: Illustration Of Your Easi Lift Changing Table

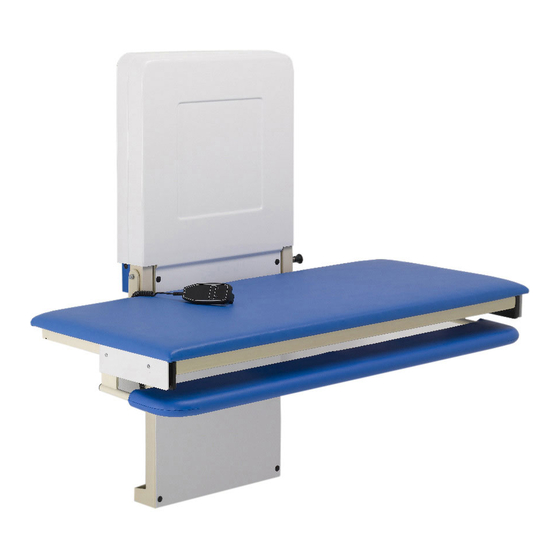

2.0 ILLUSTRATION OF YOUR EASI LIFT CHANGING TABLE A. Safety side B. Bed C. Wall frame The Easi lift is supplied with either standard safety side or stowaway variant (as displayed). Easi-Lift...
Page 4: Techical Data
Y Height (mm) Y Height (mm) Wall Frame A Width (mm) B Depth (mm) C Height (mm) 1150 1150 1150 1150 1150 1150 Storage S Width (mm) Shipping Weight (kg) Dependant upon installed height When fitted with Stowaway safety rails Easi-Lift...
Page 5: For Your Safety
DO NOT fit parts or accessories of other manufacturers to this product unless authorised to do so in writing by G&S Smirthwaite Ltd. Failure to follow these instructions will not only invalidate the guarantee but could make the product dangerous to use. G&S Smirthwaite Ltd will not accept liability for any injury or damage incurred through such malpractices.
Page 6: Surveying And Installation
5.2 INSTALLATION TOOLS REQUIRED  Electric hand drill, with appropriate drill bits for wood and masonry  Set of spanners  Tape measure  Spirit level  Hammer  Screw driver  Personal Protection Equipment (PPE); gloves, safety glasses Easi-Lift...
Page 7 Carefully unpack the Easi Lift and lay all parts on to the floor  Check all components are present and check for damage that may have occurred in transit (see illustration below): Wall Frame Bench frame with mattress and safety side Wall Frame Cover Handset Transformer and plug Fixing screw pack Easi-Lift...
Page 8 Check that the gas spring functions correctly and assists in the raising of the bench – make sure it is checked with the safety rail fitted.  Connect the electrical supply and test the bench by raising and lowering to each of the limits of travel to ensure there are no obstructions. Easi-Lift...
Page 9 Velcro holds the top firmly. Use the studs supplied to fix into place.  Place a copy of the user instructions on the wall near to the changing bench, where it can easily be read – ensure anyone that will be using the bench is trained and familiar with correct usage. Easi-Lift...
Page 10: How To Use Your Easi Lift Changing Table
– check it is in place by gently pulling outwards (towards your body).  The bench can now be raised to the optimum position, which will depend on the carer  To dismount the patient, the process is the reverse of the steps described above Easi-Lift...
Page 11 N.B. If using a hoist system for patient transfer, the patient can be lowered onto the bed when already set at the desired height, with the safety rail set to the vertical position. Easi-Lift...
Page 12: Care & Maintenance
Check that the bed can be securely stored in the vertical position, and that the plunger locking pin engages. 7.2 SERVICE INTERVAL The Easi Lift changing table should be serviced every 1 year. Servicing must only be undertaken by a Smirthwaite service engineer, or by a Smirthwaite trained representative. Easi-Lift...
Page 13  Use by a client who is extremely active, either voluntarily or involuntarily 7.4 EXTENDING NOMINAL SERVICE LIFE At Smirthwaite we are proud to produce products that have a reputation for quality and durability. We believe our products have the potential to provide benefits to our clients beyond the nominal service life documented above.
Page 14  Smirthwaite will document and maintain a record of the original product configuration at the time of first sale  Smirthwaite will not be held responsible for any subsequent changes to this configuration unless authorized to do so in writing by G&S Smirthwaite Ltd ...
Page 15 Please note, we are obligated only to accept the return of electronic/electrical components for responsible recycling, not complete products or assemblies. Please contact G&S Smirthwaite Ltd on T: +44 (0) 1626 835552 should you require any further information. Easi-Lift...
Page 16: Guarantee & Service
This guarantee is issued at the discretion of G & S Smirthwaite Ltd on RTB (Return to Base) basis. If you have any questions or doubts relating to the safety or use of the product please contact us for advice or assistance T: +44 (0)1626 835552 E: enquiries@smirthwaite.co.uk...
Page 17: Continuous Improvement
9.0 CONTINUOUS IMPROVEMENT G & S Smirthwaite Ltd are committed to continuous improvement to their product range. Should you have any suggestions or comments please send them to our product design department at: enquiries@smirthwaite.co.uk G&S Smirthwaite Ltd reserve the right to change the specification or material without prior notice.
Page 18: Warranty & Aftersale
10.0 WARRANTY & AFTERSALE 10.1 Product Information Model: Size: Date of Manufacture: Serial Number: Final Inspection 10.2 Service & inspection record form: Date Procedure Service Personnel Easi-Lift...
Page 19 Notes: Easi-Lift...
Page 20 G & S Smirthwaite, 17 Wentworth Road, Heathfield, Newton Abbot, Devon.TQ12 6TL T: +44 (0) 1626 835552 F: +44 (0) 1626 835428 E: enquiries@smirthwaite.co.uk www.smirthwaite.co.uk Easi-Lift...
