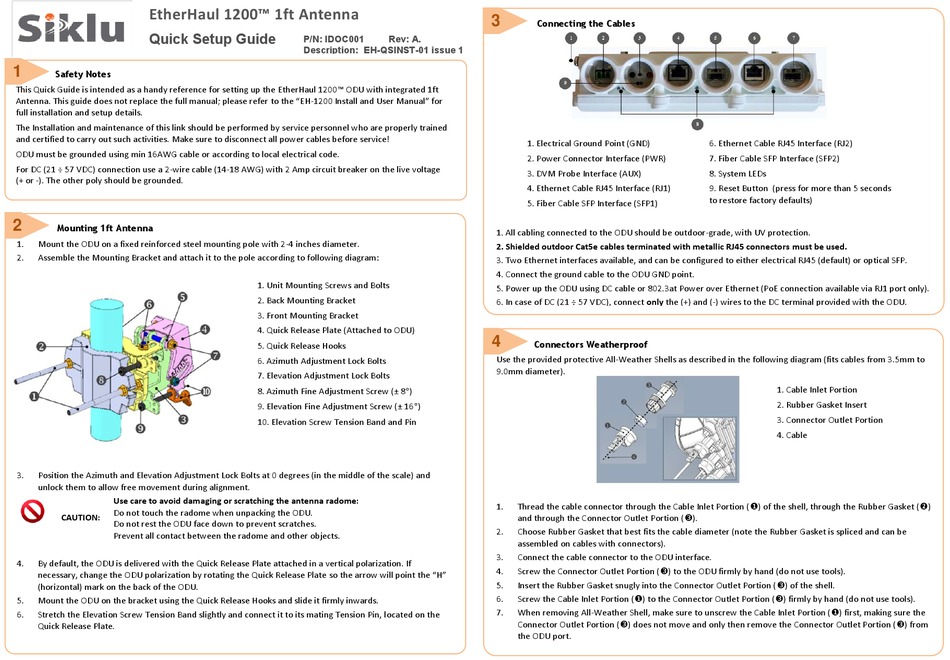

EtherHaul 1200™ 1ft Antenna
Quick Setup Guide
1

Safety Notes

This Quick Guide is intended as a handy reference for setting up the EtherHaul 1200™ ODU with integrated 1ft
Antenna. This guide does not replace the full manual; please refer to the "EH-1200 Install and User Manual" for
full installation and setup details.
The Installation and maintenance of this link should be performed by service personnel who are properly trained
and certified to carry out such activities. Make sure to disconnect all power cables before service!
ODU must be grounded using min 16AWG cable or according to local electrical code.
For DC (21 ÷ 57 VDC) connection use a 2-wire cable (14-18 AWG) with 2 Amp circuit breaker on the live voltage
(+ or -). The other poly should be grounded.
2

Mounting 1ft Antenna

1. Mount the ODU on a fixed reinforced steel mounting pole with 2-4 inches diameter.
2. Assemble the Mounting Bracket and attach it to the pole according to following diagram:
3. Position the Azimuth and Elevation Adjustment Lock Bolts at 0 degrees (in the middle of the scale) and
unlock them to allow free movement during alignment.
Use care to avoid damaging or scratching the antenna radome:
Do not touch the radome when unpacking the ODU.
CAUTION:
Do not rest the ODU face down to prevent scratches.
Prevent all contact between the radome and other objects.
4. By default, the ODU is delivered with the Quick Release Plate attached in a vertical polarization. If
necessary, change the ODU polarization by rotating the Quick Release Plate so the arrow will point the "H"
(horizontal) mark on the back of the ODU.
5. Mount the ODU on the bracket using the Quick Release Hooks and slide it firmly inwards.
6. Stretch the Elevation Screw Tension Band slightly and connect it to its mating Tension Pin, located on the
Quick Release Plate.
P/N: IDOC001 Rev: A.
Description: EH-QSINST-01 issue 1
1. Unit Mounting Screws and Bolts
2. Back Mounting Bracket
3. Front Mounting Bracket
4. Quick Release Plate (Attached to ODU)
5. Quick Release Hooks
6. Azimuth Adjustment Lock Bolts
7. Elevation Adjustment Lock Bolts
8. Azimuth Fine Adjustment Screw (± 8)
9. Elevation Fine Adjustment Screw (± 16)
10. Elevation Screw Tension Band and Pin
3

Connecting the Cables

1. Electrical Ground Point (GND)
2. Power Connector Interface (PWR)
3. DVM Probe Interface (AUX)
4. Ethernet Cable RJ45 Interface (RJ1)
5. Fiber Cable SFP Interface (SFP1)
1. All cabling connected to the ODU should be outdoor-grade, with UV protection.
2. Shielded outdoor Cat5e cables terminated with metallic RJ45 connectors must be used.
3. Two Ethernet interfaces available, and can be configured to either electrical RJ45 (default) or optical SFP.
4. Connect the ground cable to the ODU GND point.
5. Power up the ODU using DC cable or 802.3at Power over Ethernet (PoE connection available via RJ1 port only).
6. In case of DC (21 ÷ 57 VDC), connect only the (+) and (-) wires to the DC terminal provided with the ODU.
4

Connectors Weatherproof

Use the provided protective All-Weather Shells as described in the following diagram (fits cables from 3.5mm to
9.0mm diameter).
1. Thread the cable connector through the Cable Inlet Portion () of the shell, through the Rubber Gasket ()
and through the Connector Outlet Portion ().
2. Choose Rubber Gasket that best fits the cable diameter (note the Rubber Gasket is spliced and can be
assembled on cables with connectors).
3. Connect the cable connector to the ODU interface.
4. Screw the Connector Outlet Portion () to the ODU firmly by hand (do not use tools).
5. Insert the Rubber Gasket snugly into the Connector Outlet Portion () of the shell.
6. Screw the Cable Inlet Portion () to the Connector Outlet Portion () firmly by hand (do not use tools).
7. When removing All-Weather Shell, make sure to unscrew the Cable Inlet Portion () first, making sure the
Connector Outlet Portion () does not move and only then remove the Connector Outlet Portion () from
the ODU port.
6. Ethernet Cable RJ45 Interface (RJ2)
7. Fiber Cable SFP Interface (SFP2)
8. System LEDs
9. Reset Button (press for more than 5 seconds
to restore factory defaults)
1. Cable Inlet Portion
2. Rubber Gasket Insert
3. Connector Outlet Portion
4. Cable
