Summary of Contents for Qihan RS485

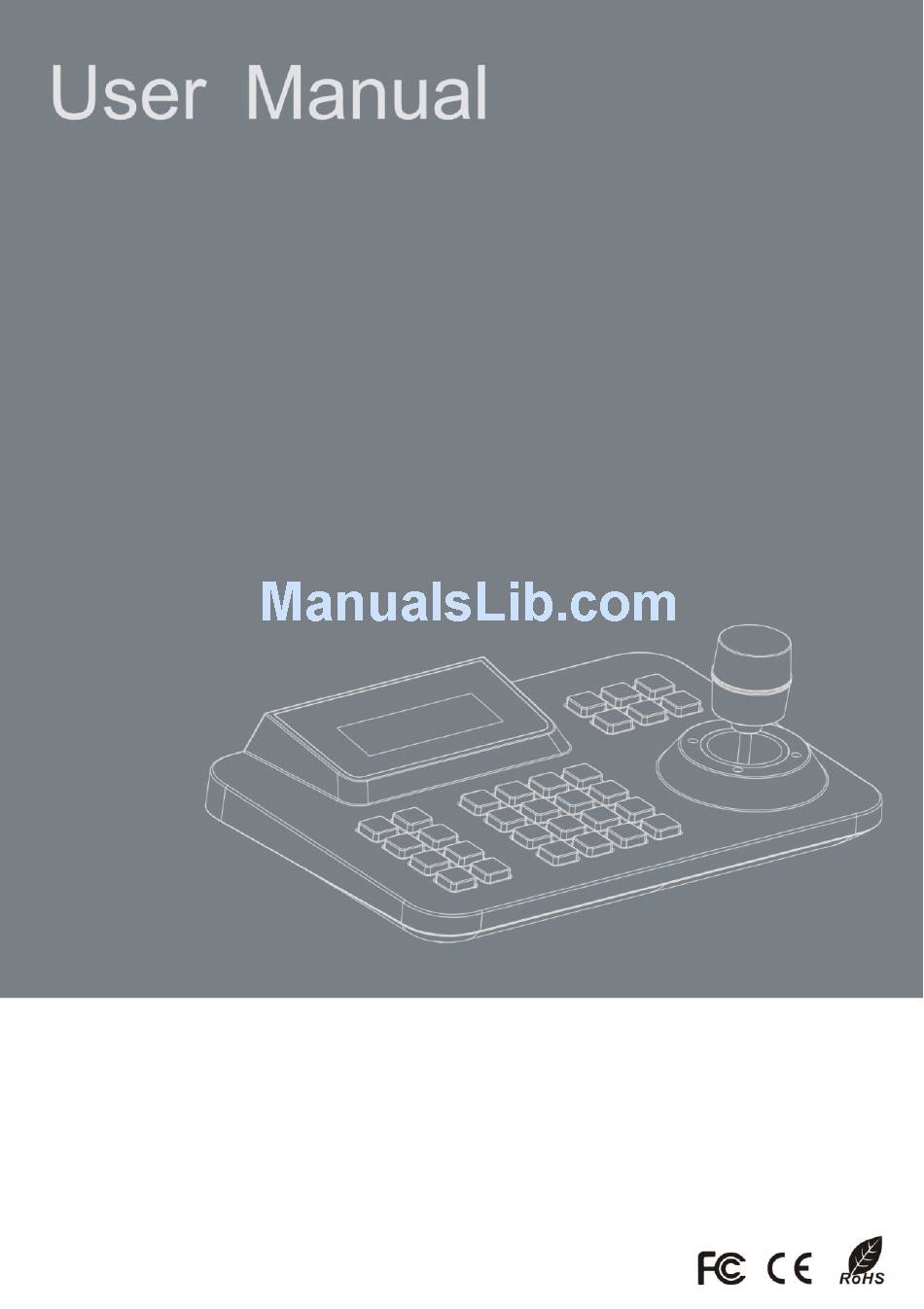

  • Page 1 RS485 Surveillance Keyboard...

  • Page 2: Table Of Contents

    1.3 Technical Data ....................... 1   2. Keyboard Connection ..................... 3   2.1 Keyboard Interface Instruction ................3   2.1.1 RS42 2 and RS485 interface ............... 3   2.1.2 RJ45 Interface ..................... 3   2.2 Matrix Connection ....................4  ...
  • Page 3 4.3.3 DVR controlling mode ................24   4. 4 Exit to keyboard menu ..................24   5. Appendix ........................24   5. 1 RS485 Bus Basic Knowledge ................24   5.2 Keyboard shortcut operation manual ..............28   6. Keyboard Menu Index ....................30  ...

  • Page 4: Summary

    Please don't close up the keyboard to exothermic object for long time. 1.2 Function and Characteristic RS485 Bus Line and a keyboard can connect 31domes at most in the direct control mode. It can be compatible with all kinds of protocols You can control the Iris Locus and Zoom.
  • Page 5 Relative humidity：Less than 90% Physical property L * W*H =218* 180 * 55（mm） Weight：630g（Net Weight）...

  • Page 6: Keyboard Connection

    RS422 and RS485 interface are on the 6bit ribbon cable connection of the keyboard .RS485 (A + B-) can connect with the dome when the key -board controls the dome directly ;RS485 （A+， B-） can connect with DVR or other keyboard when the keyboard controls the dome by matrix ;...

  • Page 7: Matrix Connection

    6Bit ribbon Cable RJ45 Power Supply Port Picture2-1.2 2.2 Matrix Connection The keyboard can control matrix of PELCO CM6700、CM6800.For example ( following) that the keyboard connects with the PELCO CM 6700 matrix in order to introduce the connection between the keyboard and the matrix. There are two kinds of keyboard connection inter face on the CM6700 matrix back plate: one is local keyboard connection interfaceRJ45（...

  • Page 8: Rs422 Remote Connection

    You can connect with the dome by RS485 inter-face when the keyboard controls the dome directly. The RS485 interface of t he dome is on the switch board of pendent hanger of the upper cover of the dome. You can find the 4 Pin control/power socket and find the corresponding RS485（A+，B-）interface according to the above mark when you turn the metal...

  • Page 9: The Connection Of The Keyboard In The System

    (sees to the picture2.4-1) When unconnected with the matrix, the keyboard controls the dome directly. Keyboard and camera parallel connect to RS485 Bus and each keyboard can control each dome. This way is required to have a main keyboard (the main keyboard ID set as 1); the Baud rate of keyboard is set as 9600bps.

  • Page 10: Keyboard Operation Manual

    1.A line of RS485 may control up to 32 main controlling and under controlling equipments, so a keyboard which controls the dome directly may connect up to 31 domes. 2. The system may connect up to 4 keyboards at the same time, and the four keyboards ID are different Picture 2.4-2...

  • Page 11: Electrify To Keyboard

    Lens controling Joystick Numeric ZOME Function Picture 3-1.1 This paragraph describes mainly the operation ways of keyboard. It needs to especially explain that different systematic platform has not the same operations, and different systematic platform may have some particular requirements and operations, plea- se operate it to combine with the operation manual of dome and matrix.

  • Page 12: Joystick Controls The Dome

    controlling camera, monitor ID, baud rate and soon. In the last line there are keyboard input commands and joystick operation. As the right picture shows： When operate it, LCD will turn on back light, in order to operate easily; stop to operate it for 15 s, back light will be off automatically.

  • Page 13: Dome Function Operation

    Press 【TELE】,lens zoom tale (the multiple of lens increase), leave to stop. Press 【WIDE】, lens zoom wide(the multiple of lens reduction), leave to stop. Focus control： Press【FAR】manually far focus , to make the far object more legible, leave to stop. Press【NEAR】manually near focus , to make the near object more legible, leave to stop.

  • Page 14: Cal L The Dome Main Menu

    Run tour： 【N】+【TOUR】/【TOUR】. Press tour number，press【TOUR】 ，run tour. If system has only a tour, press【TOUR】directly . Set tour must enter setup menu. 3.7 Cal l the dome main menu 【9】 + 【0】 + 【Preset】 ： input 90, then press 【Preset】 to call the main menu of object dome, and the menu is displayed in the object monitor.

  • Page 15: Change Object Monitor

    3.8.4 Change object monitor 【N】+【M ON】 Input the monitor ID, then press【MON】 ，the image and the menu of the dome that you control-led by keyboard will display in the object monitor.

  • Page 16: The Keyboard Menu Controlling

    4. The Keyboard Menu Controlling * The keyboard me nu con trolling Press【SET】,keep 2 seconds；Got the main menu, the LCD display is following. (See the picture 4.1-1) all menu setup should call main menu. Press numerical key or move the joystick up and down to the option which you need and then turn it right after entering the main menu, which can enter the relevant menu setting.
  • Page 17 2. Move the joystick to【1】then choose keyboard setting LCD display (see to the picture 4.1.1- 2) 1.Set KB Parameter 1.Screen Light 2.About keyboard Picture 4.1.1-2 3. Move the joystick to【1】to choose keyboard Specification LCD display (sees to the picture 4.1.1-3) 1.Set KB ID 2.Set ball rate 3.Joy_calibrate...

  • Page 18: The Keyboard Baud Rate Setting

    The screen will show【Error】if input the numerical key which are excess the ID scope (1-6 4) (Sees to picture 4.1.1 -6) Error! Picture4.1.1-6 5. Press【PREV】 or move the joy stick left wards then go back gradually The factory default ID of the keyboard is 1; The ID Number must be 1 if the single keyboard works;...

  • Page 19: Joystick Calibration

    success it means the operation is success. Then Press【Prev】or move the joys tick left war do to go back. Must be used 9600 BPS when connecting with the matrix; and must b e used 9600 B PS or 1 9 200 bps when connecting the keyboard online.

  • Page 20: Multi-Keyboard Connection State Setting

    4.1.4 Multi-keyboard Connection state setting Enter into OSD menu, LCD will display as Picture 4.1 .1- 1 shows. Press【1】to set the keyboard. LCD will display as Picture 4. 1.1-2 shows. Press 【4】 to set multi-keyboard connection state setting. After you select 【Multi keyboard state】, tilt up/down the joystick to set the state as “ON”...

  • Page 21: Dome Setting

    Version:1.00 KB ID:001 KeyBoard ID Protocol: Factory Control Protocol Balldrate:960 0bps Communication protocol Picture4.1.6-1 move the joys tick leftwards to return . The keyboard mess age menu will display the keyboard parameter setting, the keyboard model, ID address, the Keyboard protocol and the keyboard baud rate.
  • Page 22 Picture 4.2.1-2 The first item is setting dome preset; the second item is calling dome preset; the third item is clearing dome preset. Move the joystick to【1】to enter preset setting, this item requires inputting the preset number that you will save, as LCD shows (Picture 4.2.1- 3) Preset num: （1-255）...

  • Page 23: Dome Scan Setting

    Input corresponding preset number, press【Enter】to call preset, LCD will show (Success )tilt the joys tick left or press【Prev】to back to the former menu. Move the joystick to【3】to enter the clearing preset menu, As LCD shows (Picture 4.2.1- 6) Preset num: (1-255）...

  • Page 24: Pattern Setting

    then press【Enter】to save, LCD will show (Success) and back to the former menu. Choosing the second item (Set right limit), same operation as left limit Back to scan menu, then press【3】to run scan. After entering the set ting dome pattern menu, the joys tick will control the dome directly, at this time the keys in lens controlling area also can control the dome lens, the operation of the joystick and the key is invalid for the dome under general menu mode.

  • Page 25: Tour Setting

    After entering the set ting dome pat tern menu, the joystick will control the dome directly, at this time the keys in lens controlling area also can control the dome lens, the operation of the joystick and the key is invalid for the dome under general menu mode.

  • Page 26: Protocol Setting

    Press【3】to run tour. Is valid to insert the presets in tour underVIDO-B02 Protocol but it is invalid under other protocols 4. 3 Protocol setting Enter the menu, as LCD shows (picture 4.1.1- 1) Press 【3】to enter protocol setting, as LCD shows (picture 4.3-1) 1.Matrix 2.Dome 3.DVR...

  • Page 27: Dvr Controlling Mode

    5. 1 RS485 Bus Basic Knowledge * Characteristic of RS48 5 Bus line According to RS485 standards, RS485 Bus is of half-duplex data transmission cables with characteristic impedance as 120Ω. The maximum load capacity is 32 unit loads (including main...
  • Page 28 19200bps 600m * Connection and terminal resistance The RS485 standards require a daisy-chain connection between the equipment. There must be termination resistance wit h 120Ω at both ends of the connection (refer to picture 4-1.1). Please refer to picture4-1.2 for simple connection. And “D” should not exceed 7m.
  • Page 29 It cannot control the dome, or sometimes can or sometimes cannot, or continuous operate by itself. The factory will recommend the RS485 distributor. The distributor can transfer the star configuration connection to the mode of connection accordance with the RS 485 standards.
  • Page 30 Picture4-1.3 Picture 4-1.4...

  • Page 31: Keyboard Shortcut Operation Manual

    5.2 Keyboard shortcut operation manual Working Shortcut Operation object Function Mode 【N】+ Input Dome ID, pre【Cam】to select High speed dome object dome. 【Cam】 Press 【 Tele】 , increase the multiple of High speed dome 【Tele】 lens Press 【Wide】 , reduce the multiple of High speed dome 【Wide】...
  • Page 32 【Pattern】to save pattern 【0】+ 【Patter】 【N】+ Input pattern number(1-4), press High speed dome 【Pat tern】to run pattern。 【Patter】 【N】+ Input tour number, press 【Tour】or 【Tour】/ High speed dome directly press 【Tour】to run cruise. 【Tour】 【9】+【5】 High speed dome Input 95 to call main menu of dome +【Preset】...

  • Page 33: Keyboard Menu Index

    6. Keyboard Menu Index 7. Maintenance service terms 1. Range of warranty The product will be maintained free for one year. ●...

  • Page 34: Warranty Terms

    The product will be obtained the free maintenance service if the same malfunction appears ● again within three months. Malfunction of products caused by force majeure (such as war, earthquake, lightning strike ● and soon ), abuse, non-standard operation, change of construction, non- normal wear or acc dent are non-free of warranty.
