FireStore DR-DV5000 QuickStart Guide
FireStore DR-DV5000 QuickStart Guide
DR-DV5000
QUICKSTART GUIDE
For Operating System Version 1.2
INTRODUCTION
Thank you for choosing the Focus
Enhancements' FireStore DR-DV5000 DV
Disk Recording Module for JVC Professional
DV Camcorders.
The purpose of this QuickStart document is to
introduce the features and operation of the
FireStore DR-DV5000. The complete User
Guide is available on the CD-ROM that came
with the FireStore unit. It is advised that users
get familiarized with the product by reading
the User Guide before attempting to use
this product. If you are unable to locate the
User Guide or require further assistance,
please visit:
www.focusinfo.com/support
Alternatively, contact your Focus
Enhancements or JVC FireStore
dealer/distributor.
PHYSICAL FEATURES
Your FireStore DR-DV5000 features two
main surfaces, the front panel and the rear
connector panel.

Front Panel

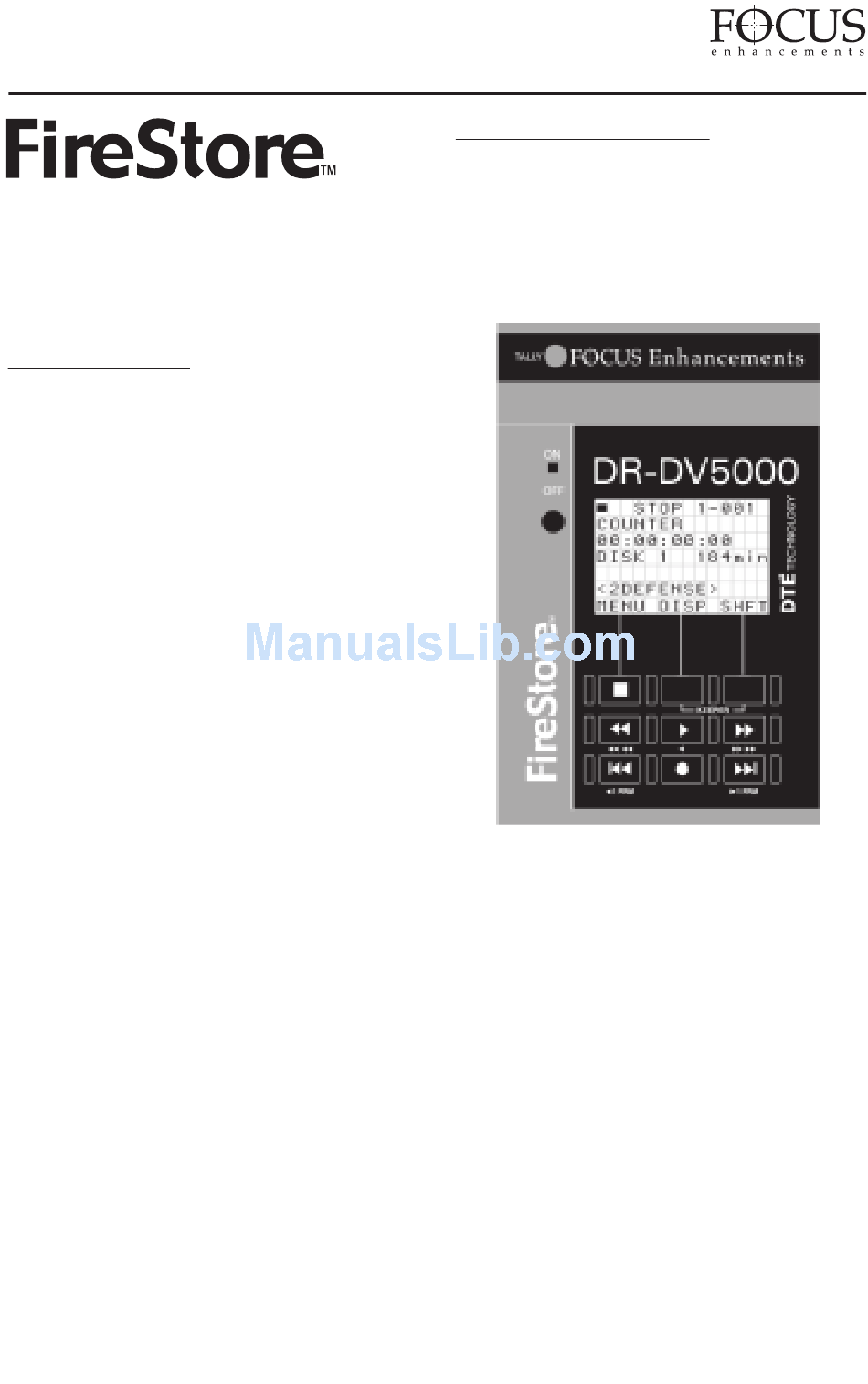

The front panel contains the backlit LCD and
9 buttons for controlling FireStore's functions.
The top row of buttons act as soft keys and
provide the function displayed on the bottom
of the LCD.
The front panel also features a tally light,
infrared remote sensor and power switch.
PAGE 1
