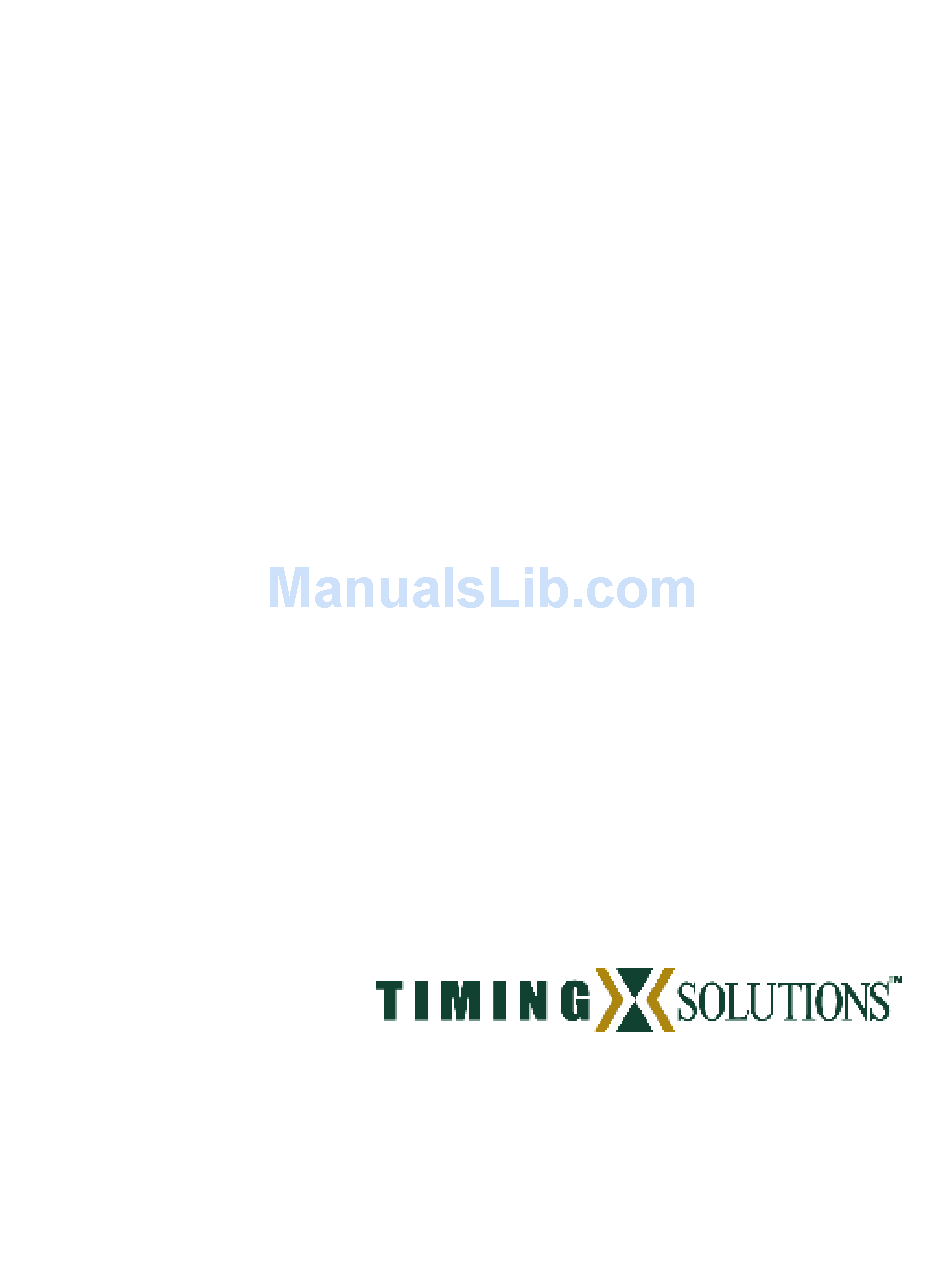

TSC 4033A 1 x 15 5 Volt Pulse Distribution Amplifier Operations and Maintenance Manual 4775 Walnut Street Suite 1B Boulder, CO 80301 www.timing.com Phone: (303) 939-8481 4033A Operations and Maintenance Manual... - Page 2 TSC 4033A 1 x 15 Pulse Distribution Amplifier Operations and Maintenance Manual Copyright © 2004 Timing Solutions Corporation Timing Solutions is a trademark of the Timing Solutions Corporation. Other product and company names may be trademarks of their respective owners.
-
Page 3: Table Of Contents
Table of Contents 1: Introduction............................... 5 1.1 Symbols............................... 5 1.2 About This Manual ..........................7 1.2.1 Conventions ..........................7 1.3 4033A Overview ..........................8 2: Installing and Setting Up the 4033A......................9 2.1 Safety First!............................9 2.2 Unpacking ............................9 2.3 Cleaning ............................ - Page 4 This page intentionally left blank...
-
Page 5: 1: Introduction
1: Introduction Note FIRST READ THIS MANUAL THROUGHLY! This is especially true for the sections regarding Safety and Installation. 1.1 Symbols These symbols appear throughout the manual as well as on the unit itself Note This symbol means the following information is a note that gives you important information that may affect how you use the 4033A. - Page 6 Mains Power is ON Mains Power is OFF LAN port, NETWORK, DO NOT CONNECT TO TELECOM CONNECTIONS THAT CARRY HAZARDOUS VOLTAGES. 101010 Serial port connection, DO NOT CONNECT TO TELECOM CONNECTIONS THAT CARRY HAZARDOUS VOLTAGES. Earth terminal symbol: Used to indicate an earth ground connection to chassis.
-
Page 7: About This Manual
15 describes how to replace fuses and verify operational problems. “Chapter 5, Warranty and Shipping Information” on page 17 explains how to contact Timing Solutions Corporation for warranty service and provides shipping guidelines. “Chapter 6, Declaration of Conformity”... -
Page 8: 4033A Overview
1.3 4033A Overview The TSC 4033A is a one input, fifteen output 5 Volt pulse distribution amplifier housed in a 1U high 19 inch rack mount chassis. It provides fifteen outputs from a single input. An Ethernet port on the rear panel provides the capability to remotely monitor the status of the input and all output signals. -
Page 9: 2: Installing And Setting Up The 4033A
2. Check for physical damage. 3. If no physical damage is apparent, then proceed with making appropriate connections. If physical damage is observed, then immediately contact Timing Solutions and the carrier. 4. Save the shipping container for submitting any necessary claims to the carrier. -
Page 10: Cleaning
2.3 Cleaning Warning Do not spray or use too much liquid when cleaning the unit. Liquid can enter the unit and damage sensitive electronic components. Clean the main chassis with a soft cloth dampened with a mild soap and water solution. 2.4 Installing the 4033A The 4033A is shipped ready for installation into a standard 19"... -
Page 11: Output Signals
Switch at the Power Entry Module or the power supply cord set is not accessible when the unit is mounted inside an enclosed rack. After power-on, the unit runs a self-test in the following sequence: • All LEDs will be turned on GREEN •... - Page 12 you may use your companies IT protocol to determine the IP address assigned to a particular hardware address, then set a static address. To manually assign the static IP address using the Lantronix® DeviceInstaller software: 1. Obtain the following network information from your system administrator for each 4033A you want to install: IP Address: ______ ______ ______ ______...
- Page 13 Note If you move the 4033A to a different network hub after setting up the static IP address, the host computer may not be able to make a connection. You may need to release the IP address lease on your operating system. 4033A Operations and Maintenance Manual...
-
Page 14: 3: Monitoring The 4033A
3: Monitoring the 4033A 3.1 Accessing the System You access the 4033A remotely by connecting to its Command-And-Response (CNR) Port through the Ethernet connection. The CNR port (Port 10001), which uses TCP/IP, lets users input commands, displays results of the commands, and publishes alarms as they occur. When users Telnet to the CNR port, the system does not display a prompt. -
Page 15: Checking Model Number And Software Version
Example: S0000,0001,2 This example shows that the system has no current alarms, output 1 alarmed since last status request, and the input type is DC IRIG. With no input signal, all status bits will report 0. 3.2.2 Checking Model Number and Software Version Both commands are case sensitive. -
Page 16: 4: Troubleshooting The 4033A
Perform all of the following procedures before returning the unit for service. If the unit still appears to have a problem, then call Timing Solutions Corporation and request technical support. Have the serial number of your unit ready to provide to a technical representative. - Page 17 This page intentionally left blank 4033A Operations and Maintenance Manual...
-
Page 18: 5: Warranty And Shipping Information
This chapter provides information on how to contact Timing Solutions Corporation for warranty service, as well as shipping guidelines for the 4033A. 5.1 Warranty Information The 4033A carries a warranty from Timing Solutions Corporation for a period of 1 year from date of shipment. For repairs, contact Timing Solutions Corporation:... - Page 19 This page intentionally left blank 4033A Operations and Maintenance Manual...
-
Page 20: 6: Declaration Of Conformity
4775 Walnut Drive Suite 1B Boulder CO 80301 declares that the product: Product Name: 1 x 15 5 Volt Pulse Distribution Chassis Model Number: TSC 4033A Product Options: All Conforms to the following Product Specifications: Safety: EN61010-1:2000, Safety Requirements for Electrical Equipment for Measurement, Control and... - Page 21 This page intentionally left blank 4033A Operations and Maintenance Manual...
-
Page 22: Appendix A: Specifications
Appendix A: Specifications A.1 Electrical Specifications Table 3: Table 3 lists the electrical specifications for the 4033A. Table 3: Electrical specifications Item Specification Protection Class Class I (Grounded Type) Power Input Voltage 100 – 240 V~ 50/60 Hz 0.5 A Note: Fluctuations not to exceed ±... -
Page 23: Environment Specifications
A.2 Environment Specifications Warning Ordinary protection: This unit is for INDOOR USE ONLY. It is not protected against a harmful ingress of moisture. Equipment intended to be installed in an Enclosed/Open type equipment rack Pollution Degree 2 per EN61010-1 Installation (Over-Voltage) Category II for transient over-voltages per EN 61010-1 Equipment suitable for continuous operation Table 4 lists the environmental specifications for the 4033A. -
Page 24: Glossary
Glossary Line feed Carriage return Command and Response DHCP Dynamic Host Configuration Protocol electrostatic discharge light-emitting diode least significant bit most significant bit portable document format printed wiring assembly radio frequency Timing Solutions Corporation... -
Page 25: Index
Index output 8 environment 22 Numerics power 8 physical 22 4033A DeviceInstaller standards accessing 13 software 11 applicable to alarms 13 Declaration of 4033A 19 cleaning 9 model number conformity 19 subnet mask checking 14 command interface 13 assigning 11 monitoring front panel 8 a 4033A 13... - Page 27 4033A Operations and Maintenance Manual...
