Leotec player User Manual

Leotec player
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
user's
manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the player and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Leotec player

Summary of Contents for Leotec player

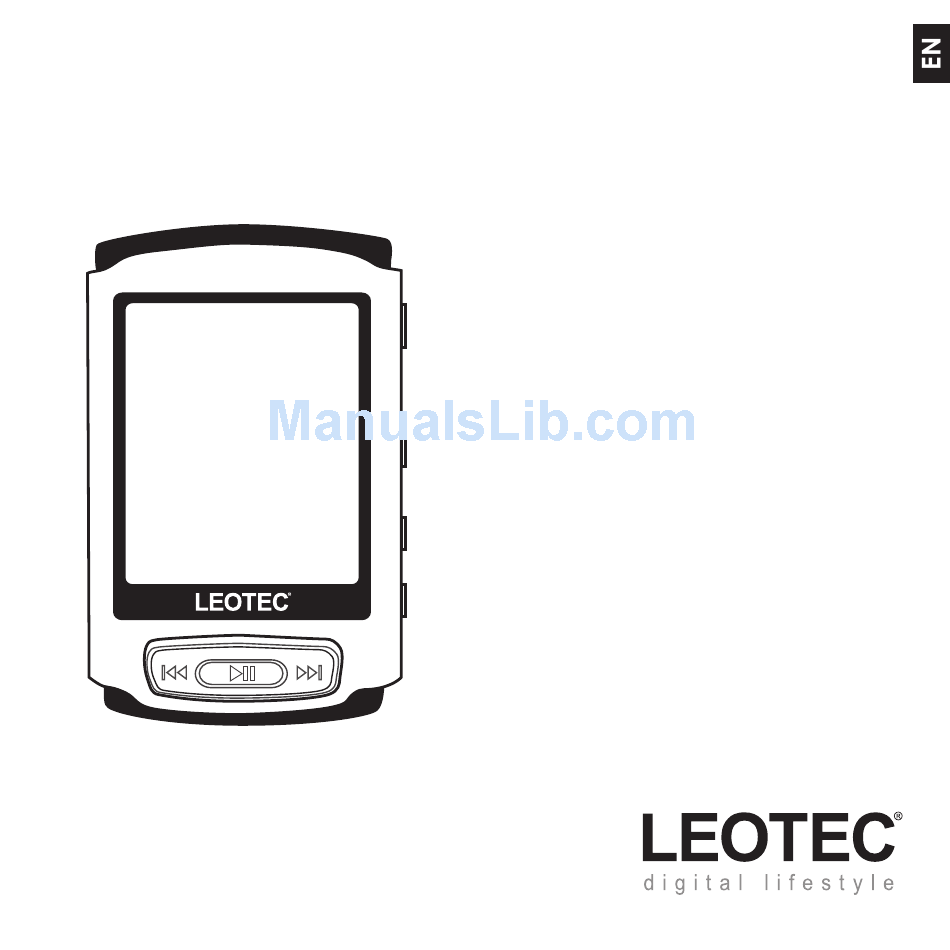

  • Page 1 user’s manual...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS First steps Use of the player Music, Video and Replays Recorder FM Radio Photos Setup Drivers and Software Safety instructions More information, technical service and support...

  • Page 3: First Steps

    You have acquired a LEOTEC player and with it you have opened the doors to the world of digital audio. LEOTEC products do not only offer you the latest in technology, but they also offer you an unbeatable quality-price relationship.

  • Page 4: Use Of The Player

    USE OF THE PLAYER Identification of the parts 1. Screen . Menu 3. Play / Pause / On / Off 4. Next / More 5. Volume 6. Previous / Less 7. Power 8. Earphones jack plug-in 9. MiniUSB connector Modes of pressing The buttons detect the type of pressing, that is, that pressing briefly does not have the same function as if pressure is maintained.

  • Page 5: Music, Video And Replays

    Turning the player on and off To turn the player on the button marked Power (7) must be moved to the right. In the event of already being in this position, maintain the Play (3) button pressed for a few seconds. Once turned on, to turn it off maintain the Play (3) button pressed a few seconds or move the Power (7) button to the left.
  • Page 6 The screen shows us the following information: : a. File format b. Repeat mode c. Equalization type d. Current playing time 001/001 e. Total playing time f. Battery charge g. Volume h. Current file / Total files i. ID3 information (title, artist...) j.
  • Page 7 Delete: To eliminate a song. On selecting this option a list of songs will appear; you must select the song that you want to delete by means of the Previous (6) and Next(4) buttons. To confirm, press Menu (2) and ratify it by means of the delete option.
  • Page 8 Repeat directory: plays the folder continually. Repeat all: plays all of the songs without stopping. Random: plays all of the songs at random. Introduction: plays the first 10 seconds of all songs. Equalizer: Choose the type of equalization from among the following options: Normal: equalization of the song is not modified.
  • Page 9 The playing of the song selected begins. Once the song is being played, if you press this button again, the playing will go into pause. The pressing of this button must be brief, since if it is maintained pressed, the player will turn itself off. Next/More (4) and Previous/Less (6) buttons Song change: To change songs, you must press one of the buttons.

  • Page 10: Recorder

    RECORDER This mode converts our player into a voice recorder. To begin recording, just press Play (3), if you press Play (3) while the recording is occurring, it will go into pause. Once the recording is in pause, you can continue recording by pressing Play (3) again, or save the recording by pressing the Menu () button.

  • Page 11: Photos

    Next / Previous image: Press the Next (4) button or the Previous (6) button. SETUP This mode allows you to setup different options of your player. Time: From here you can see the time and date, besides being able to modify it if necessary.
  • Page 12 Turn off: This establishes the time in which the player will turn itself off automatically if it is not being used. The time is stated in seconds; in the case of selecting “0” the player will not turn itself off if it is not being used.
  • Page 13 MB and the second one shows the percentage that is equivalent to occupied memory. Firmware: Displays the firmware version installed in the player and the date of installation. Update: To update the firmware, connect the device to the USB port of your computer and execute the “Upgrade Tool”...

  • Page 14: Drivers And Software

    DRIVERS AND SOFTWARE Drivers installation It is not necessary to install drivers for the player as long as Windows 98, Second Edition or superior, is used. In the event of being necessary, you will find the necessary controllers in the drivers folder of the CD.

  • Page 15: More Information, Technical Service And Support

    Guarantee and responsibility The manufacturer gives a guarantee for 4 months for the player and the accessories provided. The guarantee includes the damage and defects related to defective materials and imperfect preparation. The guarantee does not cover the damage that can occur for incorrect or inadequate use, or for repairs of changes in the apparatus made without the authorization of the manufacturer.
  • Page 16 www.leotec.com...
