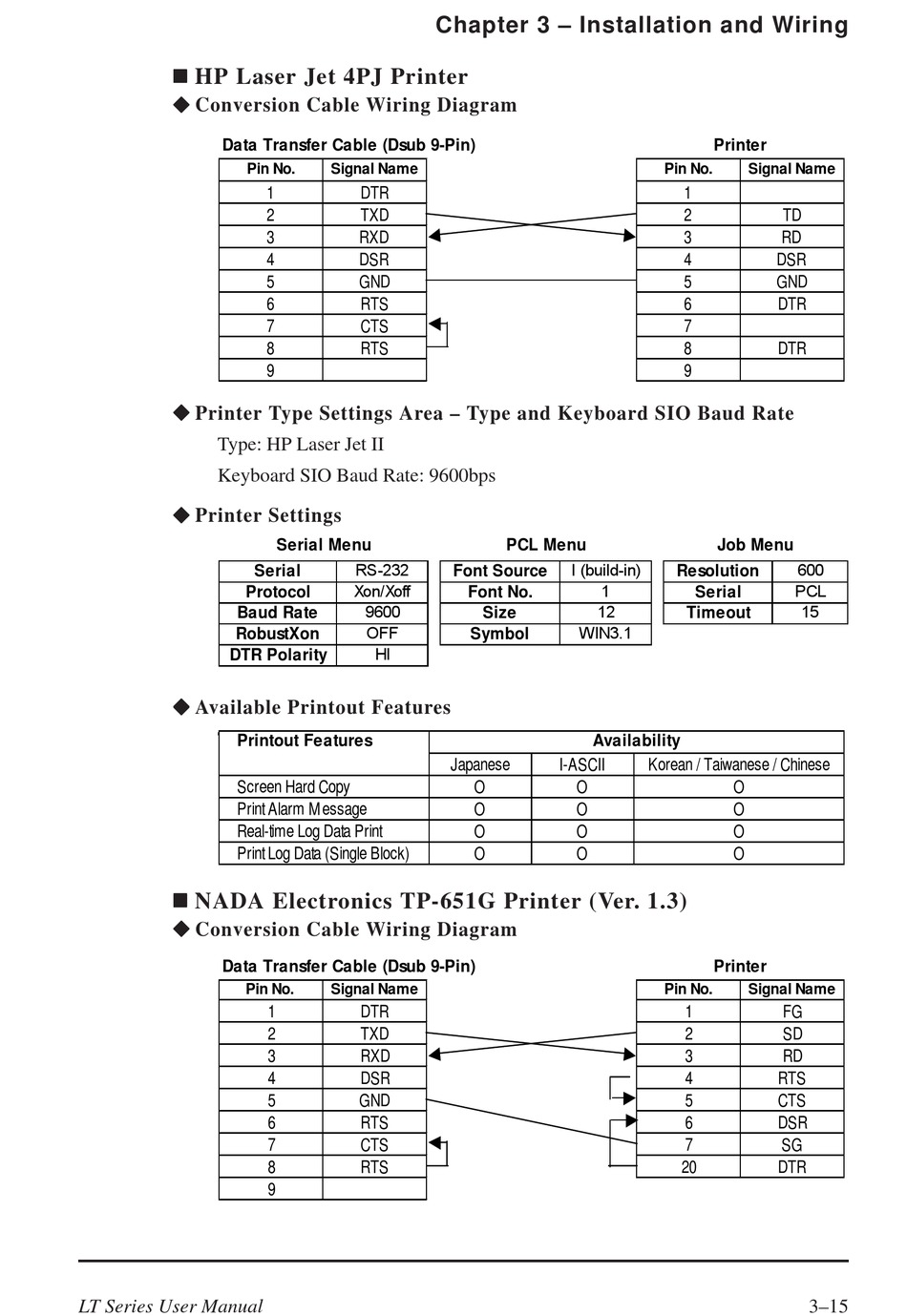

HP Laser Jet 4PJ Printer
Conversion Cable Wiring Diagram
Data Transfer Cable (Dsub 9-Pin)
Pin No.
Printer Type Settings Area – Type and Keyboard SIO Baud Rate
Type: HP Laser Jet II
Keyboard SIO Baud Rate: 9600bps
Printer Settings
Protocol
Baud Rate
RobustXon
DTR Polarity
Available Printout Features
The printout features available with the LT unit are as follows:
Printout Features
Screen Hard Copy
Print Alarm M essage
Real-time Log Data Print
Print Log Data (Single Block)
NADA Electronics TP-651G Printer (Ver. 1.3)
Conversion Cable Wiring Diagram
Data Transfer Cable (Dsub 9-Pin)
Pin No.
LT Series User Manual
Signal Name
1 DTR
2 TXD
3 RXD
4 DSR
5 GND
6 RTS
7 CTS
8 RTS
9
Serial Menu
RS-232
Serial
Xon/Xoff
9600
OFF
HI
Signal Name
1 DTR
2 TXD
3 RXD
4 DSR
5 GND
6 RTS
7 CTS
8 RTS
9
Chapter 3 – Installation and Wiring
PCL Menu
I (build-in)
Font Source
1
Font No.
12
Size
WIN3.1
Symbol
Availability
Japanese I-ASCII
O O
O O
O O
O O
Printer
Pin No. Signal Name
1
2 TD
3 RD
4 DSR
5 GND
6 DTR
7
8 DTR
9
Job Menu
600
Resolution
PCL
Serial
15
Timeout
Korean / Taiwanese / Chinese
O
O
O
O
Printer
Pin No. Signal Name
1 FG
2 SD
3 RD
4 RTS
5 CTS
6 DSR
7 SG
20 DTR
3–15
