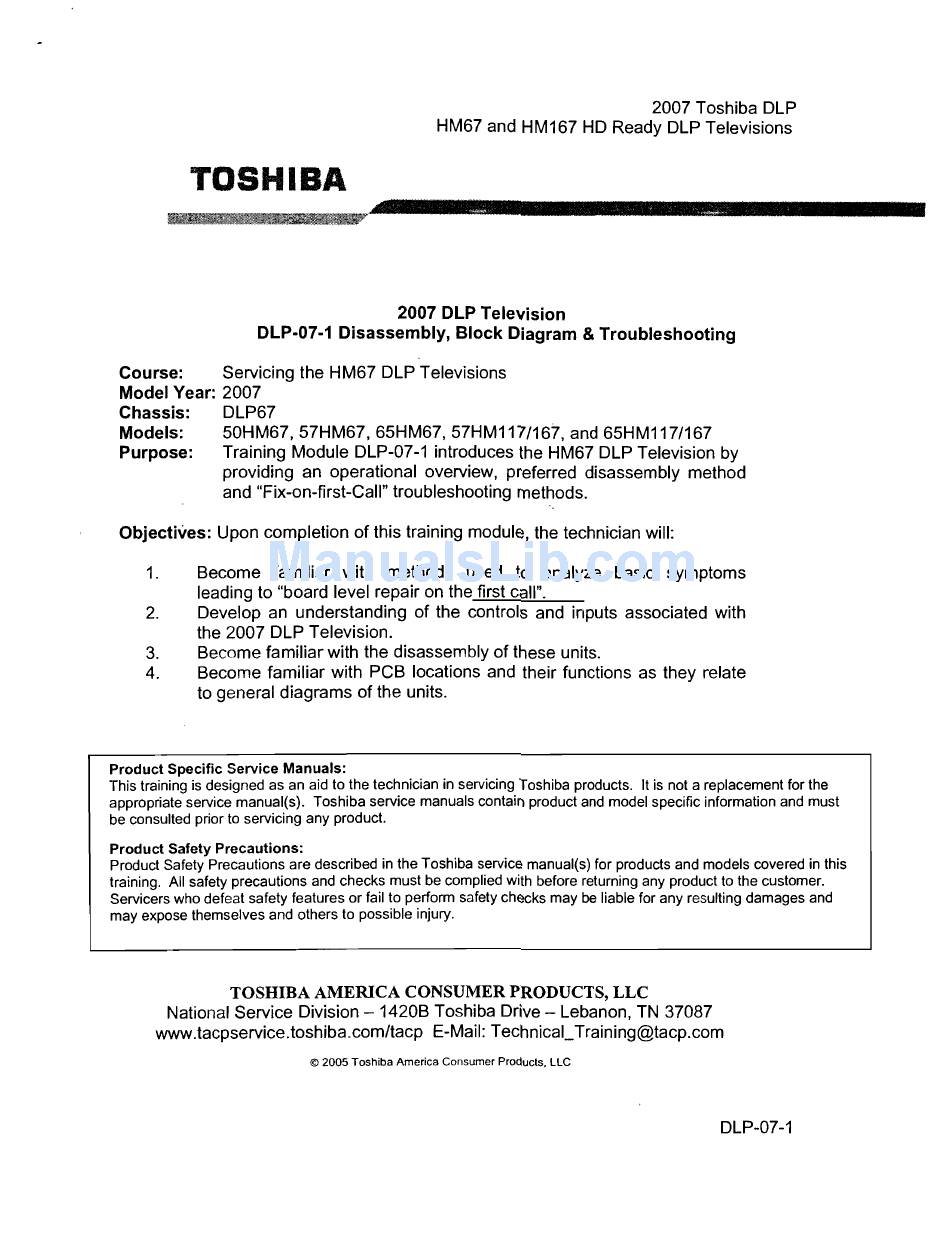

2007 Toshiba DLP
HM67 and HM167 HD Ready DLP Televisions
TOSHIBA
_ a t
1_'!r'11i~A • • • • • • • • • • • • • • • • • • • • • • • • • • •
2007 DLP Television
DLP·07·1 Disassembly, Block Diagram & Troubleshooting
Course:
Servicing the HM67 DLP Televisions
Model Year: 2007
Chassis:
DLP67
Models:
50HM67, 57HM67, 65HM67, 57HM117/167, and 65HM117/167
Purpose:
Training Module DLP-07-1 introduces the HM67 DLP Television by
providing an operational overview, preferred disassembly method
and "Fix-on-first-Call" troubleshooting methods.
Objectives: Upon completion of this training module, the technician will:
1.
Become familiar with methods used to analyze basic symptoms
leading to "board level repair on the first call".
2.
Develop an understanding of the controls and inputs associated with
the 2007 DLP Television.
3.
Become familiar with the disassembly of these units.
4.
Become familiar with PCB locations and their functions as they relate
to general diagrams of the units.
Product Specific Service Manuals:
This training is designed as an aid to the technician in servicing Toshiba products. It is not a replacement for the
appropriate service manual(s). Toshiba service manuals contain product and model specific information and must
be consulted prior to servicing any product.
Product Safety Precautions:
Product Safety Precautions are described in the Toshiba service manual(s) for products and models covered in this
training. All safety precautions and checks must be complied with before returning any product to the customer.
Servicers who defeat safety features or fail to perform safety checks may be liable for any resulting damages and
may expose themselves and others to possible injury.
TOSHIBA AMERICA CONSUMER PRODUCTS, LLC
National Service Division - 1420B Toshiba Drive - Lebanon, TN 37087
www.tacpservice.toshiba.com/tacp E-Mail: Technical_Training@tacp.com
© 2005 Toshiba America Consumer Products, LLC
