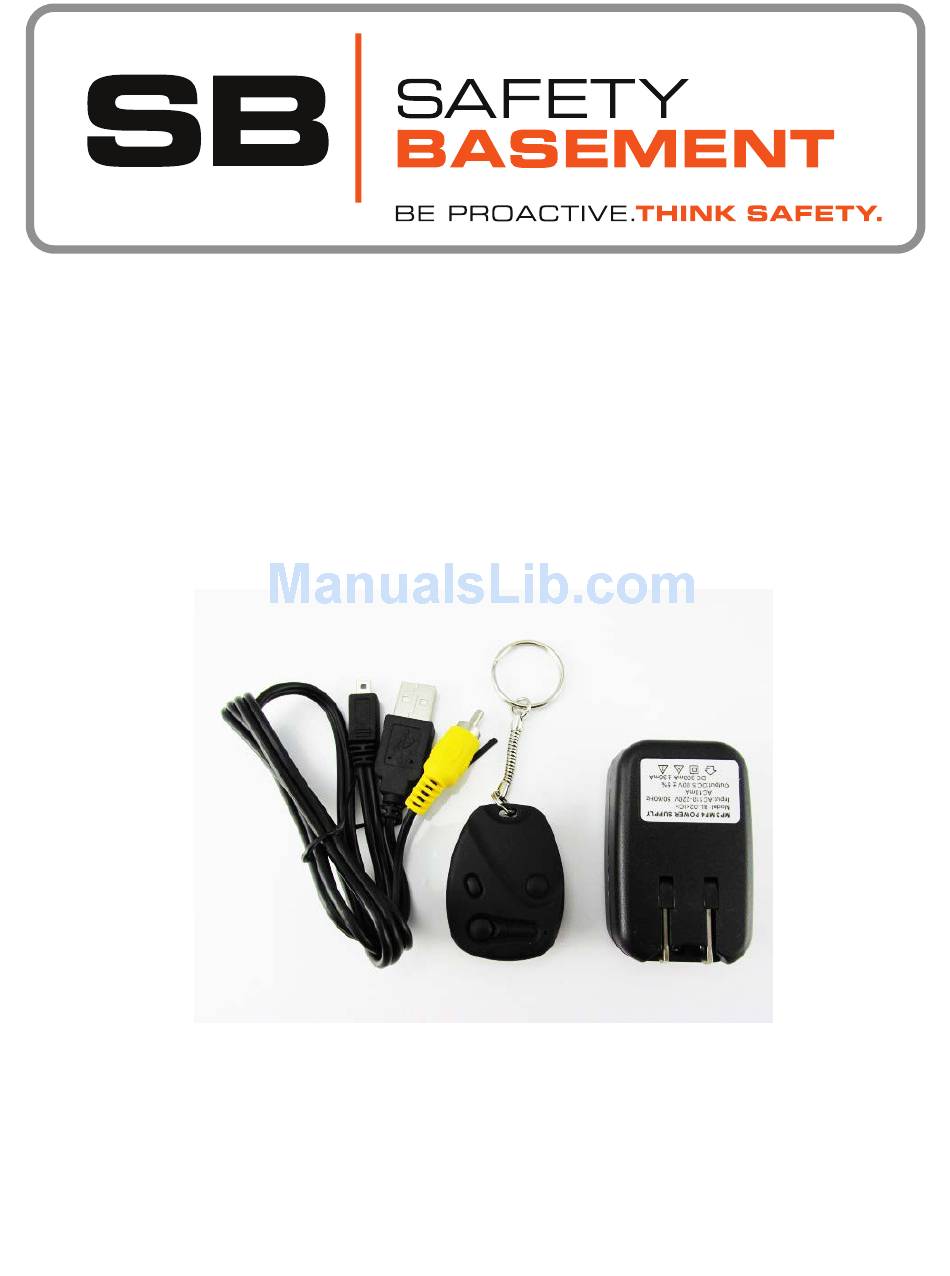

INSTRUCTION MANUAL
HD 720P Keychain Camera
SB-KR1031
Revised: October 17th, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com for the latest
available manual.
Advertisement
Table of Contents
Summary of Contents for SB HD 720P
-
Page 1: Instruction Manual
INSTRUCTION MANUAL HD 720P Keychain Camera SB-KR1031 Revised: October 17th, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible. Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com for the latest... -
Page 2: Product Reference
PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 PRODUCT REFERENCE ON/OFF SD card slot USB Port Picture/Video Indicator light button Lens Microphone VITAL INFORMATION: Charging time: About 4-6 hours for a full charge. Charge overnight the first time you get it. BATTERY LIFE: About 90 minutes Page 2 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 3 PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 Vital Product Information The HD 720P Keychain recorder features three selectable video resolutions: 1. 1280*720P HD resolution (Y3) 2. 720*480 (Y2) and 3. 640*480 (Y1) - Picture quality: 4032 * 3024 pixels - Audio: 128kbps The lower the resolution the more recording space you will have.
-
Page 4: Inserting Sd Card
PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 INSERTING SD CARD Please note card orientation when inserting into device. Please do not FORCE card in. it will CLICK in and CLICK out. You will notice a spring-like feel when pushing in or out. - Page 5 PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 BEFORE YOU START - CHARGING & TIME You will first need to charge your DVR and set time. We highly recommend that you set the time stamp after or during charging, so that your recordings are accurately timed from the get go.
-
Page 6: Setting Time Stamp
PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 SETTING TIME STAMP there are two ways to set time stamp. You can create a new file as shown below or you can copy the time file from our website (from same place you got this manual, and save it then open it to change the numbers inside). - Page 7 PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 SETTING TIME STAMP continued 4. Open the text document and type in the current time and date. THE FORMAT MUST BE EXACT! Type in the following format: 2013.12.05 10:25:00 Y3 2013(year)12(month)05(day) (SPACE)10(hour)25(minutes)00(second) (SPACE)Y3(Y3 is for 1280x720P resolution.
-
Page 8: Recording Video
PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 RECORDING VIDEO 1. Press and hold ON/OFF button for about 3 seconds and release. Red light will come on then settle on a STEADY RED. You are now in STANDBY MODE. 2. Press and hold video button for about 3 seconds and release. Blue light will blink 3 times then go off. -
Page 9: Recording Audio Only
PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 RECORDING AUDIO ONLY This unit can also record audio only. Follow instructions below for audio. 1. Turn unit on 2. Quickly press and release ON/OFF button. Indicator light will blink 3 times and turn off. -
Page 10: Taking Photos
PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 TAKING PHOTOS 1. Turn unit on to standby position (steady red) 2. Press and release PICTURE button once. Indicator light will go off then return to steady red. -
Page 11: Retrieving Files
PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 RETRIEVING FILES You can retrieve your files by either using the included USB cable to connect device to com- puter, or by removing SD card and connecting to card reader. Sometimes if one way fails try the other. - Page 12 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 13: Device Specifications
PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 DEVICE SPECIFICATIONS Audio Formats Audio Encoding 128 Kbps WAV Bit Rate Mode Constant WAV Bit Rate 128 Kbps WAV Sampling Rate 16 Hz Video Format .AVI... - Page 14 PRODUCT MANUAL 16GB Pathfinder IR Watch : SB-WR9800 PRODUCT MANUAL Keychain DVR, 72P. SB-KR1031 DEVICE SPECIFICATIONS Memory Built In Memory Expansion 2GB - 64GB Battery Type Internal Rechargeable for camera battery is non repleaceable Charger via USB port or included adapter Please check our site for the latest available manual for this product.
