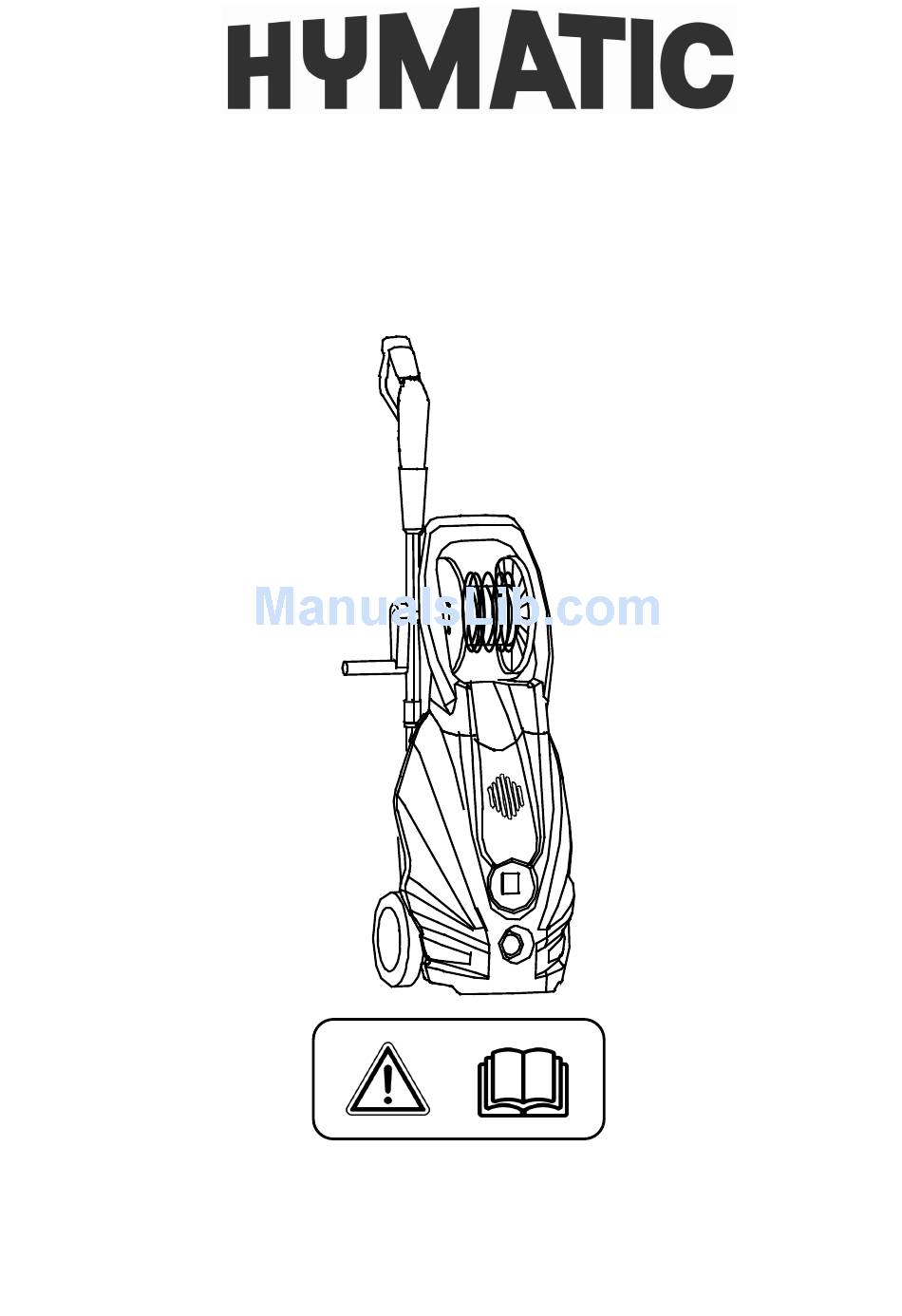

- Page 1 HYM-VA-70 High Pressure Cleaner Operator Manual BEFORE OPERATING THIS APPLIANCE PLEASE READ THESE INSTRUCTIONS CAREFULLY...
-
Page 2: Safety Regulations
OVERVIEW Item Description Water inlet On/off switch High pressure washer Hose Reel with Trigger Gun Hose Hose Reel Handle gunstock Water outlet (backside) mobile adapter bracket with wheel Adjustable Spray Wand APPLICATION THE PORTABLE PRESSURE WASHING MACHINE is a highly specialized multifunctional machine with exceptionally reliable safety assurance, which may be used to wash and clean cars, bikes and other outdoor equipment or garden patios, green houses etc. - Page 3 WARNING: To reduce the risk of injury, close supervision is necessary when a product is used near children. High-pressure cleaner shall not be used by children or untrained person. WARNING: Know how to stop the product and bleed pressures quickly. Be thoroughly familiar with the controls.
-
Page 4: Operating Instructions
without depressing the pressure wand trigger could cause heat damage to the motor and pumps, Please do not leave the machine running unattended or unused for more than 3 minutes. WARNING: When the machine is running, please maintain a constant water supply. Without water circulation will damage the sealing rings of the machine. -
Page 5: Adjustable Spray Nozzle
The motor of this pressure washer will NOT run. It will only operate when the trigger is squeezed. - Connect the outlet hose to the washer and connect the spray gun to the outlet hose. - Connect nozzle and nozzle extension. - Check gauze filter is clear of any blockage. -
Page 6: Long Term Storage
LONG TERM STORAGE The machine should be stored in a frost-free environment. After long-term storage without operation, it is possible to form scales inside the machine making it hard to start again. In such conditions it is recommended to turn off and disconnect the power supply and rotate the motor by hand several times so as to avoid excessive current draw on the motor and the power supply. -
Page 7: Major Technical Data
MAJOR TECHNICAL DATA ITEM HYM-VA-70 Working pressure 7MPa (70bar) Max. pressure 14MPa(140bar) Working flow rate 6l/min Max. pressure water supply 0.4MPa(4bar) Motor Capacity 1.20kw Power Supply Voltage 230V~50Hz 50 ℃ Max Water Temperature Weight 15kgs Dimensions 84x 35 x 33 cm... -
Page 8: Troubleshooting
TROUBLE SHOOTING FAULT PROBABLE CAUSE REPAIR When Plug is not well connected or electric Check plug, socket switched on socket is faulty the machine will not start The main voltage is insufficient, Check that the main voltage is working lower than minimum requirement adequate. - Page 9 INSTALLATION, ELECTRICAL AND WATER CONNECTIONS 1. PRESSURE CLEANER 2. WATER SUPPLY HOSE(not include) 3. WATER CONNECTION 4. WATER INLET 5. HIGH PRESSURE TUBE 6. HIGH-PRESSURE, WATER OUTLET 7. SPRAY GUN 8. POWER SUPPLY ： ： ： ： The company reserves the right to modify its Note product specifications without given any notice;...
- Page 10 Meaning of crossed –out wheeled dustbin: Do not dispose of electrical appliances as unsorted municipal waste, use separate collection facilities. Contact you local government for information regarding the collection systems available. If electrical appliances are disposed of in landfills or dumps, hazardous substances can leak into the groundwater and get into the food chain, damaging your health and well-being.
