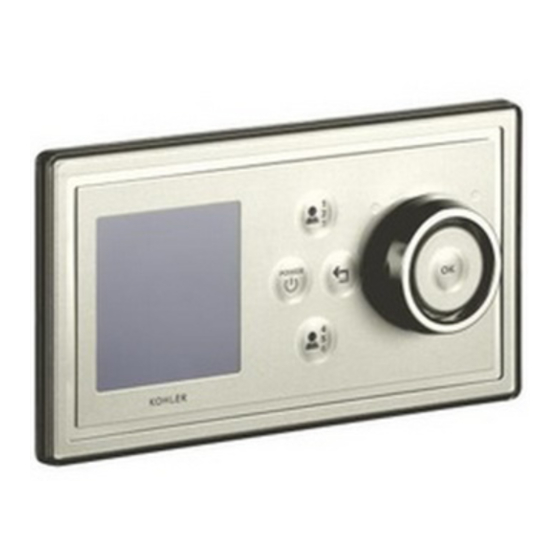

Page 1: User Guide

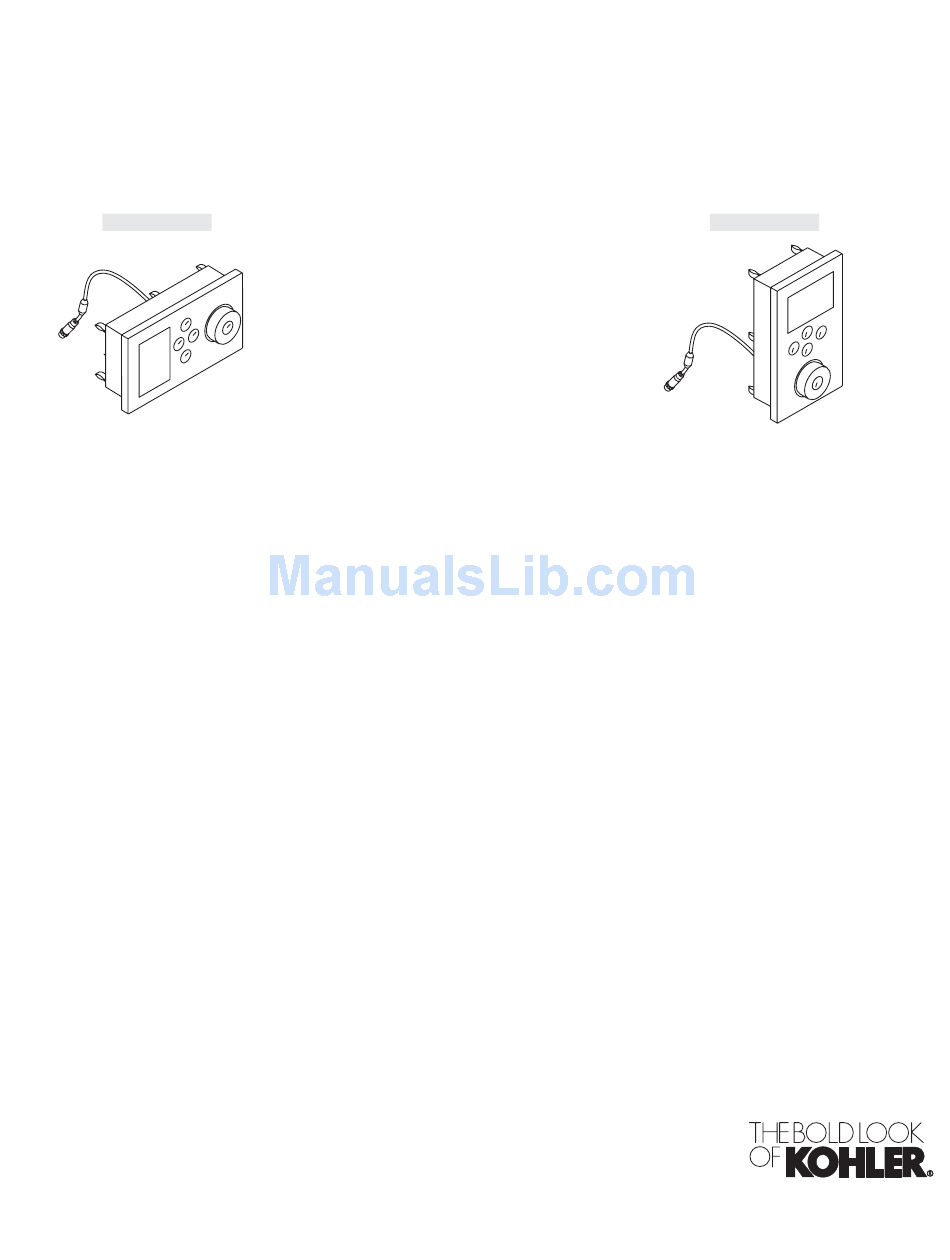

User Guide Digital Interface K-657, K-694 K-658, K-695 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) 1079815-5-A... -
Page 2: Table Of Contents
..............63 1079815-5-A Kohler Co. - Page 3 Adding Internet Stations ............110 Kohler Co.
-
Page 4: Interface Anatomy
The above example path directs you to press the [Icon], then indicates that you would scroll to and then select “menu item 1” by pressing the [OK Icon], and then scroll to and select “menu item 2.” 1079815-5-A Kohler Co. -
Page 5: Operating Without The Dial Ring
Icon] will allow you to scroll down. Press the [OK Icon] to select the highlighted option. To deactivate the alternate scroll mode, press and hold the [Back Icon] for 8 seconds or replace and turn the dial ring. Kohler Co. 1079815-5-A... -
Page 6: Using Your Shower
(chroma only) and brightness (This menu item is only visible if this component is connected.) Refer to the “Using Lights” section. • Music – allows for the selection of music from a music server, internet radio, or other audio device connected via the “Line In” jack. Refer to the “Using Music” section. 1079815-5-A Kohler Co. - Page 7 • Main Menu – returns to the main menu screens and turns OFF your shower From the main menu, use the dial to scroll to the ″Shower″ screen. Press the [OK Icon] to enter the shower menu. Kohler Co. 1079815-5-A...
-
Page 8: Turn Water Outlets On Or Off
Scroll to a water outlet such as “Showerhead.” Press the [OK Icon] to turn the outlet ON or OFF. All checked items will be ON. Once you have made your selections, press the [Back Icon] twice to return to the temperature screen. 1079815-5-A Kohler Co. -
Page 9: Choose Massage Function
Press the [Back Icon] twice to return to the temperature screen. Once a massage mode is selected, the body sprays/watertiles will automatically turn on and the water outlets will begin to cycle ON and OFF in your chosen massage pattern. Kohler Co. 1079815-5-A... -
Page 10: Adjust Cycling Speed
Use the dial to scroll to and highlight either “Slow” or “Fast.” Press the [OK Icon] to set the cycling speed. Your selection will be “checked.” Press the [Back Icon] twice to return to the temperature screen. 1079815-5-A Kohler Co. -
Page 11: Temperature Therapy Options
Using the dial, scroll to “°F Therapy.” Press the [OK Icon] to select. Using the dial, scroll to either “Begin Hot” for heat therapy, or “Begin Cold” for cold therapy. Press the [OK Icon] to select and begin your selected temperature therapy. Kohler Co. 1079815-5-A... - Page 12 Temperature Therapy Options (cont.) The water temperature will continue to cycle until this function is turned OFF. To customize the temperatures, refer to the “Changing Temperature Therapy Temperatures” section. 1079815-5-A Kohler Co.
-
Page 13: Changing Temperature Therapy Temperatures
Press the [OK Icon] to set this first temperature and advance to the next temperature. Repeat for each temperature setting. NOTE: When adjusting the temperatures, the second and fourth temperature settings will always be the same; if you adjust one temperature the other will automatically update to the new setting. Kohler Co. 1079815-5-A... -
Page 14: Using Lights
• Main Menu – returns to the main menu screens and turns OFF your shower (refer to the “Main Menu” section) From the main menu, use the dial to scroll to the “Lights” screen. Press the [OK Icon] to enter the Lights options menu. 1079815-5-A Kohler Co. -
Page 15: Lights On/Off
From the main menu, use the dial to scroll to the “Lights” screen. Press the [OK Icon] to enter the Lights menu. Using the dial, scroll to “Lights ON.” Press the [OK Icon] to select and turn ON the lights. Kohler Co. 1079815-5-A... -
Page 16: Incandescent Brightness
From the main menu, use the dial to scroll to the “Lights” screen. Press the [OK Icon] to select. Scroll to “Brightness.” Press the [OK Icon] to select. Once the brightness is set, press the [Back Icon] to return to the lights options menu. 1079815-5-A Kohler Co. -
Page 17: Chroma Brightness
Scroll to “Color Brightness.” Press the [OK Icon] to select. Turn the dial counterclockwise to dim the lights and clockwise to brighten. Once the brightness is set, press the [Back Icon] to return to the lights options menu. Kohler Co. 1079815-5-A... -
Page 18: Choose Color
Using the dial, scroll to your desired color. Press the [OK Icon] to select; the light will change to your selected color. Once the color is set as desired, press the [Back Icon] to return to the lights options menu. 1079815-5-A Kohler Co. -
Page 19: Choose Custom Color
Use the dial to adjust the color up or down by 5° increments. Once the color is set as desired, press the [Back Icon] to set the custom color under the “Color Dial” selection in the “Colors” menu and to return to the Light Options screen. Kohler Co. 1079815-5-A... -
Page 20: Lighting Effects
Press the [OK Icon] to select and begin the chroma lighting effect. Press the [Back Icon] twice to return to the temperature screen. Save Lights Settings Path: Lights > Save As Refer to the “Save As” section. 1079815-5-A Kohler Co. -
Page 21: Using Music
• Main Menu – returns to the main menu screens and turns OFF your shower (refer to the “Main Menu” section) From the main menu, use the dial to scroll to the “Music” screen. Press the [OK Icon] to enter the Music options menu. Kohler Co. 1079815-5-A... -
Page 22: Your Music Library
Press and hold the [OK Icon] for 3 seconds to switch the highlight to the skip icon. Use the dial to skip forward or backward in your playlist. After 10 seconds the dial will revert back to controlling volume. 1079815-5-A Kohler Co. -
Page 23: Internet Radio
Press the [OK Icon] to select. Using the dial, scroll through the available stations. Press the [OK Icon] to begin streaming the radio station. The screen will now display what is “Now Playing.” Use the dial to adjust the volume. Kohler Co. 1079815-5-A... -
Page 24: Additional Audio Devices
Press the [OK Icon] to enter the Music menu. From the music options screen, scroll to “Line In.” Press the [OK Icon] to select. Press play on your audio device. The screen will now display “Line-In.” Use the dial to adjust the volume. 1079815-5-A Kohler Co. -
Page 25: Using Steam
Using Steam Your properly equipped Kohler steam generator can also be controlled via your interface. Your steam system is set to allow for 600 minutes of usage before a cleaning cycle is required. Refer to the “Power Clean” section for more information. -
Page 26: Steam On
User presets allow you to quickly access your saved personal settings for shower, lighting, music and/or steam. User presets can be saved at any time while showering, or set up using the settings menu prior to showering. 1079815-5-A Kohler Co. - Page 27 [OK Icon] to select. If you need help customizing your settings, refer to the Shower, Lights, Music, and Steam sections. For saving user presets, refer to the ″Save As″ section. Kohler Co. 1079815-5-A...
-
Page 28: Save As
Scroll to a user number. The current active user will be denoted by a heart symbol. Press the [OK Icon] to save your settings to the highlighted user. Once saved, a confirmation screen will confirm your saved user profile. 1079815-5-A Kohler Co. -
Page 29: Main Menu
Using the dial, scroll to “Main Menu” from the shower, lights, music, or steam options screens (see paths above). Press the [OK Icon] to select and return to the main menu and turn OFF your shower. Lights, music, and steam, will remain ON if currently in use. Kohler Co. 1079815-5-A... -
Page 30: Turn Off Individual Devices
If the “Ask” Function is Activated – Turn OFF All Devices: Press the [Power Icon]. A pop-up screen will appear showing all features that are currently ON. Press the [Power Icon] again to turn OFF all devices. 1079815-5-A Kohler Co. -
Page 31: Configurations
LIMIT the preprogrammed massage functions. NOTE: “Random” is a massage option for all configurations. This option will cycle through all the massage options available for your configuration, running each pattern for 30 seconds. Kohler Co. 1079815-5-A... -
Page 32: Frontage
Maximum total gpm (lpm) with a flow rate of 2.5 gpm (9.5 lpm) per outlet = 17.5 gpm (66.2 lpm) Available Massage Options • Single • Dual 1 • Dual 2 • Dual 3 • Wave • Random 1079815-5-A Kohler Co. -
Page 33: Envelop
Maximum total gpm (lpm) with a flow rate of 2.5 gpm (9.5 lpm) per outlet = 15 gpm (56.8 lpm) Available Massage Options • Single • Dual 1 • Dual 2 • Dual 3 • Wave • Random Kohler Co. 1079815-5-A... -
Page 34: Unwind
Total gpm (lpm) with a flow rate of 2.2 gpm (8.3 lpm) per outlet = 13.2 gpm (50 lpm) Maximum total gpm (lpm) with a flow rate of 2.5 gpm (9.5 lpm) per outlet = 15 gpm (56.8 lpm) Available Massage Options • Single • Dual • Wave • Random 1079815-5-A Kohler Co. -
Page 35: Linear
Total gpm (lpm) with a flow rate of 2.2 gpm (8.3 lpm) per outlet = 15.4 gpm (58.3 lpm) Maximum total gpm (lpm) with a flow rate of 2.5 gpm (9.5 lpm) per outlet = 17.5 gpm (66.2 lpm) Available Massage Options • Single • Dual • Wave • Random Kohler Co. 1079815-5-A... -
Page 36: Downpour
Total gpm (lpm) with a flow rate of 2.2 gpm (8.3 lpm) per outlet = 15.4 gpm (58.3 lpm) Maximum total gpm (lpm) with a flow rate of 2.5 gpm (9.5 lpm) per outlet = 17.5 gpm (66.2 lpm) Available Massage Options • Single • Dual • Wave • Random 1079815-5-A Kohler Co. -
Page 37: Surround
Total gpm (lpm) with a flow rate of 2.2 gpm (8.3 lpm) per outlet = 13.2 gpm (50 lpm) Maximum total gpm (lpm) with a flow rate of 2.5 gpm (9.5 lpm) per outlet = 15 gpm (56.8 lpm) Available Massage Options • Single • Dual • Wave • Random Kohler Co. 1079815-5-A... -
Page 38: Custom
2 fittings, such as 2 Body Sprays or 2 WaterTiles will not cycle. Also any instance where watertiles and body sprays are used in the same configuration, only the body sprays will cycle. Available Massage Options • Single • Wave • Random 1079815-5-A Kohler Co. -
Page 39: The Settings Menus
• Interface • Users • Shower • Lights • Music • Steam • System From the main menu, use the dial to scroll to the “Settings” screen. Press the [OK Icon] to enter the settings menu. Kohler Co. 1079815-5-A... -
Page 40: Interface Settings
• Power OFF – This function allows you to set the functionality of the [Power Icon] To access the Interface Settings options, from the Main Menu scroll to “Settings.” Press the [OK Icon] to select. Scroll to and select “Interface.” 1079815-5-A Kohler Co. -
Page 41: Settings Lock
To temporarily deactivate the settings lock function you need to input the 4 digit code 1012. Use the dial to set the first number. Press the [OK Icon] to set that number and proceed to the next number. Repeat for each additional number until the code is entered. Kohler Co. 1079815-5-A... - Page 42 To deactivate the settings lock function you need to input the 4 digit code 1012. Using the dial, scroll to and select “Interface.” Press the [OK Icon] to select. Scroll to “Settings Lock.” Press the [OK Icon] to select. Reenter the four-digit code. 1079815-5-A Kohler Co.
-
Page 43: Clean
Press the [OK Icon] to select. Scroll to “Clean.” Press the [OK Icon] to select and lock the “keys.” Press and hold the [OK Icon] for 10 seconds to unlock. After five minutes the “keys” will automatically unlock. Kohler Co. 1079815-5-A... -
Page 44: Time And Date
Path: Settings > Time and Date > ON > 12-hour time/24-hour time If you selected to have the display ON, continue to select either 12- or 24-hour time. Use the dial to choose “12-hour time” or “24-hour time.” Press the [OK Icon] to select. Set the Time 1079815-5-A Kohler Co. - Page 45 Press the [OK Icon] to set the month and proceed to the next number. Repeat to set the day and year. Once the year is set, press the [OK Icon] to set and return to the Interface Settings screen. Kohler Co. 1079815-5-A...
-
Page 46: Contrast
Scroll to “Contrast.” Press the [OK Icon] to select. Use the dial to adjust the screen contrast to the desired level. Press the [Back Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. 1079815-5-A Kohler Co. -
Page 47: Brightness
Scroll to “Brightness.” Press the [OK Icon] to select. Use the dial to adjust the screen brightness to the desired level. Press the [Back Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. Kohler Co. 1079815-5-A... -
Page 48: Invert Screen
Press the [OK Icon] to select. Scroll to “Invert Screen.” Press the [OK Icon] to select. Scroll to and highlight “ON” or “OFF.” Press the [OK Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. 1079815-5-A Kohler Co. -
Page 49: Beep
Press the [OK Icon] to select. Scroll to “Beep.” Press the [OK Icon] to select. Use the dial to scroll to “OFF,” “Low,” or “High.” Press the [OK Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. Kohler Co. 1079815-5-A... -
Page 50: Auto Dim
Scroll to “Auto Dim.” Press the [OK Icon] to select. Scroll to “ON” to enable or “OFF” to disable this function. Press the [OK Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. 1079815-5-A Kohler Co. -
Page 51: Auto Return
Scroll to “Auto Return.” Press the [OK Icon] to select. Scroll to “ON” to enable or “OFF” to disable this function. Press the [OK Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. Kohler Co. 1079815-5-A... -
Page 52: Auto Lock
Scroll to “Auto Lock.” Press the [OK Icon] to select. Scroll to “ON” to enable or “OFF” to disable this function. Press the [OK Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. 1079815-5-A Kohler Co. -
Page 53: Select Language
Scroll to “Languages.” Press the [OK Icon] to select. Using the dial, scroll through and highlight a language. Press the [OK Icon] to select the highlighted language. Press the [Back Icon] to return to the Interface Settings menu. Kohler Co. 1079815-5-A... -
Page 54: Select Temperature Unit
Scroll to “Units.” Press the [OK Icon] to select. Use the dial to scroll to either Fahrenheit or Celsius. Press the [OK Icon] to select the temperature unit. Press the [Back Icon] to return to the Interface Settings menu. 1079815-5-A Kohler Co. -
Page 55: Power Off
To activate this function, from the Main Menu scroll to “Settings.” Press the [OK Icon] to select. Using the dial, scroll to and select “Interface.” Press the [OK Icon] to select. Scroll to “Power OFF.” Press the [OK Icon] to select. Kohler Co. 1079815-5-A... - Page 56 Power OFF (cont.) Scroll to “Ask.” Press the [OK Icon] to set. Press the [Back Icon] to return to the Interface Settings menu. 1079815-5-A Kohler Co.
-
Page 57: User Settings
Steam – sets up user preferences for systems that have steam and do not include a digital thermostatic valve NOTE: You do not have to set all the settings at one time. You can scroll to “Save As...” at any time to save your current settings. Refer to the “Save as a User Preset” section. Kohler Co. 1079815-5-A... -
Page 58: Shower Settings
Shower Settings Path: Settings > Shower > This menu is only available when a Kohler digital thermostatic mixing valve is connected to the system. The shower settings menu consists of: • Default °F – sets default temperature at start-up • Maximum °F – sets maximum allowable temperature •... -
Page 59: Set The Default Temperature
Press the [OK Icon] to select. Scroll to “Default °F” from the shower settings menu. Press the [OK Icon] to select. Use the dial to adjust the default temperature. Press the [Back Icon] to set and return to the Shower Settings Screen. Kohler Co. 1079815-5-A... -
Page 60: Set The Maximum Temperature
Scroll to “Maximum °F” from the shower settings menu. Press the [OK Icon] to select. Use the dial to adjust the maximum water temperature limit. Press the [Back Icon] to set and return to the Shower Settings screen. 1079815-5-A Kohler Co. -
Page 61: Activate The Massage Functions
Press the [OK Icon] to select. Scroll to “ON” and press the [OK Icon] to select. Your selection will be “checked” and the massage functions will be activated. Once activated/deactivated, press the [Back Icon] until you return to the settings menu. Kohler Co. 1079815-5-A... -
Page 62: Activate Temperature Therapy
Press the [OK Icon] to select. Scroll to “ON.” Press the [OK Icon] to select. Your selection will be “checked” and the temperature therapy functions will be activated. Once activated/deactivated, press the [Back Icon] until you return to the settings menu. 1079815-5-A Kohler Co. -
Page 63: Auto Purge
Scroll to either 07 seconds, 15 seconds, 30 seconds, 45 seconds, 60 seconds or “OFF.” Press the [OK Icon] to select. Your selection will be “checked” and the auto purge function will be activated. Press the [Back Icon] to return to the Shower Settings screen. Kohler Co. 1079815-5-A... -
Page 64: Change Water Outlet List Order
Use the dial to move the water outlet either up or down in the list order. Press the [OK Icon] to drop that water outlet in the new position. Repeat for other water outlets as desired. Press the [Back Icon] to return to the Shower Settings screen. 1079815-5-A Kohler Co. -
Page 65: Add/Remove Water Outlets From Cycling Pattern
Press the [OK Icon] to check the water outlets that you do not want to cycle. When a checked water outlet is highlighted, pressing the [OK Icon] will uncheck the water outlet and enable that water outlet to cycle. Press the [Back Icon] to return to the Shower Settings screen. Kohler Co. 1079815-5-A... -
Page 66: Cycling Speed
Scroll to “Speed” from the shower settings menu. Press the [OK Icon] to select. Use the dial to choose either “Slow” or “Fast.” Press the [OK Icon] to set the cycling speed. Press the [Back Icon] to return to the Shower Settings screen. 1079815-5-A Kohler Co. -
Page 67: Cold Water Off
Press the [OK Icon] to select. Scroll to either 02 minutes, 05 minutes, 10 minutes, or 20 minutes. Press the [OK Icon] to select. Your selection will be “checked.” Press the [Back Icon] to return to the Shower Settings screen. Kohler Co. 1079815-5-A... -
Page 68: Select Primary Water Outlet - Custom Only
Scroll to “Primary” from the shower settings menu. Press the [OK Icon] to select. Scroll to the water outlet that you wish to designate as the primary water outlet. Press the [OK Icon] to set the primary water outlet. 1079815-5-A Kohler Co. -
Page 69: Light Settings
To access the light settings options, from the Main Menu scroll to “Settings.” Press the [OK Icon] to select. Scroll to and select “Lights.” To return to the Main Menu press the [Back Icon]. Kohler Co. 1079815-5-A... -
Page 70: Activate Light
Highlight “Activate Light.” Press the [OK Icon] to select. Scroll to and select “ON.” Your selection will be “checked.” The incandescent lighting menu will now be available. Press the [Back Icon] to return to the Light Settings screen. 1079815-5-A Kohler Co. -
Page 71: Light Fade
Using the dial, scroll to and highlight “Light Fade.” Press the [OK Icon] to select. Scroll to and select “OFF,” “Slow,” or“ Fast.” Your selection will be “checked.” Press the [Back Icon] to return to the Light Settings screen. Kohler Co. 1079815-5-A... -
Page 72: Incandescent Brightness
Using the dial, scroll to “Brightness.” Press the [OK Icon] to select. Turn the dial counterclockwise to dim the lights and clockwise to brighten. Once the brightness is set press the [Back Icon] to return to the Light Settings screen. 1079815-5-A Kohler Co. -
Page 73: Color Brightness
Using the dial, scroll to “Color Brightness.” Press the [OK Icon] to select. Turn the dial counterclockwise to dim the lights and clockwise to brighten. Once the brightness is set as desired, press the [Back Icon] to return to the Light Settings screen. Kohler Co. 1079815-5-A... -
Page 74: White Light
Press the [OK Icon] to select. Scroll to and highlight “Cool,” “Neutral,” or “Warm.” Press the [OK Icon] to make your selection. Your selection will be “checked.” Press the [Back Icon] to return to the Light Settings screen. 1079815-5-A Kohler Co. -
Page 75: Chroma Lighting Effect Speed
Press the [OK Icon] to select. Scroll to and highlight “Slow,” “Medium,” or “Fast.” Press the [OK Icon] to make your selection. Your selection will be “checked.” Press the [Back Icon] to return to the Light Settings screen. Kohler Co. 1079815-5-A... -
Page 76: Music Settings
• Default Dial – sets whether the dial will control volume adjustment or song selection To access the Music Settings options, from the Main Menu scroll to “Settings” and press the [OK Icon] to select. Scroll to and select “Music.” To return to the Main Menu press the [Back Icon]. 1079815-5-A Kohler Co. -
Page 77: Volume Preset
Using the dial, scroll to and select “Music.” Press the [OK Icon] to select. Highlight “Volume Preset.” Press the [OK Icon] to select. Use the dial to adjust the volume level. Press the [Back Icon] to set and return to the Music Settings screen. Kohler Co. 1079815-5-A... -
Page 78: Treble
Press the [OK Icon] to select. Use the dial to scroll to “Treble.” Press the [OK Icon] to select. Use the dial to adjust the treble level. Press the [Back Icon] to set and return to the Music Settings screen. 1079815-5-A Kohler Co. -
Page 79: Bass
Press the [OK Icon] to select. Scroll to “Bass” and press the [OK Icon] to select. Use the dial to adjust the bass level. Press the [Back Icon] to set and return to the Music Settings screen. Kohler Co. 1079815-5-A... -
Page 80: Balance
Use the dial to scroll to “Balance.” Press the [OK Icon] to select. Use the dial to adjust the left to right speaker balance. Press the [Back Icon] to set and return to the Music Settings screen. 1079815-5-A Kohler Co. -
Page 81: Shuffle
Use the dial to scroll to “Shuffle.” Press the [OK Icon] to select. Scroll to and select “ON” to activate shuffle, or “OFF” to disable. Your selection will be “checked.” Press the [Back Icon] to set and return to the Music Settings screen. Kohler Co. 1079815-5-A... -
Page 82: Repeat
Use the dial to scroll to “Repeat.” Press the [OK Icon] to select. Scroll to and select “OFF,” “Repeat One,” or “Repeat All.” Your selection will be “checked.” Press the [Back Icon] to set and return to the Music Settings screen. 1079815-5-A Kohler Co. -
Page 83: Default Dial
Use the dial to scroll to “Default Dial.” Press the [OK Icon] to select. Scroll to and select “Adjust Volume” or “Adjust Song.” Your selection will be “checked.” Press the [Back Icon] to set and return to the Music Settings screen. Kohler Co. 1079815-5-A... -
Page 84: Steam Settings
• Power Clean – activates an automatic cleaning function for proper, safe maintenance of your steam generator To access the Steam Settings options, from the Main Menu scroll to “Settings” and press the [OK Icon] to select. Scroll to and select “Steam.” To return to the Main Menu press the [Back Icon]. 1079815-5-A Kohler Co. -
Page 85: Steam Temperature
Press the [OK Icon] to select. Highlight “Temperature” and press the [OK Icon] to select. Use the dial to adjust the temperature as desired Press the [Back Icon] to set and return to the Steam Settings screen. Kohler Co. 1079815-5-A... -
Page 86: Steam Timer
Press the [OK Icon] to select. Use the dial to set the duration the steam will run at start-up. The maximum allowable time is 20 minutes. Press the [Back Icon] to set and return to the Steam Settings screen. 1079815-5-A Kohler Co. -
Page 87: Steam Power Clean
Press the [OK Icon] to select. Using the dial, scroll to and select “Steam.” Press the [OK Icon] to select. Use the dial to scroll to “Start Power Clean.” Press the [OK Icon] to begin the cleaning cycle. Exit the shower immediately. Kohler Co. 1079815-5-A... -
Page 88: System Settings
• Reset – restores original interface settings or clears all user settings To access the System Settings options, from the Main Menu scroll to “Settings.” Press the [OK Icon] to select. Scroll to and select “System.” To return to the Main Menu press the [Back Icon]. 1079815-5-A Kohler Co. -
Page 89: About
Press the [OK Icon] to select. Scroll to the bottom of the screen to view the current software versions for all components currently connected to your system. Press the [Back Icon] to return to the system settings menu. Kohler Co. 1079815-5-A... -
Page 90: Valve
Valve Path: Settings > System > Valve This function sets the configuration of your shower installation. Refer to the “Set the Valve Configuration – Preset Options” or “Set the Valve Configuration – Custom Options” section. 1079815-5-A Kohler Co. -
Page 91: Set The Valve Configuration - Preset Options
To rename outlets display names: Scroll to the outlet to be renamed. Press the [OK Icon] to select. Scroll to the new outlet name. Press the [OK Icon] to select. The new name will now be displayed. Kohler Co. 1079815-5-A... - Page 92 Set the Valve Configuration – Preset Options (cont.) Repeat for remaining outlets as needed. * Refer to the “Configurations” section for illustrations and descriptions of the preconfigured options. For Custom configurations, proceed to “Set the Valve Configuration - Custom Options.” 1079815-5-A Kohler Co.
-
Page 93: Set The Valve Configuration - Custom Options
Press the [OK Icon] to set the new water outlet name. Repeat for all remaining water outlets as needed. Available Water Outlet Options: • Showerhead • 2 Showerheads • Showerhead 1 • Showerhead 2 • Showerhead 3 Kohler Co. 1079815-5-A... - Page 94 • WaterTile S.H. 2 • WaterTile S.H. 3 • WaterTile S.H. 4 • WaterTile S.H. 5 • WaterTile S.H. 6 • WaterTile Rain • WaterTile Rain 1 • WaterTile Rain 2 • WaterTile Rain 3 • WaterTile Rain 4 1079815-5-A Kohler Co.
-
Page 95: Service
Service Path: Settings > System > Valve > Service IMPORTANT! Do not attempt to service the system yourself. Please consult an authorized Kohler Co. service representative for any servicing needs. Kohler Co. 1079815-5-A... -
Page 96: Hospitality Mode
Press the [OK Icon] to set the selected number and proceed to the next digit. Repeat for all four digits of the code. Deactivate To deactivate the hospitality function, input the four-digit code 1012. Use the dial to scroll to the first digit in the code. 1079815-5-A Kohler Co. - Page 97 Hospitality Mode (cont.) Press the [OK Icon] to set the selected number and proceed to the next digit. Repeat for all four digits of the code. Kohler Co. 1079815-5-A...
-
Page 98: Diagnostics
Path: Settings > System > Diagnostics Upon entering this screen your system will begin a check of all device connections and display the status of those connections. This information is provided to assist an authorized Kohler Co. service representative in servicing your system. -
Page 99: Error Log
Error Log Path: Settings > System > Error Log This screen will display any applicable error code information and assist an authorized Kohler Co. service representative in servicing your system. From the Main Menu scroll to “Settings.” Press the [OK Icon] to select. -
Page 100: Wifi Security
Once the last digit of the code is selected, press and hold the [OK Icon] for 2 seconds to set. If a valid WEP/WPA key has been entered, you will return to the server selection screen. If an invalid key is entered, the screen will be cleared allowing you to re-enter the key. 1079815-5-A Kohler Co. -
Page 101: Update Music Software
Using the dial, scroll to and select “System.” Press the [OK Icon] to select. Scroll to “Music Software.” Press the [OK Icon] to select. Scroll to “Software Update.” Scroll to “Update.” Press the [OK Icon] to begin updating the software. Kohler Co. 1079815-5-A... -
Page 102: Roku Agreement
Scroll to the bottom of the screen. Scroll to “Yes” to accept the terms of the agreement and activate the music server menu options. Press the [OK Icon] to select. Scroll to your region. Press the [OK Icon] to set. 1079815-5-A Kohler Co. -
Page 103: Roku Services
Press the [OK Icon] to select. Scroll to “Music Software.” Press the [OK Icon] to select. Scroll to “Roku Services.” You will be prompted to disable internet radio quality monitoring. Scroll to “NO.” Press the [OK Icon] to select. Kohler Co. 1079815-5-A... -
Page 104: Roku Ip Address
Press the [OK Icon] to select. Scroll to “Music Software.” Press the [OK Icon] to select. Scroll to “Roku IP Addresses.” Press the [OK Icon] to select. Version Path: Settings > System > Version FACTORY USE ONLY 1079815-5-A Kohler Co. -
Page 105: Reset Function - User Settings
Press the [OK Icon] to select. Scroll to “Reset User.” Press the [OK Icon] to select. To keep all the current user settings, scroll to “Cancel.” To clear all user settings, scroll to “Reset Users.” Press the [OK Icon] to select. Kohler Co. 1079815-5-A... -
Page 106: Reset Function - System
Press the [OK Icon] to select. Scroll to “Reset System.” Press the [OK Icon] to select. To keep all the current interface settings, scroll to “Cancel.” To return to the original settings, scroll to “Reset System.” Press the [OK Icon] to select. 1079815-5-A Kohler Co. -
Page 107: Start-Up After System Reset
Press the [Back Icon] twice to set. You will be prompted to accept the Roku Terms of Agreement. Scroll to the bottom of the screen. Scroll to “Yes” to accept the terms of agreement and activate music server menu options. Press the [OK Icon] to select. Scroll to your region. Kohler Co. 1079815-5-A... -
Page 108: Music Server Set-Up - Getting Started
Popular jukebox software and music or above) service. You can also use Windows Media Connect with Musicmatch, which is more feature-rich. Plays: WMA, MP3, WAV (DRM WMA and Musicmatch playlists supported only if using Windows Media Connect Server). 1079815-5-A Kohler Co. -
Page 109: Enable Music Sharing
Your Rhapsody server should now appear in you list of available music servers. You can now access your songs and Rhapsody radio stations. NOTE: Rhapsody must be running to enable automatic log in. Enabling Sharing in Musicmatch Select Options/Settings. Kohler Co. 1079815-5-A... -
Page 110: Adding Internet Stations
Once connected to your library, select “Playlists.” Scroll down to the saved playlist (in our example, “RadioFavorites”) and select it. You can now scroll through your favorite radio stations. Select a station to begin streaming. Refer to the “Internet Radio” section. 1079815-5-A Kohler Co. - Page 111 1079815-5-...
