Summary of Contents for VidOn.me Android Mini pc

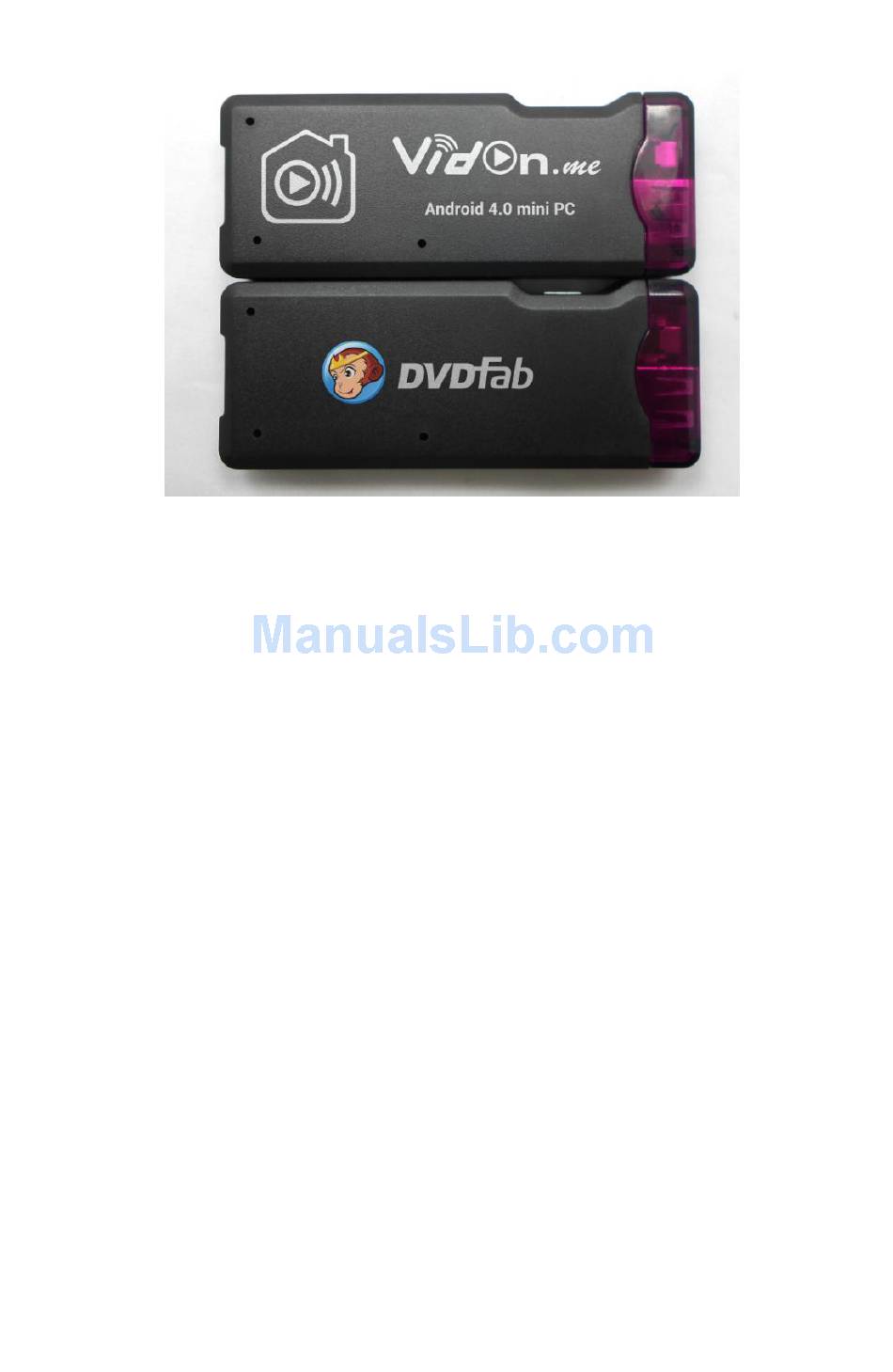

- Page 1 VidOn.me Android 4.0 Mini PC...
-
Page 2: Table Of Contents
........................... 21 ICTURES ............................21 IDEOS ............................23 USIC ..........................24 ROGRAMS ............................24 YSTEM ........................26 ASIC OPERATIONS HOW TO UPGRADE VIDON.ME TV ..................27 HOW TO REINSTALL FIRMWARE ..................29 QUESTIONS & ANSWERS ...................... 33 SPECIFICATIONS ........................35... -
Page 3: Declaration
Users have to take care of their data in the device by themselves. We are not responsible for any data loss. The product is not water-proof. All the pictures in the instruction are just for reference. VidOn.me Android 4.0 Mini PC-1... -
Page 4: Appearance Introduction
USB Host connector. Or Plug in USB OTG port via OTG cable (in package). If only mouse is plugged, the device will provide soft keyboard in operation system. If a physical keyboard connection is detected by the device, the soft keyboard will hide VidOn.me Android 4.0 Mini PC-2... -
Page 5: Booting Screen
After the booting screen, you will be prompted as following about which operation and management manner would you like. Android “Launcher” or “VidOn.me TV”? Choose one, and you can click “Use by default for this action” to set your choice as default. - Page 6 If you choose “Launcher”, the OS interface comes as below. And if “VidOn.me TV” is chosen, then you’ll see the startup screen like this: And the following main interface: VidOn.me Android 4.0 Mini PC-4...
-
Page 7: Operation Under Android Launcher
Move icon: Left click on an icon and hold it, then you can move it to any position you like. Remove icon: Hold the icon and throw it into the “Remove” mark “X” on the top of the screen, it will be removed. VidOn.me Android 4.0 Mini PC-5... -
Page 8: Move To The Last/Next Desktop
You can roll your mouse up/down for moving to the last/next desktop. Or, just left click and hold on any blank space of the desktop, move to left or right for last or next desktop. VidOn.me Android 4.0 Mini PC-6... -
Page 9: Basic Operation Bar
Homepage button: Click it anytime to return to homepage. Program button: Click it to check all the running program at present: Volume Down button & Volume Up button Properties button: Clicking it will show properties menu at the right bottom corner: VidOn.me Android 4.0 Mini PC-7... -
Page 10: Status Bar
The status bar can show the status of T-Flash Card, USB connection, Time, Wi-Fi and Download… and so on. Click the status bar, and the hidden menu will pop up. Click this icon , it will show up more details. VidOn.me Android 4.0 Mini PC-8... -
Page 11: Program Icon And Program Management
5. Program icon and program management is the program icon, on the right top corner of the main UI. Click this icon, you can all the installed program. VidOn.me Android 4.0 Mini PC-9... -
Page 12: Settings
You could launch these programs directly at here, or hold an icon to make a desktop shortcut. Click “WIDGETS” ,you can see all widgets. Hold on any widget to make shortcut on desktop. 6. Settings Click “Settings” icon to set up Wi-Fi, Storage, Apps, Security, etc. VidOn.me Android 4.0 Mini PC-10... - Page 13 If there is no Wi-Fi and you have to use a cable to access internet, please plug USB2.0 LAN Adapter in USB host or OTG port. Connect RJ45 LAN cable, click “setting”-> “More”-> “Ethernet”-> “Use Ethernet”. VidOn.me Android 4.0 Mini PC-11...
- Page 14 Please install apps from Google market as priority. However, if you have to install un-defined apps, please click Settings -> Security -> ”Unknown sources” Install app Please download APK app. After app downloaded, just click it to install. You could also install Android program from external storage devices. VidOn.me Android 4.0 Mini PC-12...
- Page 15 Please click Uninstall app a. Click “Settings”-> “Apps”, then you can see all apps that are installed. b. Click the icon of the app that you want to uninstall. c. Click uninstall button to uninstall it. VidOn.me Android 4.0 Mini PC-13...
- Page 16 Since for some particular apps, mouse right button will close up rather than return. 6.4 Storage setting The device has the media searching function, but running this function will slow down the system speed. Setting SD card and USB device searching function, please refer to the following screenshot: VidOn.me Android 4.0 Mini PC-14...
- Page 17 The device support different languages. Please Click “Setting”->“Language & input” to set language and input. 6.6 Factory data reset If you want to reset the factory data of the device, click “Settings”, navigate to “Backup & VidOn.me Android 4.0 Mini PC-15...
-
Page 18: Super-Hd Player
“Factory data reset”. Super-HD Player Click “Super-HD Player” icon to play videos. Music player Click “Music” icon to play music. VidOn.me Android 4.0 Mini PC-16... -
Page 19: Filemanager
The device has strong function for filing. your “Local Memory”, “USB”, or Network “Neighborhood”. Click and hold a file folder, an editing menu will show up as below, and you can copy, cut, rename the file folder, etc. VidOn.me Android 4.0 Mini PC-17... -
Page 20: Visit Website
10 Visit website Please enable Wi-Fi to access to internet. There is an Android default browser. You can also download other browsers from Google market. Click the browser to visit website. VidOn.me Android 4.0 Mini PC-18... -
Page 21: Keyboard And Mouse
Click “X” to close a page. 11 Keyboard and mouse Device will show up the soft keyboard if it is only connected with mouse. And the soft keyboard will disappear once the hardware keyboard is detected by the device. VidOn.me Android 4.0 Mini PC-19... -
Page 22: Operation Under Vidon.me Tv
D. Operation Under VidOn.me TV VidOn.me manages “Weather”, “Pictures”, “Videos”, “Music”, “Programs”, and “System”. 1. Weather Click “Weather” on the main UI, then you can overview current temperature and weather forecast. VidOn.me Android 4.0 Mini PC-20... -
Page 23: Pictures
2. Pictures Click “Pictures” on the main UI to browse and manage all your pictures. 3. Videos “Videos” includes “Movies”, “Files”, “Library”, and “Add-ons”. VidOn.me Android 4.0 Mini PC-21... - Page 24 Click “Movies” and can view movies categorized by “Genres”, “Title”, “Year”, “Actors”, “Directors”, “Studios”, etc. VidOn.me Android 4.0 Mini PC-22...
-
Page 25: Music
“Library” consists of “Movies”, “Recently added movies”, “Files”, “Playlist”, and “Video Add-ons”. 4. Music Click “Music” on the main UI to enjoy music and manage all your music files. VidOn.me Android 4.0 Mini PC-23... -
Page 26: Programs
5. Programs Click “Programs” on the main UI to view and manage all installed programs. 6. System The “System” has 3 options: “Settings”, “File manager”, “Profiles”, and “System info”. VidOn.me Android 4.0 Mini PC-24... - Page 27 “Settings” let you set appearance, video, music, pictures, add-ons, network, skin, etc. “File manager” is where you manage files. VidOn.me Android 4.0 Mini PC-25...
-
Page 28: Basic Operations
“Profile” allows you to set and add profiles. 7. Basic operations Click to go to the home page / main UI of VidOn.me. VidOn.me Android 4.0 Mini PC-26... -
Page 29: How To Upgrade Vidon.me Tv
VidOn.me TV mode, and in Android Launcher mode. E. How to Upgrade VidOn.me TV 1. Under VidOn.me TV mode, once there’s a new version for upgrading, you’ll be prompted just like below: Click “Yes” to download the new version. After downloading completed, go to “FileManager”... - Page 30 Mini PC, and go to “USB”, rather than “Local Memory”, to access the file. 2. Double click the file to install the new version. And you’ll get the following prompt. Click “Install” to continue. And click “Done” to finish installation. VidOn.me Android 4.0 Mini PC-28...
-
Page 31: How To Reinstall Firmware
Once it happens that your Mini PC is dead, you need to reinstall firmware for it. Please prepare a TF card (about 2G or above), a TF card reader, a PC (Windows 2000 or above) before reinstalling firmware. Note that the PC shall not be connected with any mobile VidOn.me Android 4.0 Mini PC-29... - Page 32 Unzip the file “VidOn.me Flash tool.rar” after downloading it at http://vidon.me/download/How-to-reinstall-firmware-on-VidOn.me-Android-4.0-Mini-PC.ra r. And you will get the folder “VidOn.me Flash tool”. Open this folder, you will find 2 subfolders – “Tool” and “Image”. Just open the “Tool” folder to locate the application “PhoenixCard.exe”.
- Page 33 Step 3: Configure to start burning OK. Since the image file is in, now tick “Product”, then click “Burn” button to start burning. VidOn.me Android 4.0 Mini PC-31...
- Page 34 The burning process will be completed in about 5 minutes or so. Then click “Exit” button to exit this app. OK. Burning process finished. Note: If you can’t see “烧写结束” showed in the above screenshot, please format your TF card, and start over again. VidOn.me Android 4.0 Mini PC-32...
-
Page 35: Questions & Answers
After the burning completed successfully, disconnect the TF card from your PC and insert it into the TF slot of your VidOn.me Mini PC. Power on this Mini PC and the power signal light will be on. Wait for about 10 minutes, then all the reinstalling firmware work on the device will be done. - Page 36 This Mini PC is supposed to support all 2.4GHz wireless mouses and keyboards. Users can just choose any one according to their requirements, preference, and budget, since there're a variety of them with different performances at different prices. VidOn.me Android 4.0 Mini PC-34...
-
Page 37: Specifications
Audio WAV, MIDI, M4A WMV/ASF/MP4/3GP/3G2M4V/AVI/MJPEG/RV10/DivX/VC-1/ MPEG-2/MPEG-4/H.263/H.264/1280*720P HD 30 fps, Video 1080P/720*480 D1 30fps VidOn.me, Google Chrome, Google Play, Calculator, Calendar, Clock, Maps, Music, Gmail, Search, File Manager, Preloaded Apps Netflix, Hulu, Flickr, Skype, Youtube, Pandora, Twitter, Facebook, TV&Movie, Podcast HDMI 1080P &...
