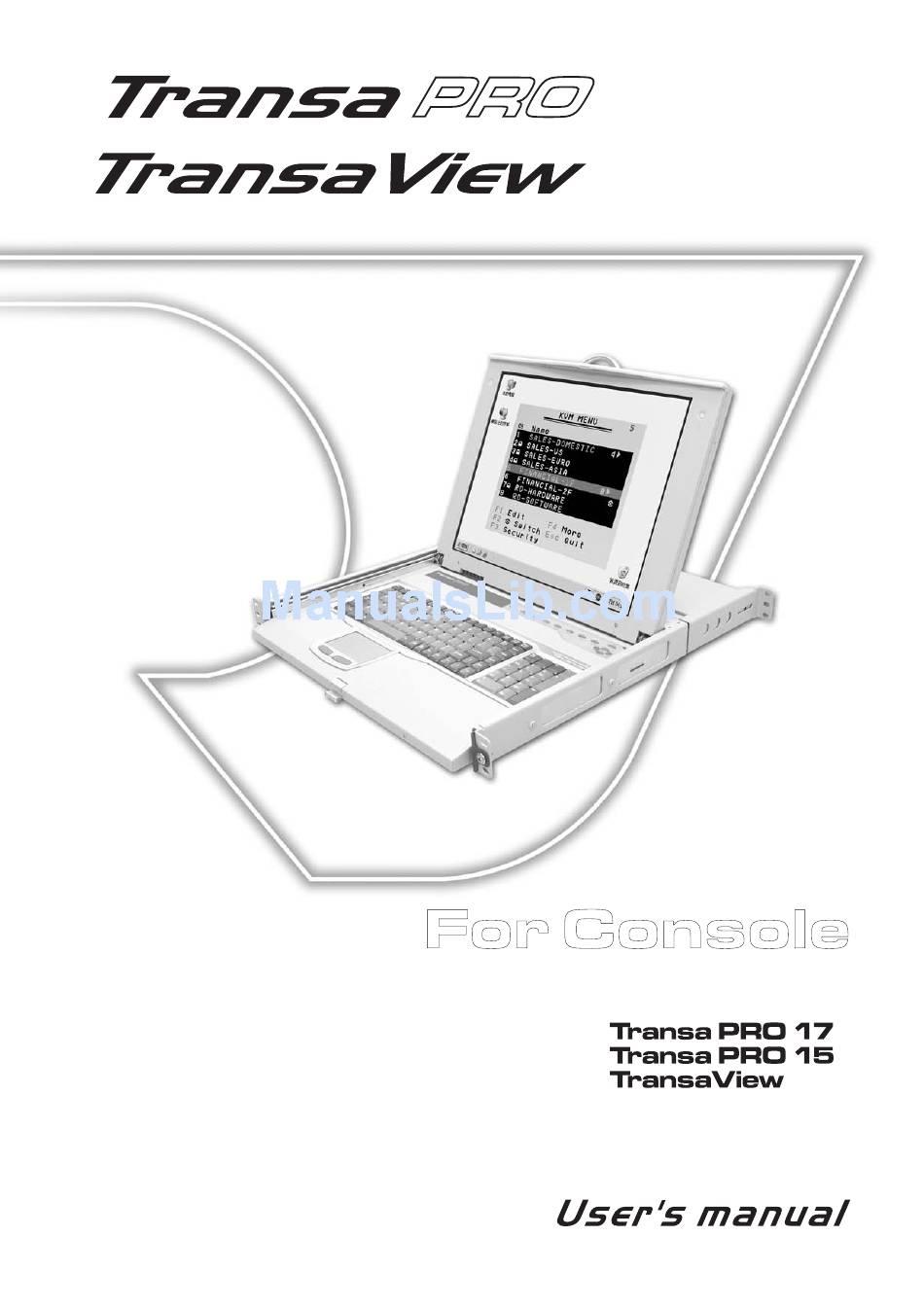

Connect-Tek Transa PRO 17 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Transa PRO 17 and is the answer not in the manual?

Questions and answers

Summary of Contents for Connect-Tek Transa PRO 17

  • Page 2: Table Of Contents

    Table of Contents ▓ INTRODUCTION ....................1 ▓ CONSOLE Overview .......................3 Features ........................3 Packing List ......................4 Assembly.......................6 Installation ......................9 Front Panel......................10 Replaceable Keyboard and Touch Pad ............... 11 LCD Specification ....................13 Please read this manual thoroughly and follow the Installation procedures to prevent any damage to the product or any connecting device.

  • Page 3: Introduction

    Transa PRO TransaView Console ‧ Introduction ------------------------ The TransaView and Transa PRO offer the ultimate in styling and computer management. With a keyboard mouse, TFT LCD panel and a KVM switch module housed in an industry standard 19" 1U-height rack drawer, it saves you up to 1/3 of valuable real estate from a rack cabinet.
  • Page 4 Transa PRO TransaView Console ‧ The console with 2U-height KVM Switch Module Attached with a 2U-height KVM switch module, the setup takes 1U-height for the console drawer and 2U-height for the KVM switch module behind it.

  • Page 5: Console

    ------------------------ Overview Three major models of consoles, Transa PRO 17, Transa PRO 15, and TransaView, are available with 17” LCD panel, 15” LCD panel respectively. These three models share the same accessories (The KVM switch modules and Rear Bracket Kits). The console is a 19” 1U drawer designed for applications where space is at a premium, or CRT displays are undesirable.

  • Page 6: Packing List

    Transa PRO TransaView Console ‧ Packing List Console: "LCD panel + keyboard + mouse pad" console drawer Rear bracket & extension kit: This kit contains two pieces of rear brackets and two pieces of extensions. Make sure you have the correct kit to fit the depth of your cabinet. Note: the following length is measured between "front pole and rear pole inside a rack cabinet"...
  • Page 7 Transa PRO TransaView Console ‧ The KVM Switch Module (Please also see another user’s manual for more details about the KVM Switch module): KVM switch module box can be connected to a console or be used as a stand-alone KVM switch. There are three major categories: PS/2, USB and Sun interfaces. PS/2 Interface IKM001 IKM108D...

  • Page 8: Assembly

    Transa PRO TransaView Console ‧ Assembly Choose a proper position for the rack drawer. Mount the rear brackets (from the Rear bracket & extension kit), and lightly fasten them onto the rear vertical poles. Both will be removed later. Remove the safety stopper from the console drawer. The safety stopper is designed to prevent the drawer from sliding out during transportation.
  • Page 9 Transa PRO TransaView Console ‧ Remove both of the rear brackets and slide the console drawer out half way to balance its weight. Now, the front brackets hold the console drawer. Attach the extensions (from the Rear bracket & extension kit) to both sides of the KVM switch module. Please note the length of the extensions and mount them in one of the following ways.
  • Page 10 Transa PRO TransaView Console ‧ Push the rear brackets all the way in and fastens them. Slide the console drawer out. Push the KVM switch module evenly toward the drawer and lock both units by the screws. Make sure the C-36 connectors are firmly mated during step 9.

  • Page 11: Installation

    Transa PRO TransaView Console ‧ Installation The installations for KVM switch module with computers can be found in the other user’s manual. The combination of a console and an IKM001 can be considered as a set of PS/2 keyboard, mouse and monitor as shown below.

  • Page 12: Front Panel

    Front Panel Front panel of the TransView model Front panel of the Transa PRO 17/ Transa PRO 15 model KVM Control and Status: (This section is effective only when a KVM switch module is connected, not applicable for IKM001 module.) Computer Selection Pad Press one of these pushbuttons to select a computer.

  • Page 13: Replaceable Keyboard And Touch Pad

    Keyboard Scroll Lock status. LCD Panel Power Switch Replaceable Keyboard and Touch Pad (For Transa PRO 17 and Transa PRO 15 ONLY) Replaceable Keyboard The keyboard is replaceable for language change or maintenance. Tilt it up, locate the mini-USB cable underneath the keyboard and gently unplug it.
  • Page 14 Transa PRO TransaView Console ‧ Replaceable Touch Pad 1. Touch Pad and Its “Wheel” The Touch Pad simulates a “wheel mouse”. The area of the Touch Pad to the right side of the two small triangular marks is the simulated “wheel” as shown below. 2.

  • Page 15: Lcd Specification

    Transa PRO TransaView Console ‧ LCD Panel Specification Specifications 15” LCD Panel 17” LCD Panel Active Display Area 304.1 x 228.1 (mm) 337.920 x 270.336 (mm) Pixel Pitch (mm) 0.297 (H) x 0.297 (V) 0.264 (per one triad) x 0.264 Resolution 1024 x 768 @60/70/75Hz 1280 x 1024...

  • Page 16: Limited Warranty

    Limited Warranty IN NO EVENT SHALL THE DIRECT VENDOR'S LIABILITY FOR DIRECT OR INDIRECT, SPECIAL, INCIDENTIAL OR CONSEQUENTIAL DAMAGES, LOSS OF PROFIT, LOSS OF BUSINESS, OR FINANCIAL LOSS WHICH MAY BE CAUSED BY THE USE OF THE PRODUCT EXCEEDS THE PRICE PAID FOR THE PDOCUDT. The direct vendor makes no warranty or representation, expressed or implied with respect to the contents or use of this documentation, and especially disclaims its quality, performance, merchantability, or fitness for any particular purpose.
