Summary of Contents for Rotorlight Anova

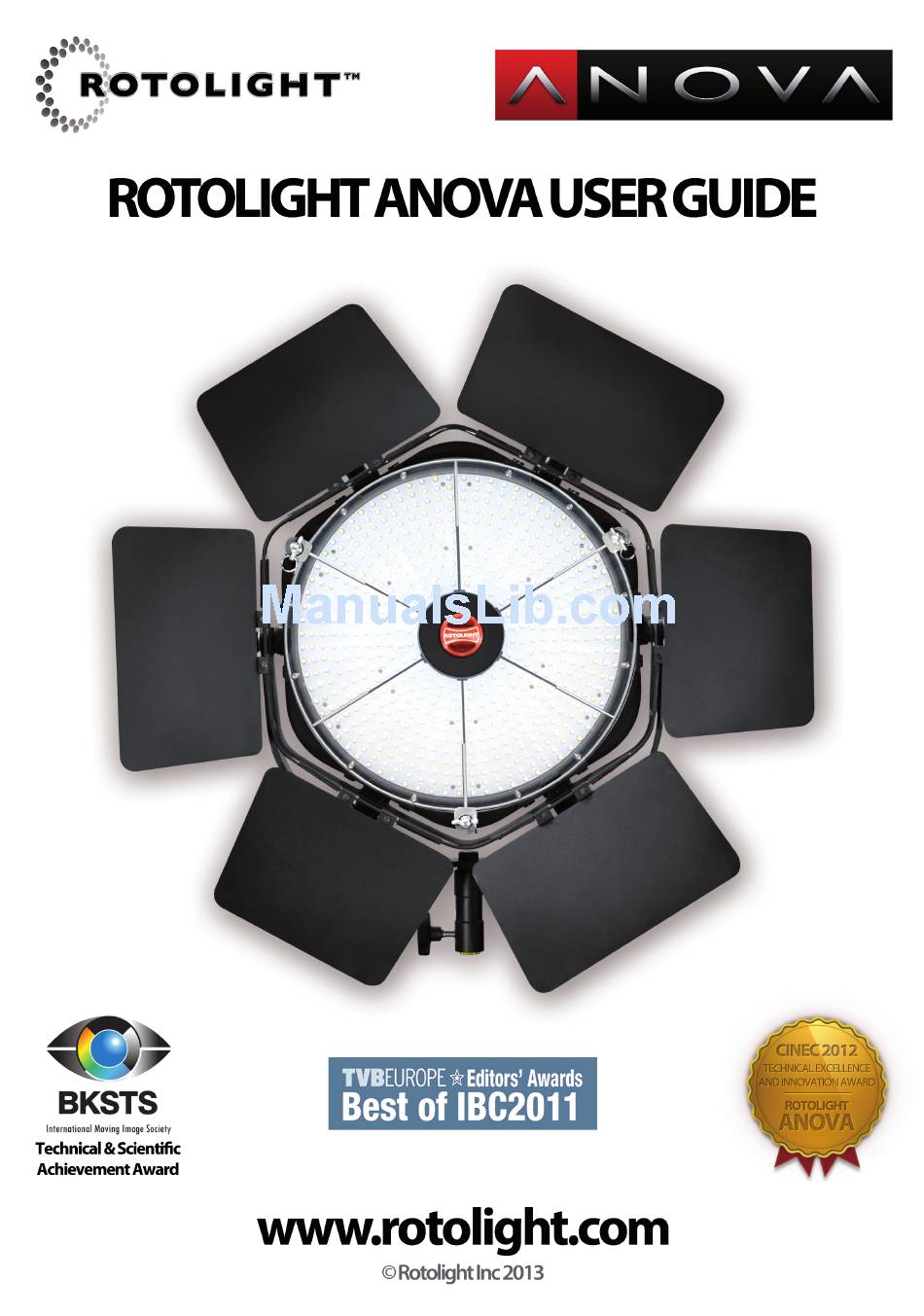

- Page 2 “We are what we repeatedly do. Excellence, then, is not an act, but a habit.” - Aristotle DOWNLOAD THE ROTOLIGHT MAGIC EYE APP FOR WIRELESS ANOVA CONTROL NOW! iPhone Please scan the QR C ode or type the URL into y o ur brow ser.
-
Page 3: Table Of Contents
Contents Chapter Title Page About Anova What’s in the Box Manufacturers Statement Hardware Notes Anova Menu Operation Technical Specifications Troubleshooting Warranty Information Credits Rotolight Quality Assurance Published by Rotolight Inc. Pinewood Studios, Pinewood Road, Iver Heath, SL0 0NH United Kingdom www.rotolight.com... -
Page 4: About Anova
– note that tungsten bulbs vary in efficiency, typically from 8 lumens per watt to 15 lumens per watt) . We call ANOVA an EcoFlood as it only uses 38 watts of energy at full output (to deliver 1000 watts at 5600k), so you can expect excellent extended battery operation. -
Page 5: Manufacturers Statement
One potential result of not using PWM and offering a total fade to black which the Anova provides, is that at levels lower than 10% it may be possible for one or two LED’s to flicker or not fire due to microscopic differences in the current tolerances of the LED’s, which are being starved of current at less than 10%. - Page 6 1meter of around 220 Lux (as opposed to 2025 lux at one meter), and at 5% of just 100 lux, and so it is highly unlikely that the Anova will be used at these Levels for any period of time as the relative light output at lower than 10% is not likely to be functionally useable.
-
Page 7: Hardware Notes
Firmware programming socket. This is not intended for use by users, and is used to install firmware updates by the manufacturer. DC Input Socket Use this 2.1mm DC socket to connect the supplied 15volt 60W AC/DC converter. You can also run ANOVA from a 14.4volt D-Tap connector via this socket. Only use the... - Page 8 TVMP Bracket on the ANOVA has two positions for the retaining screw, The higher position is for a Junior stud, the lower position is so you can mount the Anova on a 3/8 stud on a normal studio lighting stand (Please check that the stand is designed to take the weight of the Anova, aproximately 2.6...
- Page 9 Page 9 Accessory Mounting Spigots The three spigots on the front face of ANOVA are used to mount the ‘Gel Frame Holder’ (lower position) using three ‘Ball Lock Pins’ , and the upper mounting position is used to mount optional accessories for the ANOVA, e.g. Honeycomb Louver, SoftBox, Focussing Fresnel Filter (Available separately).
-
Page 10: Anova Menu Operation
10% (Fast Mode). If you wish to control ANOVA using wired or wireless DMX then you need to go to the DMX menu and select the desired DMX channel for the BRI (brightness) setting. - Page 11 This mode allows control via a DMX device wired through the DMX input. In addition, ANOVA can be set to act as a DMX Master Controller and convert incoming wireless signals to DMX via the selected DMX -bri (brightness channel #) and –col (colour channel #).
- Page 12 ANOVA wifi network on a specific channel. Because we can only display 4 digits on the back of the ANOVA, we add a ‘0’ to the first single numeric digit of the PIN to make a 5 digit WEP password so PIN ‘1AAA’ becomes password ‘01AAA’...
- Page 13 When you turn on the next ANOVA it will check to see if the first ANOVA has the same PIN and if a network exists, and then it joins that specific network. Your iPhone or iPad also become ‘clients’ of that specific ANOVA network.
-
Page 14: Technical Specifications
One piece yoke with knobs 610g (0.6kg) Anova with Yoke, and knobs 3202g (3.2kg) Flight Case 7100g (7.1kg) Case filled with Anova, yoke, PSU and AC cord 8530g (8.53kg) Filter Sleeve Set 90g (0.9kg) Power Supply and AC Cord 500g (0.5kg) Barn Doors and fixing knobs 1500g (1.5kg) -
Page 15: Troubleshooting
The CNTL (control) needs to be set to –locl (local), not DMX or WIFI. When I try to connect to my ANOVA via WIFI from my iPhone it does not work? Firstly you need to download the Magic Eye APP from the iTunes APP Store (sold separately) , then to connect, go to settings –... -
Page 16: Warranty Information
Your Rotolight has been individually examined and found to pass Rotolight’s Quality Assurance testing. Magic Eye™ Technology is patent pending 1115546.2 Anova™ and Magic Eye™ are registered designs of Rotolight Inc. Rotolight™, Anova™ and Magic Eye™ are registered trademarks of Rotolight Inc.
