Summary of Contents for Data Video VP-597
-

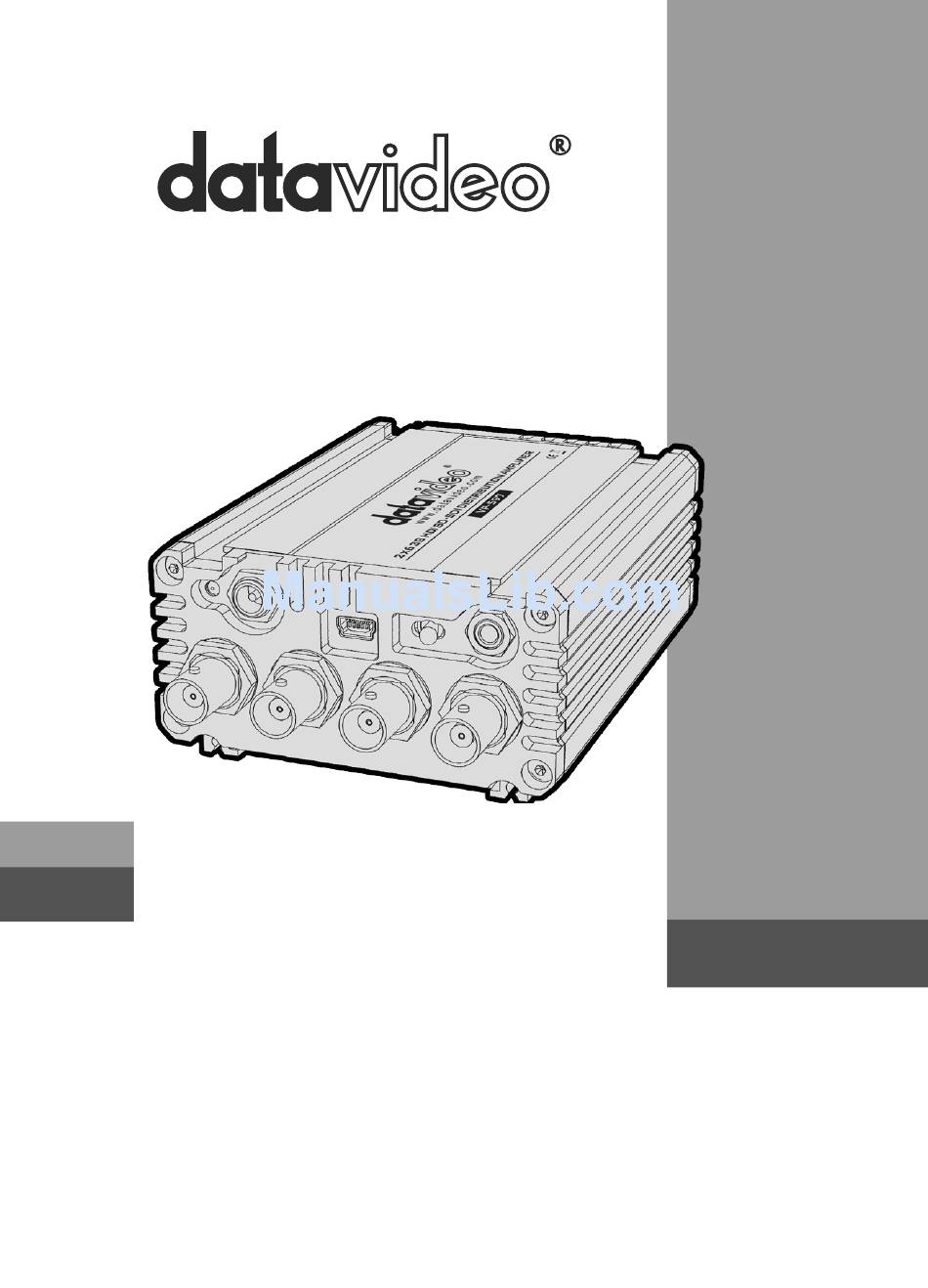

Page 1: Quick Start Guide
2X6 3G HD/SD-SDI DISTRIBUTION AMPLIFIER VP-597 Quick Start Guide w w w . d a t a v i d e o . c o m... -
Page 2: Warranty
1 x VP-597 only - WEEE Marking 1 x Accessory List This symbol on the product 1 x VP-597 Quick Start Guide indicates that it will not be treated as household waste. It must be handed over to the applicable take back scheme for the recycling of electrical and electronic equipment. -
Page 3: Front Panel
SOURCE Switch SOURCE Selects the SDI input source 1 or source 2. GPI socket Used for simple external control. The VP-597 can be switched the SDI input source 1 or source 2 by a trigger. 3G HD/SD – SDI Output BNC connects for SDI Outputs (5, 6). -
Page 4: Rear Panel
2X6 3G HD/SD-SDI DISTRIBUTION AMPLIFIER Rear Panel SDI OUT SDI OUT 3G HD/SD - SDI Output BNC connectors for SDI Outputs (1~4). - Page 5 VP-597 VP-597 Center Information - Display the input format & Firmware Version. Video - Setting the input source & GPI mode. Setting - Click the setting button to reset VP-597 to factory default.
-
Page 6: Gpi / Gpo Connections
The GPI interface is a 3.5mm jack socket. Contact closure between outer and inner contacts on the jack plug will trigger a user selected event. Power is supplied by the VP-597 and is less than 5V DC. 3.5 mm Stereo Jack Plug... -
Page 7: Specifications
(If available from SDI source) Re-clock Function Input source select Source Switch / GPI Mini USB F/W Upgrade VP-597 center utility control interface Dimension & Weight 127.1mm(L) x 85mm(W) x 45.2mm(H) / 456g Power 12V / 1A (2.8W) Operation Temperature 0~50°C [32~114°F]... -
Page 8: Service And Support
Fax:+91-0120-2427338 E-mail:info@datavideo.com.hk E-mail: info@datavideo.fr E-mail: sales@datavideo.in Please refer to our website for update the latest version manual. www.datavideo.info/Repeaters+and+Distribution/ VP-597 All the trademarks are the properties of their respective owners. Datavideo Technologies Co., Ltd. All rights reserved 2018 Dec-27.2013 P/N: G082060597B3...
