Summary of Contents for Meicheng EX-G009
-

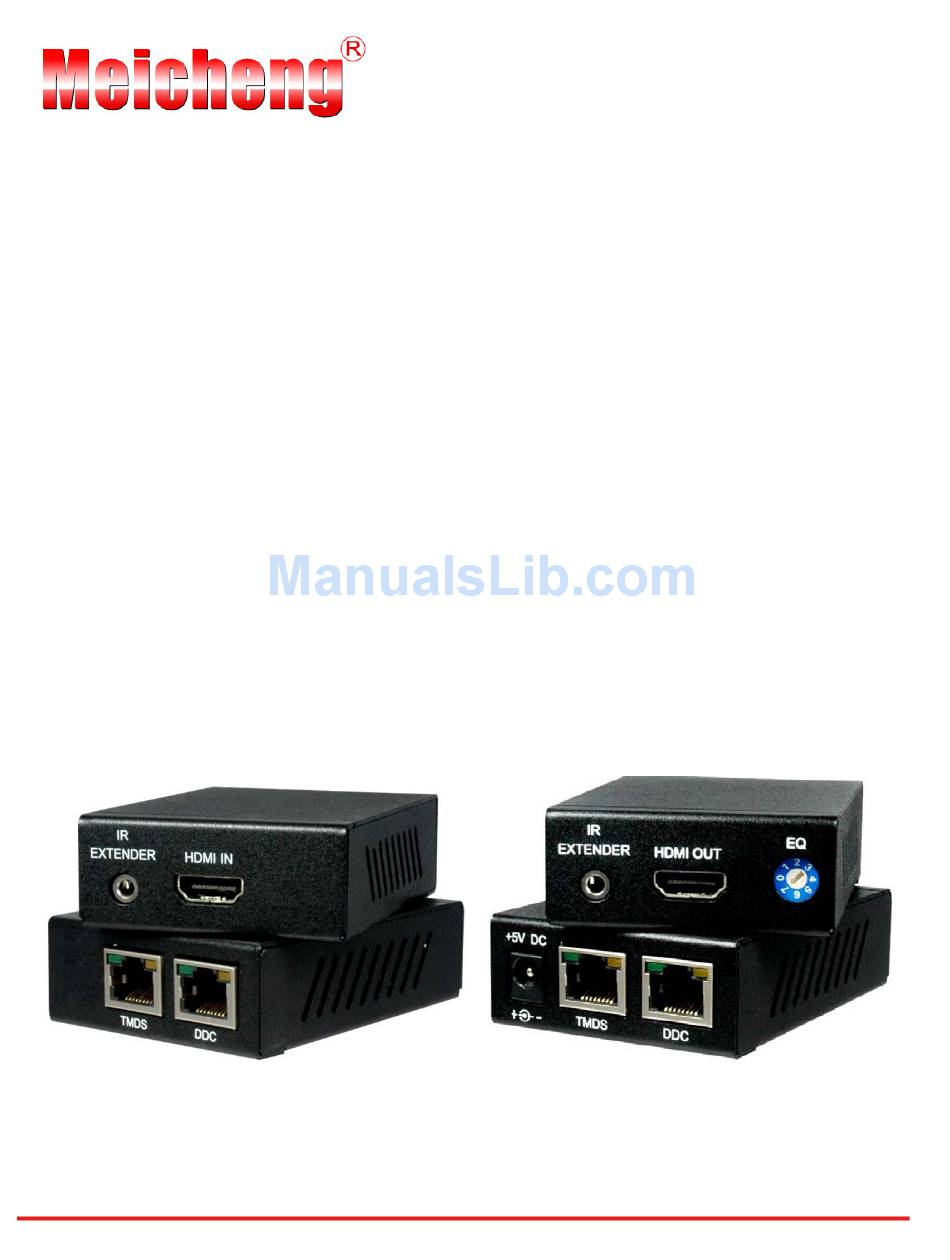

Page 1: User Manual
EX-G009 HDMI 1.3 over CAT5 Extender with IR Control Path User Manual Page 1 of 11 http://www.meicheng.com.tw... -
Page 2: Safety And Notice
Safety and Notice The EX-G009 HDMI 1.3 over CAT5 Extender with IR Control Path has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipments, the EX-G009 should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit. - Page 3 Introduction The EX-G009 HDMI 1.3 over CAT5 Extender with IR Control Path boosts up your HDMI transmission distance up to 60m (200ft) in HDTV 720p / 1080i format. With two low cost CAT-5/5e/6 LAN cables, users can readily extend HDTV sources from DVD players, Blu-ray Disc player, PS3, PC, and any other kinds of sources compliant with TMDS to distant display monitors including HDMI enabled TV sets, LCD PC monitors, or projectors.
- Page 4 Features HDMI 1.3c compliant Extends the transmission distance up to 60m (200ft) from the sources under 1080i or 720p Extends the transmission distance up to 40m (130ft) from the sources under 1080p Provides independent DDC channel, fully HDCP compliant Minimizes the cable skew by adjustable 8-level equalization control Embedded IR control path Pure unaltered uncompressed 7.1ch digital HDMI over LAN cable transmission Allows cascading...
- Page 5 Model Name EX-G006 EX-G009 EX-G007 EX-G007-RX Technical EX-G006-TX EX-G006-RX EX-G009-TX EX-G009-RX EX-G007-TX EX-G076A Role of usage Transmitter [TX] Receiver [RX] Transmitter [TX] Receiver [RX] Transmitter [TX] Receiver [RX] HDMI compliance HDMI 1.3c HDMI 1.2a HDCP compliance Single-link 165MHz Video bandwidth Single-link 340MHz [10.2Gbps]...
-
Page 6: Panel Descriptions
Panel Descriptions Front Panel — Transmitting Unit EX-G009-TX HDMI IN E X TENDER HDMI IN: Connect to a HDMI source with a HDMI M-M cable here IR EXTENDER: Extendable infrared sending socket for plugging in the extension cable of IR emitter Rear Panel —... - Page 7 Front View — Receiving Unit EX-G009-RX HDMI OUT E X TENDER HDMI OUT: Connect to a HDMI display with a HDMI M-M cable here. EQ: Adjust the 8-level equalization control knob to the received HDMI signals. 0 – 7 = strongest –...
-
Page 8: Ir Control Path
IR Cables IR Emitter Cable IR Receiver Cable IR Sockets EX-G009-TX IR Extender: Plug in the IR emitter cable here to transmit all IR command signals received from the IR receiver. EX-G009-RX IR Extender: Plug in IR receiver cable connected here to receive all IR command signals from the IR remote control of the HDMI source machine. -
Page 9: Supported Ir Data Format
GEMINI_CM Hardware Installation 1. Connect your HDMI / DVI source (such as a DVD player) to the transmitting unit EX-G009-TX. 2. Connect the IR transmitting cable to the transmitting unit EX-G009-TX, and make the IR emitter directly point to the IR of HDMI source. - Page 10 Notice 1. If the DVI or HDMI device requires the EDID information, please use EDID Reader/Writer to retrieve and provide DVI/HDMI EDID information. 2. All HDMI over CAT5 transmission distances are measured using Belden 1583A CAT5e 125MHz LAN cable and ASTRODESIGN Video Signal Generator VG-859C. 3.
-
Page 11: Limited Warranty
Limited Warranty The SELLER warrants the EX-G009 HDMI 1.3 over CAT5 Extender with IR Control Path to be free from defects in the material and workmanship for 1 year from the date of purchase from the SELLER or an authorized dealer. Should this product fail to be in good working order within 1 year...
