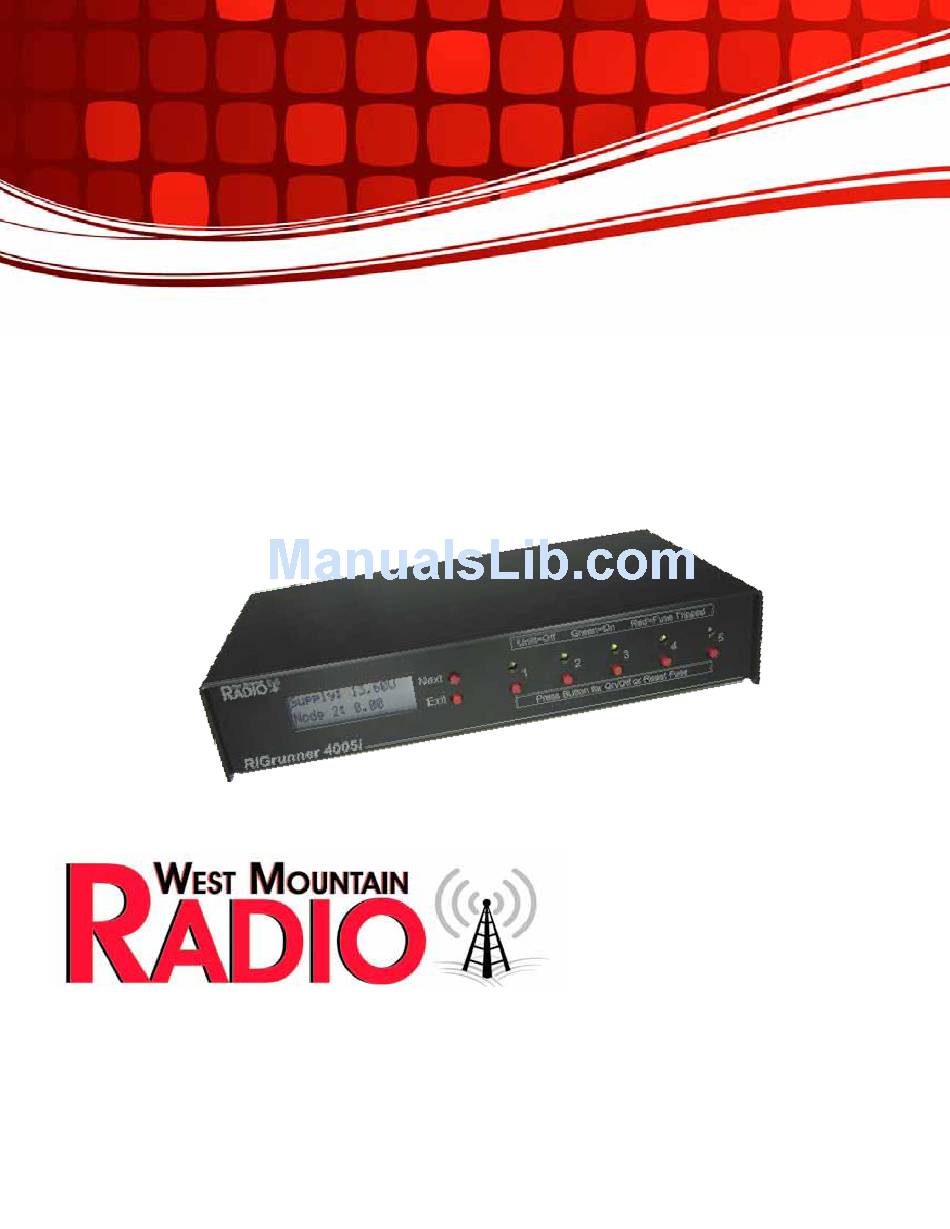

- Page 1 RIGrunner 4005i www.westmountainradio.com 1020 Spring City Drive Waukesha, WI 53186 262-522-6503 sales@westmountainradio.com ©2012 West Mountain Radio, All rights reserved. All trademarks are the property of their respective owners.
-
Page 2: Mounting Location
CI-V, and daisy-chain of equipment. Details on the expansion port pins and configuration is discussed later in this manual. Ethernet Port connector is a standard RJ45 jack to connect the RIGrunner 4005i to any internet connection or router. -
Page 3: Back Panel
If the soft fuse has been blown, the Node Enable Button must be pressed twice to return to ON status. NOTE: The first button press disables the node and the second button press enables the node. West Mountain Radio Operating Manual... -
Page 4: Status Screen
IP Address – An IP address is a set of 4 numbers, with each number seperated by a ‘.’. This number • represents the address on the network, and is the address that can be open with a web browser. More information about this is detailed in the Networking section of the RIGrunner manual. West Mountain Radio Operating Manual... - Page 5 Press the NEXT button to bypass performing a factory reset and return the unit to normal operating mode. Below is a list of the initial values that will be set if a factory reset is performed. West Mountain Radio Operating Manual...
-
Page 6: Rebooting The Device
PC in use for additional instructions. The default name that will be displayed in the DHCP client list is “RR4005i”, but this name can be changed by using the Configure webpage of the RIGrunner. West Mountain Radio Operating Manual... - Page 7 (Figure 9 window will appear) Figure 9 Figure 10 Make sure the Control Panel is in ‘View by: Category’ mode (see top left of Control Panel) and select View network status and tasks. (Figure 10 window will appear) West Mountain Radio Operating Manual...
- Page 8 Confirm the Use the following IP address button is selected. For IP address, enter a value of ‘192.168.100.221’ For Subnet mask, enter a value of ‘255.255.255.0’ (Figure 13 window will appear) Figure 12 Figure 13 West Mountain Radio Operating Manual...
-
Page 9: Web Pages
Config – Set a descriptive name for RIGrunner, set a descriptive name for each powerpole node, set • soft fuse point, set network configuration, set username/password, and more. The web pages can be password protected to prevent unauthorized remote access. The username/password can be set on the Config page. West Mountain Radio Operating Manual... -
Page 10: Expansion Port
0.01V Current Accuracy +/- 2.5% Current Resolution 0.01A Minimum Current Reading 50mA Electronic Fuse Range min. 0.01A / max. 40A Environmental Temperature -10 to 85C Physical Dimensions 8” x 5.25” x 1.625” (LxWxH) 1.0 LB West Mountain Radio Operating Manual... -
Page 11: Additional Resources
The RIGrunner is warranted against failure due to defects in workmanship or materials for one year after the date of purchase from West Mountain Radio or an authorized dealer. If purchased from an authorized dealer it must be returned with a copy of the original sales receipt or proof of purchase.
