Summary of Contents for ADS OPC6012
-
Page 1: User Manual

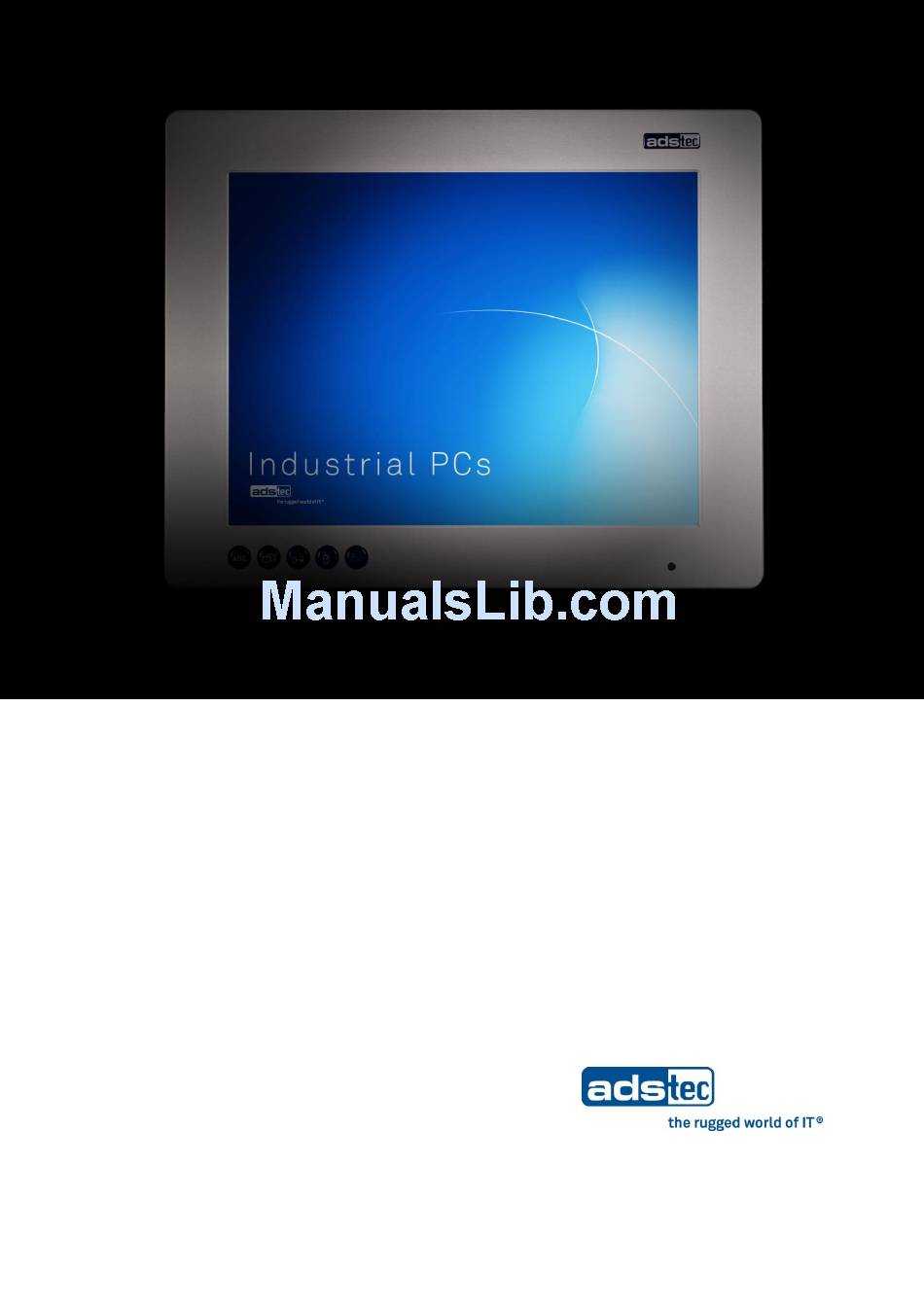

Version User Manual Industrial PCs OPC6012/6015 Stand:31.10.2014... - Page 2 Industrial PCs OPC6012/6015 Product Portfolio Copyright ads-tec GmbH Heinrich-Hertz-Str. 1 D-72622 Nürtingen Germany © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 3: Table Of Contents
Commissioning ....................... 17 Available interfaces ......................... 17 Check for operational readiness .................... 17 Operation ......................... 18 Front control keys ........................18 Soft keyboard ........................... 18 Status indicators ........................20 Touch screen..........................20 © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 4 Screen Mob ..........................36 8.10 Soft keyboard installation ...................... 37 Technical details ..................... 38 Service and support ....................39 10.1 ads-tec support ........................39 10.2 Company address ........................39 CE conformity declaration ..................40 © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 5: About Us
- from the planning to the commissioning - and has particularly specialised in manipulation and material manipulation technology. -
Page 6: Remarks
Contains information for installation, commissioning and operating the device along with technical data of the device hardware. EBSITE By using the website www.ads-tec.de, you can download drivers, software, user manuals, leaflets and flyers from the Download section on the website. Note: We would recommend to make use of our website contents (www.ads-tec.de) in... -
Page 7: Data, Figures And Modification
In the event of non-compliance, you shall be obliged to compensate for damages. Pos : 7 /D atentechni k/Allgemei ne Hinweis e/U mweltbedingungen/U mweltbedinungen für VMT 60xx- Seri e @ 2\mod_1263307758056_6.doc @ 6981 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 8: Environmental Conditions
1.6 E NVIRONMENTAL CONDITIONS The device may be operated under the following conditions. Failure to observe these specifications will terminate any warranty for this device. Ads-tec cannot be held liable for any damages arising due to improper use and handling. ... -
Page 9: Equipment Versions
4-pin Lead-through connector from Phoenix Contact • Service CD Optional delivery scope • Operating system Pos : 11 /D atentec hni k/Betri ebs hi nweis e/Betriebsort/Betri ebs ort für VMT-Serie @ 2\mod_1268841352905_6.doc @ 7486 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 10: Operating Instructions
Pos : 14 /D atentec hni k/Betri ebs hi nweis e/Behandlung und Ents orgung von Lithi um-Batterien/Behandlung und Ents orgung von Lithi um-Batterien @ 1\mod_1247056308470_6.doc @ 5922 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 11: Treatment And Disposal Of Lithium Batteries
The lithium battery must be disposed of according to the local legislation at the end of its life cycle. Pos : 15 /D atentec hni k/Betri ebs hi nweis e/Sicherheits hi nweis e/Sicherheits hinweis e @ 0\mod_1162458821197_6.doc @ 1558 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 12: Notes On Safety
(EN 61340-5-1 / EN 61340-5-2) Pos : 16 /D atentec hni k/Montage/Montages kiz zen/Auß enabmess ungen des Ger äts/M ontages kizz e / Auß enabmessungen für VMT 6012 @ 1 \mod_1226561943192_6.doc @ 4171 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 13: Mounting
Industrial PCs OPC6012/6015 OUNTING 3.1 E OPC6012 XTERNAL EVICE IMENSIONS FOR © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 14: Installation Layout For Opc6012
Industrial PCs OPC6012/6015 3.1 I OPC6012 NSTALLATION AYOUT FOR Pos : 17 /echni k/Inbetriebnahme/Sys temmer kmal e/Inbetriebnahme für VMT 60xx-Serie @ 2\mod_1263217785475_6.doc @ 6944 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 15: External Device Dimensions For Opc6015
Industrial PCs OPC6012/6015 3.2 E OPC6015 XTERNAL EVICE IMENSIONS FOR © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 16: Installation Layout For Opc6015
Industrial PCs OPC6012/6015 3.3 I OPC6015 NSTALLATION AYOUT FOR Pos : 17 /echni k/Inbetriebnahme/Sys temmer kmal e/Inbetriebnahme für VMT 60xx-Serie @ 2\mod_1263217785475_6.doc @ 6944 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 17: Commissioning
If any damage is detected, the device must be put out of service immediately and protected from accidental switch-on. Pos : 20 /D atentec hni k/Bedienung/Fr ontseitig e T asten/Fronts eitige B edi entasten für VMT 60xx-Serie @ 2\mod_1260526652092_6.doc @ 6881 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 18: Operation
By using the soft keyboard, data can be entered via the touch screen like with an external keyboard. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 19 Pos : 26 /D atentec hni k/Bedienung/Status-Anzeig en/SYS- LED/SYS- LED für OPC / CPC / PLC / OTC / ITC / VMT (+Monitore) - Seri e / IPC 5100 / 5300 / 5500 / 1100 @ 1\mod_1204714132162_6.doc @ 3405 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 20: Status Indicators
Pos : 23 /D atentec hni k/Bedienung/Status-Anzeig en/SYS- LED/SYS- LED für VMT 60xx- Serie @ 2\mod_1260525540269_6.doc @ 6876 @ os: 25 /D atentechni k/Sc hnittstellen/Sc hnittstellenei nstellung/Schnittstellenei nstellung für VMT- Seri e / PLC 500 @ 0\mod_1158916296612_6.doc @ 517 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 21: Interfaces
PE contact with the device plug), the electrical insulation is no longer given. This also applies if the device is installed by using a metal retainer clip. If you want to have the device electrically insulated from the power supply, you © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 22 You must adhere to the following figure in order to ensure a correct installation of the PE system. Pos : 28 /D atentec hni k/Schnitts tell en/Lauts prec her/Lauts prec her für VMT 60xx @ 1\mod_1228482989111_6.doc @ 4247 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
-
Page 23: Speakers
Pos : 29 /D atentec hni k/Schnitts tell en/USB-Ansc hlus s/U SB-Ansc hl uss für VMT 60xx @ 2\mod_1260457598122_6.doc @ 6860 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 24: Usb Connections
The plastic cover of the USB interface must be returned in protective position after use. Pos : 30 /D atentec hni k/Schnitts tell en/PS2/Kombi Buc hs e für VMT 60xx @ 2\mod_1268840073235_6.doc @ 7482 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 25: Ps/2 Connector
Pos : 31 /D atentec hni k/Schnitts tell en/Netz werkansc hlus s RJ 45/Netz wer kansc hluss RJ 45 für VMT 60xx @ 2 \mod_1260451135970_6.doc @ 6856 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 26: Network Connection (Rj45)
Pos : 33 /D atentec hni k/Schnitts tell en/Seriell e Schnitts tell e C OM RS232/Serielle Sc hnitts tell e C OM (RS232) für VMT 60xx @ 1 \mod_1246373571514_6.doc @ 5876 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 27: Serial Com Interface (Rs232)
This interface is not electrically isolated. Pos : 34 /D atentec hni k/Laufwer ke/Festpl atte / C ompac t Flash/Fes tpl atte C ompac t Fl ash für VMT 60xx-Serie @ 2\mod_1263211316905_6.doc @ 6936 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 28: Drives
Pos : 36 /D atentec hni k/Softwar e / Trei ber Install ati on/Installati on des Betriebss ystems/Installation des Berti ebs s ystems für VMT 60xx @ 2\mod_1263211380903_6.doc @ 6940 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 29: Software & Driver Installation
Pos : 37 /D atentec hni k/Softwar e / Trei ber Install ati on/Touc h Screen/Touc h Screen Installation für OPC 5112/5212/5315/5515/5317/5319 / C PC 5006/OTC 5006/ VMT-Serie @ 0\mod_1159175108636_6.doc @ 665 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 30: Touch Screen Driver Installation
If the cursor position perfectly matches the touch point of your finger, you can exit this control menu by pushing "OK". Pos : 38 /D atentec hni k/Sondergeräte-M odule/VMT 6000-Serie/VMT 6000-Software Tools @ 2\mod_1268751957235_6.doc @ 7393 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 31: Configuration Center
ONFIGURATION ENTER ONFIGURATION The start page of the Configuration Center provides you with an overview of which ads-tec applications are installed on the device. Additionally, you can start any of these applications from the Configuration Center by double-clicking on it. -
Page 32: Automatic Brightness Adaptation
In order to save the changes, you'll have to push either Save or OK. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 33: Usb Lock Function
In this case, the settings can only be modified if the password was entered correctly. INTERFACES The desired USB ports can individually be locked by using the Lock button. All changes must be confirmed with the Save button. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 34: On / Off Pushbutton Configuration
The ON / OFF pushbutton only switches the device on. The switch-off function is disabled. Note: If the secure mode is used, the device can only be shut down by the software. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 35: Exemplary Rfid Application
The exemplary RFID application was developed in order to test the function of the RFID reader. Note: Function only for devices with RFID possible. Note: In the Interfaces section of the manual you can find more information about the topic of RFIDs. © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 36: Soft Keyboard
This function can be used for cleaning the touch screen. Pos : 39 /D atentec hni k/Softwar e / Trei ber Install ati on/Softkeyboar d/Softkeytastatur für alle Ger ät ohne i nternes Laufwer k(CD/D VD) @ 0\mod_1159175310134_6.doc @ 667 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 37: Soft Keyboard Installation
More information about this topic you'll find in the "Readme" file in the installation folder for the soft keyboard! Pos : 40 /D atentec hni k/T echnisc he Daten/VMT-Serie/VMT 60xx-Serie/Tec hnisc he D aten für VMT 6012 @ 1\mod_1228292065027_6.doc @ 4237 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 38: Technical Details
3,3 kg ca. 4,3 kg Weight Protection Class 100W 110W Power consumption os: 41 /D atentechni k/Ser vic e und Support/Ser vic e & Support @ 2\mod_1254312498746_6.doc @ 6472 @ © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... -
Page 39: Service And Support
For devices not directly purchased from ads-tec we don't deliver any support. The support is delivered by our associate companies in these cases. -
Page 40: Ce Conformity Declaration
Industrial PCs OPC6012/6015 11 CE CONFORMITY DECLARATION Gloss ar y OPC6012 Glsar y © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen... - Page 41 Industrial PCs OPC6012/6015 OPC6015 ===== End of bill of materi als ===== © ads-tec GmbH • Heinrich-Hertz-Str. 1 • D-72622 Nürtingen...
