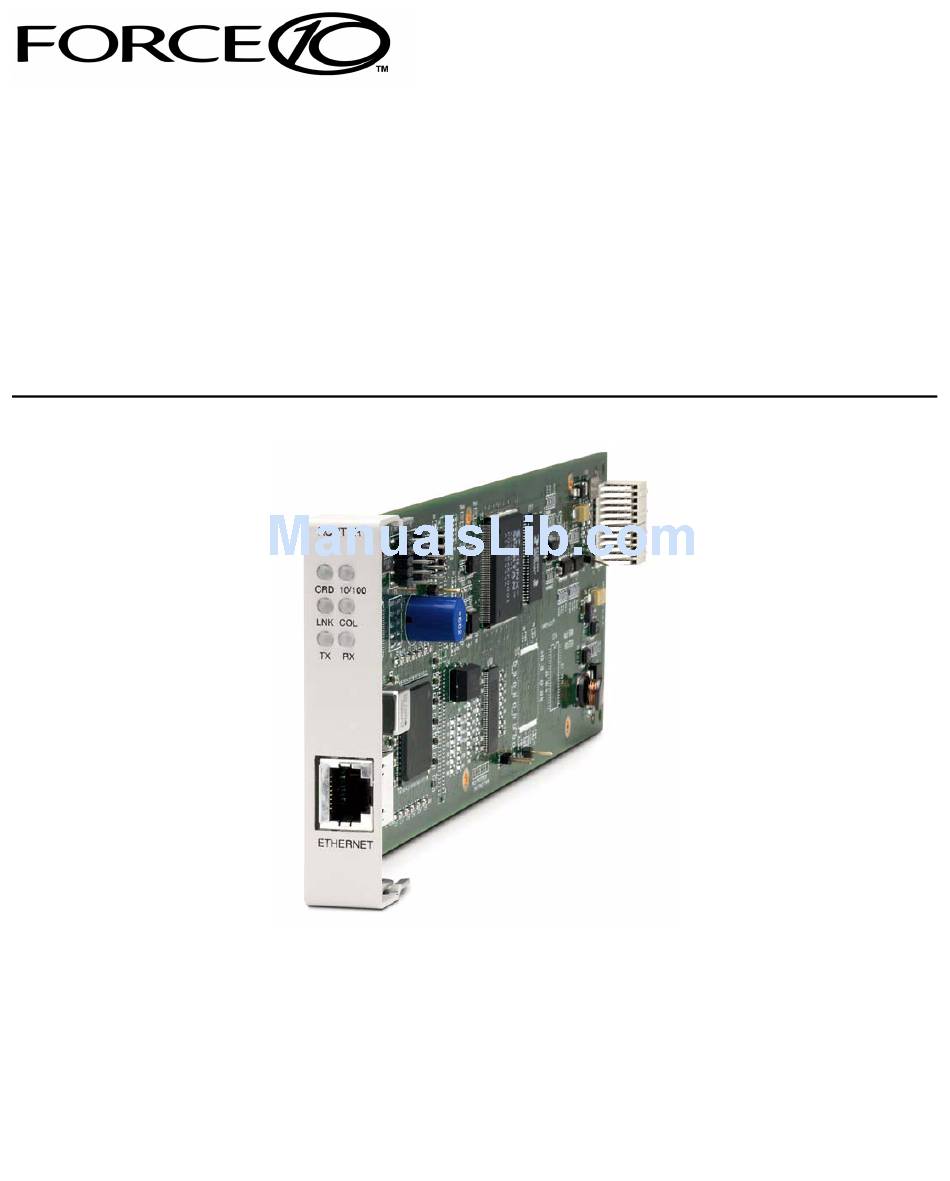

- Page 1 IP Router UICK TART UIDE Part Number: 002-0118-0210 Product Release: 2.97 August 2009...
- Page 2 Adit and Force10 Networks are registered trademarks of Force10 Networks, Inc. Force10 and the Force10 logo are trademarks of Force10 Networks, Inc. or its affiliates in the United States and other countries and are protected by U.S. and international copyright laws. All other brand and product names are trademarks or registered trademarks of their respective holders.
-
Page 3: In This Guide
UICK TART UIDE In this Guide Installation Basic Setup PPP Internet Connection and Public IP Address Routing Frame Relay Internet Connection and Public IP Address Routing Internet Connection using PPP, NAT/PAT and Firewall Filters Internet Connection using NAT and Static NAT Addresses Back-to-Back with PPP Back-to-Back with Multi-Link PPP... -
Page 4: Installation
Quick Start Guide Installation Installation Installation of the router card into the Adit 600 chassis: Unit can be on or off Router card will work in any slot Slide card into slot until fully seated Router has completed its boot cycle when CRD light is solid NOTE: Configuration can be done with CLI commands from the Adit 600 controller or with the Router Menu-Driven Software. -
Page 5: Ppp Internet Connection And Public Ip Address Routing
Quick Start Guide PPP Internet Connection and Public IP Address Routing PPP Internet Connection and Public IP Address Routing Router in Slot 1 ISP Router that provides the Internet connection. Command Description Set primary master transmit clock source set clock1 a:1 Set Router to default settings set 1 default Disconnect all connections to the T1 on the... -
Page 6: Frame Relay Internet Connection And Public Ip Address Routing
Quick Start Guide Frame Relay Internet Connection and Public IP Address Routing Frame Relay Internet Connection and Public IP Address Routing Router in Slot 1 ISP Router that provides the Internet connection. Command Description Set primary master transmit clock source set clock1 a:1 Set Router to default settings set 1 default... -
Page 7: Internet Connection Using Ppp, Nat/Pat And Firewall Filters
Quick Start Guide Internet Connection using PPP, NAT/PAT and Firewall Filters Internet Connection using PPP, NAT/PAT and Firewall Filters Router in Slot 1 ISP Router that provides the Internet connection. Router with NAT/PAT and Firewall Filters. Command Description Set primary master transmit clock source set clock1 a:1 Set Router to default settings set 1 default... - Page 8 Quick Start Guide Internet Connection using PPP, NAT/PAT and Firewall Filters Command Description Adds a Firewall rule to the WAN. Where add 1 "wan1" firewall 1 pass xxx.xxx.xxx.xxx is the host’s IP address at the far incoming log telnet end that will be able to ping or telnet to the router. 192.168.21.14/32 0.0.0.0/0 will allow any other host at the far end xxx.xxx.xxx.xxx/32...
-
Page 9: Internet Connection Using Nat And Static Nat Addresses
Quick Start Guide Internet Connection using NAT and Static NAT Addresses Internet Connection using NAT and Static NAT Addresses Router in Slot 1 ISP Router that provides the Internet connection. Router with NAT and Static NAT addresses. Command Description Set primary master transmit clock source set clock1 a:1 Set Router to default settings set 1 default... - Page 10 Quick Start Guide Internet Connection using NAT and Static NAT Addresses Command Description Adds a static IP network (route) to the WAN add 1 "wan1" static ip network interface 0.0.0.0 0.0.0.0 1 Add static NAT bi-directional mapping to wan1 add 1 "wan1" static nat address 192.168.21.14 216.174.44.232 Add static NAT bi-directional mapping to wan1 add 1 "wan1"...
-
Page 11: Back-To-Back With Ppp
Quick Start Guide Back-to-Back with PPP Back-to-Back with PPP The following configuration will set up two Adit 600 Routers back-to-back with PPP. 24 DS0s Boulder Denver wan1: PPP or Frame Relay 1.1.1.1/24 2.2.2.1 / 24 Static Routes Boulder Router in Slot 1 Command Description Set Router to default settings... -
Page 12: Denver Router In Slot 1
Quick Start Guide Back-to-Back with PPP Denver Router in Slot 1 Command Description Set Router to default settings set 1 default Disconnect all connections to the T1 on the disconnect a:1 Controller (slot a) Disconnect all connections to the router in slot 1 disconnect 1 Set primary master transmit clock source set clock1 a:1... -
Page 13: Back-To-Back With Multi-Link Ppp
Quick Start Guide Back-to-Back with Multi-Link PPP Back-to-Back with Multi-Link PPP The following configuration will set up two Adit 600 Routers back-to-back with Multi- Link PPP. Boulder Router in Slot 1 Command Description Set Router to default settings set 1 default Disconnect all connections to the T1 on the disconnect a:1 Controller (slot a) - Page 14 Quick Start Guide Back-to-Back with Multi-Link PPP Denver Router in Slot 1 Command Description Set Router to default settings set 1 default Disconnect all connections to the T1 on the disconnect a:1 Controller (slot a) Disconnect all connections to the router in slot 1 disconnect 1 Set primary master transmit clock source set clock1 a:1...
-
Page 15: Back-To-Back With Frame Relay
Quick Start Guide Back-to-Back with Frame Relay Back-to-Back with Frame Relay The following configuration will set up two Routers back-to-back with Frame Relay. Denver Boulder 1.1.1.1/24 1.1.1.1/24 24 DS0s Boulder Denver wan1: PPP or Frame Relay 1.1.1.1/24 2.2.2.1 / 24 Static Routes Boulder Router in Slot 1 Command... -
Page 16: Denver Router In Slot 3
Quick Start Guide Back-to-Back with Frame Relay Command Description Set the DLCI number set 1 "wan1" dlci 101 Reboot the router, to enable all configurations set reset 1 Denver Router in Slot 3 Command Description Set Router to default settings set 3 default Disconnect all connections to the T1 on the disconnect a:1...
