Evolve EVFE Installation Instructions & Owner's Manual

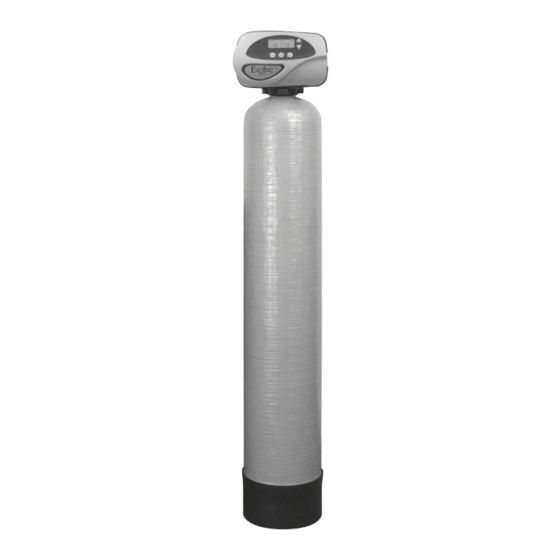

Evolve series water filter
Hide thumbs

Advertisement

Table of Contents

Evolve Series
®
Water Filters
For Models:
• EVFE
• EVS
• EAG
• EACG
• EVBF
• EVBF-AN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Evolve EVFE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Evolve Evolve EVFE

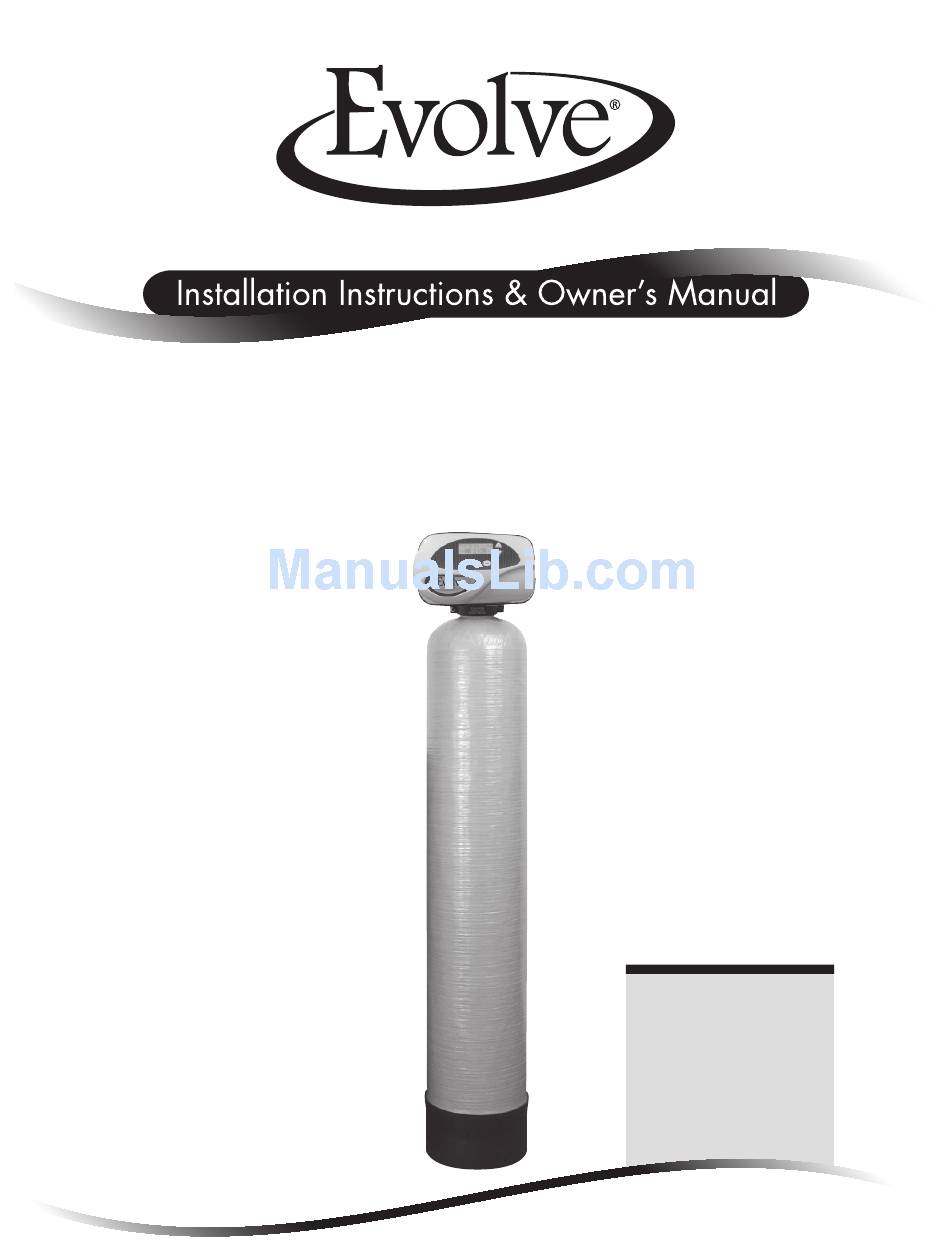

  • Page 1 Evolve Series ® Water Filters For Models: • EVFE • EVS • EAG • EACG • EVBF • EVBF-AN...

  • Page 2: Table Of Contents

    Water conditioners do not remove nitrates or coliform bacteria, this requires specialized equipment. Your Evolve Series water filters are precision built, high quality products. These units will deliver filtered water for many years to come, when installed and operated properly. Please study this manual carefully and understand the cautions and notes before installing.

  • Page 3: Preinstallation Instructions For Dealers

    PREINSTALLATION INSTRUCTIONS FOR DEALERS: The manufacturer has preset the water treatment unit’s sequence of cycles and cycle times. The dealer should read this page and guide the installer regarding day override, time of regeneration, service alarm and buzzer alarm settings before installation. For the installer, the following must be used: •...

  • Page 4: Bypass Valve

    BYPASS VALVE: The bypass valve is typically used to isolate the control valve from the plumbing system’s water pressure in order to perform control valve repairs or maintenance. The 1” full flow bypass valve incorporates four positions, including a diagnostic position that allows a service technician to have pressure to test a system while providing untreated bypass water to the building.

  • Page 5: Installation

    INSTALLATION: GENERAL INSTALLATION & SERVICE WARNINGS The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments. There is a small amount of “give” to properly connect the piping, but the water softener is not designed to support the weight of the plumbing. Do not use Vaseline, oils, other hydrocarbon lubricants or spray silicone anywhere.
  • Page 6 Remember to follow all local codes. When installing the drain line on any backwashing filter, especially Evolve filters that utilize air as the regenerant, hard piping such as PVC, Schedule 80 Plastic or copper is recommended. Remove the drain line nut (if included) and discard.
  • Page 7 8. CHECK VALVE: On Evolve air filters, a 3/8” check valve is part of the air draw assembly which includes tubing and a screen. Insert the tubing into the elbow on the control valve (see diagram at right). As the...

  • Page 8: Programming Procedures

    PROGRAMMING PROCEDURES: 1. Set time of day: Time of day should only need to be set after extended power outages or when daylight saving time begins or ends. If an extended power outage occurs, the time of day will flash on and off indicating that the time should be reset. STEP 1 –...
  • Page 9 NOTE: This valve has the capability of regenerating up to six times in one day. REGENS PER DAY 4 PER This can be observed by pressing the and + buttons simultaneously, then CLOCK using + or — buttons to toggle the correct number of regenerations per day as desired (see example to right).

  • Page 10: Start-Up Instructions

    4. Return to service 4. Backwash Inch Worm Feature: Evolve air units are programmed with the backwash air cycle feature (nicknamed “inch worm”). This unique feature allows for small movements or “inching” of the piston towards the backwash cycle. As the piston approaches this cycle, the backwash port opens slightly with each advancement, allowing air to escape to drain.

  • Page 11: Operating Displays And Maintenance

    OPERATING DISPLAYS AND INSTRUCTIONS: The air sulfur and air iron filter systems look and function much like any backwashing whole house filter; however, unlike these conventional filters, they use air as a regenerant. This atmospheric air (containing oxygen) helps convert iron or hydrogen sulfide into particles.

  • Page 12: Manual Regeneration

    4. MANUAL REGENERATION: Sometimes there is a need to regenerate before the control valve calls for it. This may be needed if a period of heavy water use is anticipated. • To initiate a manual regeneration at the next preset regeneration time, MANUAL REGENERATION press and release .

  • Page 13: Replacement Mineral Instructions For Acid Neutralizing Air Filters

    REPLACEMENT MINERAL INSTRUCTIONS FOR ACID NEUTRALIZERS: The EACG Iron Filter/Acid Neutralizer will remove iron and also raise the pH of mildly acidic water. The EVAN Upflow Acid Neutralizer will raise the pH of acidic water. The raising of pH utilizes a sacrificial mineral that will need replenishment every 6 to 12 months.

  • Page 14: Troubleshooting Guide

    TROUBLESHOOTING GUIDE: PROBLEM CAUSE CORRECTION A. No power at electric outlet A. Repair outlet or use working outlet B. Control valve power adapter not plugged into B. Plug power adapter into outlet or connect outlet or power cord end not connected to PC power cord end to PC board connection board connection 1.
  • Page 15 PROBLEM CAUSE CORRECTION A. Turn bypass handles to place bypass in A. Bypass valve in bypass position service position 7. Control valve does not B. Meter is not connected to meter connection on B. Connect meter to three pin connection labeled regenerate automatically PC board METER on PC board...
  • Page 16 TROUBLESHOOTING GUIDE cont’d: PROBLEM CAUSE CORRECTION A. Injector is plugged A. Remove injector and clean or replace B. Faulty regenerant piston B. Replace regenerant piston C. Regenerant line connection leak C. Inspect regenerant line for air leak 12. Control valve fails to D.
  • Page 17 PROBLEM CAUSE CORRECTION D. Verify that proper voltage is being supplied. 15. E2, Err – 1002, Err – Press NEXT and REGEN buttons for 3 seconds 102 = Control valve D. Improper voltage being delivered to PC board to resynchronize software with piston position motor ran too short or disconnect power supply from PC board for and was unable to...
  • Page 18 TROUBLESHOOTING GUIDE cont’d: PROBLEM CAUSE CORRECTION 19. Err – 1007, Err – 107, A. Open up MAV/NHBP valve and check piston Err - 117 = MAV/ and seal/ stack assembly for foreign material. SEPS/NHBP/AUX A. Foreign material is lodged in Press NEXT and REGEN buttons for 3 seconds MAV valve motor MAV/NHBP valve...

  • Page 19: Replacement Parts

    CV3367-01-A Black cover CV3367-01-WR-A Gray cover CV3107-1 Motor CV3106 -1 Drive bracket & spring clip CV3502WE Evolve PC board (used on chlorine generator models) CV4022WU Evolve PC board (standard) CV3110 Drive gear, 12 x 36 CV3109 Drive gear cover CV3002CC...
  • Page 20 REPLACEMENT PARTS: PISTON ASSEMBLY Item No. Part No. Description Qty. CV3005 1” spacer stack assembly CV3430 1.25” spacer stack assembly CV3004 Drive cap assembly CV3135 O-ring 228 CV3011 1” piston assembly downflow CV3011-01 1” piston assembly upflow CV3407 1.25” piston assembly downflow CV3174 Regenerant piston NOTE: Not available on...
  • Page 21 REPLACEMENT PARTS: BYPASS VALVE Item No. Part No. Description Qty. CV3151 Nut, 1” quick connect CV3150 Split ring CV3105 O-ring 215 CV3145 Bypass rotor, 1” CV3146 Bypass cap CV3147 Bypass handle CV3148 Bypass rotor seal retainer CV3152 O-ring 135 CV3155 O-ring 112 CV3156 O-ring 214...
  • Page 22 REPLACEMENT PARTS: INJECTOR ASSEMBLIES Item No. Part No. Description Qty. CV3176 Injector cap CV3152 O-ring 135 CV3177-01 Injector screen CV3010-1Z Injector assembly plug CV3010-1A A injector assembly, BLACK CV3010-1B B injector assembly, BROWN CV3010-1C C injector assembly, VIOLET CV3010-1D D injector assembly, CV3010-1E E injector assembly, WHITE...
  • Page 23 REPLACEMENT PARTS: DRAIN LINE ASSEMBLY 3/4” Item No. Part No. Description Qty. CH4615 Elbow locking clip CPKP10TS8-BULK Optional insert, 5/8” tube CV3192 Optional nut, 3/4” drain elbow CV3158-02 Drain elbow, 3/4” NPT with O-ring CV3163 O-ring 019 CV3159-01 DLFC retainer assembly CV3162-007 0.7 DLFC for 3/4”...
  • Page 24 REPLACEMENT PARTS: WATER METER & METER PLUG Item No. Part No. Description Qty. CV3151 Nut, 1” QC CV3003 Meter assembly, includes items 3 & 4 CV3118-01 Turbine assembly CV3105 O-ring 215 CV3003-01 Meter plug assembly CV3013 Optional mixing valve SERVICE WRENCH - CV3193-02 Although no tools are necessary to assemble or disassemble the valve, the Service Wrench, (shown in various positions on the valve) is...
  • Page 25 REPLACEMENT PARTS: CHLORINE TANK ASSEMBLY Item No. Part No. Description Qty. CH4600-50 474 safety float valve CH4640-32 474 float assembly CH4500-48 474 air check CN1043 10” pad for feeder CH7001 Grid for feeder...

  • Page 26: Installation Fitting Assemblies

    INSTALLATION FITTING ASSEMBLIES: 1” PVC MALE NPT ELBOW 3/4” & 1” PVC SOLVENT ELBOW Item Item Part No. Description Qty. Part No. Description Qty. CV3007 1” PVC male NPT elbow assembly CV3007-01 3/4” & 1” PVC solvent elbow assembly CV3151 Nut, 1”...
  • Page 27 1-1/4” & 1-1/2” BRASS SWEAT 1-1/4” & 1-1/2” PVC SOLVENT Item Item Part No. Description Qty. Part No. Description Qty. CV3007- 09 1-1/4 & 1-1/2” brass sweat assembly CV3007-07 1-1/4” & 1-1/2” PVC solvent assembly CV3151 Nut, 1” quick connect CV3151 Nut, 1”...

  • Page 28: Specifications

    Unit Filled 142 lb Unit Filled 185 lb NOTE: The EVS and EVFE are approved for use in the State of Wisconsin. Not tested at peak fl ow rate. Water quality may vary. Iron removal may vary for hydrogen sulfi de systems, depending on local conditions.
  • Page 29 ACID NEUTRALIZERS MODEL NUMBER EVBF-1044AN EVBF-1054AN EVBF-1354AN EVAN-1044 EVAN-1054 EVAN-1354 Mineral Type Calcite or Mix Calcite or Mix Calcite or Mix Calcite or Mix Calcite or Mix Calcite or Mix Amount (Cu Ft) Gravel Amount/Size (No. 1) 14 lb 1/4 x 1/8 14 lb 1/4 x 1/8 21 lb 1/4 x 1/8 14 lb 1/4 x 1/8...

  • Page 30: Warranty

    Water Conditioner Limited Warranty Congratulations. You have purchased one of the fi nest water treatment systems available. In the unlikely event of a problem due to defects in material and workmanship, Water-Right proudly warrants our Evolve Series water ® ®...

  • Page 31: Quick Reference Guide

    QUICK REFERENCE GUIDE: GENERAL OPERATION MANUAL REGENERATION REGEN TODAY and TIME OF DAY When the system is operating, one of six displays will be shown: NOTE: For softeners, if brine tank does will flash alternately if a regeneration 1. time of day/gpm not contain salt, fill with salt and wait is expected tonight.

  • Page 32: Hardness

    Default is ON. 21. Press to complete and return to normal operation. NEXT Manufactured exclusively for Evolve Series Dealers at: 1900 Prospect Court • Appleton, WI 54914 Phone: 920-739-9401 • Fax: 920-739-9406 © 2014 Evolve Series All rights reserved. LIT-EV FILT MAN ENVINK 3/14 1M...
