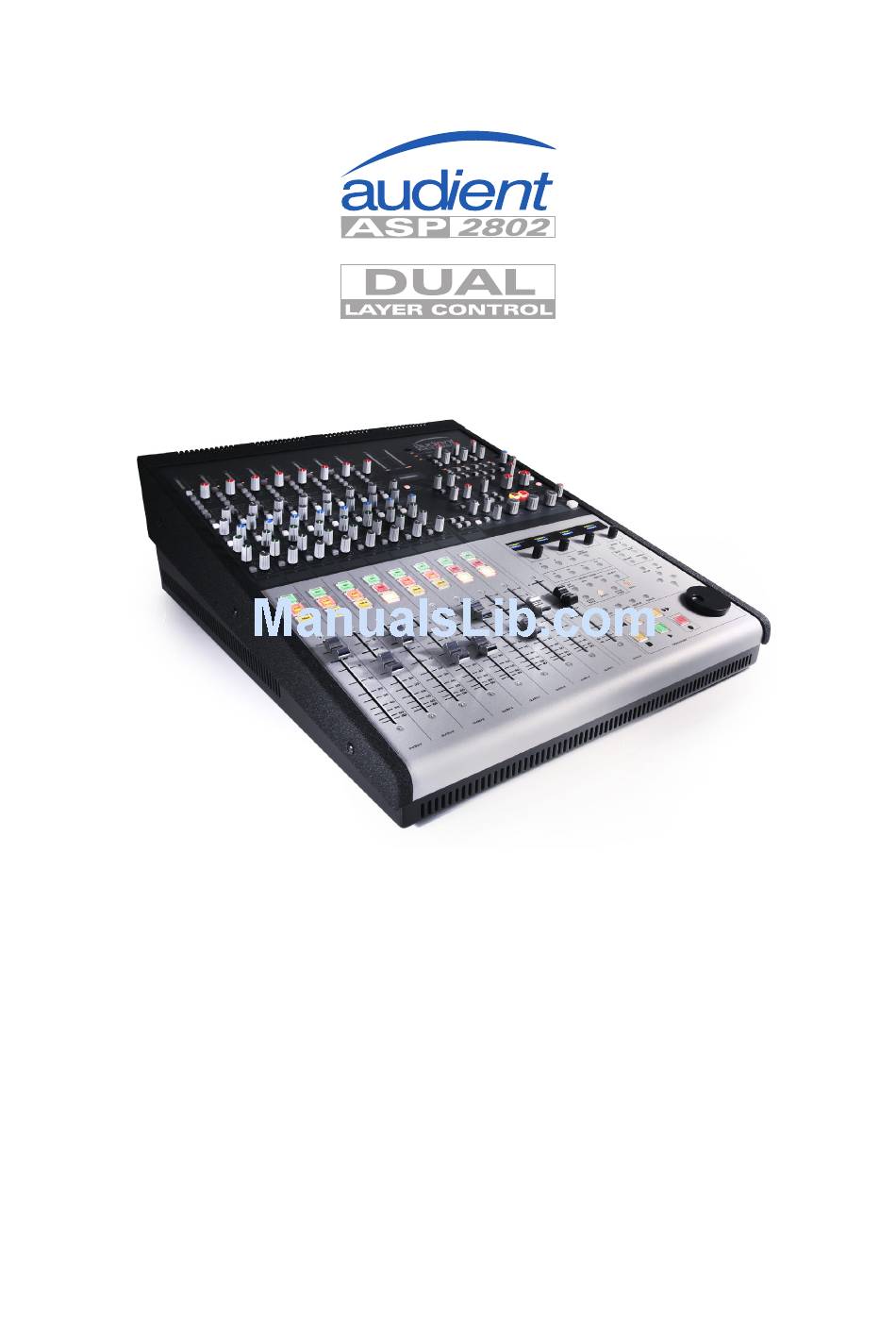

QUICK START

GUIDE
Version: 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASP2802 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audient ASP2802

Summary of Contents for Audient ASP2802

  • Page 1: Quick Start

    QUICK START GUIDE Version: 1.00...

  • Page 2: Table Of Contents

    Contents ASP2802 Installation........... Page Warning Safety & Mains (Fuse Information) Dimensions & Specification Ventilation Optional Rack Ear Installation Channel Strip Controls..........Page Master Section Controls..........Page Control Surface Panel..........Page Rear Panel Channel Connections......... Page DB25 (D-Sub) Wiring Specification......Page Rear Panel Master Connections........
  • Page 3 Installation © Audient Ltd Page -3-...
  • Page 4 Installation Package Contents Your ASP2802 Console has been carefully and meticulously tested and inspected before dispatch. Please check for any signs of transit damage. If any signs of mishandling are found please notify the carrier and inform your dealer immediately.
  • Page 5 Installation ASP2802 Dimensions (including rubber feet) Height Front - 60 mm Height Rear - 170 mm Width - 450 mm Depth - 550 mm Height (depth) when racked 13RU plus connector space - 15RU ASP2802 Specifications Some general performance figures from the console - taken with Prism D-Scope test equipment.

  • Page 6: Ventilation

    13RU plus connector space (suggest 15RU total) - please ensure that these ventilation holes are not restricted. Perhaps consider using a vented 19” blanking plate to cover the connector space, providing adequate air flow to the top ventilation plate. © Audient Ltd Page -6-...
  • Page 7 Rack Installation (optional) Please note that rack ears for ASP2802 are an optional extra. © Audient Ltd Page -7-...

  • Page 8: Channel Strip Controls

    Channel Strip © Audient Ltd Page -8-...

  • Page 9: Master Section Controls

    Master Section © Audient Ltd Page -9-...

  • Page 10: Control Surface Panel

    Control Surface Panel Control Surface Installation Please refer to the separate DAW specific control surface www.audient.com manuals found online at to guide you through installation, setup and configuration of ASP2802 as a DAW control surface. © Audient Ltd Page -10-...

  • Page 11: Rear Panel Channel Connections

    Rear Panel Channel Connections © Audient Ltd Page -11-...

  • Page 12: Db25 (D-Sub) Wiring Specification

    DIR Out 6 (4, 17, 5) Input 7L (15, 3, 16) DAW Input 7 (15, 3, 16) DIR Out 7 (15, 3, 16) Input 8R (1, 14, 2) DAW Input 8 (1, 14, 2) DIR Out 8 (1, 14, 2) © Audient Ltd Page -12-...

  • Page 13: Rear Panel Master Connections

    Rear Panel Master Connections © Audient Ltd Page -13-...

  • Page 14: Daw Ethernet Connection (Mac)

    DAW Ethernet Connection (Mac) You can use standard Cat-5e Ethernet cable to connect ASP2802 to your studio DAW computer. The interface in ASP2802 is compatible whether you use a straight through or cross-over cable. Please ensure that you have downloaded and installed the latest version of our AuNet.dmg...
  • Page 15 IP Address Setup for Direct Connection Unless you have a router in your studio, it is most likely that you will directly connect ASP2802 to your DAW via a direct Ethernet link. First you must set your DAW IP address (please note if you do have a router, this should not be adjusted and you should skip to the next section).
  • Page 16 SETUP button. The OLED displays will show the first page of console setup. First set the application you are using with ASP2802. The options at the time of release include: • Apple Logic 9 • Avid Pro Tools 8 • Steinberg Cubase 5 (Nuendo)
  • Page 17 / restart process if you are experiencing difficulties). AuNet should indicate detection of the console and should also show you the serial number of the console. Select the console and click on the connect button to the bottom right >> © Audient Ltd Page -17-...
  • Page 18 If you have connected ASP2802 to your DAW computer via a network router, you will need to use DHCP to enable automatic configuration of IP address, providing fast and smarter networking.

  • Page 19: Daw Ethernet Connection (Pc)

    DAW Ethernet Connection (PC) You can use standard Cat-5e Ethernet cable to connect ASP2802 to your studio DAW computer. The interface in ASP2802 is compatible whether you use a straight through or cross-over cable. Please ensure that you have downloaded and installed the latest version of our AuNet.msi...
  • Page 20 Networking (PC) Once you have connected ASP2802 to your studio computer via either a direct Ethernet link or through a router and installed AuNet you are ready to set up the networking side of the console. Until your console is connected (or any other LAN device to your PC), the LAN status indicated in Control Panel >...
  • Page 21 Power the console on and once booted, check that a connection has been opened in the Network Connections window via the Control Panel. © Audient Ltd Page -21-...
  • Page 22 The OLED displays will show the first page of console setup. First set the application you are using with ASP2802. The options for PC at the time of release include: • Avid Pro Tools 8 • Steinberg Cubase 5 (Nuendo) Use the first rotary encoder to select the required DAW application.
  • Page 23 AuNet should indicate detection of the console and should also show you the serial number of the console. Select the console and click on the connect button to the bottom right >> © Audient Ltd Page -23-...
  • Page 24 If you have connected ASP2802 to your DAW computer via a network router, you will need to use DHCP to enable automatic configuration of IP address, providing fast and smarter networking.

  • Page 25: Firmware Updates

    ASP2802 webpage and follow the simple instructions provided along with the firmware download to flash the new upgrade to the console memory. If you experience any issues please read the ASP2802 FAQ found online at www.audient.com. © Audient Ltd...

  • Page 26: Example Systems

    In this example, the analogue line outputs of the ASP008 are also routed to the ASP2802 line inputs, allowing optional access to the direct output system here (note that they would override the console microphone inputs at that point).
  • Page 27 / line-level summing with a few useful tricks. The first 8 channels feed the standard DAW Inputs and can be used to access the main automation channels on ASP2802 when selecting input mode. These 8 channels can also access the outboard selection via the switched insert points.
  • Page 28 Example System 1 © Audient Ltd Page -28-...
  • Page 29 Example System 2 © Audient Ltd Page -29-...
  • Page 30 Example System 3 © Audient Ltd Page -30-...
  • Page 31 Example System 4 © Audient Ltd Page -31-...
  • Page 32 Bus Compressor Settings © Audient Ltd Page -32-...
  • Page 33 Audient Ltd 1 Stable Court Herriard Park Herriard Hampshire RG25 2PL Phone: +44 (0) 1256 381944 Fax: +44 (0) 1256 381906...
