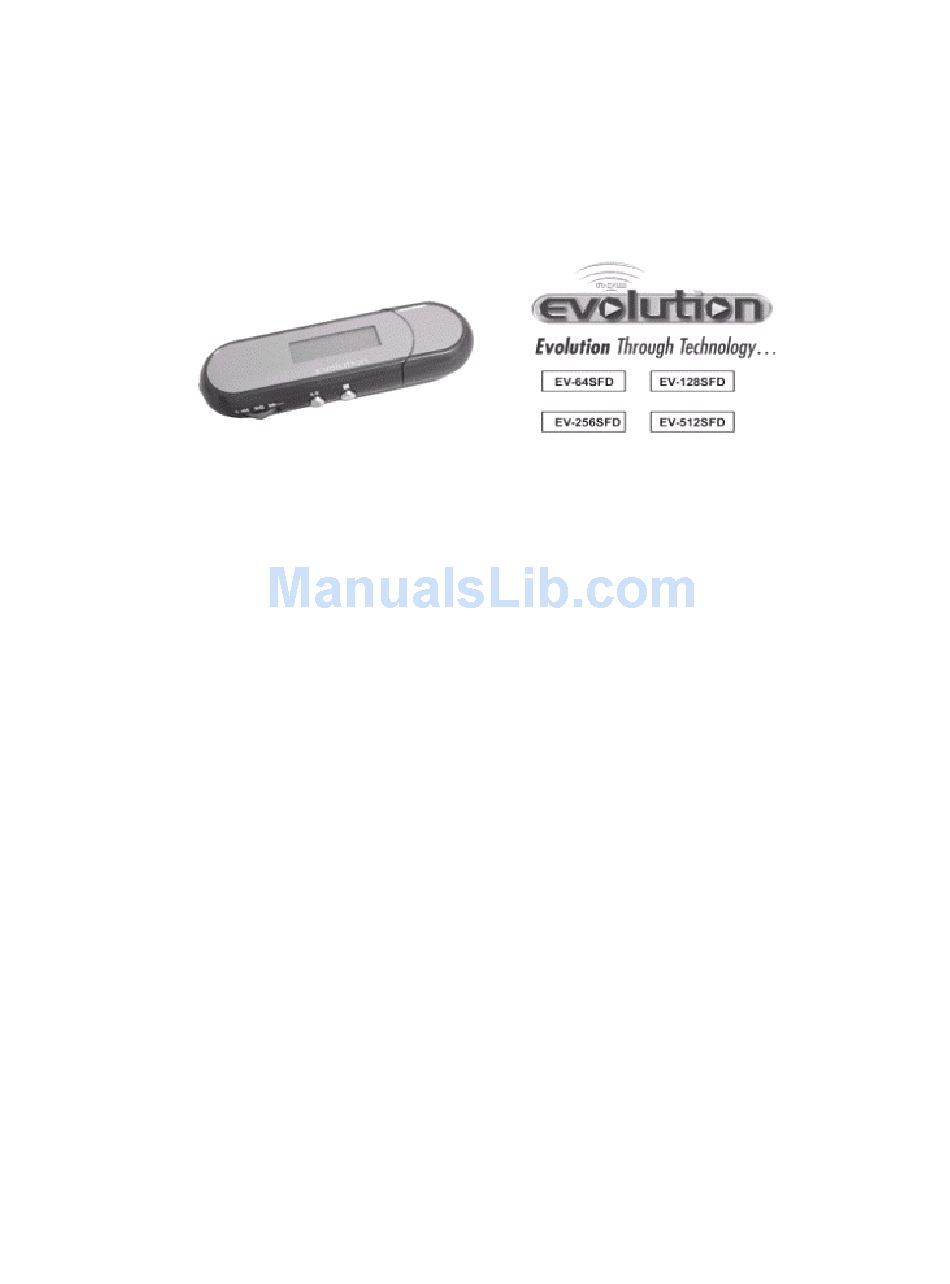

USER MANUAL
ank you for choosing Evolution Technologies Inc. exciting new digital
Th
product, the EV-64SFD/EV-128SFD/EV-256SFD/EV-512SFD, your Digital
MP3 Player and Storage Device with FM Receiver. The
EV-64SFD/EV-128SFD/EV-256SFD/EV-512SFD contains
64MB/128MB/256MB/512MB Flash Memory. This device features a Digital
Voice Recorder & FM Receiver.
For optimum performance please read the User Manual carefully
before operating your player.
Advertisement
Table of Contents
Related Manuals for Evolution EV-64SFD
Summary of Contents for Evolution EV-64SFD
- Page 1 USER MANUAL ank you for choosing Evolution Technologies Inc. exciting new digital product, the EV-64SFD/EV-128SFD/EV-256SFD/EV-512SFD, your Digital MP3 Player and Storage Device with FM Receiver. The EV-64SFD/EV-128SFD/EV-256SFD/EV-512SFD contains 64MB/128MB/256MB/512MB Flash Memory. This device features a Digital Voice Recorder & FM Receiver.
-
Page 2: Package Components
FEATURES The EV-64SFD/EV-128SFD/EV-256SFD/EV-512SFD is a portable 4-in-1 device. * 64/128/256/512MB MP3 Player * USB File storage * FM Receiver * Digital Voice Recorder PACKAGE COMPONENTS 1. EV-64SFD/EV-128SFD/EV-256SFD/EV-512SFD Player 2. Manual & Installation CD (Music Match software included) 3. Stereo ear buds 4. -
Page 3: Battery Cover
Power ON/OFF Switch Hold Switch Stop Button A-B/Mode button Play/Pause/Skip Button Earphone Jack Tether Hole USB Jack Cover Battery Cover Installing Battery 1. Remove USB Jack Cover 2. Press and Slide open the Battery Cover 3. Insert one AAA alkaline battery 4. -
Page 4: Software Installation
Connect to PC – (Connect your device while OFF) 1. Position your PC so that its USB ports can be easily accessed. 2. Remove USB Jack Cover. 3. Be sure to have Hold Switch in Inactive or Disengaged Position. 4. Plug the flat USB end of the USB cable to the PC. 5. -
Page 5: Copying And Pasting
Use as an MP3 player 1.Download MP3 files to the unit. This will be done by dragging and dropping or copying and pasting MP3 files from a saved location on your hard drive to the removable drive. The removable drive, which represents the internal memory of your player, will be identified with a listing of all associated drives on your operating system. -
Page 6: Usb Storage Device
Operating system to safely remove the Player USB Storage Device 1.Download files to the unit. This will be done by dragging and dropping or copying and pasting files from a saved location on your hard drive to the removable drive. The removable drive, which represents the internal memory of your player, will be identified with a listing of all associated drives on your operating system. -
Page 7: Voice Recorder
Please follow the Remove Hardware Instructions specific to your Operating system to safely disconnect your player. Be sure to right click to stop Removable Device, and then click OK. Do not remove the unit until suggestion you “USB Mass storage device can be removed safely now ”. -
Page 8: Tuning An Fm Station
FM Receiver How to listen to FM Radio -To switch to the FM radio mode, please select [FM TUNER] from main menu and press the PLAY button to listen. -Use SKIP button to select the station you prefer. -To exit FM radio mode to Play Music mode, press A-B button and select MP3 Play in menu, then press PLAY button. -
Page 9: Other Functions And Settings
Other Functions and Settings Repeat mode There are 2 Repeat modes: 1.Normal Play 2.Repeat All: This mode will play all MP3 files repeatedly. Repeat AB 1.When first pressing A-B button, A- will flash on LCD. 2.When second pressing A-B button, AB will flash on LCD. The player will play this section of your selected track repeatedly. -
Page 10: Lcd Contrast
Equalizer There are 6 EQ modes: 1. EQ -FLAT 2. EQ -BASS 3. EQ -ROCK 4. EQ -POP 5. EQ -CLASSIC 6. EQ -JAZZ Use the Skip button and the Play button to select your preferred EQ mode. Volume The volume range is 00 to 15. Push Skip button to turn volume up or down. -
Page 11: Technical Specifications
Technical Specifications Memory size: Flash Memory: 64MB, 128MB, 256MB, 512MB. Interface: USB plug A TYPE. LCD Display: 96*32 graphic LCD with Electro-Luminescent Backlight. Power supply: u One AAA alkaline battery for MP3/WAV playback and FM Receiver. Use USB Bus power while plugging into PC USB port. S/N ratio: >... - Page 12 EV-128SFD: 30 MP3 tracks. EV-256SFD: 60 MP3 tracks. EV-512SFD: 120 MP3 tracks. 3.Howmany minutes of recorded voice files will my player hold? EV-64SFD: about 128 minutes. (with memory empty) EV-128SFD: about 256 minutes. EV-256SFD: about 512 minutes. EV-512SFD: about 1024 minutes.
-
Page 13: Troubleshooting
Troubleshooting 1.Nothing is displayed on the LCD. Please check whether you r batteries have made proper contact. Please check whether you have placed the Power ON/OFF switch into the ON position. 2.My player will not turn on. Please verify the strength of your battery. Please check whether you have placed the Power ON/OFF switch into the ON position. - Page 14 Memory size and audio quality The MP3 memory size and MP3 quality are related. The higher quality required, the higher the bit-rate needed. This leads to more data storage and memory requirements. The amount of memory required for the player is proportional to audio playback time.
- Page 15 Operation outside the product's specifications. If Evolution Te chnologies, Inc. receives, during the applicable warranty period; notice of a defect in any hardware product, which is covered by Evolution Technologies, Inc. warranty, Evolution Technologies, Inc. shall either repair or replace the defective product at Evolution Technologies, Inc.
- Page 16 To the extent allowed by local law, except for the obligations specifically set forth in this warranty statement, in no event shall Evolution Technologies, Inc. or it's third party suppliers be liable for direct, indirect, special, incidental, or consequential damages, whether based on contact, tort, or any other legal theory and whether advised of the possibility of such damages.
